This external rotor motors is published with the manufacturer’s full specification — air flow direction sucking or blowing, type Asynchronous Motor. Made by Ningbo Lionball Ventilator Co., Ltd. (22 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These External Rotor Motors
- Model Number: YJF16-26/18
- Rated Power: 16W
- AC Voltage: 110/115/220/240V
- Air Flow Direction: sucking or blowing
- Rated Speed: 1500 RPM
- Warranty: 1year
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 110/115/220/240V |
| Rated Power | 16W |
| Rated Speed | 1500 RPM |
| Type | Asynchronous Motor |
| Frame | NO |
| Motor Mounting Type | Foot Mount |
| Protect Feature | Explosion-proof |
| Efficiency | IE3 |
| Warranty | 1year |
| Model Number | YJF16-26/18 |
| Brand Name | LIONBALL |
| Place Of Origin | Zhejiang, China |
| Frequency | 50/60Hz |
| Product Name | AC industrial refrigerator fan motor |
| Air Flow Direction | sucking or blowing |
| Assessories | bracket,fan,ring and grill |
| Bearing | sleeve bearing |
| Protection Class | IP42 or IP44 |
| Insulation Class | Class B |
| Mode Of Operation | S1 continuous operation |
| Motor Protection | impedance switched |
| Rotation | CW,CCW |
| Selling Units | Single item |
Product Details
40 years professional 16W 110v 220v ac shaded pole motor for air cooler fan

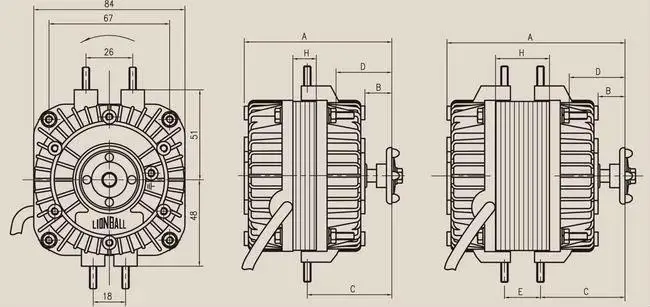

| MODEL | VOLTAGE V | INPUT POWER W | OUTPUT POWER W | CURRENT A | SPEED RPM | A mm | B mm | C mm | D mm | H mm |
| YJF3-26/18 | 220/240 | 20 | 3 | 0.16 | 1300/1550 | 81 | 14 | 46 | 30 | 12.5 |
| 110/115 | 20 | 3 | 0.32 | 1300/1550 |
| |||||
| YJF5-26/18 | 220/240 | 30 | 5 | 0.2 | 1300/1550 |
| ||||
| 110/115 | 30 | 5 | 0.4 | 1300/1550 |
| |||||
| YJF7-26/18 | 220/240 | 38 | 7 | 0.27 | 1300/1550 | 91 | 17 | 49 | 33 | 20 |
| 110/115 | 38 | 7 | 0.54 | 1300/1550 |
| |||||
| YJF10-26/18 | 220/240 | 42 | 10 | 0.3 | 1300/1550 |
| ||||
| 110/115 | 42 | 10 | 0.6 | 1300/1550 |
| |||||
| YJF16-26/18 | 220/240 | 58 | 16 | 0.4 | 1300/1550 | 102 | 18 | 50 | 34 | 25 |
| 110/115 | 58 | 16 | 0.8 | 1300/1550 | ||||||
| YJF18-26/18 | 220/240 | 60 | 18 | 0.43 | 1300/1550 | 30 | ||||
| 110/115 | 60 | 18 | 0.86 | 1300/1550 | ||||||
| YJF20-26/18 | 220/240 | 65 | 20 | 0.47 | 1300/1550 | |||||
| 110/115 | 65 | 20 | 0.94 | 1300/1550 | ||||||
| YJF25-26/18 | 220/240 | 100 | 25 | 0.7 | 1300/1550 | 112 | 18 | 40 | ||
| 110/115 | 100 | 25 | 1.4 | 1300/1550 | ||||||
| YJF34-26/18 | 220/240 | 120 | 34 | 9 | 1300/1550 | 117 | 45 | |||
| 110/115 | 120 | 34 | 1.8 | 1300/1550 |
Ordering and Pricing
- Minimum order quantity: 1000 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motors?
The standard minimum order quantity is 1000 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Can the external rotor motors be supplied for my local voltage?
The standard configuration is 110/115/220/240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Lionball Ventilator Co., Ltd., based in China. The company 22 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ningbo Lionball Ventilator Co., Ltd. range on HVACR Nexus.
