Factory-supplied silicone duct heater — 220V-380V, heating capacity great. The complete factory specification follows. Made by Henan Jinyu Electric Heating Technology Co., Ltd. (16 years on the platform, typical reply ≤22h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Factory-Supplied Silicone Duct Heater
- Power Source: Electric
- Voltage: 220V-380V
- Heating Capacity: great
- Material: Silicone
- Warranty: 1 Year
- Place Of Origin: Henan, China
Technical Specifications
| Type | Duct Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220V-380V |
| Material | Silicone |
| Key Selling Points | High-Accuracy |
| Warranty | 1 Year |
| Heating Capacity | great |
| Place Of Origin | Henan, China |
| Weight (Kg) | 1 |
| Brand Name | JIN YU |
| Dimension(L*W*H) | Customized |
| Heating Temperature | 600-1600C |
| Diameter | 8-54mm |
| Length | 240-4000mm |
| Working Life | More than 8000 hours |

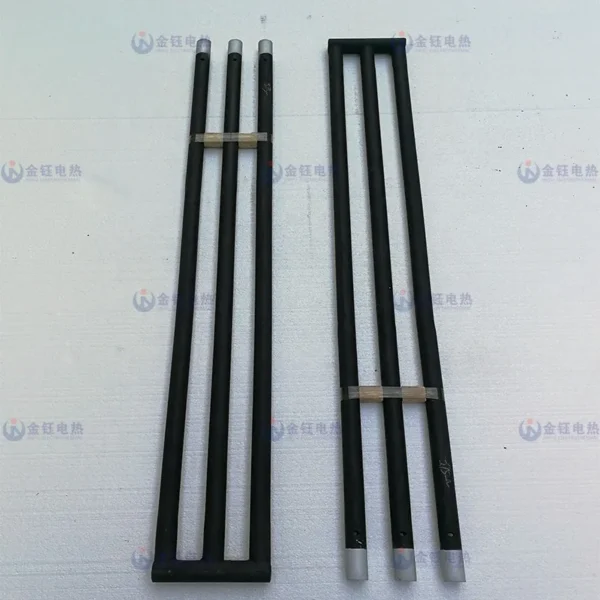

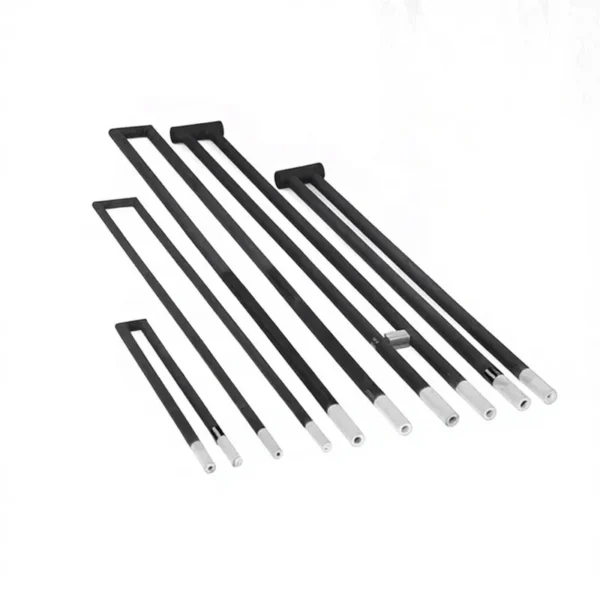

| Shape | U, W, ED, DB, SCR, SC |
| Application | Industry heating,Furnace,etc |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

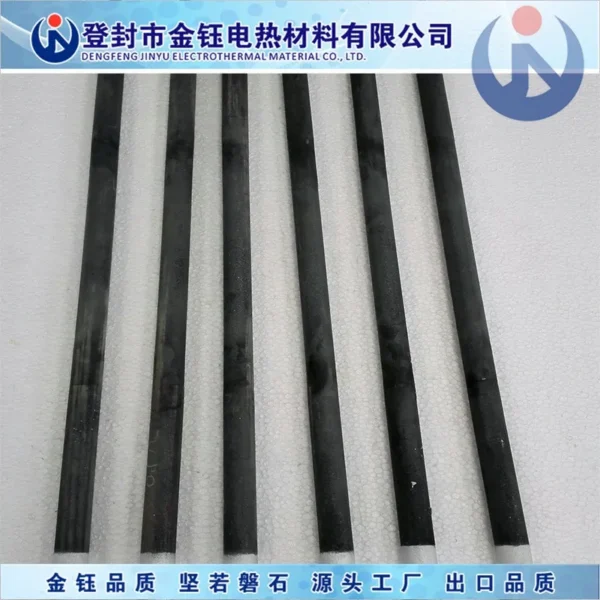

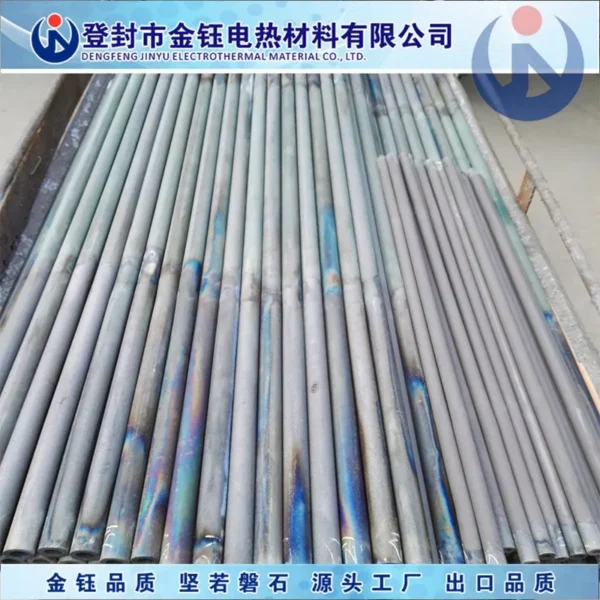

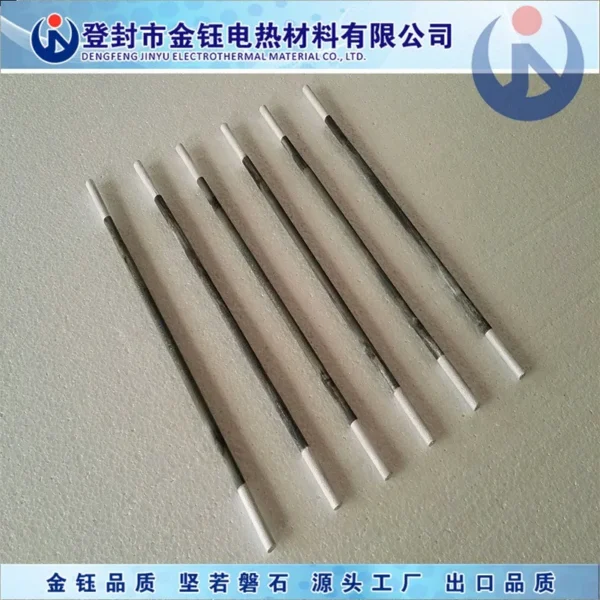

Single Spiral Sic Heating Element Heater

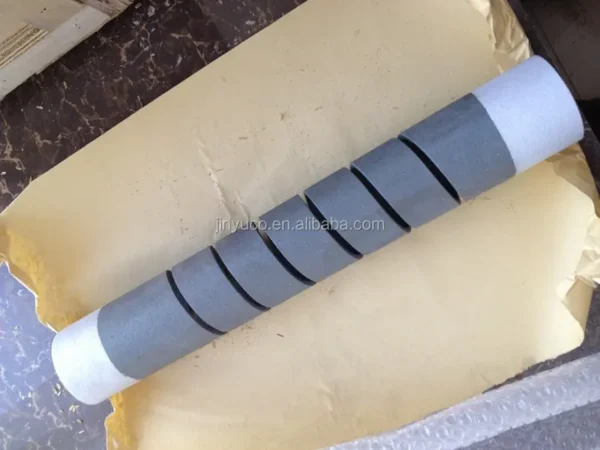

Single Spiral Sic Heating Element Heater with a spiral-grooved heating section, are more resistant to heat and corrosion than conventional products and are able to withstand operation in rigorous conditions.
Single Spiral Sic Heating Element Heaters are made of selected super quality green silicon carbide as main material, which is made into blank, silicide under high temperature and re-crystallized. Max temperature 1600 deg C. Single Spiral SiC Heating elements are provided with energy-saving, low-resistance, cold-end terminals.
Characters of Single Spiral Sic Heating Element Heater
1.) Low expansion coefficient
2.) Little deformation
3.) Stable chemical property
4.) Long service life
5.) Easy installationand maintenance
Physical Properties of Single Spiral Sic Heating Element Heater
| specific gravity | 2.6~2.8g/cm³ | bend strength | >300kg |
| hardness | >9 MOH′S | Tensile strength | >150kg/cm³ |
| porosity rate | <30% | radiancy | 0.85 |
Dimension & Resistance of Single Spiral Sic Heating Element Heater
| Dia (OD)(mm) | Length of hot zone (HZ)(mm) | Length of cold zone (CZ)(mm) | Overall Length (OL)(mm) | Range of Resistance (Ω) (ohms) |
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
When you place order, please give following information
OD (mm): Outer Diameter
HZ (mm): Hot Zone length
CZ (mm): Cold Zone length
OL (mm): Overall Length
If you have the special requirement for the resistance, please tell us!
Application of Single Spiral Sic Heating Element Heater
It can usually make use for furnace which temperature from 600-1600. It can be directly used in an air atmosphere, without any protection atmosphere.
It is extensively used in the fields of metallurgy, ceramics, glass, machinery, analysis test, semiconductor, science & research and so on.
Notes for Using and Installing
1. Heater should be protected against damp during storing or installing to ensure the performance of the heater.
2. In order to be sure of well-distributed lod of each and groups, heater should be divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other.
3. Heater is hard and brittle, please be careful when assem bling and maintaining so as to avoid damage.
4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.
5. When heater is damaged and need to be changed, the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10+ piece: US $99.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this factory-supplied silicone duct heater?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the factory-supplied silicone duct heater be supplied for my local voltage?
The standard configuration is 220V-380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Jinyu Electric Heating Technology Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Jinyu Electric Heating Technology Co., Ltd. range on HVACR Nexus.
