This fan coil unit is published with the manufacturer’s full specification — airflow 2000m³/h, type Fan Coil Unit. Made by Shandong Volks Air Conditioner Group Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Operating Voltage: 230 VAC
- Cooling Capacity: 1800~12600W
- Airflow: 2000m³/h
- Warranty: 2 Years
- Place Of Origin: Shandong, China
- Type: Fan Coil Unit
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Airflow | 2000m³/h |
| Operating Voltage | 230 VAC |
| Mounting Type | Ceiling Mount |
| Key Selling Points | Competitive Price |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC, Pump |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 35 KG |
| Brand Name | Singa |
| Showroom Location | Uzbekistan |
| Marketing Type | New Product 2020 |
| Cooling Capacity | 1800~12600W |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
Features of fan coil unit More security, more reliable, and more service life Each fan-coil heat exchanger will be undergone pressure leak detection. The inlet and outlet are of forged brass structure, which is reliable and durable. All materials are well fireproof. The motors are with overheating and power failure protection devices. With free- maintenance Ultra-low noise rolling bearings, the service life can reach up to 35,000 hours. The shaft of the motor is specially treated without rust. The casing is made of high-quality cold-rolled steel plate, sprayed plastic or hot-dip galvanized steel plate, which is mechanically bitten into the shape, which is strong and anti-corrosive.
High performance, high efficiency The coil are equipped with seamless red copper tube string with high-efficiency corrugated aluminum fin structure, which is integrated by mechanical expansion. The combination is tight enough to make sure a higher heat transfer efficiency , a more sufficient heating efficiency , and a dust free surface . Advanced technology with lower noise The fan impeller has no welding points as a whole, and the wheel frame ring is tightly integrated and never deformed. The double-inlet forward-leaning airfoil centrifugal galvanized steel wind wheel has undergone strict dynamic and static balance tests. The air is transmitted in a streamlined manner to reduce vortexes. The generation of swirling air reduces the noise generated during air friction, and the unit runs more smoothly and quietly. Beautiful appearance, easy maintenance The unit is with humanized design for easily maintain and repair. The unit filter can also be cleaned at any time.
Model Name | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | ||||||||
Power Supply | 1 phase, 220-240V, 50 | |||||||||||||||
Air Flow(M3/H) | H | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | |||||||
M | 255 | 383 | 510 | 638 | 765 | 1020 | 1275 | 1530 | ||||||||
L | 170 | 255 | 340 | 425 | 510 | 680 | 850 | 1020 | ||||||||
Cooling(W) | H | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | |||||||
M | 1440 | 2160 | 2880 | 3600 | 4320 | 5760 | 7200 | 8640 | ||||||||
L | 1170 | 1755 | 2340 | 2925 | 3510 | 4680 | 5850 | 7020 | ||||||||
Heating(W) | H | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | |||||||
M | 2160 | 3240 | 4320 | 5400 | 6480 | 8640 | 10800 | 12960 | ||||||||
L | 1755 | 2633 | 3510 | 4388 | 5265 | 7020 | 8775 | 10530 | ||||||||
Power Input(W) | 12Pa | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | |||||||
30Pa | 44 | 59 | 72 | 87 | 108 | 156 | 174 | 212 | ||||||||
50Pa | 49 | 66 | 84 | 100 | 118 | 174 | 212 | 189 | ||||||||
Noise dB(A) | 12Pa | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | |||||||
30Pa | 40 | 42 | 44 | 46 | 47 | 48 | 50 | 52 | ||||||||
50Pa | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | ||||||||
Fan | Type | Forward multi – wing centrifugal double suction fan | ||||||||||||||
Qty | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | ||||||||
Motor | Type | Permanent capacitive three-speed motor | ||||||||||||||
Qty | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||||||||
Heat Exchanger | Copper tube and aluminum fin | |||||||||||||||
Water Flow() | m3/h | 0.39 | 0.55 | 0.7 | 0.82 | 0.91 | 1.34 | 1.59 | 1.8 | |||||||
Pressure Drop | kPa | 12 | 16 | 20 | 23 | 26 | 28 | 32 | 38 | |||||||
Pipe Size | DN20 Internal thread | |||||||||||||||
Drain pipe | 3/4’’ External thread | |||||||||||||||
Net Weight | ||||||||||||||||
without plemun | 14 | 15 | 17 | 19 | 20 | 27 | 32 | 35 | ||||||||
with plemun | 17 | 19 | 20 | 22 | 25 | 31 | 37 | 42 | ||||||||

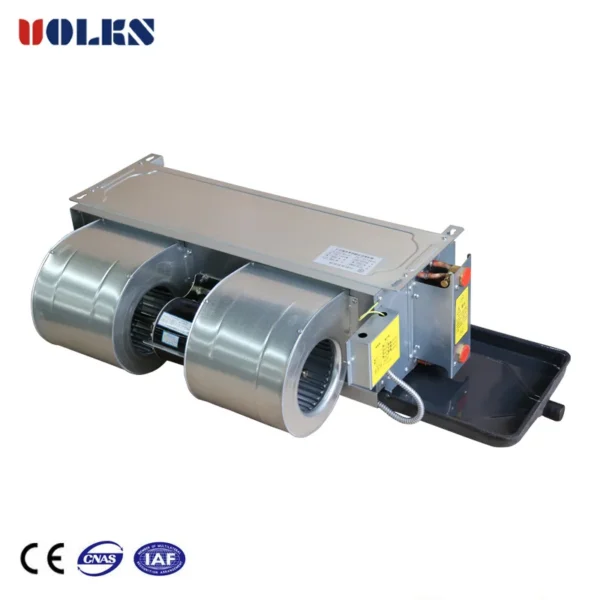

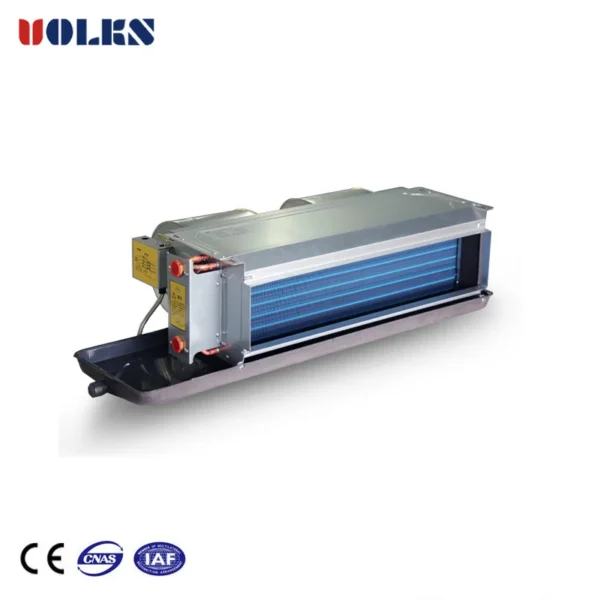

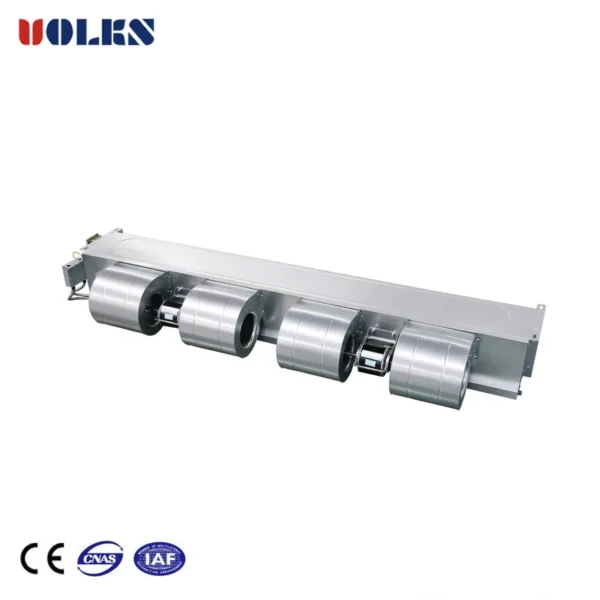

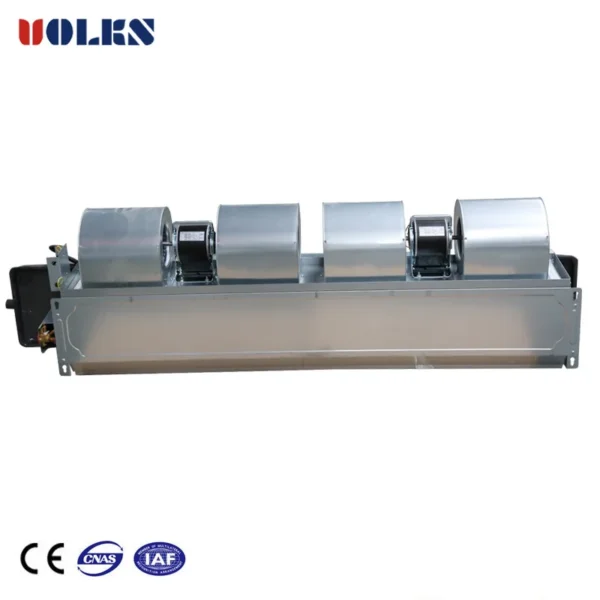

Details Images
