Key specification for this fan coil unit: 360M3/H, type Fan Coil Unit. Everything below is reproduced from the factory data sheet. Made by Shandong GRAD Group Co., Ltd. (20 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Fan Coil Unit
- Cooling Capacity: 2.35-14KW
- Heating Capacity: 3.88-23.7KW
- Airflow: 360M3/H
- Warranty: 2 Years
- Place Of Origin: Shandong, China
- Application: Restaurant
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Wall / Window Mount |
| Compressor Brand | Sanyo |
| Fan Motors Type | AC |
| Key Selling Points | Eco-Friendly |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 11.5 |
| Brand Name | GRAD |
| Dimension(L*W*H) | 68*42*45 |
| Keyword | chilled water fan coil unit |
| Airflow | 360M3/H |
| Function | Cooling Ventilation |
| Application | Restaurant |
| Cooling Capacity | 2.35-14KW |
| Heating Capacity | 3.88-23.7KW |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details
Product Overview

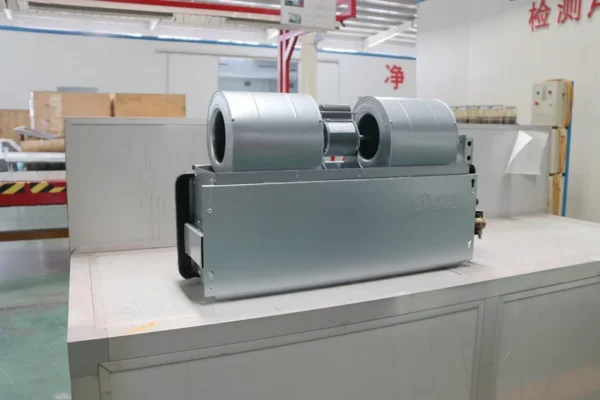

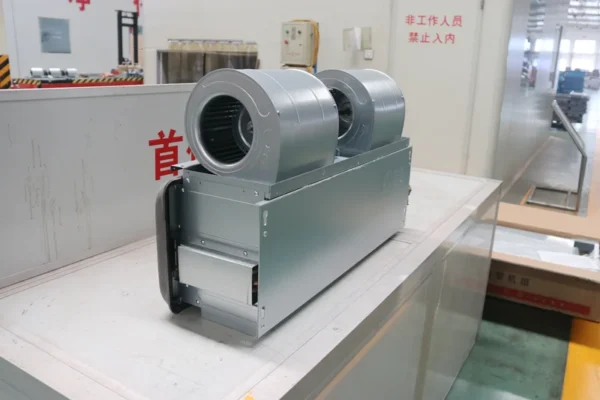

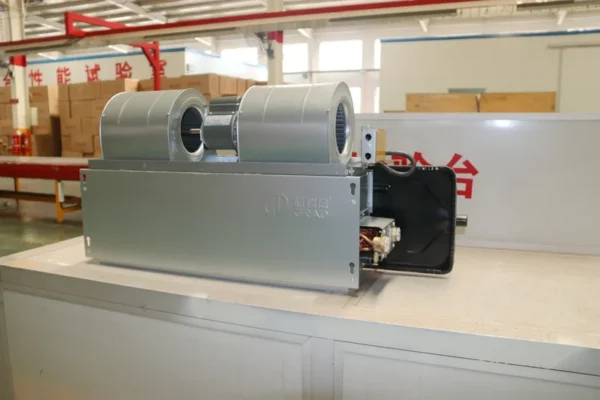

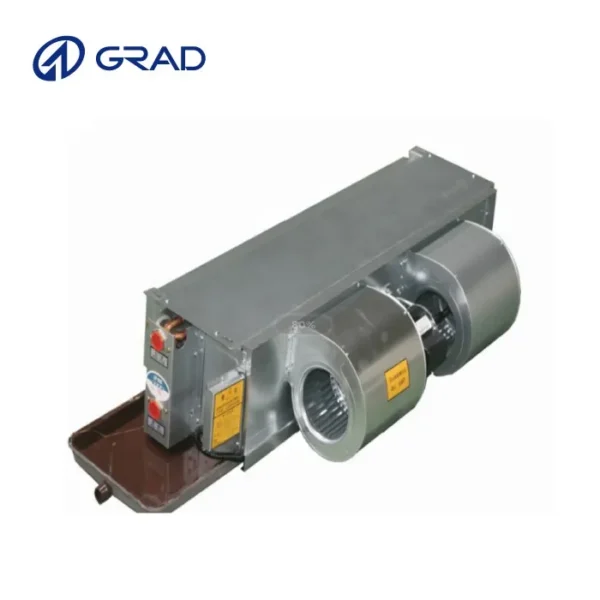

Central air conditioner system chilled water fan coil unit with CE and AHRI
The fan coil unit is the ideal terminal product of central air conditioning system. It is consist of heat exchanger, strainer, fan, water pans, exhaust air valve and support.
It is continuously exchanged the central heating or cooling air with indoor air. To keeping a constant room temperature. It can meet the demands of cooling, heating or humidification, and then create a fresh, quiet, and warm environment.
It is continuously exchanged the central heating or cooling air with indoor air. To keeping a constant room temperature. It can meet the demands of cooling, heating or humidification, and then create a fresh, quiet, and warm environment.
GRAD fan coil unit can be divided into two types: high efficiency and standard. The standard fan coil can meet the
requirements of the national standard. The performance parameters of the high-efficiency fan coil tube are better than
the national standard requirement of more than 20 %.

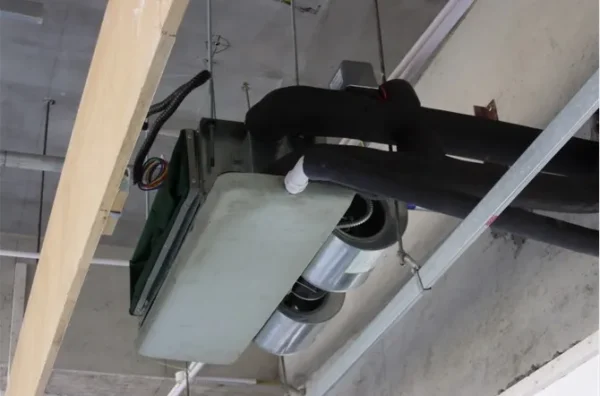

The FP-WA series horizontal installation fan
coil unit has a low contour height and can be placed in the ceiling. Combined with indoor decoration and air vents, it is an ideal air
coil unit has a low contour height and can be placed in the ceiling. Combined with indoor decoration and air vents, it is an ideal air
conditioning equipment for hotels, restaurants, offices, and other areas.
Features
•Product diversity better caters for installation way and building types.
•Optimized tube design and double open sides hydrophilic aluminum fins make a higher heat exchanging rate.
•Multi-specification fans could meet different air volume demands.
•Super silence operation makes the living environment more comfortable.
•LCD screen and remote controller is available which makes operation more convenient.
•Faster heating rate than traditional heating radiator.Air flow and temperature is more even.
•Product diversity better caters for installation way and building types.
•Optimized tube design and double open sides hydrophilic aluminum fins make a higher heat exchanging rate.
•Multi-specification fans could meet different air volume demands.
•Super silence operation makes the living environment more comfortable.
•LCD screen and remote controller is available which makes operation more convenient.
•Faster heating rate than traditional heating radiator.Air flow and temperature is more even.
FEATURES AT A GLANCE
Why choose GRAD fan coil ?
1.With AHRI and CE certificate.
2.Alibaba 17 years Gold supplier. Trade Assurance.
3.Oversea installation.
4.Customization accepted.
5.we are manufacturer，OEM/ODM welcome.
6.Through the on-site audit of alibaba SGS.
1.With AHRI and CE certificate.
2.Alibaba 17 years Gold supplier. Trade Assurance.
3.Oversea installation.
4.Customization accepted.
5.we are manufacturer，OEM/ODM welcome.
6.Through the on-site audit of alibaba SGS.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Certification | AHRI,CE,ISO |
The Power Supply | AC 220V/50HZ AC 230V/60HZ |
Type and specification | 5 types of fan coils with 9 different models |
The net weight（kg） | WA11-35kg LM25-68kg WM23-64kg KM22-37.5kg With air return box 13-41kg |
The rated air flow（m3/h） | 340-2380m3/h |
The rated cooling capacity（KW） | Standard fan coil units 1.8-12.6KW Efficient type fan coil units 2.35-14KW |
The rated heating capacity（KW） | Standard fan coil units 2.7-18.9KW Efficient type fan coil units 3.88-23.7KW |
The input power（w） | Standard fan coil units 37-300W Efficient type fan coil units 34-300W |
Noise dB（A） | 37-56 dB（A） |
The amount of water（kg/h） | Standard fan coil units 319-2232kg/h Efficient type fan coil units 416-2480kg/h |
Bearing | NSK low noise bearing doesn’t need to fill oil, its service life can be as long as 35000 hours |
Main export countries | The United States, the Philippines, Karachi, Laos, Uzbekistan,etc |
PRODUCT CONFIGURATION
Extended water tray
Famous brand motor

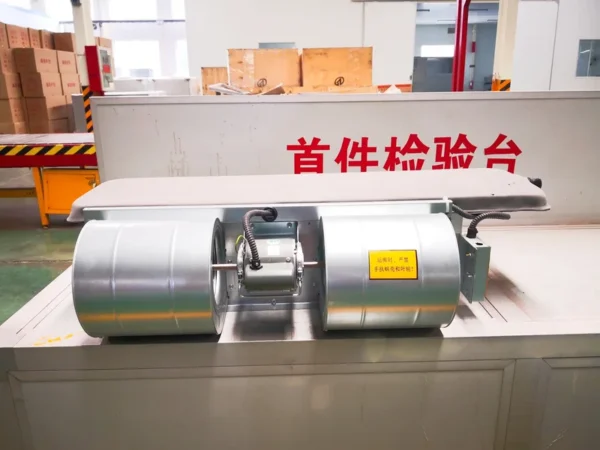

Wide impeller centrifugal fan
SALES AND SERVICE NETWORK
GRAD sales network covers over 100 countries and regions like America, Australia Indonesia, Malaysia, UAE, Thailand, Nigeria etc and has established branch company in USA, and set up offices in Cambodia and Thailand to make overall layout of global market.
Project in Ethiopia
Project in Sri Lanka
Project in Congo
Project in Cambodia
Project in Bengal
Project in Angola
About us
Manufacturer:Shandong GRAD Group Co.,Ltd.
Established Time:1993
Covers an area of:700 thousand square meters
Main products:Central air conditioning series products,ventilation products,Composite material series products,
Environmental engineering series products
Employment : more than 2500 employees
The registered capital: ￥1 hundred million
Equipment price : ￥370 million
Total capital :￥925 million
Annual output value: ￥over 3 billion
The design team:300 people
Overseas offices:
1.Established offices in Thailand and Cambodia
2.The United States subsidiary was established in 2017
FAQ
Q1. Where is your loading port?
A: Qingdao/Shanghai/Tianjin, China or else port as for your request.
Q2. What's your company's main products?
A: Our company is specialized in central air-conditioning,ventilation,FRP products.
Q3. What's the MOQ for your production?
A: The MOQ is 1pcs or depends on your products requirements.
Q4. Are you a manufacture or trading company?
A: We are a manufacture.
A: Qingdao/Shanghai/Tianjin, China or else port as for your request.
Q2. What's your company's main products?
A: Our company is specialized in central air-conditioning,ventilation,FRP products.
Q3. What's the MOQ for your production?
A: The MOQ is 1pcs or depends on your products requirements.
Q4. Are you a manufacture or trading company?
A: We are a manufacture.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–99 unit: US $43.13 / unit
- 100+ unit: US $43 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
