Fan, RS485, AC110V, 260V, PLC, Copper & Aluminum, 50hz

This fan is published with the manufacturer’s full specification — power interface 4pin, type Fan. Made by Shenzhen Taida Century Technology Co., Ltd. (14 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Fan

• Model Number: TDJLACSPEED-Fan
• Power: other
• Power Interface: 4pin
• Wide Voltage: AC100V~AC260V
• Heatsink Material: Copper & Aluminum
• Fan Speed Control: PWM

Technical Specifications

Product Details

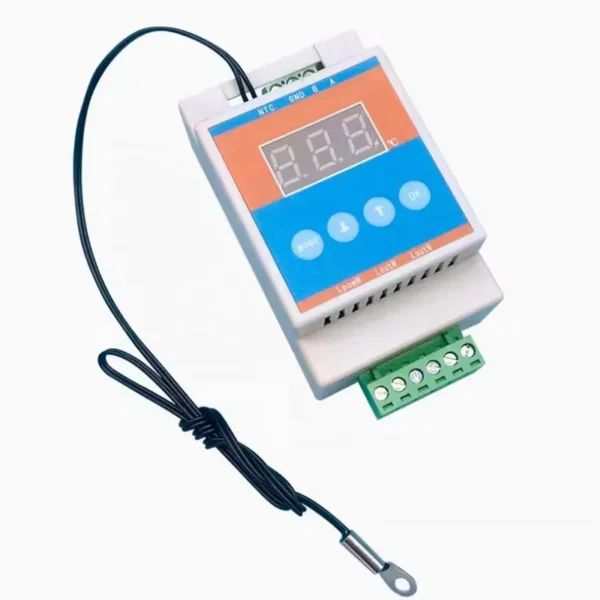

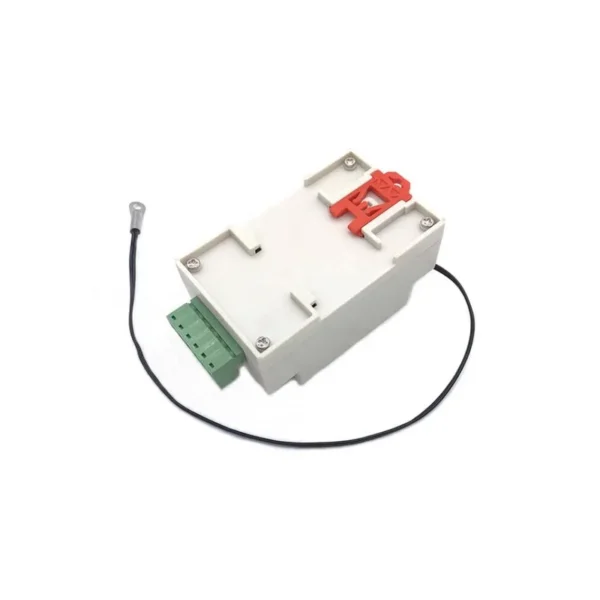

Taidacent RS485 Modbus AC110V 260V EC Fan Chassis PLC Temperature Control Speed Switch Cabinet Cooling Fan Thermostat Controller

Product Description

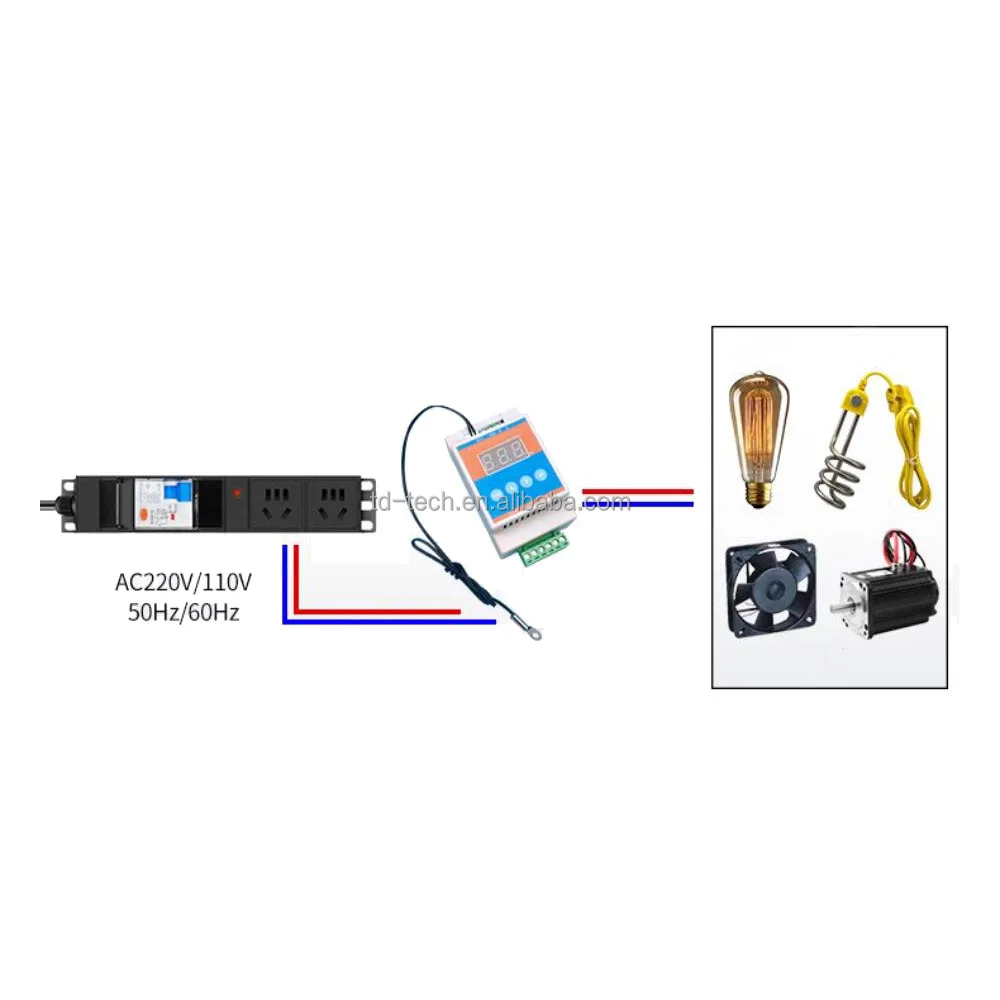

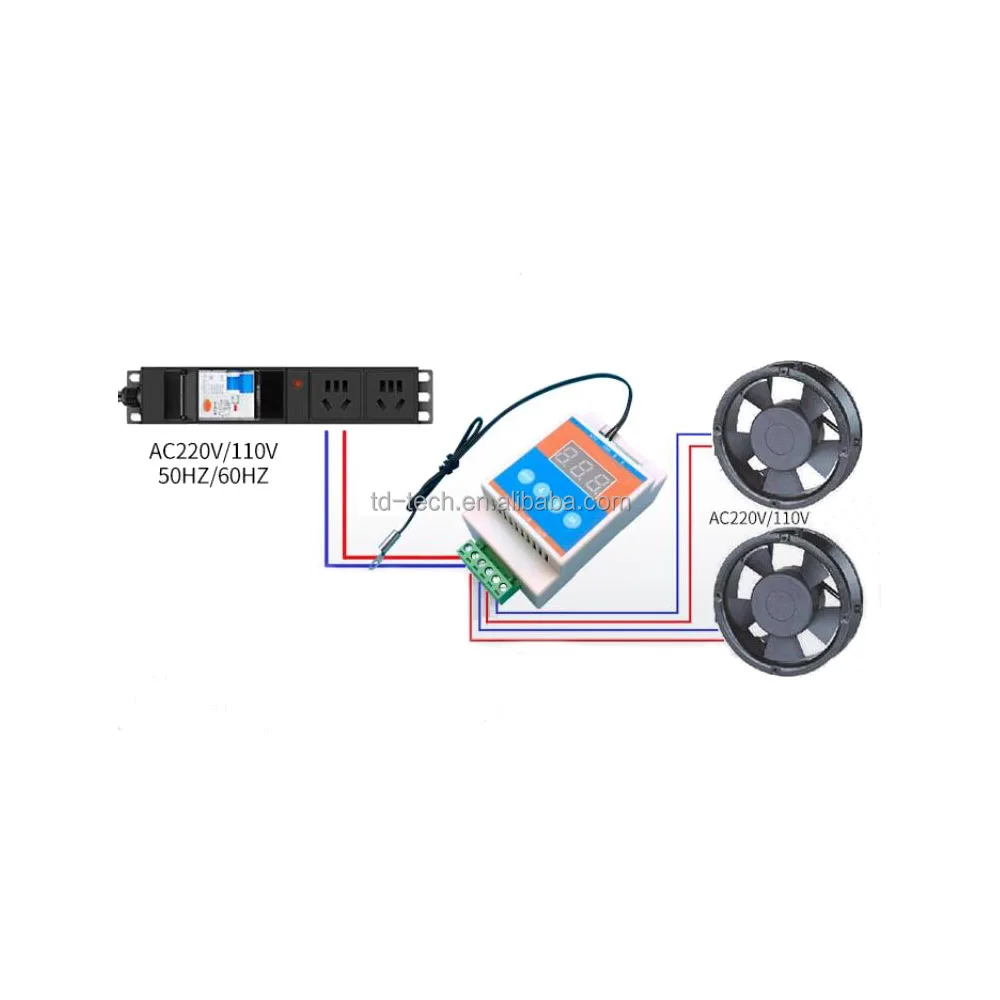

AC220V/110V chassis cabinet temperature control heating AC fan motor speed regulation dimming temperature RS485 communication 1000W ultra-high power output, voltage regulation output is completely automatically controlled by temperature. The relationship between temperature and output voltage can be freely set (positive/negative ratio) Support RS485 communication function (Modbus-RTU protocol Industrial standard, reliable quality, stable and durable. Suitable for temperature control cooling/heating of various indoor and outdoor chassis cabinets, and other occasions based on temperature control AC voltage regulation output AC100V~AC260V wide voltage input, maximum load current 5A, adaptive 50Hz/60Hz AC, universal Based on temperature control voltage regulation output, suitable for dimming, temperature regulation, speed regulation and other application scenarios The maximum load current cannot exceed 5A Only supports pure inductive and pure resistive load access, does not support LED lights, air purifiers and other electronic devices

Features

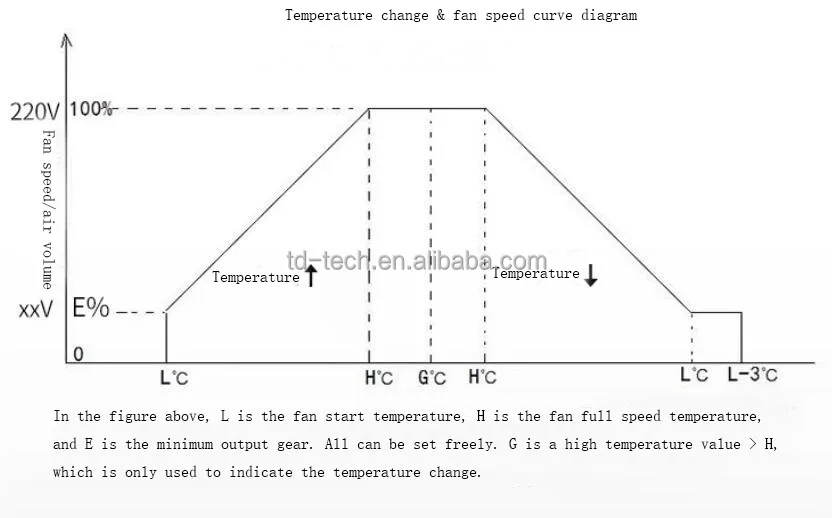

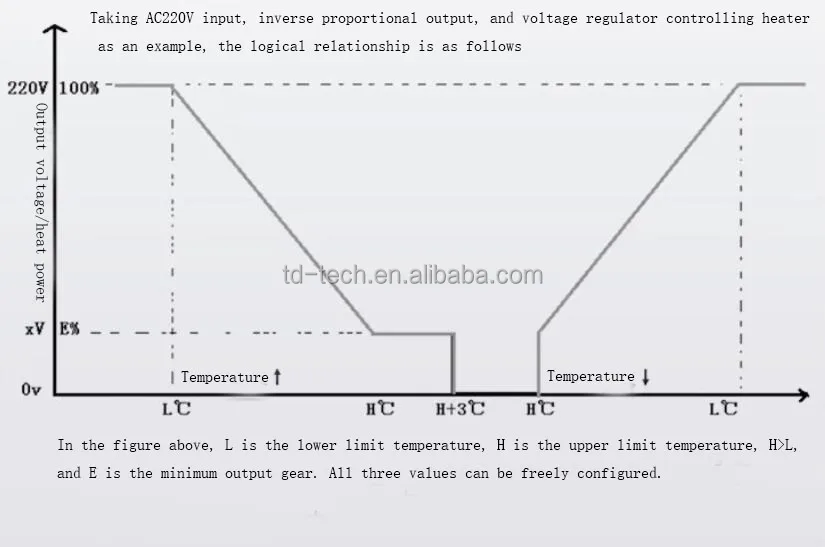

Intelligent voltage regulation Supports positive/negative temperature control logic The voltage regulator monitors the ambient temperature in real time. When the temperature is within the set upper/lower limit temperature range The device will automatically adjust the output voltage in proportion according to the set temperature control logic Finally achieve the effect of "dynamic balance" regulation Proportional output: The temperature is proportional to the output voltage. The higher the temperature, the greater the output voltage. It is generally used in temperature control and heat dissipation. Inverse output: The temperature is inversely proportional to the output voltage. The higher the temperature, the smaller the output voltage. It is generally used in temperature control and heating.

Specification

item	value
Wide voltage	AC100V to AC260V max 5A
Led indicator	For speed controller working
PWM output frequency	50Hz/60Hz
Temperature range	-10 to 99C
Temperature accuracy	1c
Working temperature range	-30C to 80C
RS485 Serial port TVS	Default to 9600bps, 8, N, 1
Support fan fault detection	Fan fault NPN signal output
Standard modbus-rtu protocol	Set various parameters

Support RS485 serial communication Standard Modbus-RTU protocol

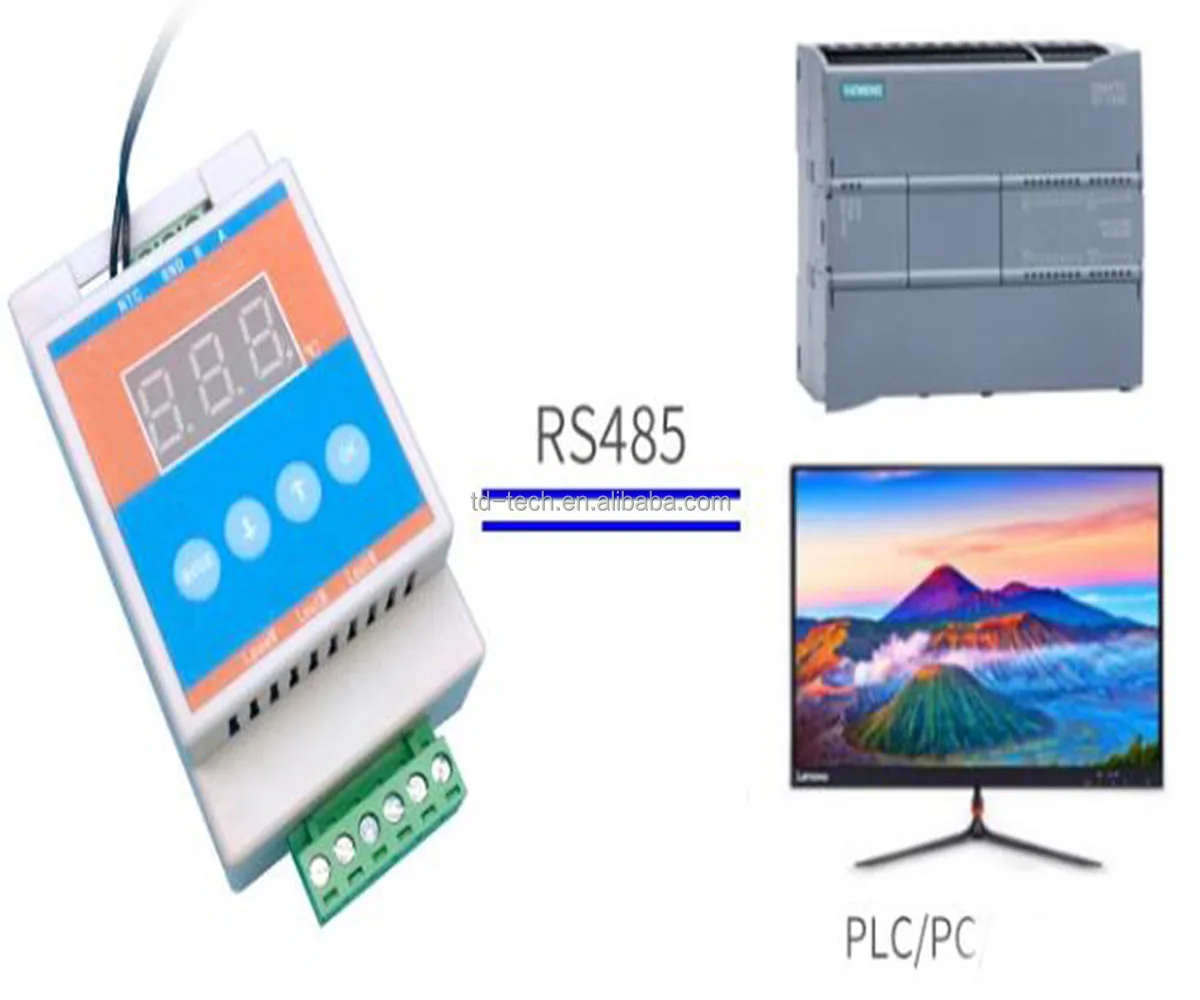

The voltage regulator passively receives the serial port instructions of the host as a slave and follows the standard Modbus-RTU protocol The voltage regulator can be easily and quickly connected to PLC/industrial computer and various configuration software The current temperature can be queried, all parameters can be configured, and the voltage output can be forced to control through serial port instructions Serial port parameters: 9600bps, 8, N, 1 MODBUS-RTU protocol is the most common protocol for industrial control applications. There are a large number of development routines on the Internet. Even users who have not been exposed to this protocol can quickly implement programming control and easily access various configuration software/analysis platforms

Packing & Delivery

box

Company Profile

Shenzhen Taida Century Technology Co., Ltd. was born in Shenzhen in 2013. It was founded by several geeks who graduated from the top universities in China. Nowadays ,Shenzhen Taida Century Technology Co., Ltd. specializes in IoT(Internet of Things), mainly committed to design and production of wireless modules, ble module, wifi module, power module, temperature humidity sensor, antenna, relay module, switch module, display module, power amplifier module etc. Products are exported to the United States, Europe, Russia, Southeast Asia, Northeast Asia, Australia, South America, the Middle East, etc. The company's mission is to make everything connect more friendly and more intelligently.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(40.00%),Western Europe(20.00%),Eastern Asia(10.00%),Eastern Europe(5.00%),Mid East(5.00%),Oceania(5.00%),South America(5.00%),Southeast Asia(5.00%),South Asia(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Africa(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wireless Charger Module,Temperature humidity sensor,Antenna,Wireless charger coil,Audio receiver device

4. why should you buy from us not from other suppliers?
We have specialized in IoT ( Internet of Things ) for 5 years. We can supply technology support from experienced enginners. We have sufficient production capacity. We offer competitive price and supply fast delivery.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–24 piece: US $15.98 / piece
  • 25–99 piece: US $15.28 / piece
  • 100–499 piece: US $14.78 / piece
  • 500+ piece: US $14.28 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the fan be supplied for my local voltage?

The standard configuration is AC100V~AC260V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
