Temperature Fan, RS485, 12V, 24V, 48V

Temperature fan — power interface 4pin, type Fan. The complete factory specification follows. Made by Shenzhen Taida Century Technology Co., Ltd. (13 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Temperature Fan

• Power: other
• Power Interface: 4pin
• Wide Voltage: DC12V to 60V 6A current
• Heatsink Material: Copper & Aluminum
• Fan Speed Control: PWM
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Taidacent RS485 Modbus 12V 24V 48V Temperature Fan Speed Controller 4-Wire PWM PC CPU Fan Temperature Speed Control Governor

Product Description

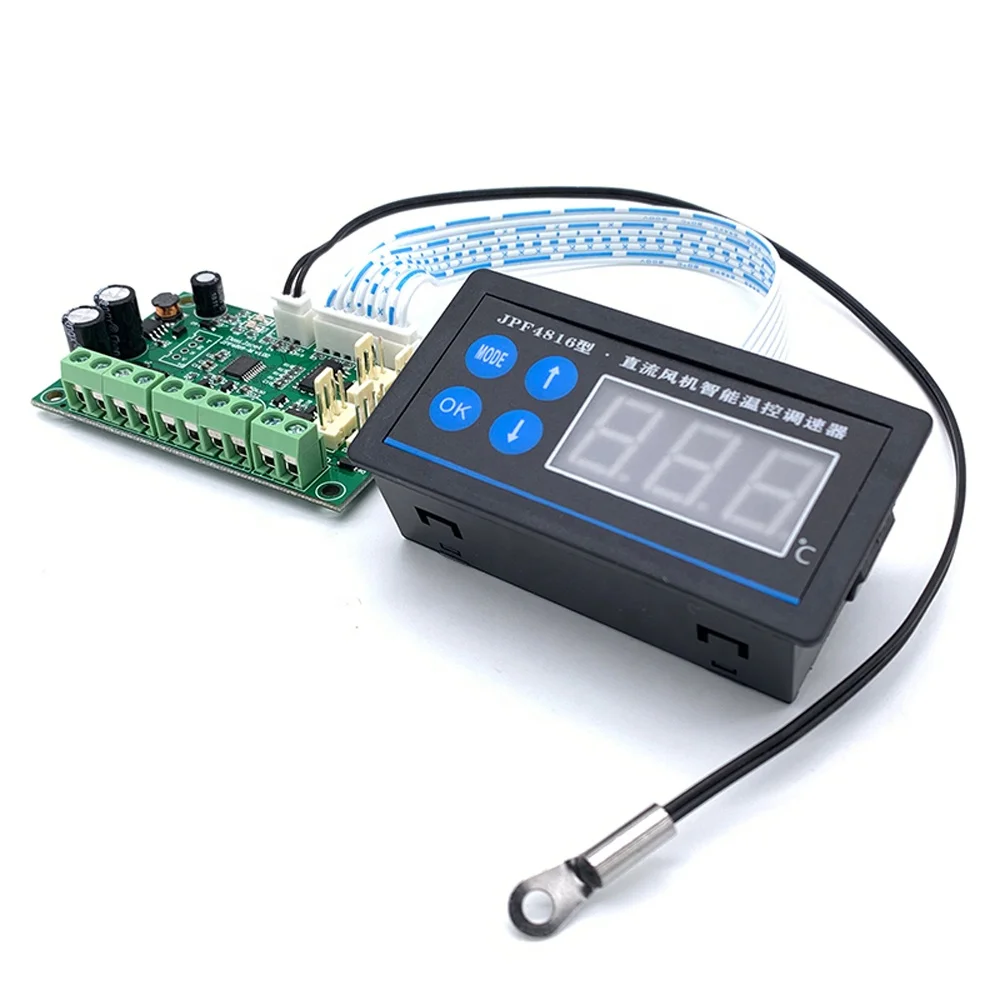

Industrial-grade technical solution, using ARM core single-chip microcomputer as the main control chip, with a temperature display frame, which can be directly embedded in the panels of various chassis and cabinets. The governor controls the speed of the fan through the detected temperature. The higher the temperature, the higher the speed. The faster it is, when the temperature is lower than the starting temperature, the fan will stop or maintain the minimum speed. When it is higher than the starting temperature, the fan will run at low speed. When the temperature is high, the fan will run at full speed. When the temperature starts to drop, the fan speed will also drop automatically, so as to work in a cycle; the governor supports RS485 serial port communication, through which the fan speed can be controlled, and the parameters/status of the governor can be configured/queried. , the serial port command follows the modbus-rtu protocol, and the fan speed is adjustable from 0-100%

Features

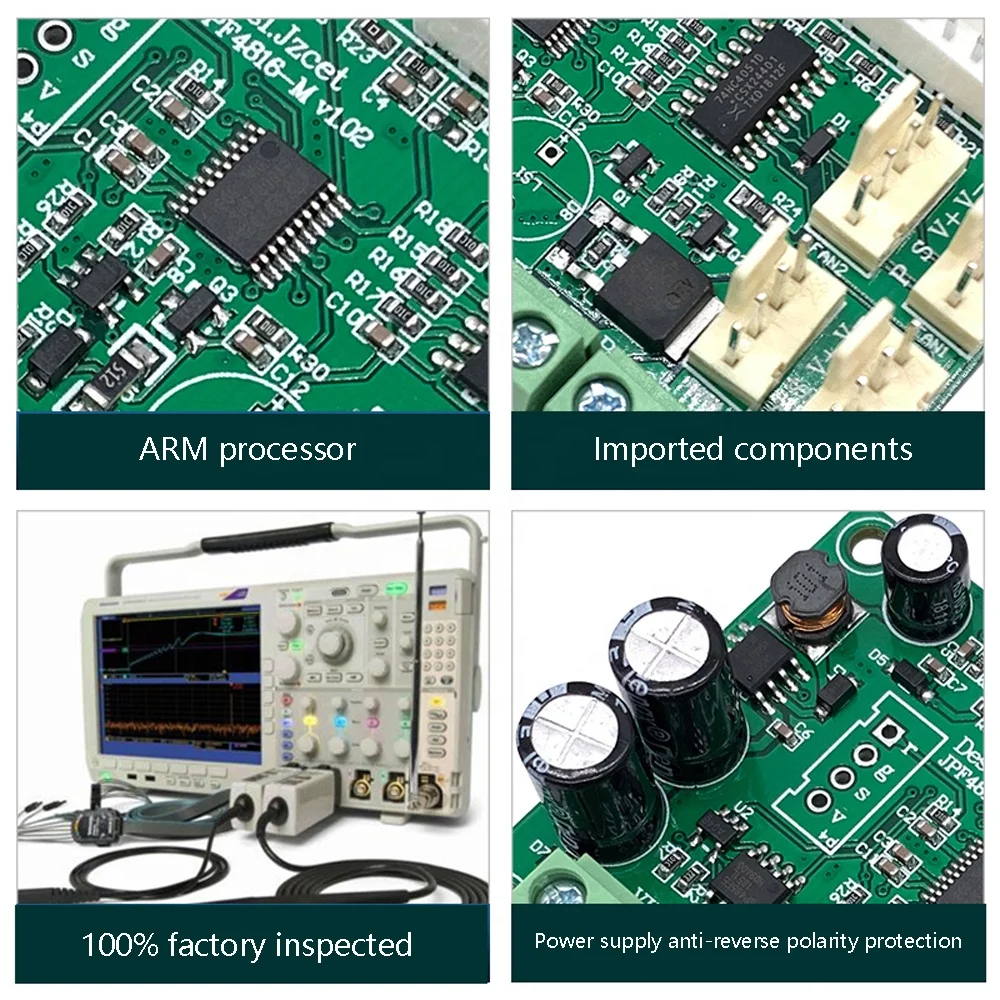

1. Industrial-grade solution, using ARM core series single-chip microcomputer as the main control chip, with stable performance 2. Wide voltage design, support 12V/24V/48V 4-wire PWM fan/motor direct access, maximum drive current 6A 3. With LED indication, visually indicate the working status of the governor 4. Power supply anti-reverse connection protection design, the power supply reverse connection will not burn the board 5. The temperature at startup and full speed can be set freely, and it supports two working modes: minimum speed and shutdown fan 6. Support fan fault detection, and fan fault NPN signal output 7. Standard modbus-rtu protocol, support RS485 serial port to set various parameters and query fan status 8. RS485 serial port TVS anti-surge design, serial port parameters default to 9600bps, 8, N, 1 9. 100% shutdown of all 4-wire fans

Specification

item	value
Wide voltage	DC12V to 60V 6A current
Led indicator	For speed controller working
PWM output frequency	25KHZ
Temperature range	-10 to 99C
Temperature accuracy	1c
Working temperature range	-30C to 80C
RS485 Serial port TVS	Default to 9600bps, 8, N, 1
Support fan fault detection	Fan fault NPN signal output
Standard modbus-rtu protocol	Set various parameters

Interface

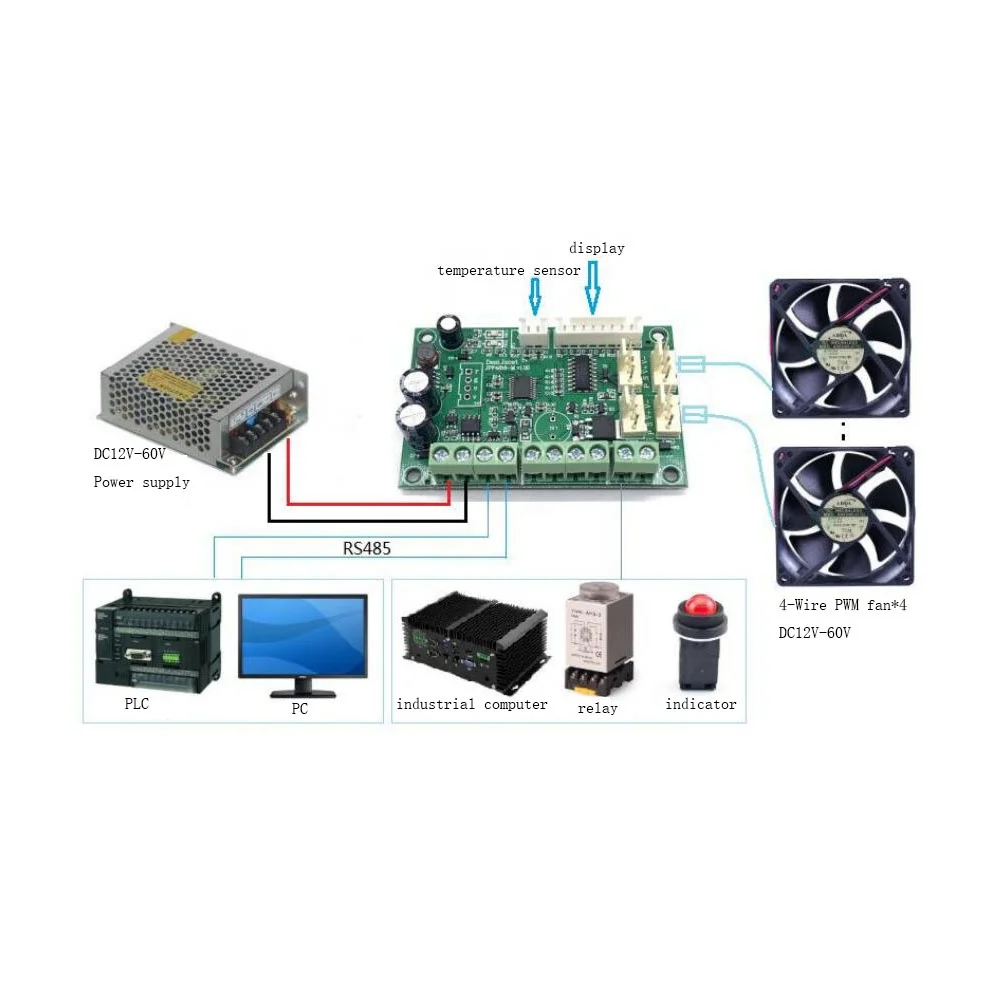

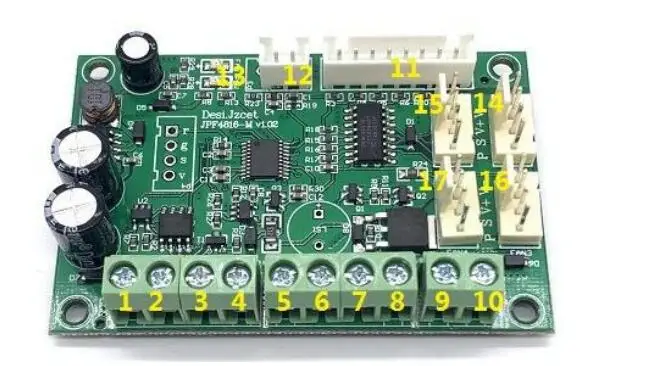

Terminal 1: governor power supply + pole interface Terminal 2: speed controller power supply – pole interface Terminal 3: RS485 serial port A / D+; Terminal 4: RS485 serial port B/D No. 5 is connected to fan power supply -, No. 6 is connected to fan power supply +, No. 7 is connected to fan speed signal, No. 8 is connected to fan PWM control line Terminals 5~8: mainly for the convenience of fan wiring without plugs, directly connected to the 4 pins of the 14th interface) Terminal 9: Fan fault signal OC output port (NPN output interface) (*see the end of the article for instructions) Terminal 10: GND Port 11: display board port Port 12: temperature probe port Port 13: LED indicator light, POW is the power indicator light of the whole machine, PWM is the fan control indicator light Port 14~17: 4-way fan interface, standard KF2510-4P socket, (P=PWM, S=Sensr/FG, V+, V-)

Basic instructions

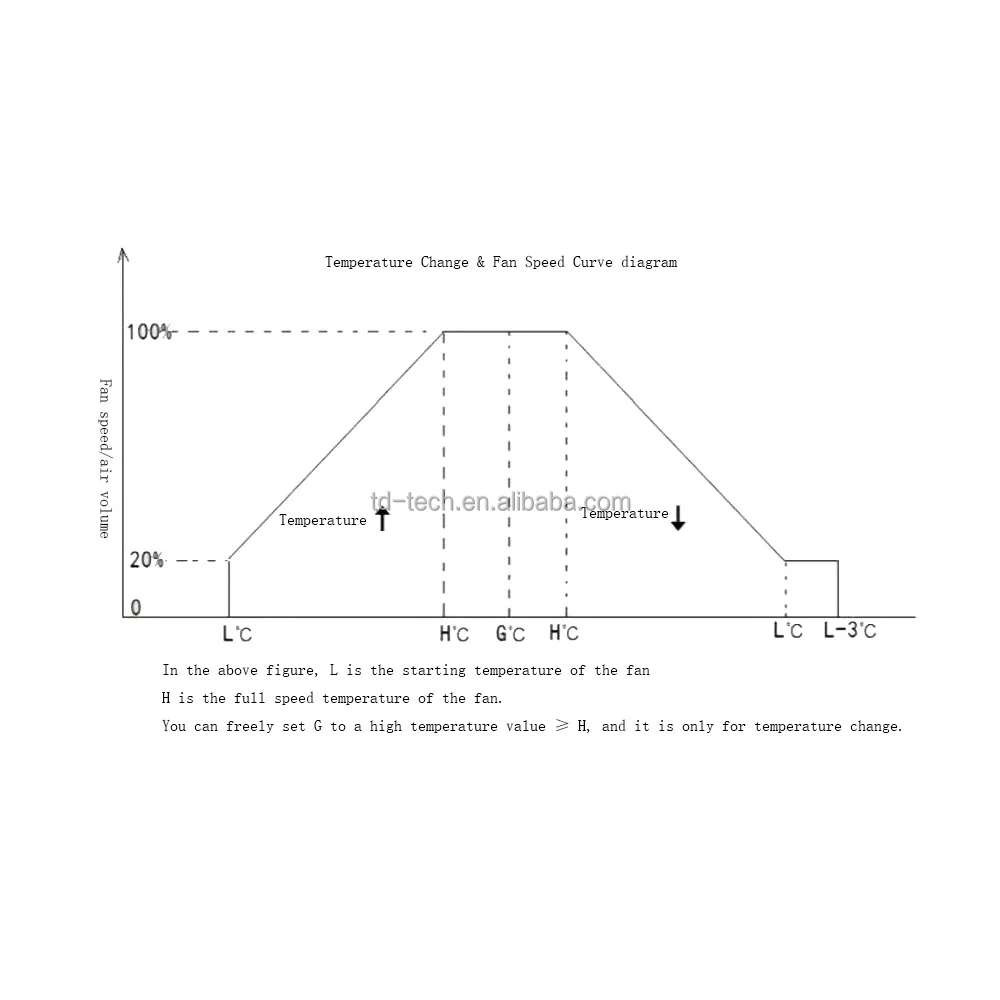

1. Connect the wiring according to the interface instructions 2. After the power supply is normal, the POW light on the main board will light up. At this time, the governor starts to detect the current temperature, and adjusts the speed of the fan according to the currently set temperature range. Take the default temperature range of the governor as an example. The factory default temperature range of the speed controller is L=30°C~H=50°C. When the current temperature is detected to be greater than or equal to 30°C, the speed governor will adjust the temperature of the fan in a linear ratio. When the temperature rises, the fan speed will also increase. When the temperature is ≥50°C, the fan will turn to full speed. When the temperature drops to ≤27°C (L-3), the governor makes the fan at the minimum speed/or turns off the fan.
