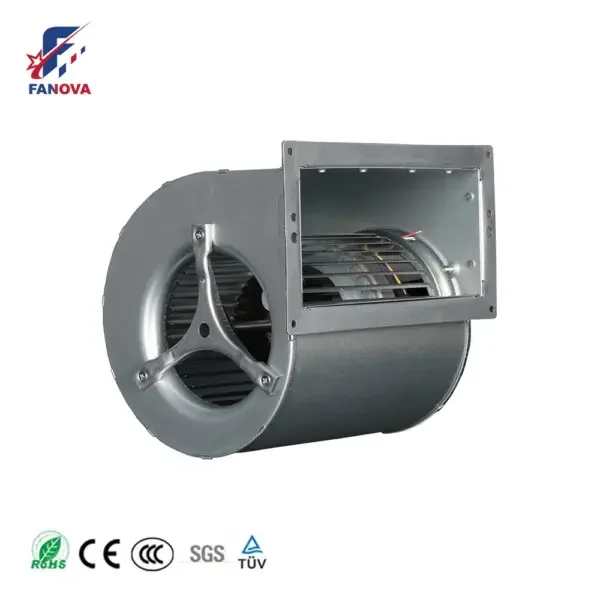

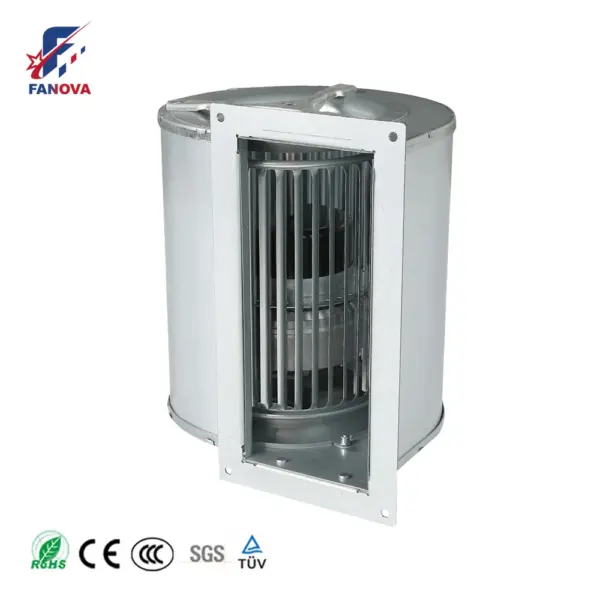

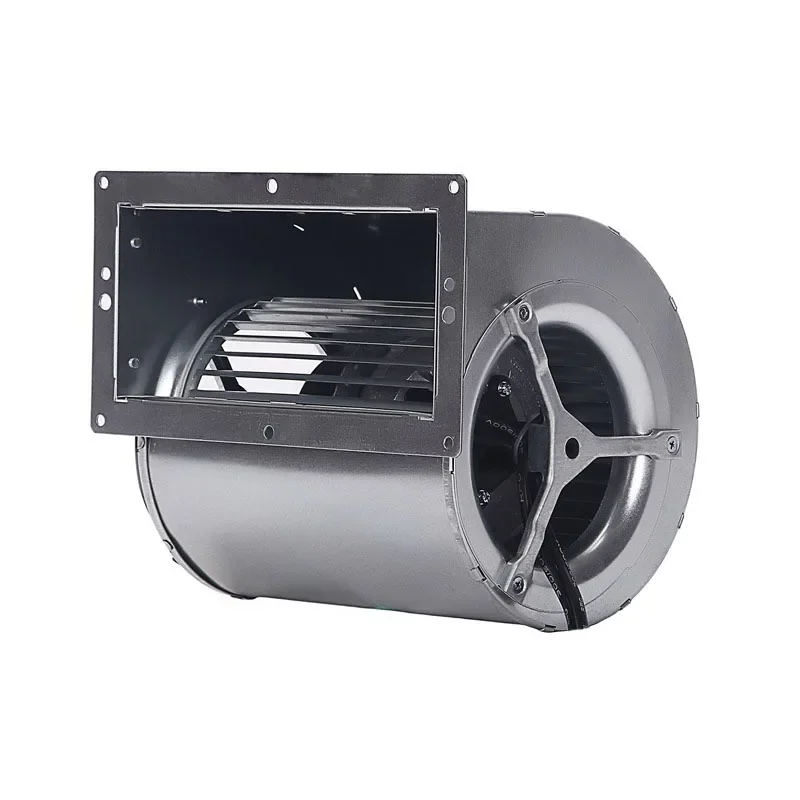

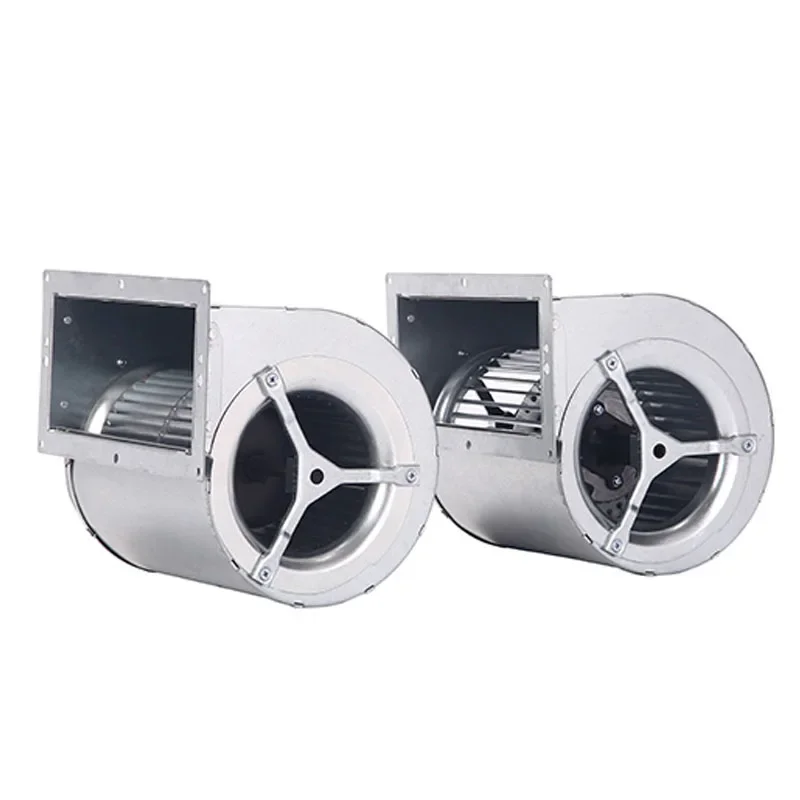

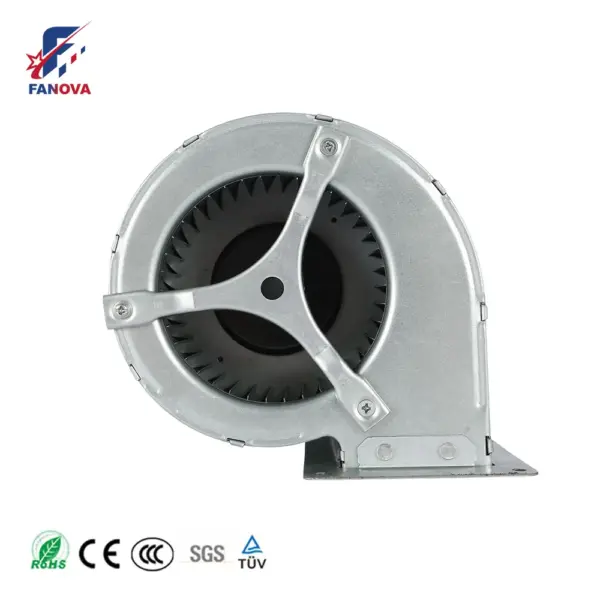

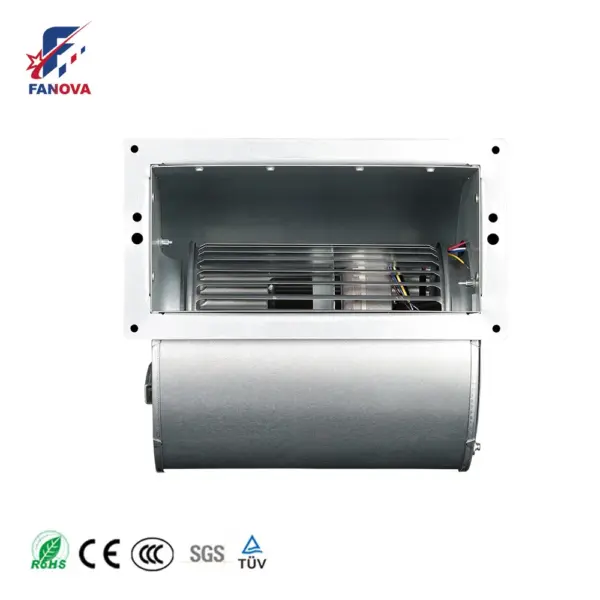

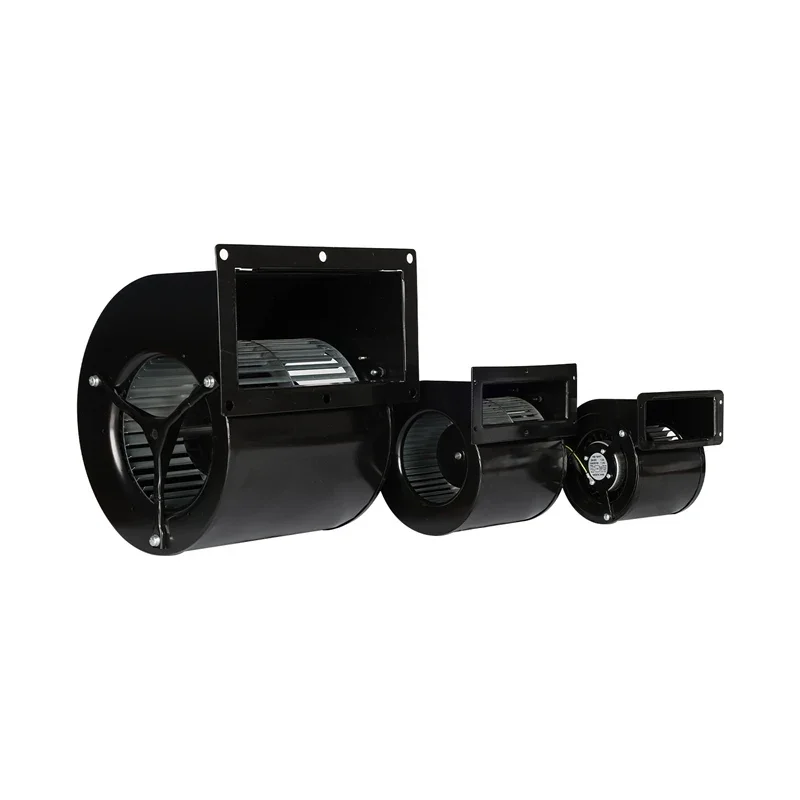

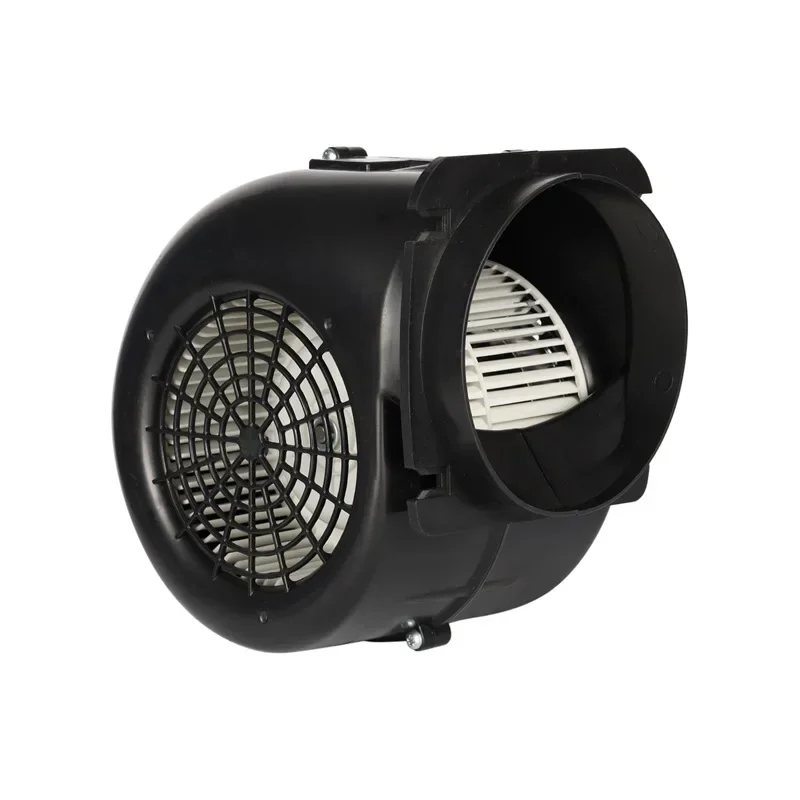

FANOVA Scroll Housing Dual Inlet Centrifugal EC Fan Blower with Ball Bearing Ventilation Option-OEM & ODM Supported

$22.04

& Free Shipping
- +
Category: Brand:
Guaranteed Safe Checkout

Products Description

EC Model
Rated Voltage (V)
Operating Voltage (V)
Frequency (Hz)
Rated Current (A)
Rated Speed (RPM)
Rated Power (W)
Sound Level (dB)
Air Flow (CFM)
Air Pressure (Pa)
FD3G133-2AGL-70
230VAC
184–270
50/60
0.75
1500
105
64
752
205
FD3G146-2AGL-90
230VAC
184–270
50/60
1.4
1700
190
72.1
1200
425
FD3G146-2AGP-90
230VAC
184–270
50/60
2.2
1850
260
74
1499
540
FD3G146-2APV-90
230VAC
184–270
50/60
0.9
1650
150
69.6
1157
629
FD3G180-2AGL-20
230VAC
184–270
50/60
1.9
1550
400
74
2000
710

DC Model
Rated Voltage (V)
Operating Voltage (V)
Rated Current (A)
Rated Speed (RPM)
Rated Power (W)
Sound Level (dB)
Air Flow (CFM)
Air Pressure (Pa)
FD3G097-24GL-50
24
16~28
0.3
1400
7.2
43
150
250
FD3G097-48GL-50
48
36~57
0.15
1400
7.2
43
150
250
FD3G133-24GL-91
24
16~28
6
1780
144
68
760
500
FD3G133-48GL-91
48
36~57
3
1780
144
68
760
500
FD3G146-24GL-90
24
16~28
8.0
1700
190
66
1200
425
FD3G146-48GL-90
48
36~57
4.0
1700
190
66
1200
425
FD3G146-24GL-91
24
16~28
6.0
1580
144
61
960
250
FD3G146-48GL-91
48
36~57
3.0
1580
144
61
960
250
FD3G146-48PV-90
48
36~57
4.7
2050
223
63
1108
294
FD3G146-310PV-90
310
248~372
0.7
2050
223
63
1108
294

1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.

2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.

3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.

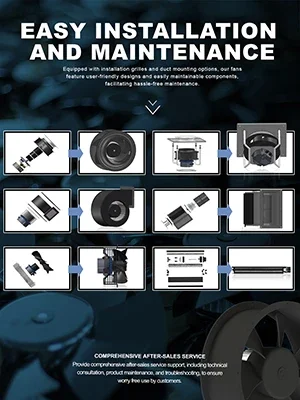

5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

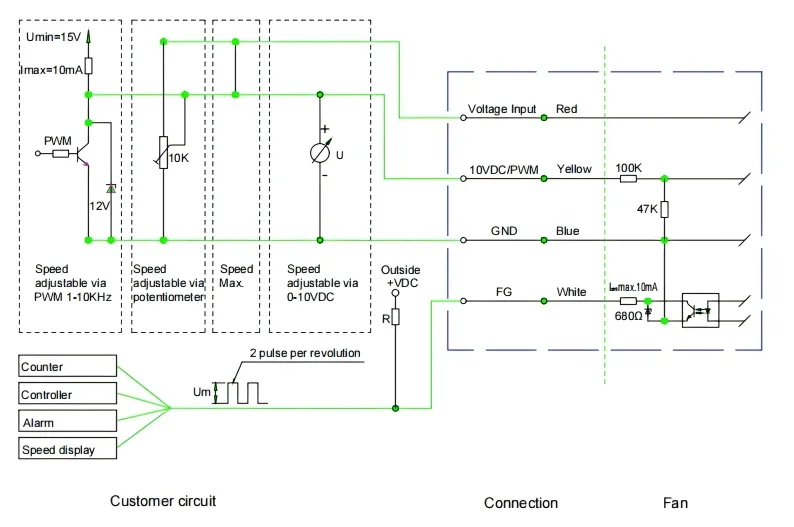

Connection Diagram

Contact us for detailed specifications

Applications

HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.

Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.

Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.

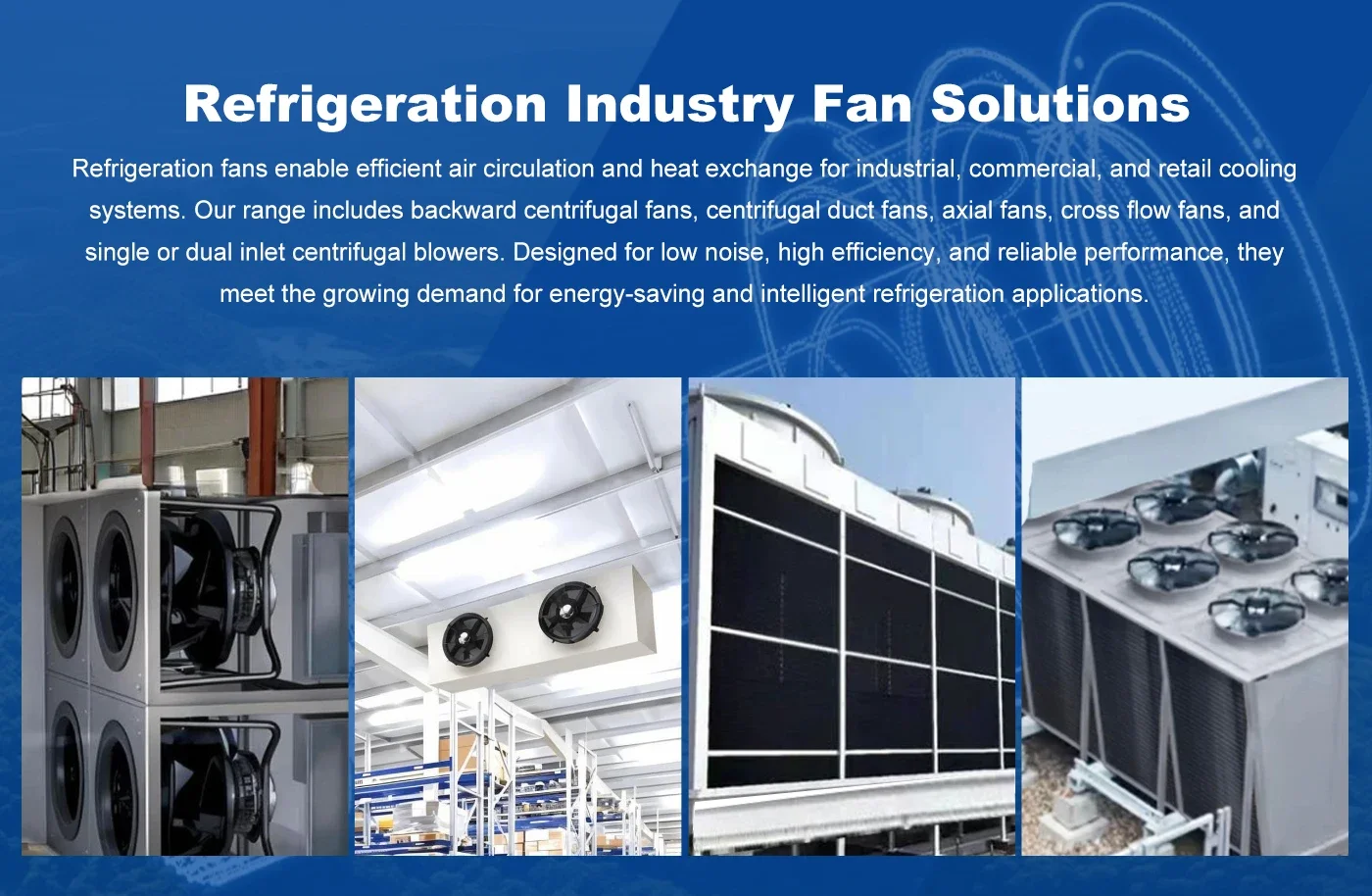

Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.

Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.

Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.

Product packaging

Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.

Company Profile

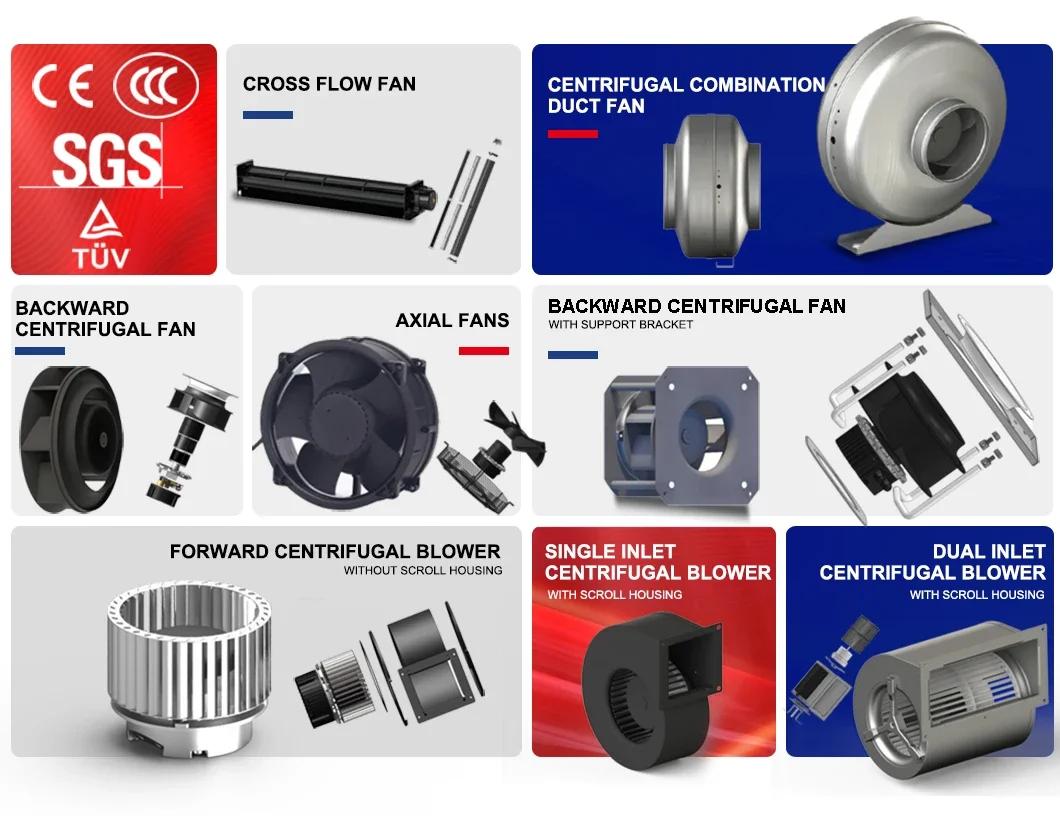

Fanova (Suzhou) Motor Technology Co., LTD is a specialized research, design, and production enterprise focusing on AC fans, DC motors, centrifugal fans, axial fans, and cross-flow fans. Established in 2003, the company has evolved into a prominent player in the motor and fan industry, providing customers with high-quality products and outstanding services. It has established a strong influence in the market and earned a reputation for its commitment to innovation, reliability, and customer satisfaction. As a professional EC fan manufacturer, we possess advanced production equipment and a skilled technical team dedicated to providing comprehensive solutions to our customers. We have multiple modular customization capabilities, supporting customization of fan current type, fan blade material, voltage, power, air volume, speed, material, size.Our products are widely used in various industries, including industrial, commercial, and residential sectors, covering applications such as purification equipment, HVAC equipment, ventilation equipment, transportation facilities, medical facilities, household appliances, and machinery. We aim to provide customers with efficient and energy-saving solutions for airflow power needs. The company boasts a professional R&D team, dedicated to driving continuous innovation and technological breakthroughs in product development. Our R&D efforts focus on exploring new plastic materials, enhancing motor and fan designs, improving manufacturing processes to stay at the forefront of industry trends. Our products have passed multiple international certifications, including CE, UL, ROHS, providing customers with reliable assurance and meeting the diverse needs of different application areas.

FAQ

Q1:What kind of payments do you support? A1: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment Q2.Will you provide samples? A2: Yes, samples can be delivered within 10days on request. Q3:How can I place the order? A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure and usually quote you within 24 hours after we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods. Q4:About transportation A4: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5:After-sales service A5: We will provide professional after-sales service, patiently answer customers’ various problems to ensure the normal operation of products .

mounting

Any
Power source type

Corded Electric
Noise Level

40 dB and above
Voltage

24V 48V 310V 230V
Material

Galvanized steel/plastic/cold rolled steel/stainle
speed

(DC 1400rpm-2050rpm) (EC 1500rpm-1850rpm)
Blade Material

Galvanized steel/plastic/cold rolled steel/SS
customized support

OEM, ODM, OBM
warranty

2 Years
After-sales Service Provided

Video Technical Support
model number

EC Dual Inlet Blower, DC Dual Inlet Blower
place of origin

Jiangsu, China
Selling Units

Single item
Single package size

25X25X25 cm
Single gross weight

4.000 kg
