Key specification for this filter: airflow 150~6000 m3/h, speed 10 speeds control. Everything below is reproduced from the factory data sheet. Made by Beijing Holtop Air Conditioning Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Filter
- Airflow: 150~6000 m3/h
- Speed: 10 speeds control
- Warranty: 1 Year
- Place Of Origin: Beijing, China
- Application: residential and commercial
- Single Package Size: 107X76X35 cm
Technical Specifications
| Construction | Panel Filter |
|---|---|
| Warranty | 1 Year |
| Condition | New |
| Place Of Origin | Beijing, China |
| Weight | 40 |
| Brand Name | HOLTOP |
| Dimension(L*W*H) | 114X83X40 |
| Efficiency | 95% |
| Product Name | hepa filter exhaust fan |
| Heat Exchanger | crossflow heat exchanger |
| Airflow | 150~6000 m3/h |
| Speed | 10 speeds control |
| Filter | F9, PM2.5 purification |
| Filter Alarm | timer alarm or different pressure gauge alarm available |
| Motor | BLDC motor |
| Application | residential and commercial |
| Controller | intelligent wifi function |
| Packaging Details | carton |
| Port Of Dispatch | Tianjin |
| Selling Units | Single item |
| Single Package Size | 107X76X35 cm |
| Single Gross Weight | 40.0 kg |
| Supply Ability | 8000 units per Month |

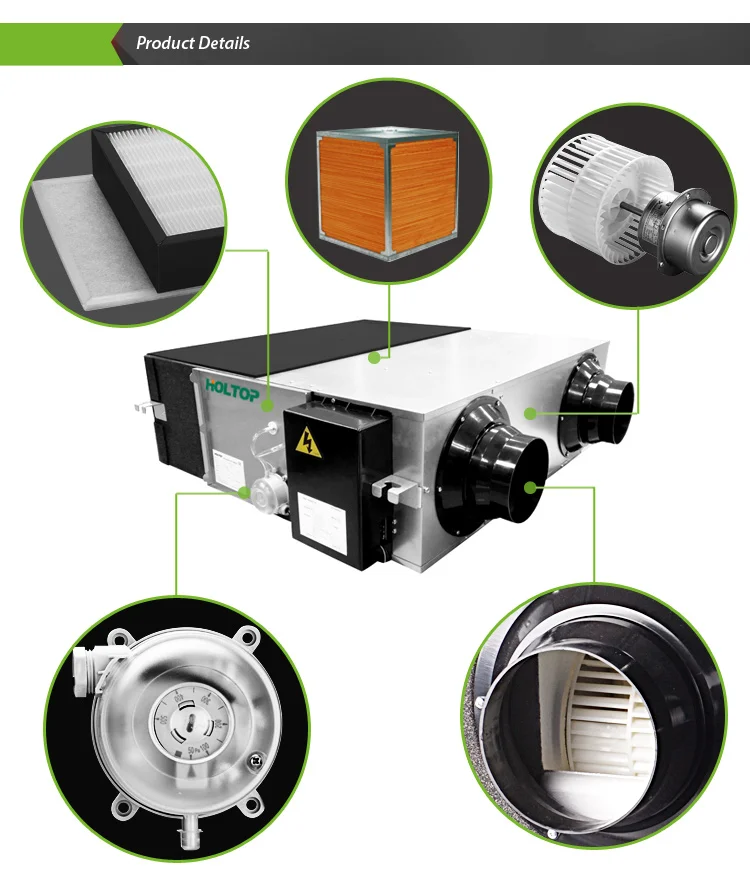

Product Details

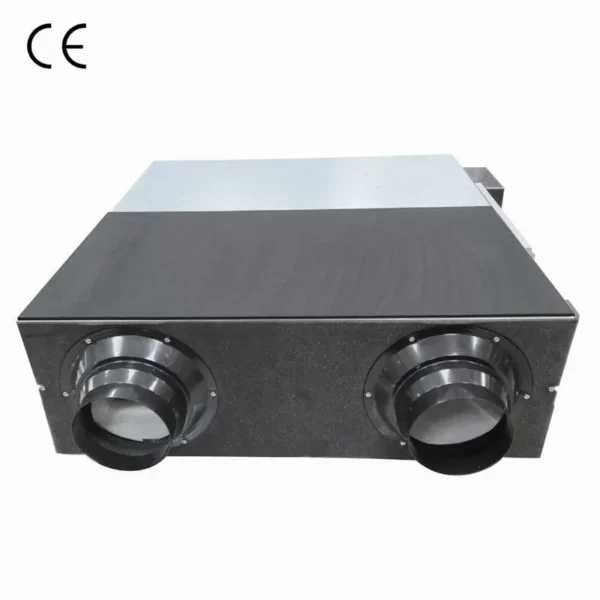

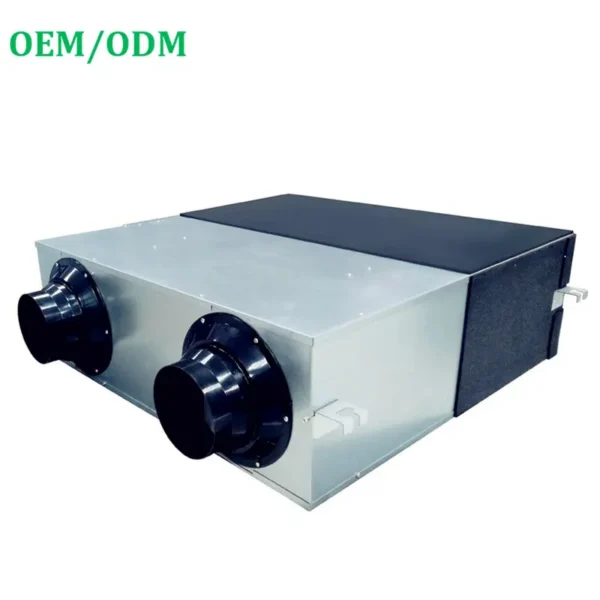

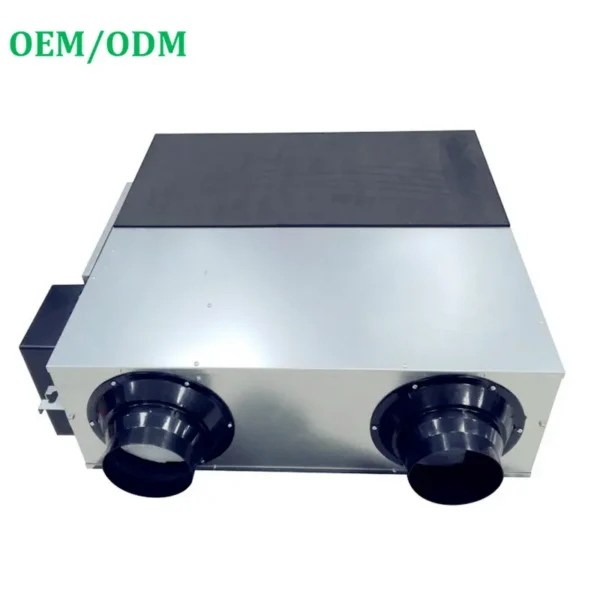

Hepa F9 Filter Roof Exhaust Ventilator Fan ERV

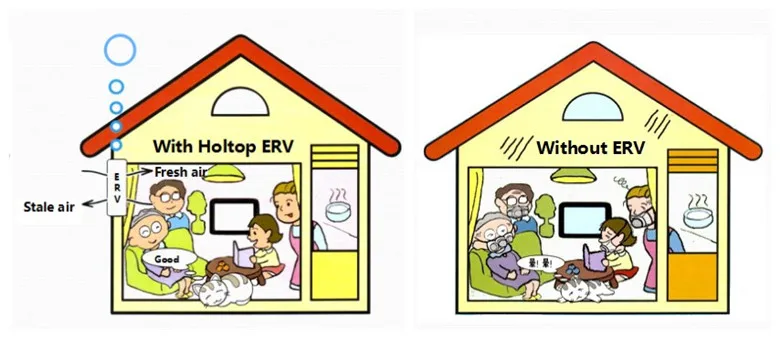

Energy recovery ventilation (ERV) is the energy recovery process of exchanging the energy contained in normally exhausted building or space air and using it to treat (precondition) the incoming outdoor ventilation air in residential and commercial HVAC systems. During the warmer seasons, the system pre-cools and dehumidifies while humidifying and pre-heating in the cooler seasons. The benefit of using energy recovery is the ability to meet the ASHRAE ventilation & energy standards, while improving indoor air quality and reducing total HVAC equipment capacity.
New Eco-Smart HEPA Energy Recovery Ventilator is ERP 2018 compliant.

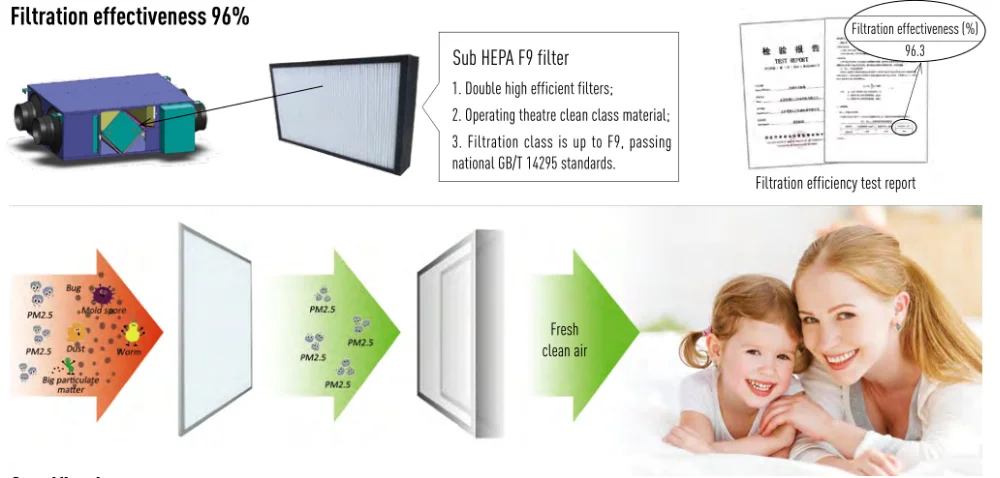

It is built in energy saving BLDC motor, F9 filter, high efficiency enthalpy heat exchanger. Ideal ventilation solution for residential and light commercial project.
Fresh Fresh air + Energy recovery, reducing running cost of cooling or heating system
Latest update for Holtop intelligent controllers: WIFI connection function.
 |
App is available to ISO and Android phones with the following functions: 1. Monitoring indoor air quality 2.Variable setting 3.Optional language 4.Group control |

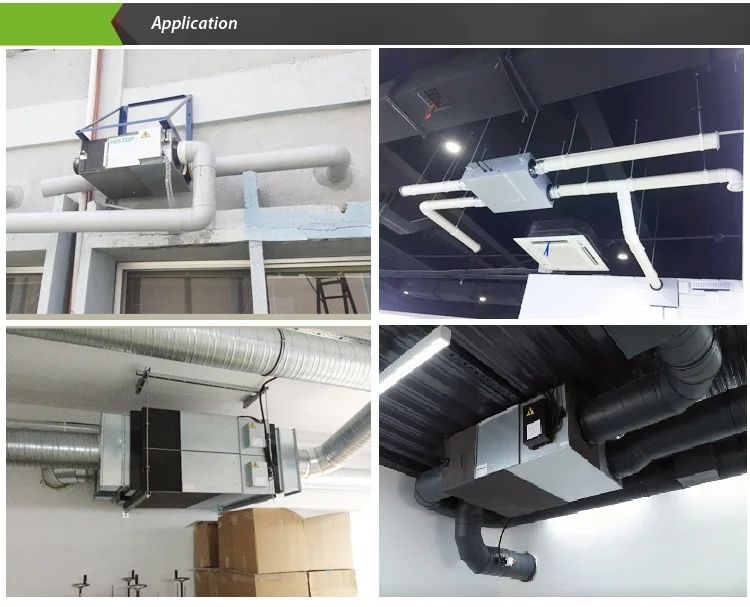

1. Choose the proper installation types based on the building structure

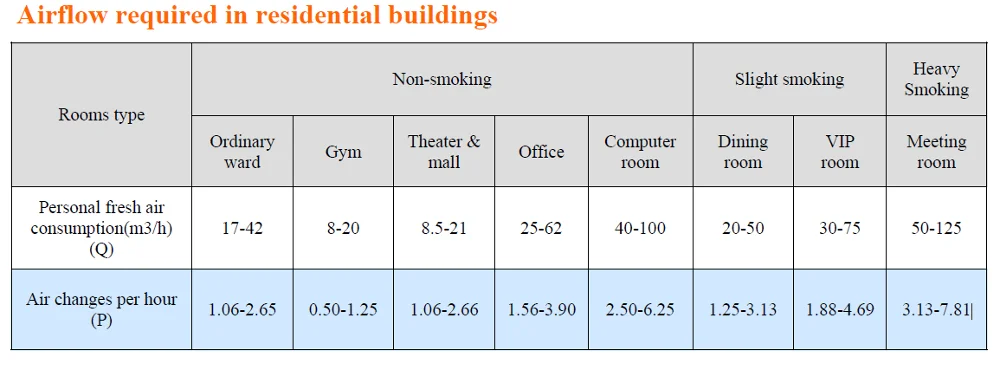

2. Determine the fresh airflow required according to the use, size and number of persons
3. Select the right specifications and quantity according to the determined fresh airflow
Example
The area of a computer room is 60 sq. meters (S=60), the net height is 3 meters (H=3), and there are 10 per-sons (N=10) in it.
If it is calculated according to “Personal fresh air consumption”, and assume that: Q=70, the result is
Q1 =N*Q=10*70=700(m3/h)
If it is calculated according to “Air changes per hour”, and assume that: P=5, the result is
Q2 =P*S*H=5*60*3=900(m3)
Since Q2 > Q1 , Q2 is better for selecting the unit.
As to special industry such as hospitals (surgery and the special nursing rooms), labs, workshops, airflow re-quired should be determined in conformity with regulations concerned.
| Model | Rated Air Flow (m3/h) |
Rated E.S.P (Pa) |
Enthaply efficiency % | Temperature efficiency % |
Noise dB(A) |
Voltage (V) |
Power Input (W) |
Weight (kg) |
|
| Cooling | Heating | ||||||||
| XHBQ-D1.5DMTHA | 150 | 70 | 60-65 | 63-70 | 75-80 | 31.5 | 220-240 | 38 | 25 |
| XHBQ-D2.5DMTHA | 250 | 90 | 62-71 | 65-73 | 73-81 | 34.5 | 220-240 | 85 | 27 |
| XHBQ-D3.5DMTHA | 350 | 140 | 62-70 | 65-73 | 74-82 | 37.5 | 220-240 | 107 | 33 |
| XHBQ-D5DMTHA | 500 | 110 | 63-72 | 67-75 | 76-84 | 39 | 220-240 | 140 | 38 |
| XHBQ-D6.5DMTHA | 650 | 100 | 60-67 | 65-71 | 74-82 | 41 | 220-240 | 160 | 62 |
| XHBQ-D8DMTHA | 800 | 140 | 63-71 | 65-73 | 76-82 | 42 | 220-240 | 188 | 72 |
| XHBQ-D10DMTHA | 1000 | 140 | 60-68 | 62-72 | 76-82 | 43 | 220-240 | 312 | 81 |
| XHBQ-D13DMTHA | 1300 | 135 | 58-71 | 59-75 | 74-82 | 43 | 220-240 | 405 | 81 |
| XHBQ-D15DMTHA | 1500 | 95 | 63-71 | 65-73 | 76-80 | 50 | 220-240 | 700 | 147 |
| XHBQ-D20DMTHA | 2000 | 115 | 60-68 | 62-72 | 76-82 | 51.5 | 220-240 | 724 | 167 |
| XHBQ-D26DMTHA | 2600 | 115 | 58-66 | 59-75 | 74-82 | 55 | 220-240 | 810 | 190 |
| XHBQ-D40DMTHA | 4000 | 230 | 60-68 | 61-71 | 73-81 | 59 | 380-400 | 2140 | 335 |
| XHBQ-D50DMTHA | 5000 | 260 | 60-68 | 61-71 | 73-81 | 68 | 380-400 | 2630 | 395 |
| XHBQ-D60DMTHA | 6000 | 300 | 60-68 | 61-71 | 73-81 | 70 | 380-400 | 3030 | 557 |

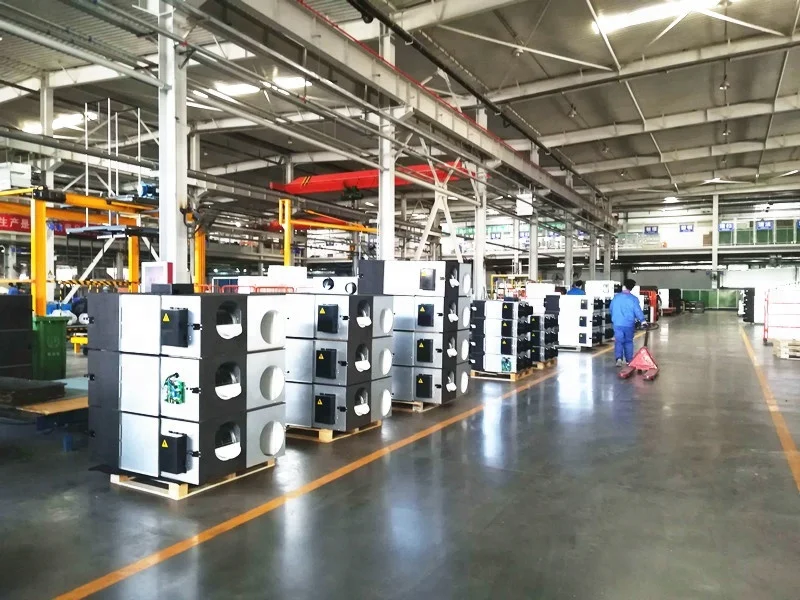

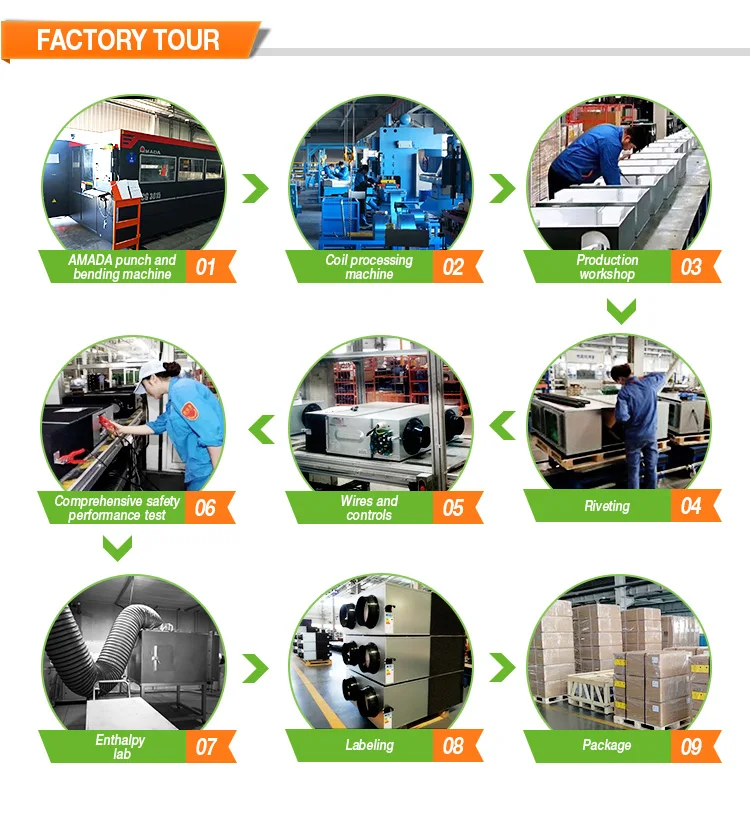

Holtop Factory
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
Holtop partner
Holtop cooperate with world famous brand or offer OEM service including Hitachi, LG, McQuay, TRANE, Systemair, Aldes, York, Haier, Gree, MHI Group, Midea, Carrier, Dunham-Bush, etc.
PLEASE Click the following link to get more product information:
1) ECO-SMART HEPA ERV , ErP2018 eco design DMTH series
2) ECO-SMART Plus ERV , Eco design DCTP series
3) Ductless Eco Clean Wall Mounted ERV
4) Ductles Eco Clean Floor standing ERV
5) Slim design ERV, thinner design to save installation space
6) Convention TH series ERV, cheap and simple
7) Plate heat exchanger: counterflow sensible heat exchanger
8) Cross counterflow sensible heat exchanger
9) Total heat exchanger _enthalpy type
10) Rotary heat exchanger
11) Air handling units
Click to Send Your Inquiry Here Now to Get the Best Price
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–14 set: US $700 / set
- 15+ set: US $535 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this filter?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Holtop Air Conditioning Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Beijing Holtop Air Conditioning Co., Ltd. range on HVACR Nexus.
