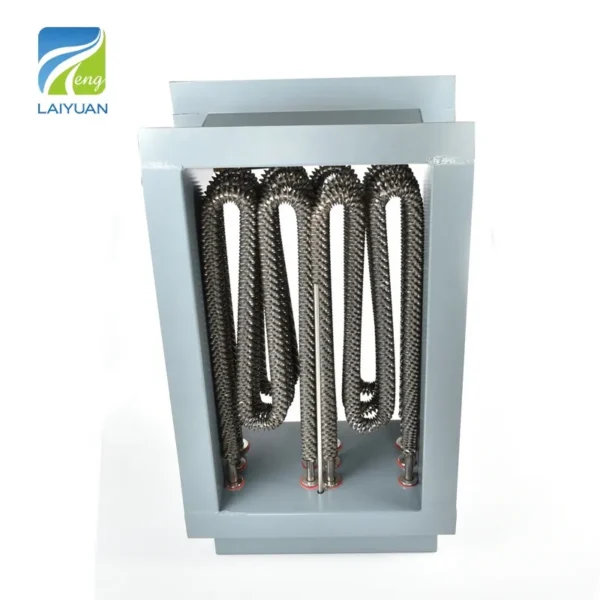

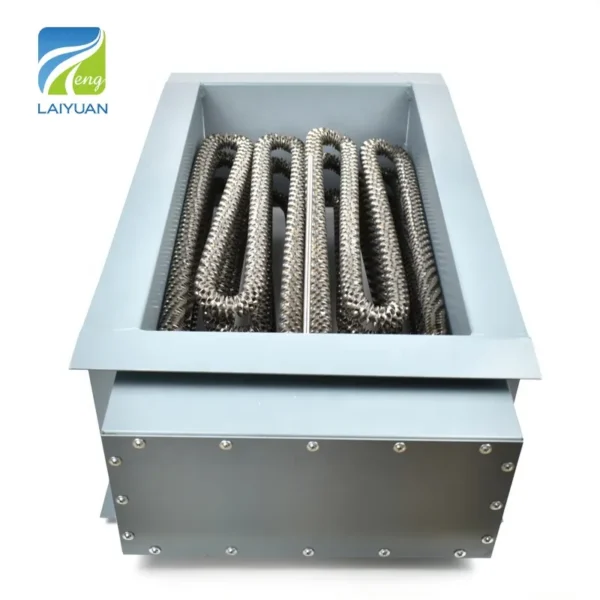

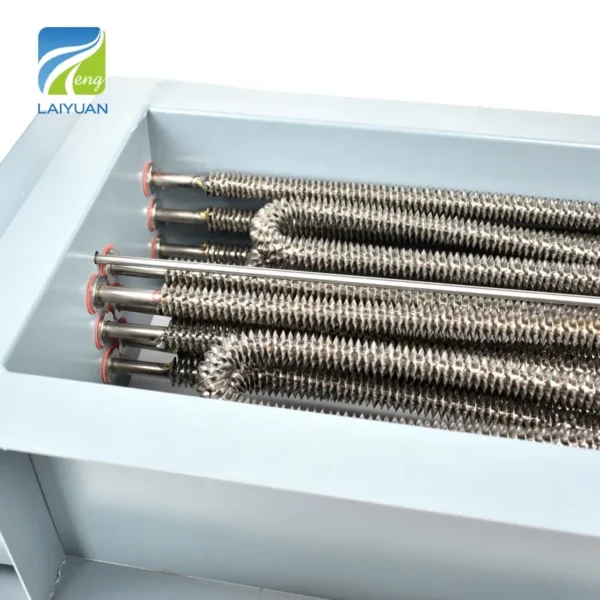

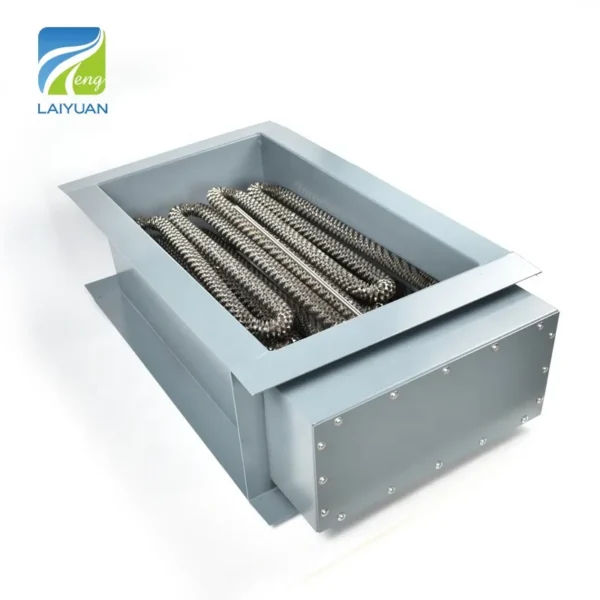

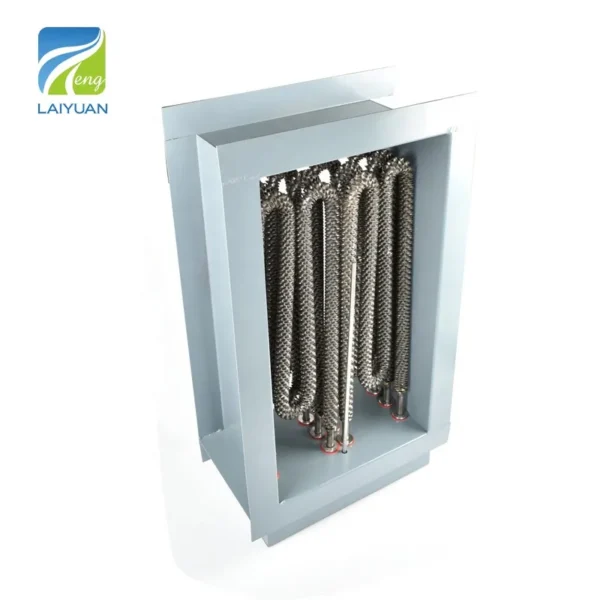

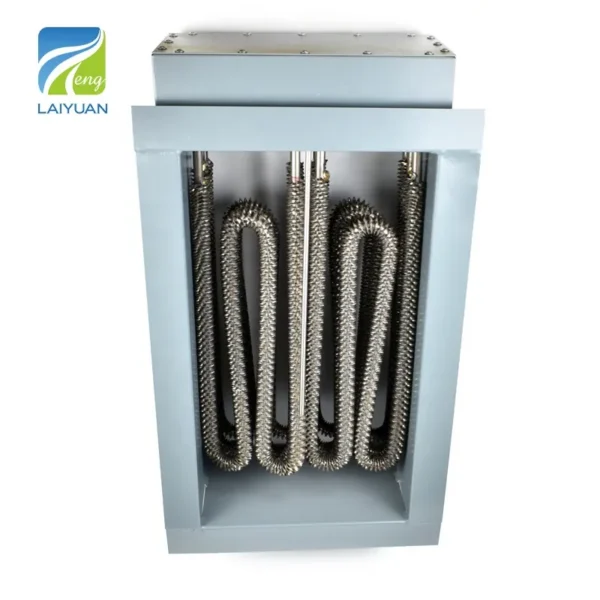

Fin Heater, 380v, 15kw

The fin heater listed here carries 380 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Yancheng Laiyuan Electric Equipment Co., Ltd. (14 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Fin Heater

• Power Source: Electric
• Voltage: 380 V
• Material: Stainless Steel
• Warranty: 1 Year
• Certification: CE
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Products Description

Air Duct heater

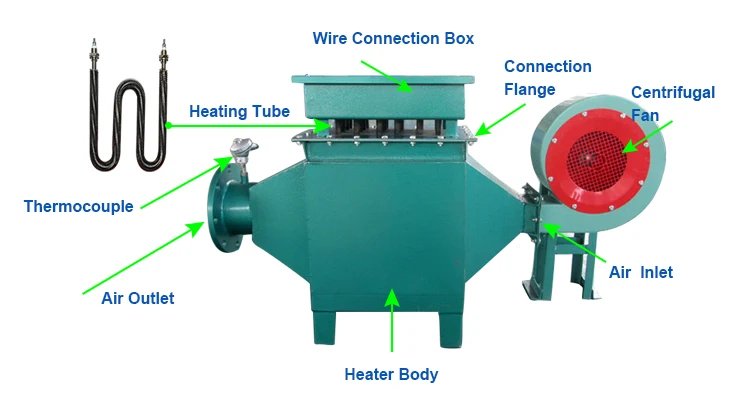

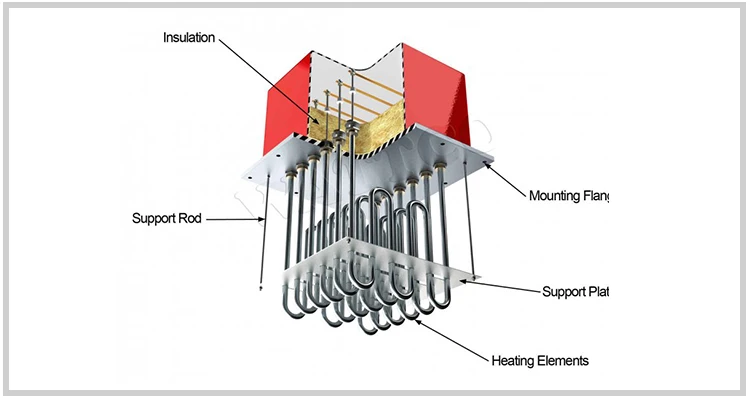

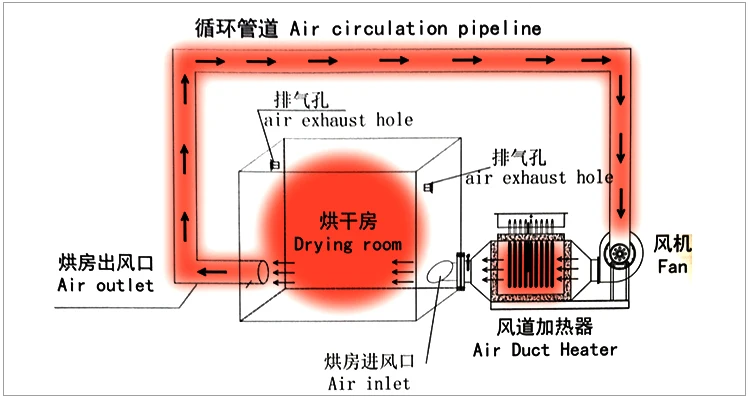

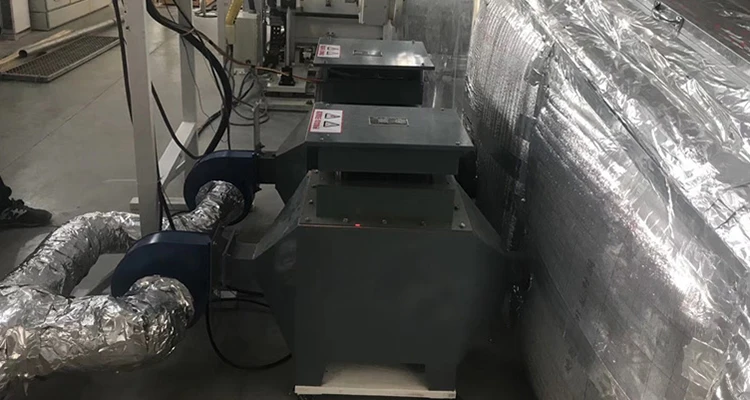

Air Duct heater is mainly used for air heating in the duct, specifications are divided into low-temperature, medium-temperature, high-temperature three forms, in the structure of the common denominator is the use of steel plates to support the electric heaters in order to reduce the vibration of the electric heaters, the junction box are equipped with over-temperature control device. Another in the control in addition to equipped with over-temperature protection, but also in the fan and the heater between the addition of intermodal devices to ensure that the electric heater start must be in the fan after the start, before and after the heater to add a differential pressure device, in order to prevent fan failure.

MAIN PRODUCTS: air duc heater     oil pipeline heater    industrial air heater    air drying heater

Product Pramameters

Specifications	Power(KW)	Room size(L*W*H)(mm)	Connection diameter(outlet)	Fan parameter
LYFD-5	5	200*300*300	Ø100	370W
LYFD-10	10	300*300*300	Ø100
LYFD-15	15	400*300*300	Ø150	750W
LYFD-20	20	400*300*400	Ø150
LYFD-25	25	400*400*400	Ø200	1.5KW
LYFD-30	30	400*400*400	Ø200
LYFD-40	40	500*400*400	Ø250	2.2KW
LYFD-50	50	600*400*400	Ø250
LYFD-60	60	700*400*400	Ø250
LYFD-70	70	700*400*500	Ø300	3KW
LYFD-80	80	800*400*500	Ø300
LYFD-90	90	900*400*500	Ø350	5.5KW
LYFD-100	100	1000*400*500	Ø350
LYFD-120	120	1000*500*500	Ø400	7.5KW
LYFD-140	140	1000*500*500	Ø400
LYFD-160	160	1000*700*500	Ø400
LYFD-180	180	1000*700*500	Ø450	11KW
LYFD-200	200	1000*700*500	Ø450
LYFD-250	250	1000*800*800	Ø500	15KW
LYFD-300	300	1200*1000*1000	Ø500
LYFD-350	350	1200*1000*1000	Ø600	18.5KW
LYFD-400	400	1400*1000*1000	Ø600
LYFD-450	450	1400*1000*1000	Ø700	22KW
LYFD-500	500	1400*1000*1000	Ø700
LYFD-600	600	1600*1000*1000	Ø800	37KW
LYFD-700	700	1800*1000*1000	Ø800
LYFD-800	800	1800*1000*1000	Ø800
LYFD-900	900	2000*1000*1000	Ø800
LYFD-1000	1000	2400*1000*1000	Ø800

Product Features

1. Manufactured in carbon steel,stainless steel, Incoloy.
2. Wattages and voltages can be customized as needed for clients
3. Various materials of element diameters according to your need

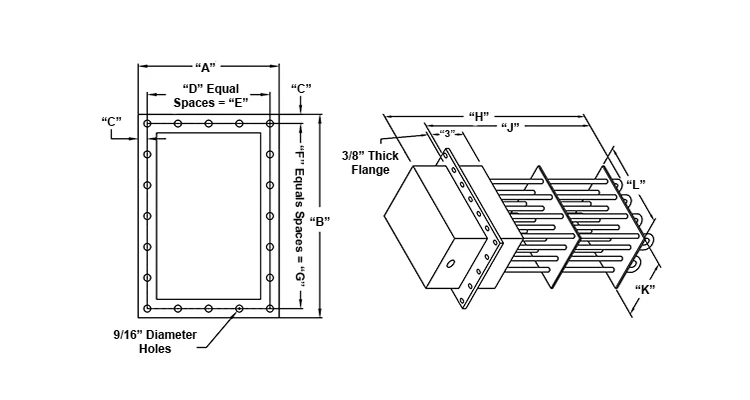

4. Several flange sizes available
5. Different types can be offered as using needs

Advantages

Advantages

1. During heating, air max temperature can reach 650 degree Celsius, but the surface temperature of the shelth is just around 50 degree Celsius
2. Heat efficient is more than 95%
3. The heating elements is made of high temperature alloy with good mechanical character
4. Clean air, small volume
5. Made as client design
6. After reached the max temperate, the working wattage can reduce to half

Product Application

Application: Aerospace,weapons industry, chemical industry and colleges and universities and many other research and production laboratories.

The key questions which need to be answered before selecting a Air Duct Heater:

1. What's Size and shape?
2. What's Voltage and power? Or, you can tell us your using environment.
3. What's the Operation temperature requirement?
4. How many sets will you want?

5. Other design requirement, feel free to tell us.

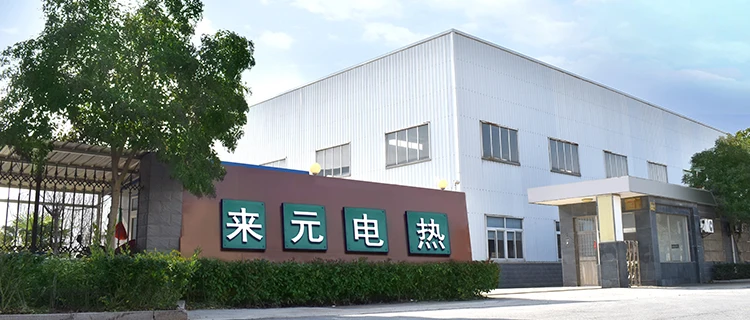

Our Company

LAIYUAN HEATER

Since its foundation,Yancheng Laiyuan Electric Equipment Co. Ltd, a company based on the actual needs of clients, has always been adhering to the purposes of quality-first,integrity-based and joint development. Laiyuan focuses on development,production,sales of customized products and serves the industry of electric heat and industrial automation instrumentation.The products are widely used in Plastic Machinery ,Vacuum Packaging, Petroleum Chemical Industry, Electric Power, Metallurgy, Food, Industrial Furnaces, Industrial Automation and other industries.

Our Partners

Customers from all over the world,such as European countries, Middle East, USA, Sourth America, Asia,Africa etc.Since 2018, we have customers in more than 30 countries all over the world.we have obtained good recognition from our customers in the industry. With the support of highly-skilled engineers, we can provide professional technical support and after-sales service.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–19 piece: US $505 / piece
  • 20–49 piece: US $485 / piece
  • 50+ piece: US $469 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fin heater?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this fin heater carry?

It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the fin heater be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Yancheng Laiyuan Electric Equipment Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yancheng Laiyuan Electric Equipment Co., Ltd. range on HVACR Nexus.
