This fireplace is published with the manufacturer’s full specification — 380V, 30000m3/h. Made by Shandong Everon Machinery Co., Ltd. (13 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fireplace
- Model Number: EO-106
- Power: 0.75kw
- Voltage: 380V
- Air Flow: 30000m3/h
- Blade Material: FRP
- Blades Rotational Speed: 440rpm
Technical Specifications
| Usage | Dog, Chicken, cow, Pig, Beekeeping, Rabbit |
|---|---|
| Condition | New |
| Warranty | 1 Year |
| Model Number | EO-106 |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 60 |
| Brand Name | EO |
| Diameter Blades | 850mm |
| Blades Rotational Speed | 440rpm |
| Air Flow | 30000m3/h |
| Size | 1060*1060*600mm |
| Blade Material | FRP |
| Power | 0.75kw |
| Voltage | 380V |
| After-Sales Service Provided | Online support |
| Selling Units | Single item |
| Single Package Size | 41X41X33 cm |
| Single Gross Weight | 10.0 kg |
Product Details

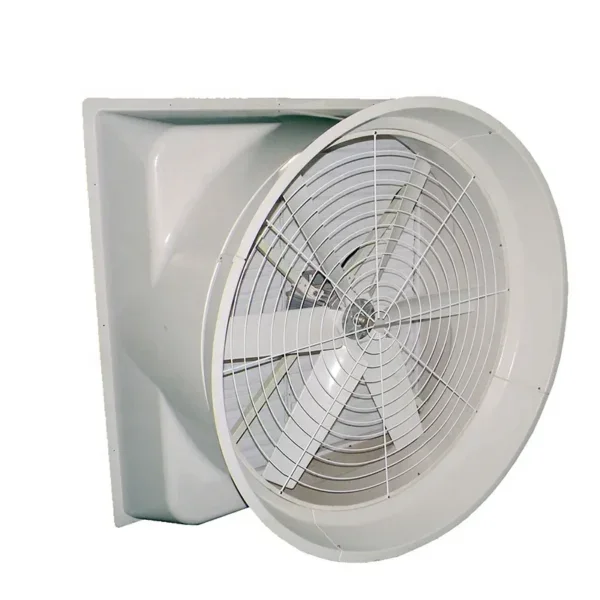

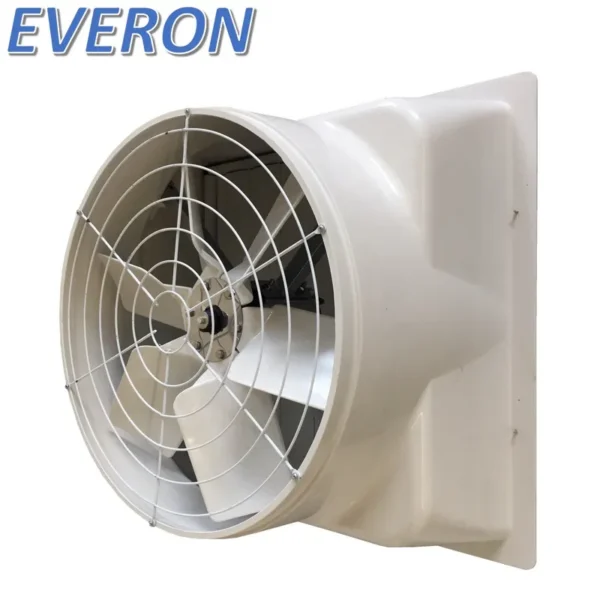

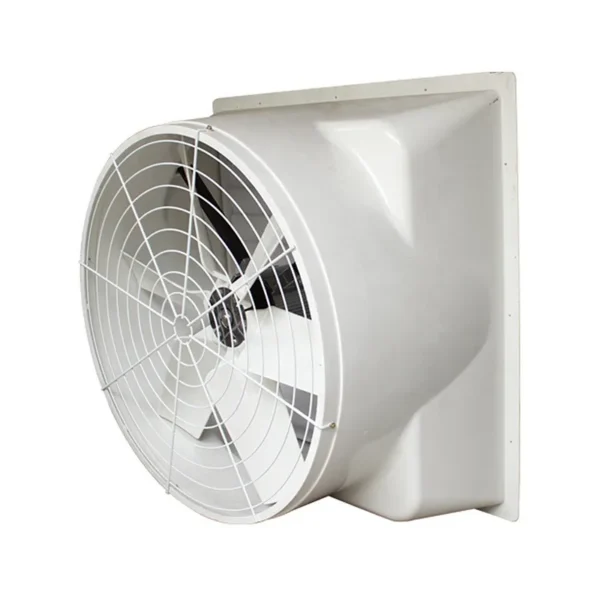

Big size good quality centrifugal roof top fireplace exhaust fan for poultry farm

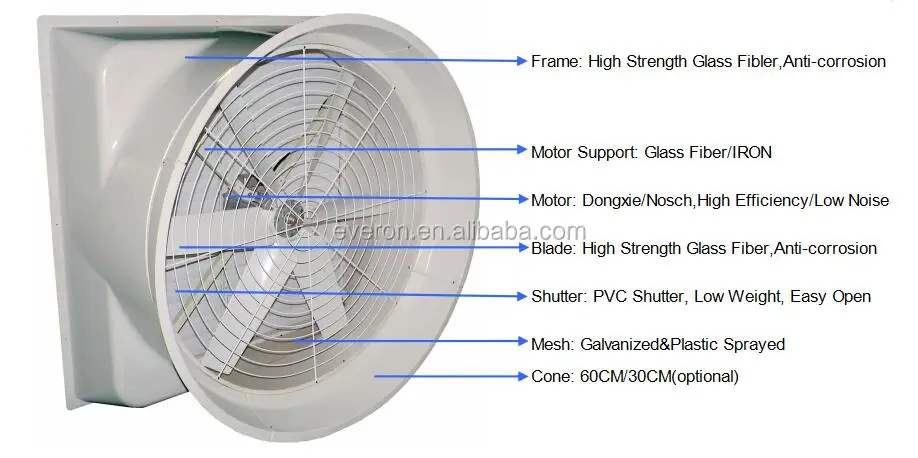

Products Features:
1). Low noise, steady operation, big air flow, power consumption: 0.75 kilowatt per hour.
2). Frame and blades are made of FRP, resistant to corrosion, acidproof alkali.
3). The cone part, designed as a horn, maintenance-free. Do not need to replace the belt for maintenance.
4). The design of shutter system adopt the principle of air forward flow, preventing rain water entering the
Room. Do not need electricity or manual switch for opening and closing.
5). Mirror designed and injection moulding Stainless steel blade, with big air volume, never distortion and broken
6). High efficient and energy-saving motor with CCC certificate, protection class: IP55, insulation class: F grade
7). The cone part, designed as a horn, maintenance-free. Do not need to replace the belt for maintenance.
8). The design of shuter system adopt the principle of air forward flow, preventing rain water entering the room. Do not need electricity or manual switch for opening and closing.
Priciple of negative pressure fan: The negative pressure fan is designed according to the air convection and the principle of the negative pressure ventilation. The negative pressure fan is usually installed in poor ventilation places. When it is working, it will force out the stagnant hot-gas, peculiar smell and squalid smoke bythe negative pressure rapidly in the shortest posssible time. At the same time, fresh air will be supplied into the door quickly and flow circularly, so as to achieve the aim of ventilation and cooling and improve the workshop's environment.

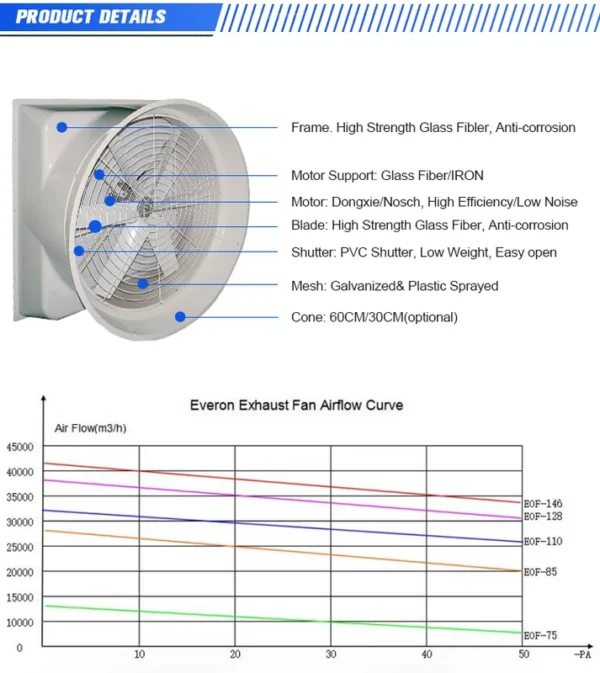

Main technical parameters:
| Model Specifications | Diameter Blades(mm) | Blades rotational speed(rpm) | Air flow(m3/h) | power(kw) | Voltage(V) | Noise | Blade material | Size(MM) |
| EO-146 | 1250 | 440 | 45000 | 0.75 | 380 | 68 | FRP | 1460*1460*600 |
| EO-126 | 1050 | 560 | 38000 | 0.75 | 380 | 68 | FRP | 1260*1260*600 |
| EO-110 | 880 | 700 | 32000 | 0.75 | 380 | 68 | FRP | 1100*1100*600 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fireplace?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fireplace be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Everon Machinery Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Everon Machinery Co., Ltd. range on HVACR Nexus.
