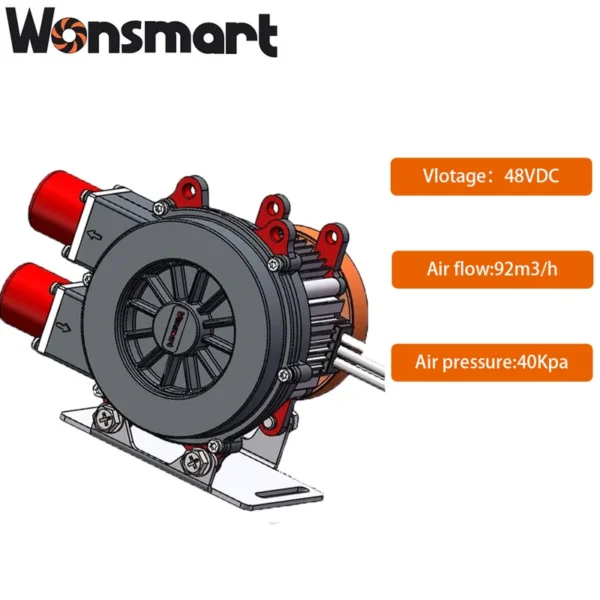

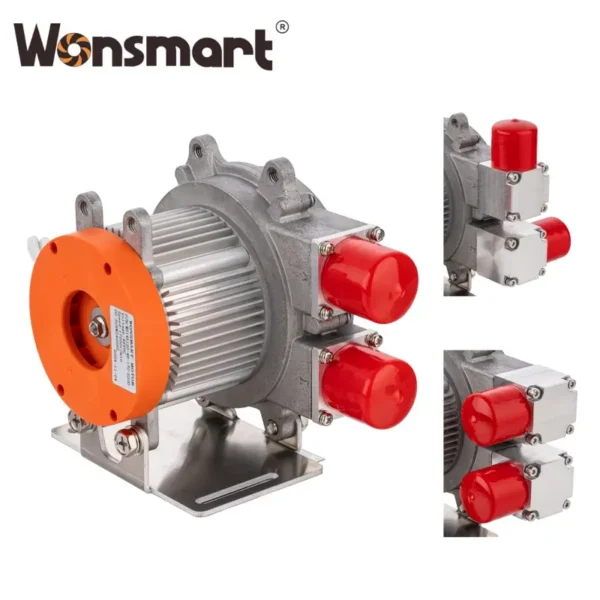

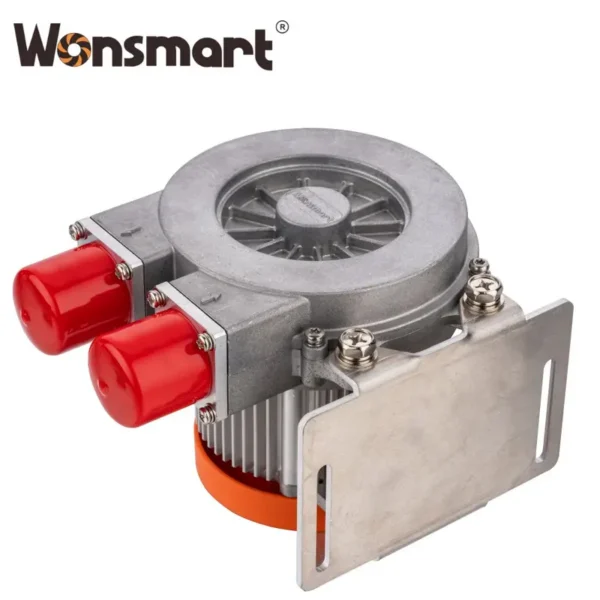

The flow mini turbo blower listed here carries rated voltage 48vdc, power source Electric, documented exactly as the manufacturer publishes it. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Flow Mini Turbo Blower
- Model Number: WS145120-48-170-S200
- Power Source: Electric
- Power Cord Length: 200mm(7.87in)
- Rated Voltage: 48vdc
- Material: Plastic
- Blade Material: Aluminum
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 48vdc |
| Electric Current Type | DC |
| Speed | 17500rpm |
| Material | Plastic |
| Blade Material | Aluminum |
| Noise Level | 70-85DB |
| Pressure | High Pressure |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Power Cord Length | 200mm(7.87in) |
| Place Of Origin | Zhejiang, China |
| Brand Name | WONSMART |
| Model Number | WS145120-48-170-S200 |
| Selling Units | Single item |
| Single Package Size | 41X31X22 cm |
| Single Gross Weight | 7.0 kg |
Product Details
Part Name | DC brushless turbine blower |
Part No | WS145120-48-170-S200 |
Rated votlage | 48VDC |
Max power consumption | 1392W |
Life time(MTTF) | >10,000hours |
Unit weight | 2.0KGS |
Bearing | NMB Ball bearing |
Insulation class | Class F |
Driver board | External, WS4830ZX01V01-SRP039 |
Speed control | PWM or 0~5V |
Wiring diagram for driver controller

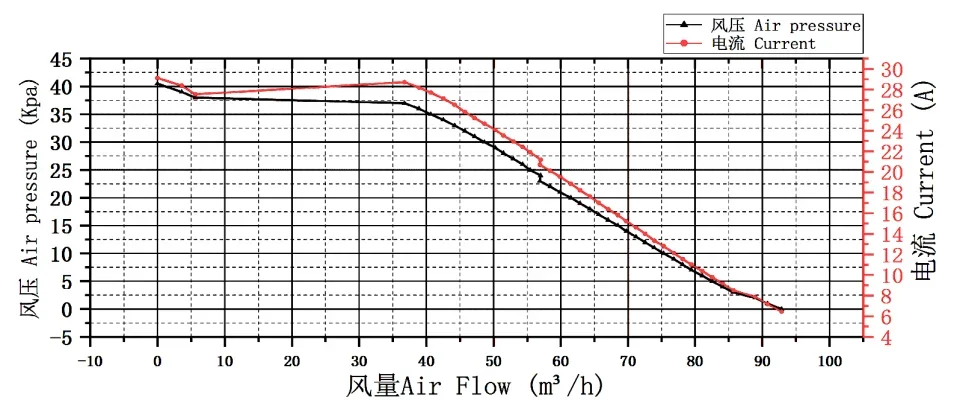

@Free blowing | @Working point | @Static pressure | ||||||||||||||
Speed | Current | Airflow | Speed | Current | Airflow | Pressure | Speed | Current | Pressure | |||||||
[rpm] | [A] | [m3/h] | [rpm] | [A] | [m3/h] | [kPa] | [rpm] | [A] | [kPa] | |||||||
17,500 | 6.5 | 92 | 16,850 | 17.5 | 63 | 18.0 | 15,200 | 29 | 40 | |||||||
sized brushless dc motors and brushless dc blowers. Our blower's max airflow reaches 200 cubic meter per hour and a max pressure of60 kpa.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. All products are100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Customer Service
Transportation & Package
Price
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $181.5 / piece
- 11–100 piece: US $161 / piece
- 101–999 piece: US $145 / piece
- 1000+ piece: US $139.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this flow mini turbo blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the flow mini turbo blower be supplied for my local voltage?
The standard configuration is 48vdc. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Wonsmart Motor Fan Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Wonsmart Motor Fan Co., Ltd. range on HVACR Nexus.
