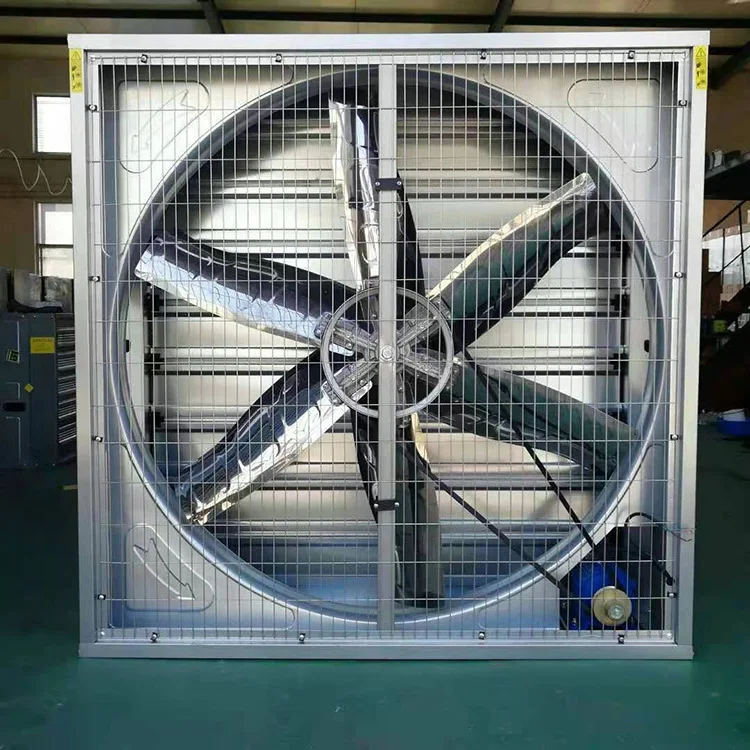

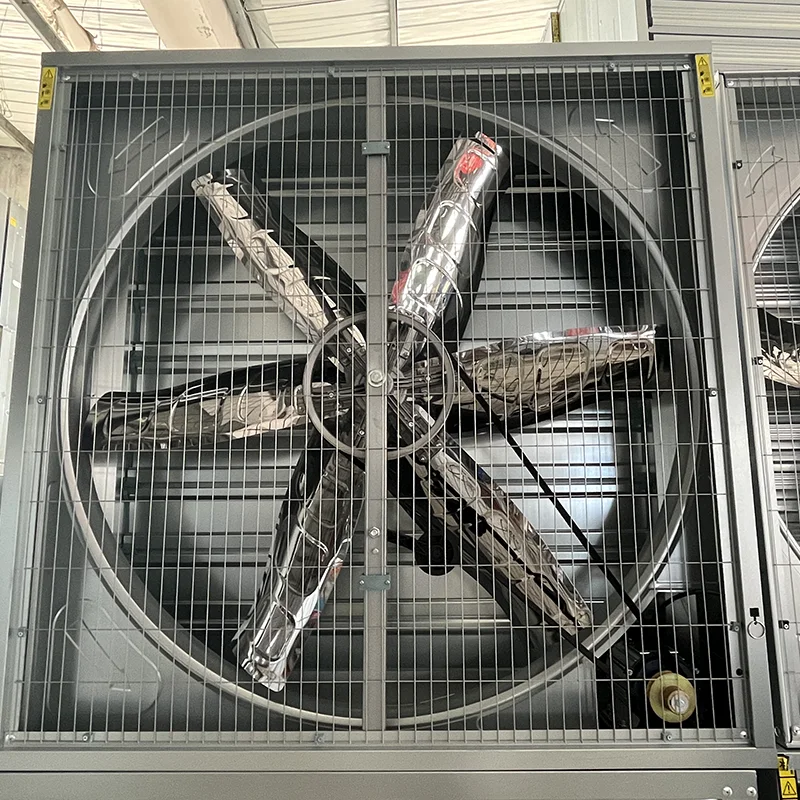

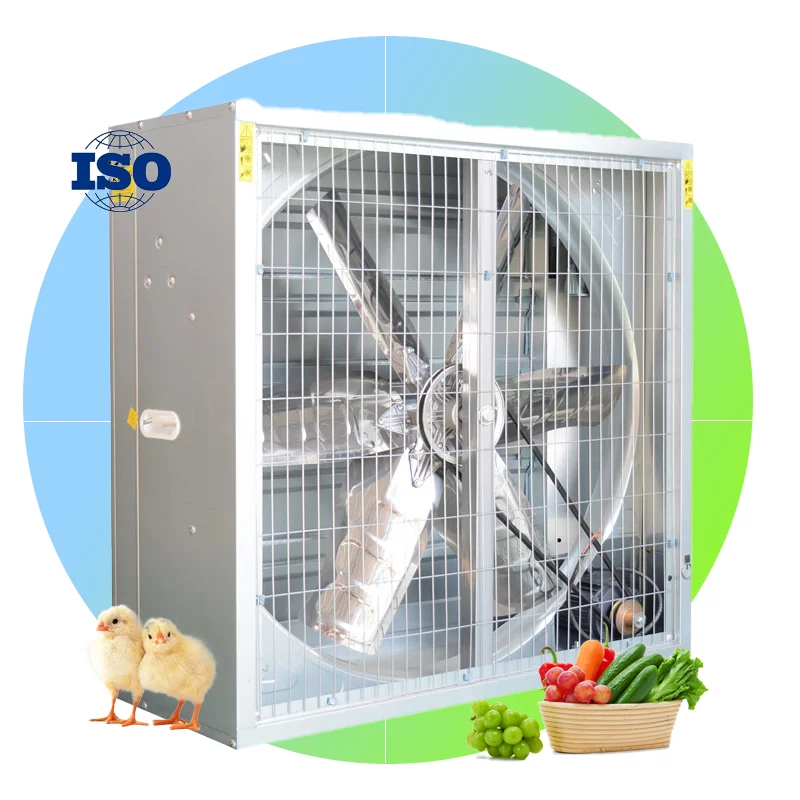

Flow Ventilation Exhaust Fan, 50inch, 1380mm, Wall, Axial

Flow ventilation exhaust fan — 380V,220V,230V,415V or as your request, power source Electric. The complete factory specification follows. Made by Qingzhou Huayi Temperature Control Equipment Co., Ltd. (5 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Flow Ventilation Exhaust Fan

• Model Number: HYZ-600, HYZ-800, HYZ-1380
• Power Source: Electric
• Power: 370w,750w,1100w,1500w
• Voltage: 380V,220V,230V,415V or as your request
• Material: Stainless Steel
• Blade Material: Stainless Steel

Technical Specifications

Product Details

Product Description

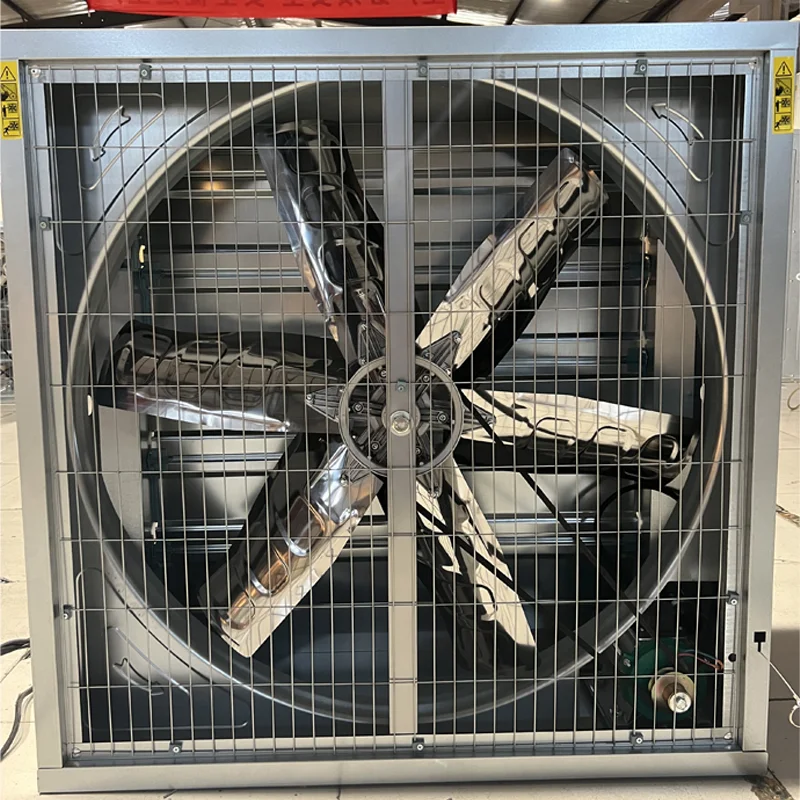

50inch 1380mm Wall Mount Hammer Axial Flow Ventilation Exhaust Fans centrifugal system for greenhouse agriculture poultry fan

HUAYI is a professional company engaged in the design and development of air fluid mechanics and temperature control equipment.HUAYI exhaust fan widely used in agriculture,flowers,animal husbandry,poultry house,greenhouse,factory workshop.

Model	Blade Diameter (mm)	Blade (rpm）	Motor Rotational （rpm）	Airflow （M3/h）	Noise （db）	Import Power (KW)	LWH (mm)
HYZ-480	380	1400	1400	3000	≤70	0.18	480*480*380
HYZ-600	500/20''	1400	1400	5600	≤70	0.37	600*600*380
HYZ-800	710/28''	660	1400	17500	≤65	0.37	800*800*400
HYZ-900	750/30''	630	1400	20000	≤65	0.55	900*900*400
HYZ-1000	900/36''	610	1400	24800	≤65	0.55	1000*1000*400
HYZ-1100	1000/40''	600	1400	32000	≤65	0.75	1100*1100*400
HYZ-1220	1100/44''	460	1400	38000	≤63	0.75	1220*1220*400
HYZ-1380	1250/50''	457	1400	42000	≤63	1.1	1380*1380*400
HYZ-1530	1400/56''	320	1400	55000	≤63	1.5	1530*1530*400

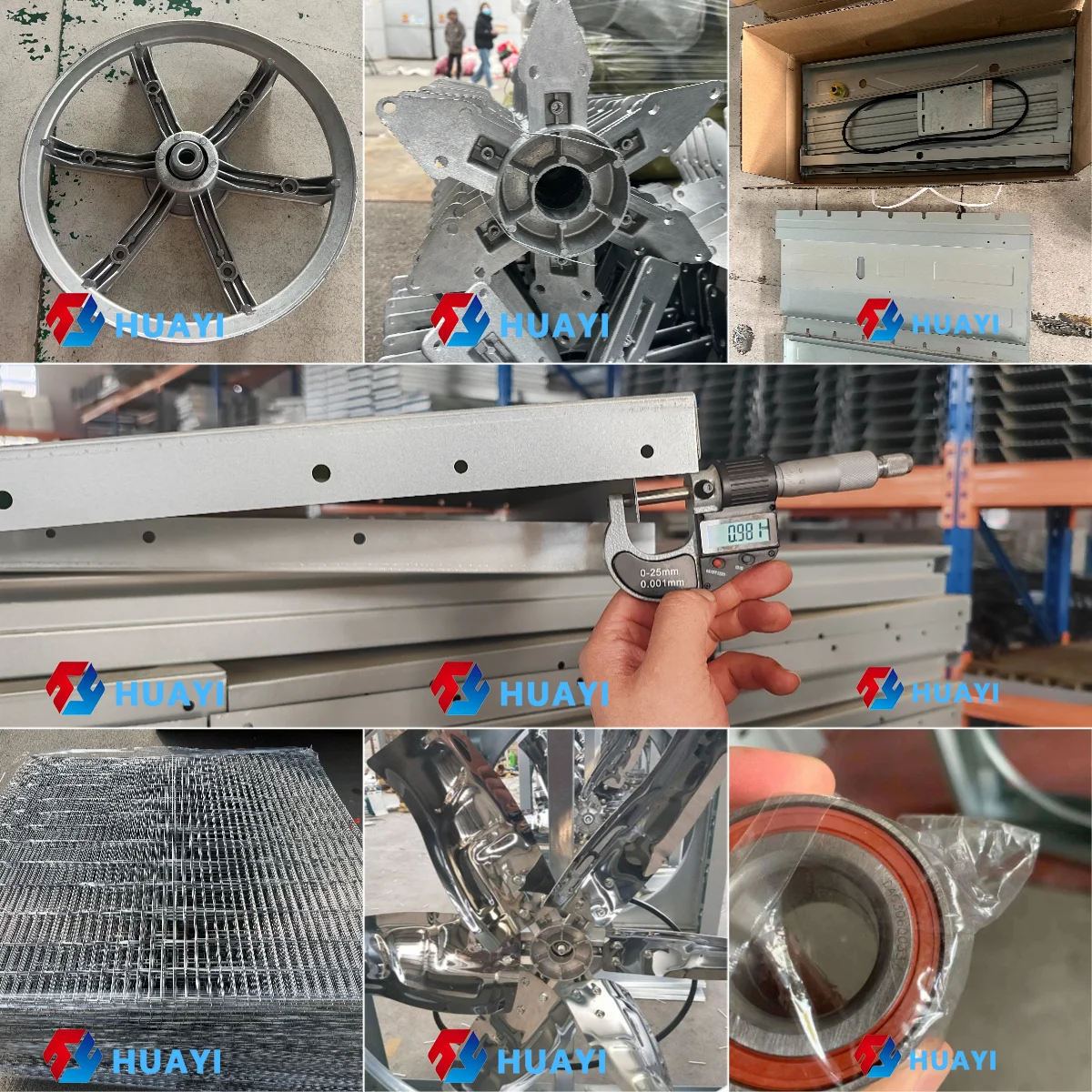

Details Images

Fan frame:

The extra thick 275g galvanized sheet produced by China famous brand iron and steel is automatically processed by Japanese numerical control machine and formed at one time with stronger corrosion resistance

Fan shutter：

High light hot galvanized sheet, automatic opening and closing, to wind, rain, dust and other functions, beautiful and generous.

Motor

100% pure copper wire.Motor Protection Grade: IP55 Insulation Class: F grade. Motor voltage and frequency can be customized.Both Chinese famous motor and Siemens motor are available.

Opening system

Heavy hammer exhaust fan

Material: High quality Nylon PA66

Advantage:It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume

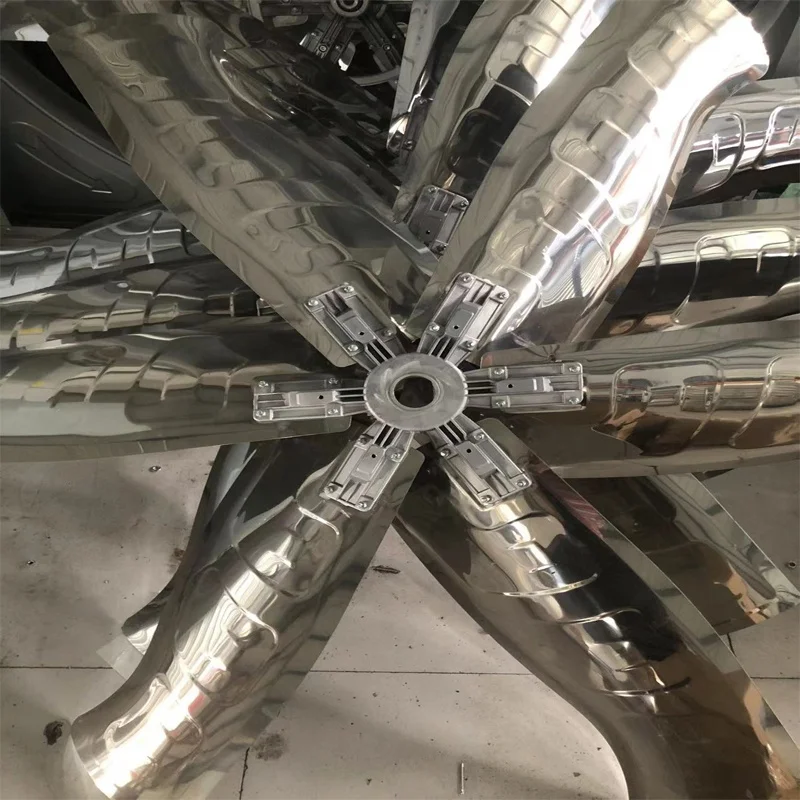

Fan blade

The material of the blade is stainless steel, thickness 1.2mm. attractive and durable. Note: Blade material also have galvanized sheet, aluminum alloy for option

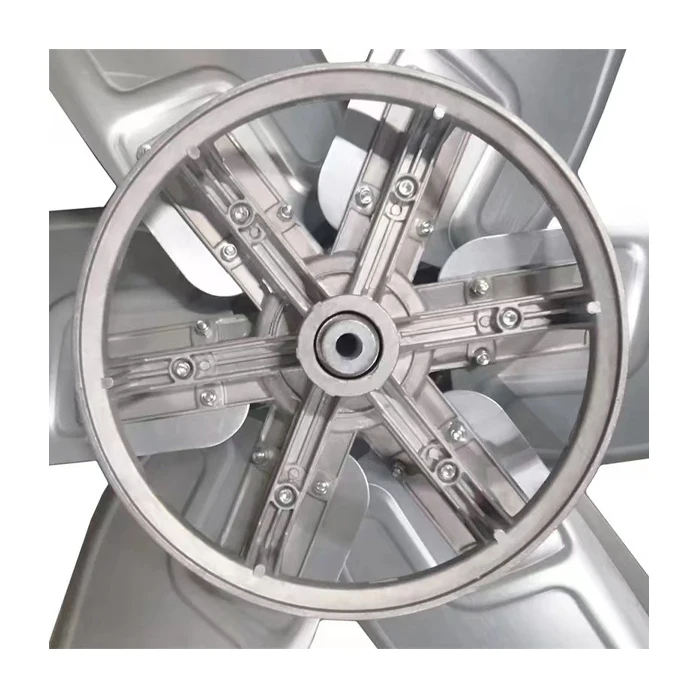

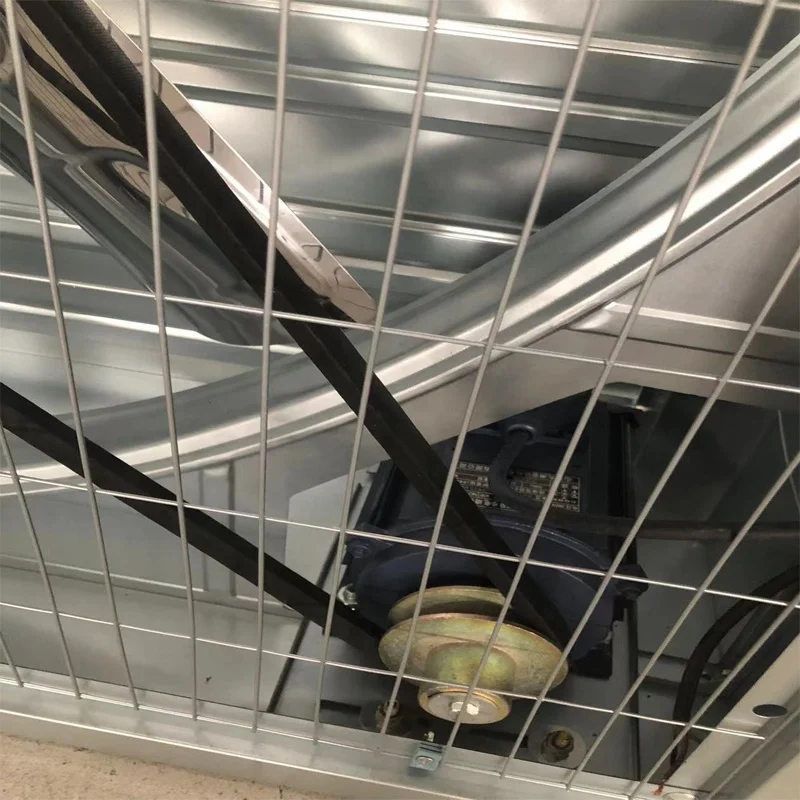

Belt pulley

Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Blast-sanding for attractive appearance, eliminate internal stress to improve its own rigidity and stability.

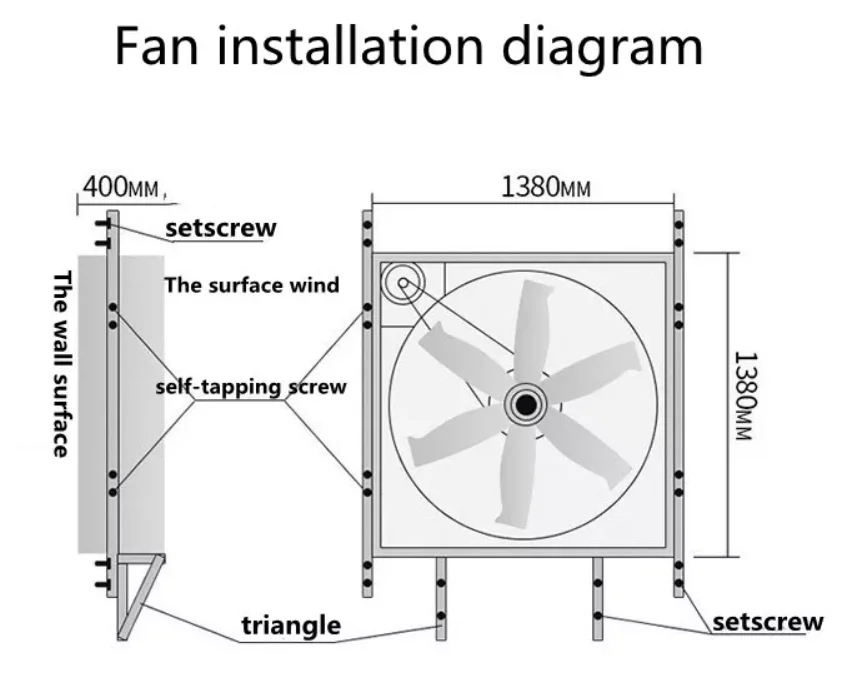

1.Adjust the horizontal and vertical , keeping the fan blade runnin

2.After fixing the fan, the remaining gap need to be sealed

3.The Expansion screws and Self tapping screw can be used to fix

Case Display

exhaust fan are widely used in agriculture and industry's ventilation and cooling system. For example, animal husbandry ,poultry house , greenhouse ,factory workshop, textile, chemical and so on.

50inch 1380mm Wall Mount Hammer Axial Flow Ventilation Exhaust Fans centrifugal system for greenhouse agriculture poultry fan

Company Profile

Qingzhou Huayi Temperature Control Equipment Co., Ltd is a professional company engaged in the research and design of temperature control equipment. we devotes ourselve to the scientific and technological development of ventilation and cooling equipment, heating equipment and animal husbandry machinery, adopts advanced CAD software technology to design new products, and continuously builds energy-saving.technologies.We are a new type of workshop ventilation and cooling equipment, standardized livestock House, gardening greenhouse ventilation and cooling, heating equipment, the production of "HUAYI" brand products six series of more than 20 specifications, the main products include cooling pad, animal husbandry fan, negative pressure fan, gardening fan, circulation fan, roof exhaust fan, axial flow fan and so on, which can be widely used in agriculture, flowers, animal husbandry, plant, textile,coal mine, chemical industry, shopping malls and supermarkets, medicine, grain,vegetables, timber and other industries. Our products are exported to domestic and foreign markets.We strive to create products with good performance and excellent price. We do OEM or ODM service. No matter customize pattern, logo, package. All of our products have passed strict quality control and been issued certification of CE,ISO9001. Our products are exported all over the world and widely recognized and trusted by users.We welcome potential partners both at home and abroad contact and visit us for future business relationships and mutual success!

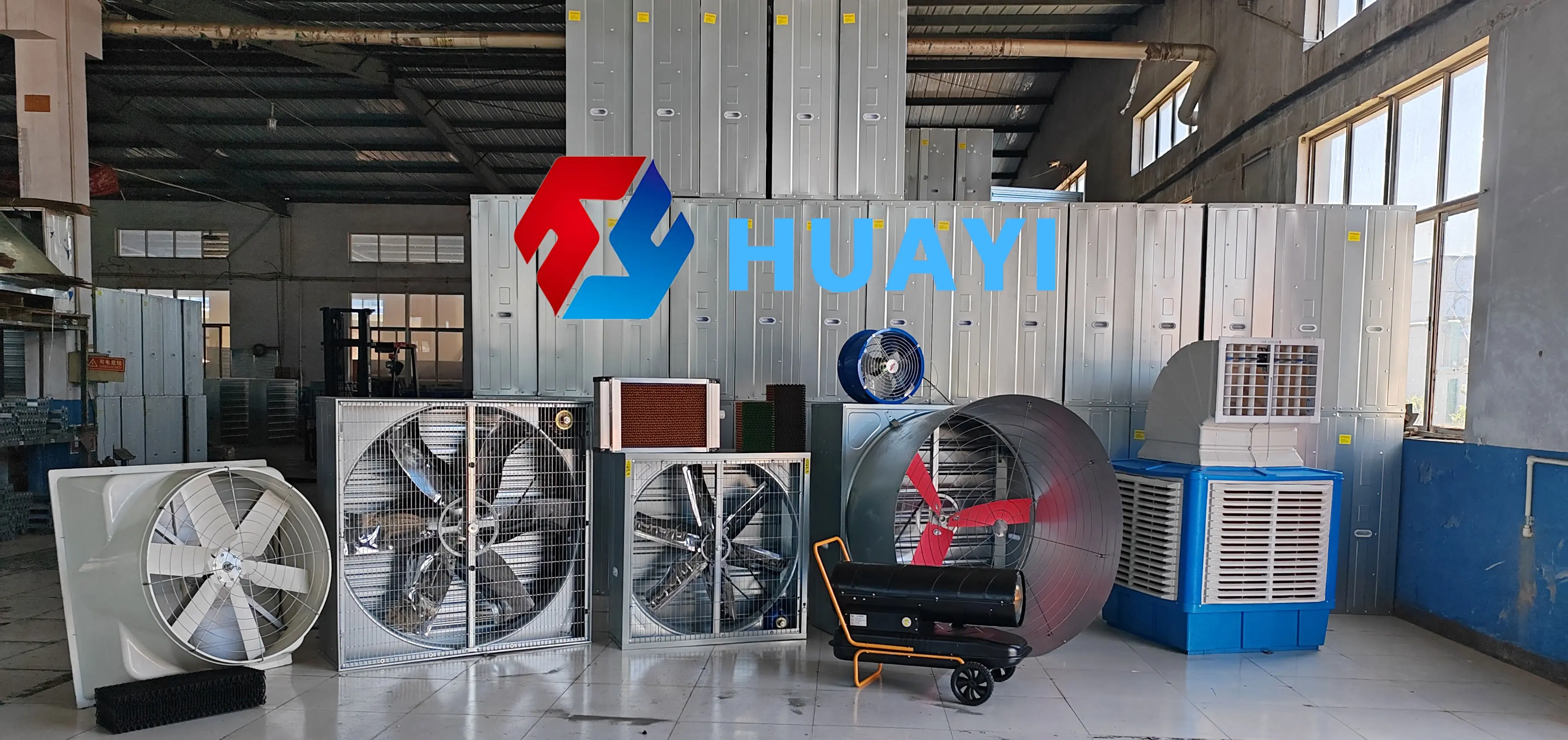

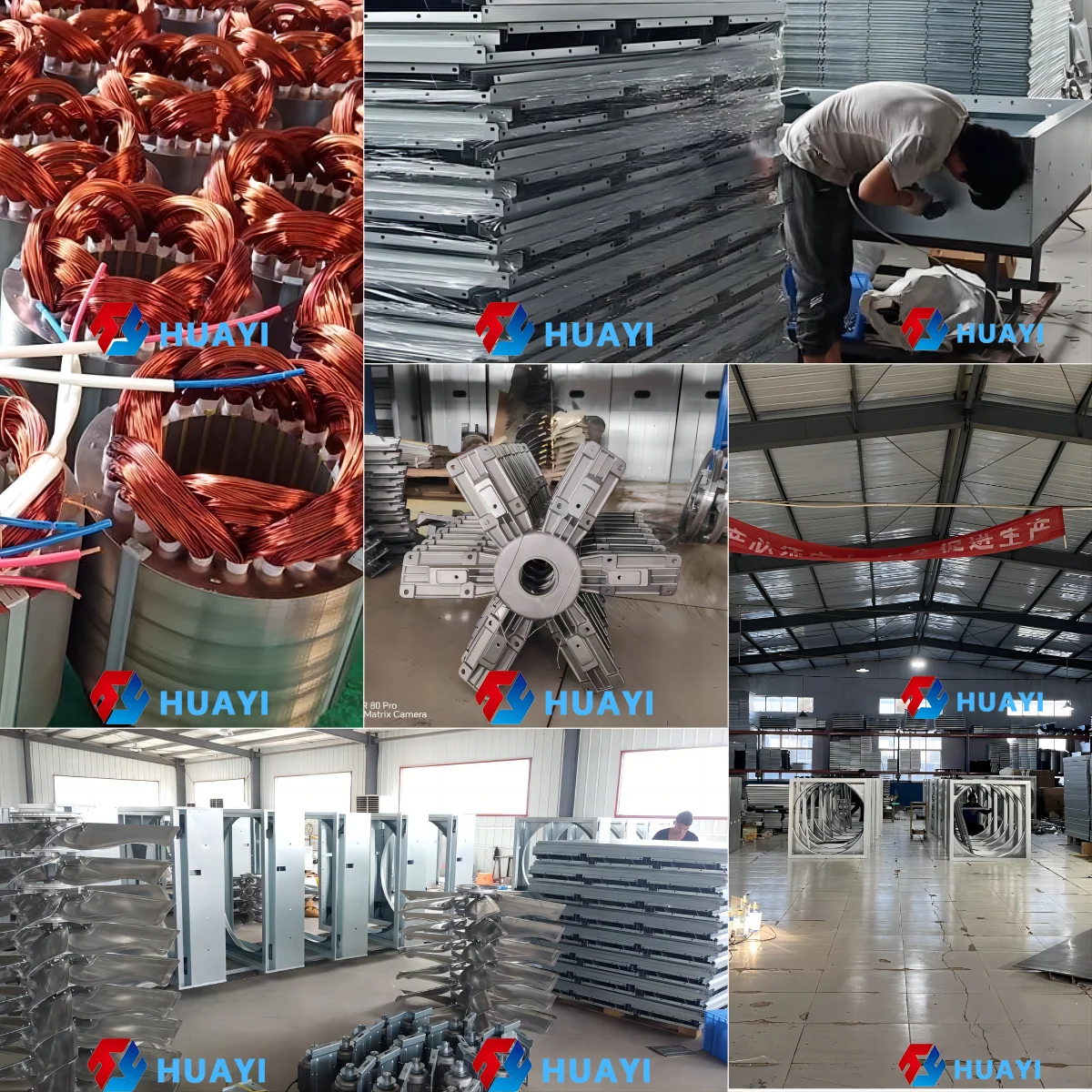

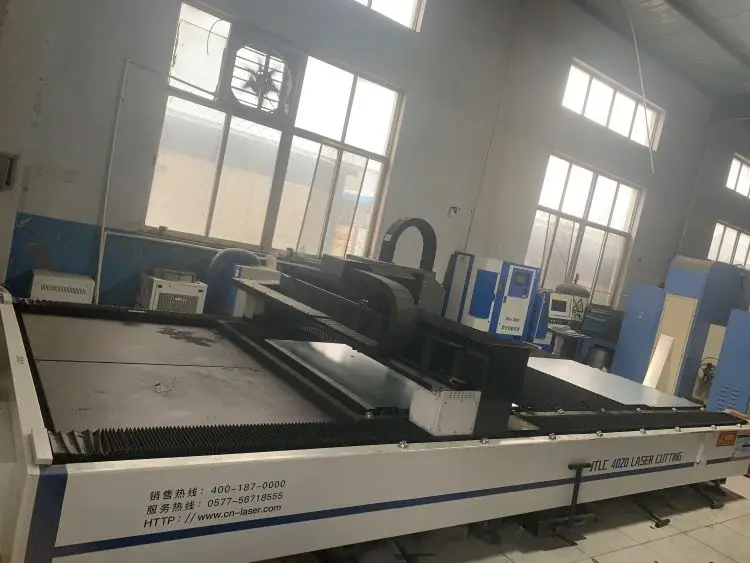

Our Factory

Professional Trustworthy

The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”HUAYI''

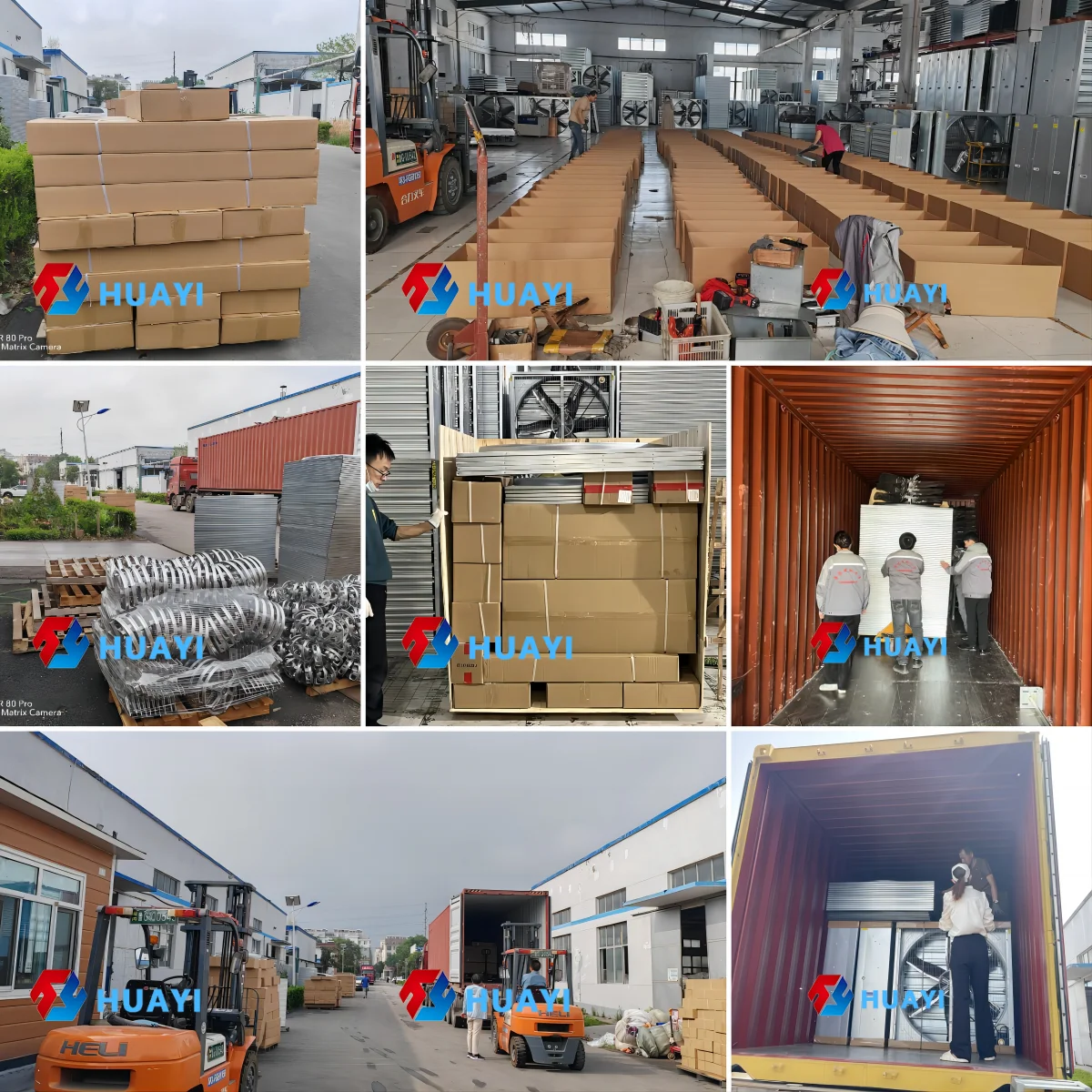

Packaging&Shipping

If the order is not large, we can send it to you by express delivery, such as TNT, DHL, UPS or EMS.

If the order volume is large we will recommend you to use air or sea transportation through the designated freight forwarder. We also have long-term cooperative agents.

Q1. Are you a factory or trading company?

A1:We are a professional and acomprehensive poultry farm equpment supplier integrating
R&D, production and sales founded on 2015. OEM and ODM are welcomed.

Q2. What payment methods do you accept?

A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.

Q3:What about the delivery time?

A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.

Q4:Do you provide free sample?

A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight.

Q5.May I visit your factory?

A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.

Q6: Can you guarantee your quality?

A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production, fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.

Q7: How do you ensure my right if I’m going to place the order?

A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–199 set: US $110 / set
  • 200+ set: US $70 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this flow ventilation exhaust fan?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this flow ventilation exhaust fan carry?

It is supplied with CE/RoHS/ISO9001/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the flow ventilation exhaust fan be supplied for my local voltage?

The standard configuration is 380V,220V,230V,415V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
