The for ahu fan listed here carries 380V, suitable airflow 3000-100000CMH, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This For Ahu Fan
- Voltage: 380V
- Suitable Airflow: 3000-100000CMH
- Material: Aluminium
- Outside Material: Galvanized Plate
- Inside Material: Aluminum
- Warranty: 1 Year
Technical Specifications
| Heat Exchanger Type | Rotary heat exchanger |
|---|---|
| Material | Aluminium |
| Voltage | 380V |
| Core Components | heat exchanger core |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Energy Saving |
| Place Of Origin | Beijing, China |
| Weight (Kg) | 8 |
| Brand Name | Holtop |
| Liquid Flow Rate | No |
| Maximum Pressure Rating | specification |
| Dimension(L*W*H) | customized |
| Efficiency | 70%~90% |
| Shape | cubiod |
| Outside Material | Galvanized Plate |
| Inside Material | Aluminum |
| Thickness | 200mm |
| Suitable Airflow | 3000-100000CMH |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 20.0 kg |
Product Details

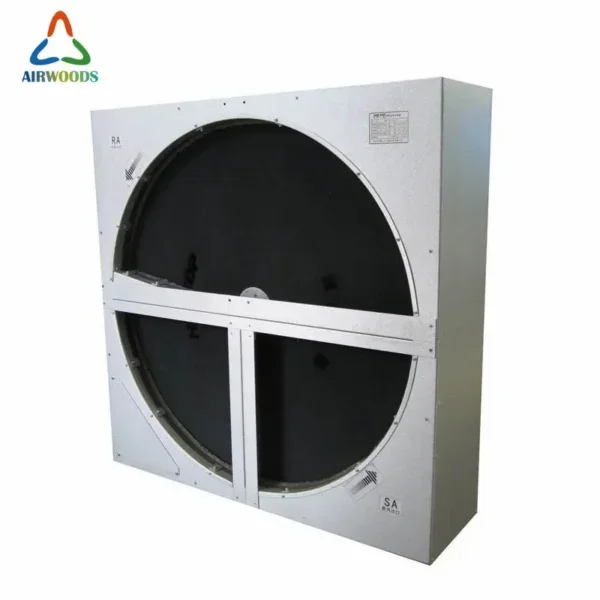

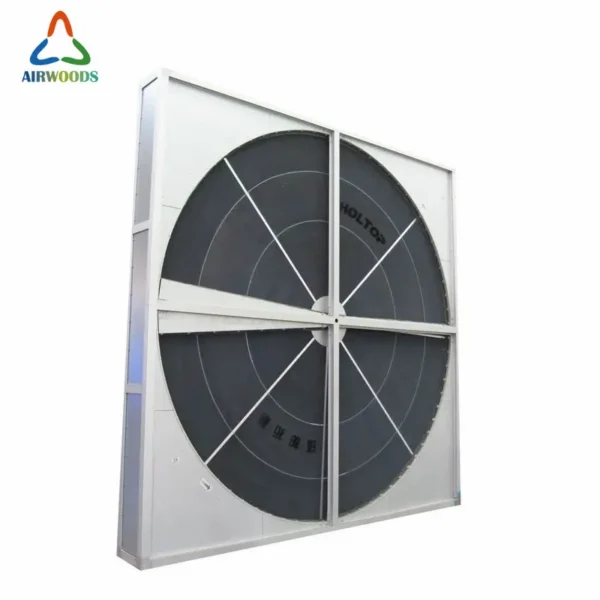

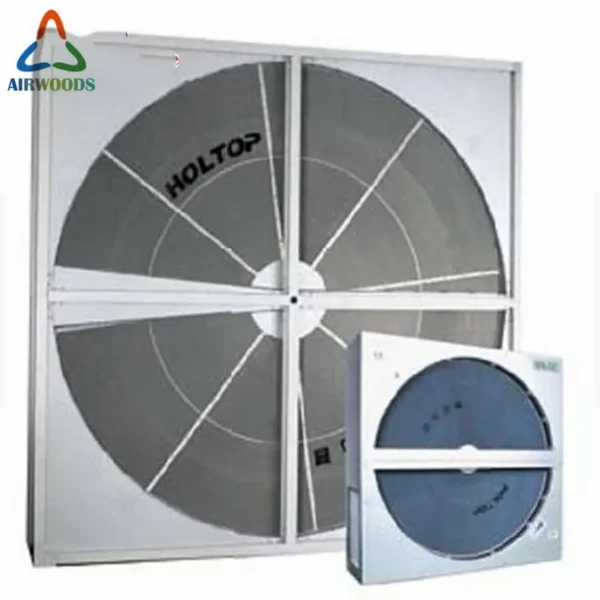

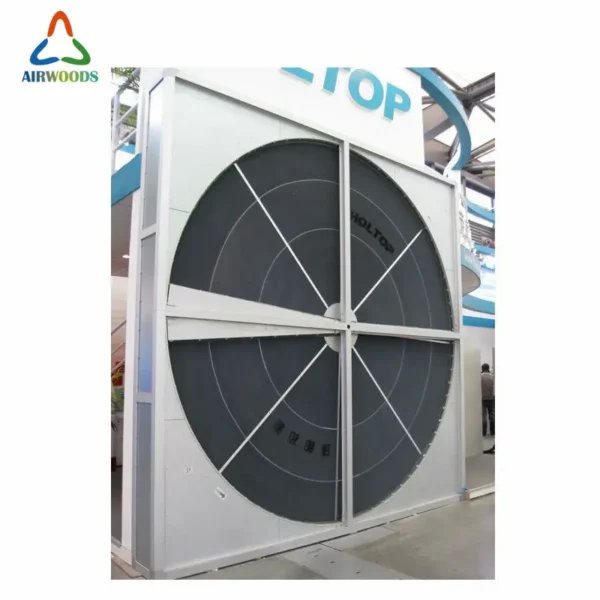

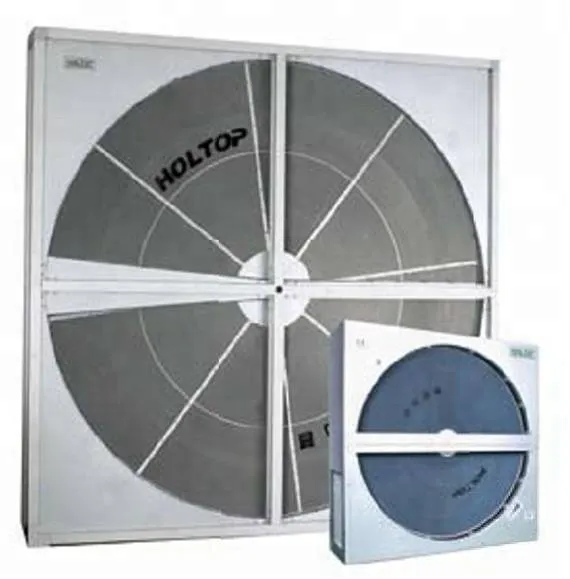

Beijing factory industrial heat recovery wheel price for ahu fan
Specifications and dimensions of Holtop rotary heat exchanger
| Model | A (mm) | B (mm) | B1 (mm) | B2/A1 (mm) | F (mm) | D (mm) | Power (Kw) | Power supply | Weight (Kg) |
| 500 | 600 | 600 | 312 | 68 | 32 | 530 | 0.09 | 380V/3Ph/50Hz | 42 |
| 600 | 700 | 700 | 350 | 68 | 32 | 630 | 0.09 | 380V/3Ph/50Hz | 59 |
| 700 | 800 | 800 | 400 | 68 | 32 | 730 | 0.09 | 380V/3Ph/50Hz | 71 |
| 800 | 900 | 900 | 450 | 68 | 32 | 830 | 0.09 | 380V/3Ph/50Hz | 82 |
| 900 | 1030 | 1030 | 515 | 98 | 32 | 930 | 0.09 | 380V/3Ph/50Hz | 102 |
| 1000 | 1130 | 1130 | 565 | 98 | 32 | 1030 | 0.09 | 380V/3Ph/50Hz | 130 |
| Model | A (mm) | B (mm) | B1 (mm) | F (mm) | D (mm) | Power (Kw) | Power supply | Weight (Kg) |
| 1100 | 1230 | 1230 | 566 | 32 | 1130 | 0.09 | 380V/3Ph/50Hz | 151 |
| 1200 | 1330 | 1330 | 646 | 32 | 1230 | 0.18 | 380V/3Ph/50Hz | 169 |
| 1300 | 1430 | 1430 | 696 | 32 | 1330 | 0.18 | 380V/3Ph/50Hz | 190 |
| 1400 | 1530 | 1530 | 716 | 32 | 1430 | 0.18 | 380V/3Ph/50Hz | 205 |
| 1500 | 1630 | 1630 | 766 | 42 | 1530 | 0.18 | 380V/3Ph/50Hz | 212/220 |
| 1600 | 1730 | 1730 | 816 | 42 | 1630 | 0.18 | 380V/3Ph/50Hz | 230/239 |
| 1700 | 1830 | 1830 | 866 | 42 | 1730 | 0.25 | 380V/3Ph/50Hz | 256/266 |
| 1800 | 1930 | 1930 | 916 | 47 | 1830 | 0.25 | 380V/3Ph/50Hz | 283/293 |
| 1900 | 2030 | 2030 | 966 | 47 | 1930 | 0.25 | 380V/3Ph/50Hz | 301/320 |
| 2000 | 2130 | 2130 | 1016 | 47 | 2030 | 0.25 | 380V/3Ph/50Hz | 358/370 |
| Model | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | D (mm) | Power (Kw) | Power supply | Weight (Kg) |
| 2200 | 2400 | 2400 | 400 | 50 | 40 | 2230 | 0.37 | 380V/3Ph/50Hz | 420 |
| 2400 | 2600 | 2600 | 400 | 50 | 40 | 2430 | 0.37 | 380V/3Ph/50Hz | 500 |
| 2600 | 2800 | 2800 | 400 | 50 | 40 | 2630 | 0.37 | 380V/3Ph/50Hz | 570 |
| 2800 | 3000 | 3000 | 400 | 50 | 40 | 2830 | 0.37 | 380V/3Ph/50Hz | 860 |
| 3000 | 3200 | 3200 | 430 | 70 | 70 | 3030 | 0.55 | 380V/3Ph/50Hz | 950 |
| 3200 | 3400 | 3400 | 430 | 70 | 70 | 3230 | 0.55 | 380V/3Ph/50Hz | 1039 |
| 3400 | 3600 | 3600 | 430 | 70 | 70 | 3430 | 0.55 | 380V/3Ph/50Hz | 1110 |
| 3600 | 3800 | 3800 | 430 | 70 | 70 | 3630 | 0.55 | 380V/3Ph/50Hz | 1220 |
| 3800 | 4000 | 4000 | 430 | 70 | 70 | 3830 | 0.55 | 380V/3Ph/50Hz | 1360 |
| 4000 | 4200 | 4200 | 430 | 70 | 70 | 4030 | 0.75 | 380V/3Ph/50Hz | 1500 |
| 4200 | 4400 | 4400 | 430 | 70 | 70 | 4230 | 0.75 | 380V/3Ph/50Hz | 1645 |
| 4400 | 4600 | 4600 | 430 | 70 | 70 | 4430 | 0.75 | 380V/3Ph/50Hz | 1750 |
| 4600 | 4800 | 4800 | 430 | 70 | 70 | 4630 | 1.1 | 380V/3Ph/50Hz | 1830 |
| 4800 | 5000 | 5000 | 430 | 70 | 70 | 4830 | 1.1 | 380V/3Ph/50Hz | 1980 |
| 5000 | 5200 | 5200 | 430 | 70 | 70 | 5030 | 1.1 | 380V/3Ph/50Hz | 2100 |
Working principle of Holtop rotary heat exchanger
Rotary heat exchanger is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to 70% to 90%.
Product details
Wheel materials
The sensible heat recovery wheel is made by aluminum foils of 0.05mm thickness. And the enthalpy recovery wheel is made by aluminum foils coated with 3A molecular sieve of 0.04mm.
Casing construction
Wheel Construction
The wheel of the rotary heat exchanger is made of alternating layers of flat and corrugated aluminum foil to form the alveolate
shape. Various height of corrugation is available. Flat surface ensures minimum leakage. Interior spokes are used to mechanically bond the rotor’s laminations. These are threaded at the hub and welded at the periphery.
Bearing and drive system
The hub of the wheel is equipped with life-time- lubricated ball bearing or roller bearing, and with covers at both sides. No maintenance is required under normal usage.
– V-belt with big interface. Long service life.
– Spring shock absorber insures steady operation.
– Integrated motor and speed reducer free from maintenance.
Double sealing and purge sector system
Unique double-sealing system is installed around the rotor periphery and along the central beam. The sealing materials are soft and dense of small friction and longer service life.
Installation types and motor position
The motor is installed at the corner of the rotary heat exchanger, the position of the corner is marked from no. 1 to 4, and the motor position is optional.
Application
Rotary heat exchanger can built in air handling unit(AHU)as a main part of the heat recovery section. Usually side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU. It can also be installed in the ducts of ventilation system as a main part of the heat recovery section, connected by flange. In this case, side panel of the exchanger is necessary to prevent leakage.
Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products incluses energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop also offer turnkey hvac solutions for different industry.
Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with so many world famous brands, offering OEM /ODM service.
Holtop certificate
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, CB, RCM, RoHs, FCC, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
A. All-round technical supports
1.We help to select models based on your requirements.
2.We provide professional product schemes and technical reports.
3.We design and develop the new products according to your requirements.
4. We provide professional advice for your installation, debugging and operation.
5. We supply the spare parts and technical support in & after the warranty time.
6. General testing and operational test carried out for every units before delivery.
7. We supply the training service at our factory if you need.
B. Reliable after-sales service
1. Technical advice for commissioning, installation, operation and maintenance.
2. Free spare parts for replacement during warranty period.
3. Or 1% free spare parts as warranty for container delivery.
C. Customized service
1. OEM service
2. ODM service
3. New product R&D service
4. CKD & SKD
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $850 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this for ahu fan?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the for ahu fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
