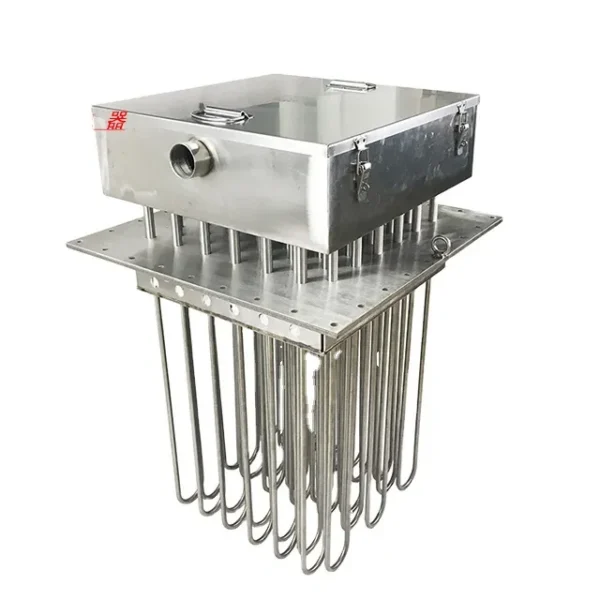

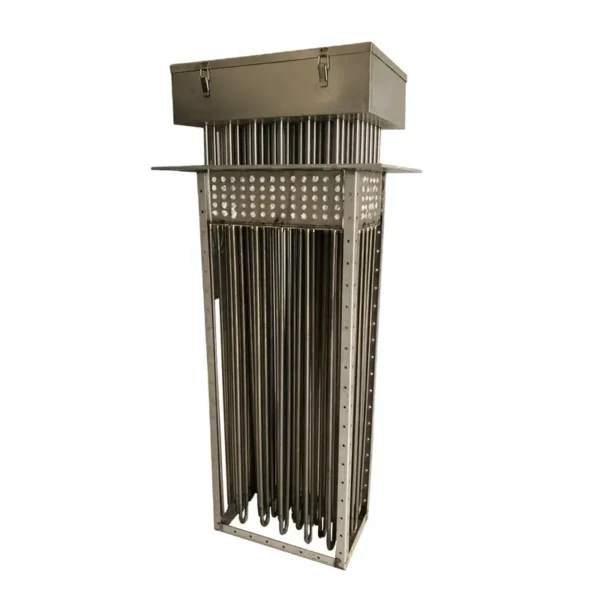

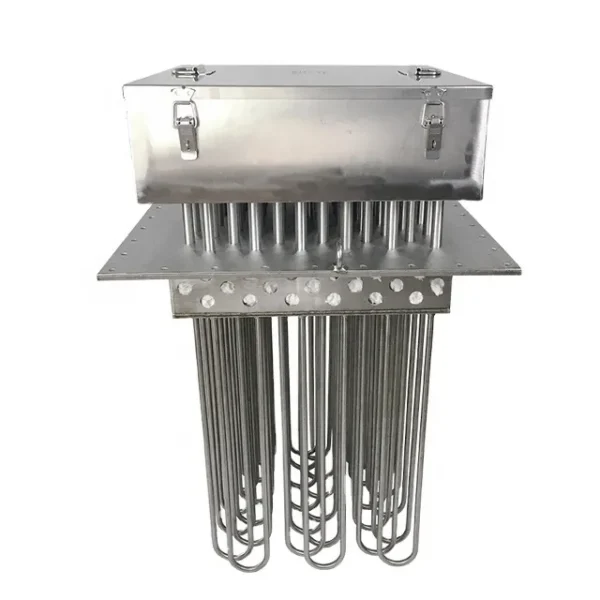

The forced air duct heater listed here carries 220V/380V or Customized, heating capacity 1, documented exactly as the manufacturer publishes it. Made by Taizhou Chuangxian Electrical Appliance Co., Ltd. (10 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Forced Air Duct Heater
- Power Source: Electric
- Voltage: 220V/380V or Customized
- Heating Capacity: 1
- Material: Stainless Steel
- Sheath Material: stainless steel 304/316L/321/310S/incoloy 800/840/825
- Insulation Material: High-purity Mgo Powder
Technical Specifications
| Type | Duct Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220V/380V or Customized |
| Material | Stainless Steel |
| Core Components | heating tube |
| Key Selling Points | High Productivity |
| Warranty | 1 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | 1 |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 1 |
| Brand Name | TZCX |
| Dimension(L*W*H) | Custom Size |
| Working Temperature Range | 0 – 850 ℃ |
| Product Name | duct Heater |
| Sheath Material | stainless steel 304/316L/321/310S/incoloy 800/840/825 |
| Insulation Material | High-purity Mgo Powder |
| Phase | Single- and Three-Phase Wiring |
| Tube Diameter | 8mm 10mm or 12-20mm |
| MOQ | 1 set |
| Experience In Making | 28 YEARS |
| Temperature Control | options |
| Demension | Customized |
| Wattage | Customized |
| Selling Units | Single item |
| Single Package Size | 100X50X30 cm |
| Single Gross Weight | 64.0 kg |
Product Details
2.Custom the Flange size, sheath material, watt,voltage, heating length, according to applications.
3.Process air duct heaters are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.
Specification | ||

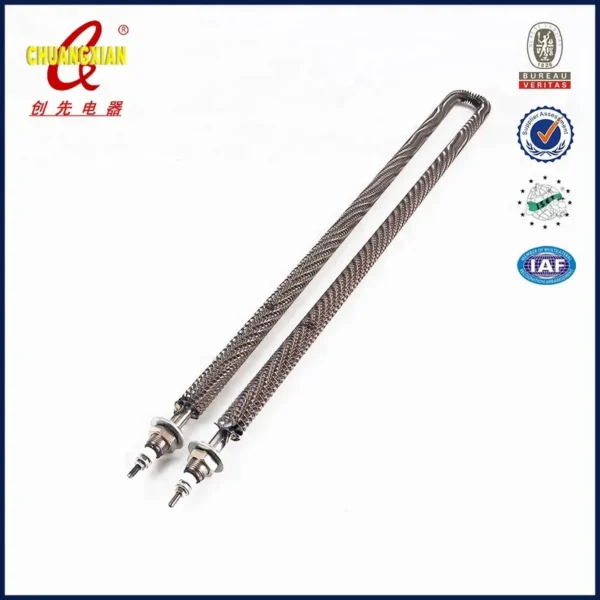

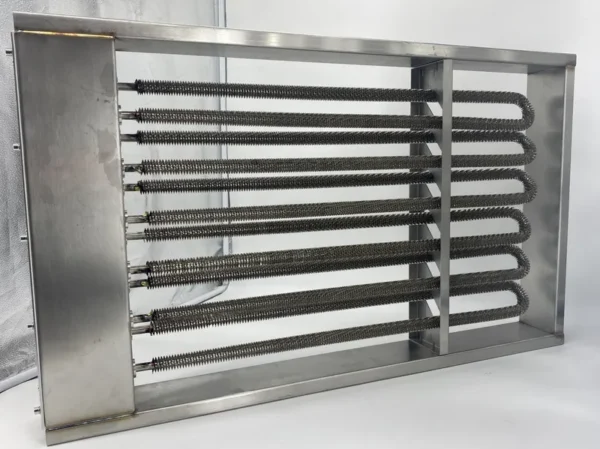

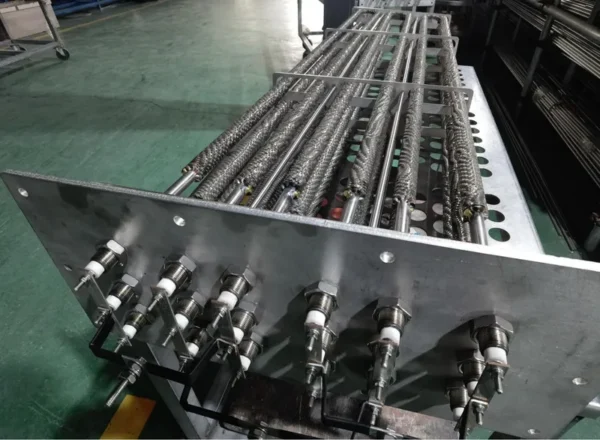

Type | tubular heater & finned tubular heater | |
Material： | stainless steel 304/316L/310S/321 incoloy 800/825/840 | |
mounting： | Flange | |
Tube length： | Customized | |
Volt： | 120v/220v/380V or Customized(12v-1200V) | |
Watt： | 15/30/50/100/300KW or Customized(1kw-1000kw) | |
Temperature control | If required thermostat/thermocouplePID controller box/cabinet | |
All specifications can be customized as your request! | ||
· Duct size, inlet and outlet temperature.
· Element sheath material.
· If you have drawing or product pictures in hands,will be much better and helpful for exact price calculation.
Our products are widely used in petroleum, chemical, pharmaceutical, new energy, food, glass, plastics, home appliances,
high-speed rail, aerospace and other fields, best-selling all over the country, and exported to Europe, North America, Oceania,the Middle East and Southeast Asia and other more than 60 countries and regions, has won the praise of domestic and foreign merchants.
We attaches great importance to scientific and technological research and development and international cooperation, has conducted academic exchanges with many scientific research institutes at home and abroad, and has in-depth cooperation with many new energy companies in Europe, North America and the Middle East to develop products, and has applied for a number of patents. Products have passed ISO9001, CQC,CE,ROHS,NEPSI explosion-proof certification, Many products sell well all over the world, "TZCX" brand is a popular brand all over the world.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $1500 / piece
- 10–19 piece: US $950 / piece
- 20+ piece: US $650 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this forced air duct heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the forced air duct heater be supplied for my local voltage?
The standard configuration is 220V/380V or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Chuangxian Electrical Appliance Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taizhou Chuangxian Electrical Appliance Co., Ltd. range on HVACR Nexus.
