Key specification for this forwon factory brazed plate: material Stainless Steel, heat exchanger type Plate Heat Exchanger. Everything below is reproduced from the factory data sheet. Made by Zhejiang Forwon Plate Heat Exchanger Co., Ltd. (5 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Forwon Factory Brazed Plate
- Voltage: /
- Material: Stainless Steel
- Warranty: 1.5 year
- Certification: CE, ISO9001, ISO14001
- Place Of Origin: Zhejiang, China

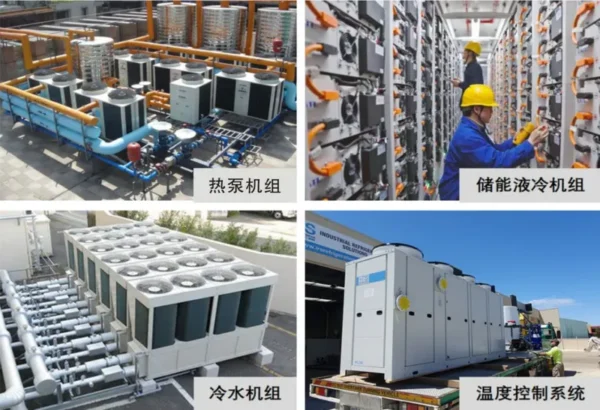

- Application: Heat Pump, air conditioning, chiller, new energy vehicles
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Material | Stainless Steel |
| Voltage | / |
| Core Components | Heat Exchanger |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High efficiency |
| Working Temperature Range | -196.0~200℃ |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 0 |
| Brand Name | Forwon |
| Liquid Flow Rate | 50m3/h |
| Maximum Pressure Rating | 4.5Mpa |
| Dimension(L*W*H) | 525*243*590mm |
| Product Name | Brazed Plate Heat Exchanger |
| Application | Heat Pump, air conditioning, chiller, new energy vehicles |
| Design Pressure | 3.0/4.5 mpa |
| Max Plate Numbers | 250 pcs |
| Plate Type | H |
| Max Connection Size | 2-1/2" |
| Certification | CE, ISO9001, ISO14001 |
| Keyword | Plate heat exchanger |
| Selling Units | Single item |
| Single Package Size | 58X30X64 cm |
| Single Gross Weight | 120.0 kg |

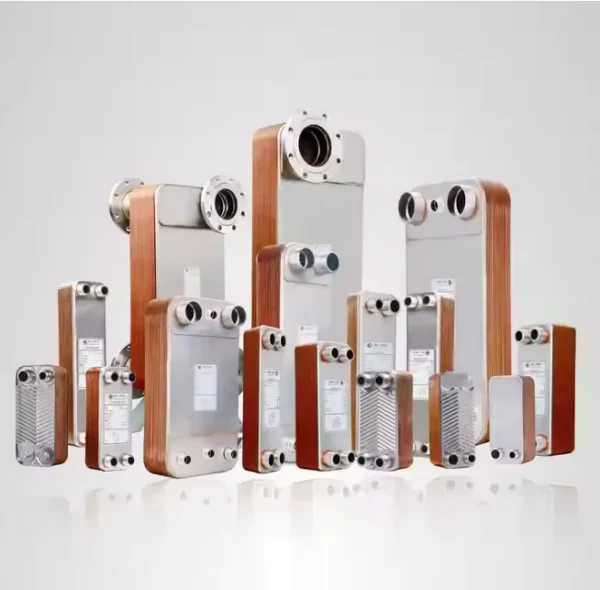

Product Details

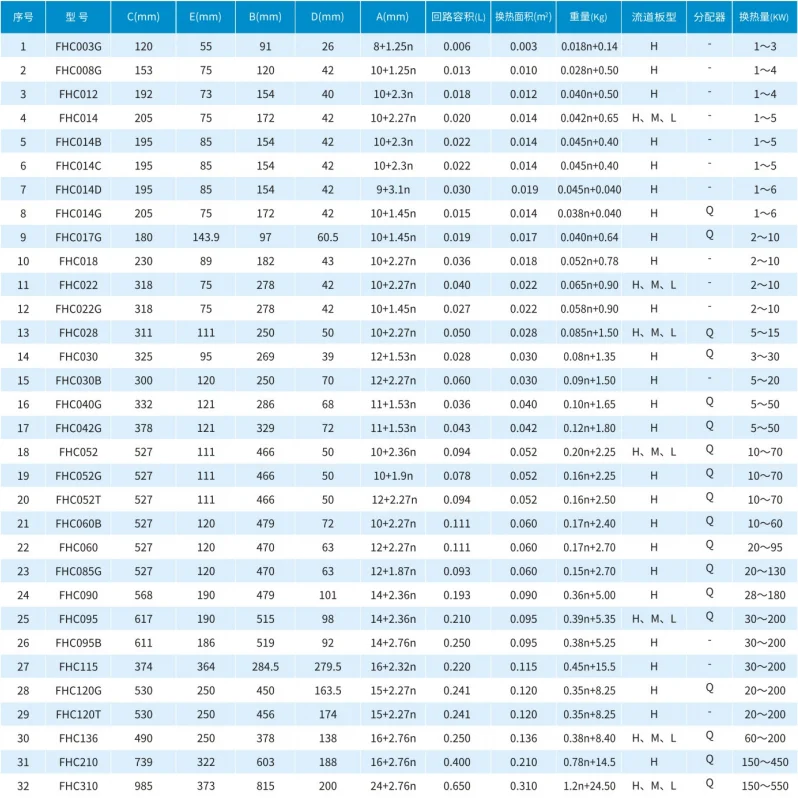

PRODUCT SPECIFICATIONS | ||
FHC120G | ||
Plate Nos | N | |
Size A (mm) | 15+2.27N(3.0Mpa)/ 17+2.27N(4.5Mpa) | |
Weight (kg) | 8.25+0.35N(3.0Mpa) /9.6+0.35N(4.5Mpa) | |
Volume (L)F1F2 side/F3F4 side | 0.241*N/2 / 0.241*(N-2)/2 | |
Heat exchange area (m2) | (N-2)*0.12 | |
Design pressure(Mpa) | 3.0 / 4.5 | |
Testing pressure(Mpa) | 4.5 / 6.75 | |
Design temperature(℃） | -196~200 | |
Max flow | 40m3/h | |
Max plate numbers | 250 | |
Max connection size | 2" 1/2 | |
Plate Material | SS304/SS316 | |
Connection Material | SS304 | |
Brazing Material | 99.9% pure copper/Steel | |

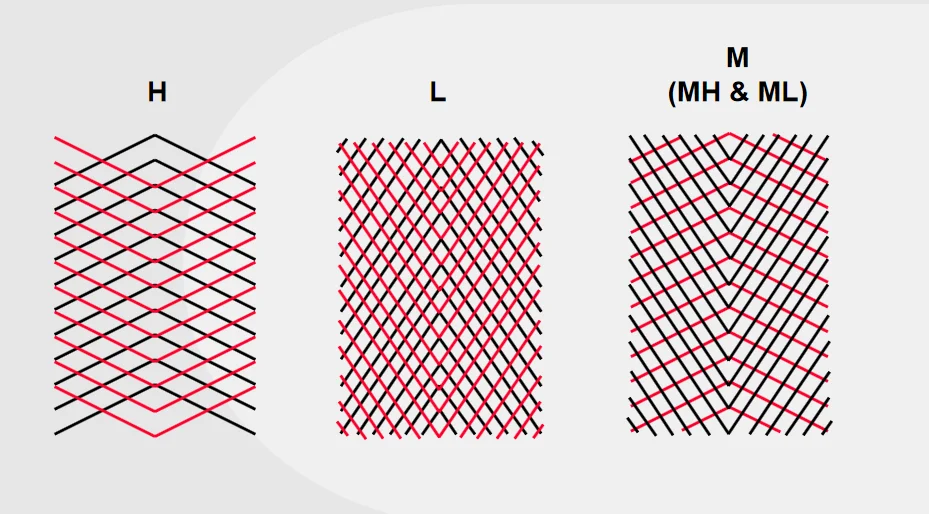

Plate type | H | |
Distributor | Q | |

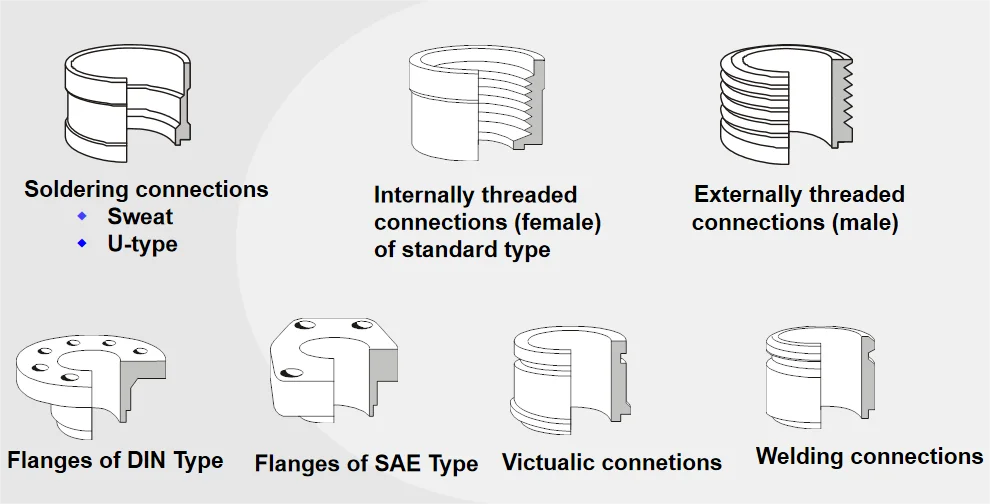

Connection type | Threaded, Solder, Flange | |
Approval | CE, UL, PED, ISO9001, ISO14001 | |
Packing | EPE foam,carton or polywood case | |
Mounting Bracket(Optional) | Studs, bracket, feet | |
