Changzhou Vrcoolertech Refrigeration lists this freezer with its own published specification, unedited. Supplier profile: 11 years on the platform, factory-assessed. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Freezer
- Tube And Fin Material: Copper, aluminum, stainless steel, hot deep carbon steel
- Frame Material: Stainless Steel, galvanized steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Chill stores
- Fin Type: Sine Wave Fin
Technical Specifications
| Core Components | evaporator |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 120 |
| Place Of Origin | Jiangsu, China |
| Brand Name | OEM |
| Tube And Fin Material | Copper, aluminum, stainless steel, hot deep carbon steel |
| Application | Chill stores |
| Tube Diameter | Up to our mold sheet |
| Fin Type | Sine Wave Fin |
| Frame Material | Stainless Steel, galvanized steel |
| Service | Design, drawing |
| Fan Type | Axial fan |
| Defrost | Hot gas, electric, water |
| Selling Units | Single item |
| Single Package Size | 36X37X128 cm |
| Single Gross Weight | 133.7 kg |
Product Details
Product description

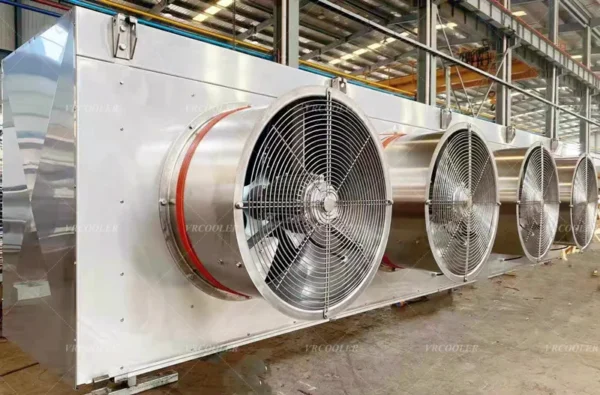

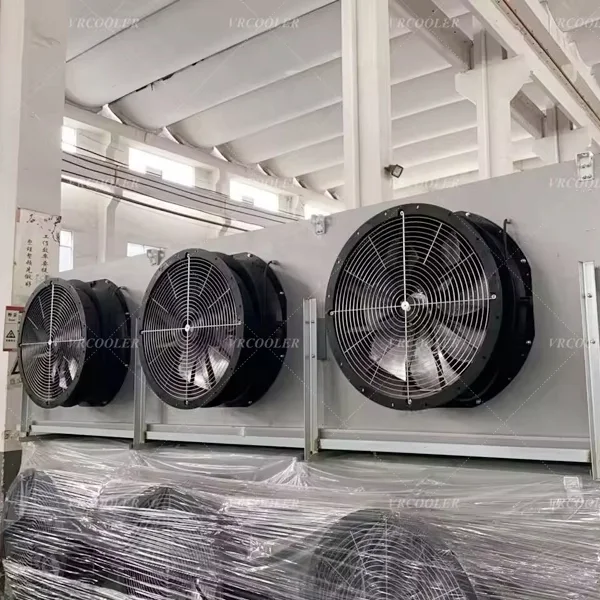

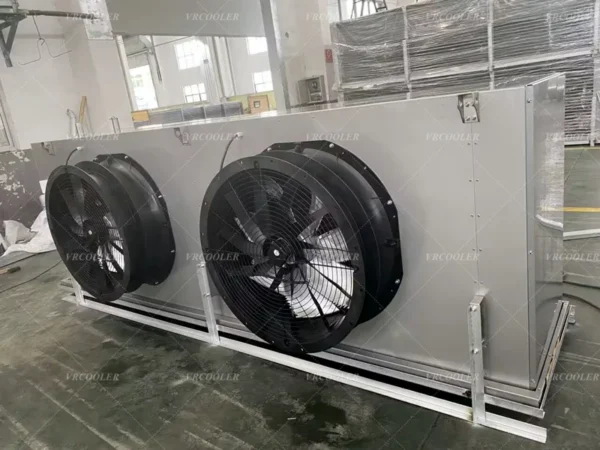

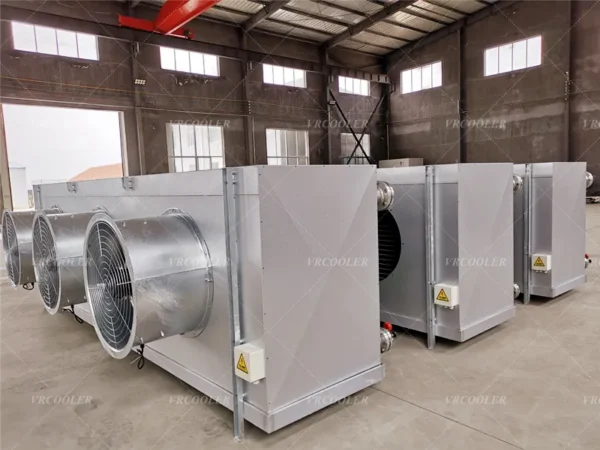

A blast freezer evaporator is a key component in the blast freezing process, which is used to rapidly freeze products, usually within 12 to 48 hours, to their desired storage temperature.
The evaporator temperature in a blast freezer refrigeration system typically ranges between -35°C and -52°C.
This rapid freezing process helps to prevent the formation of large ice crystals, which can cause damage to the product and lead to issues such as rancidity, browning of the meat, and higher drip on thawing.
Product Features
— Available for Freon & Ammonia refrigerants
— Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
— GI powder coated & SS 304 casing for rust-free operation
— Air, Electric, Water & Hot gas options
— Fin spacing available from 4 mm to 40 mm
— Fin Thickness available from 0.35 mm to 0.8 mm
— Proven quality fans: Ziehl Abegg, EBM or Favelle
— Corrugated fin design for low-pressure drop and efficient heat transfer
1. Rational Design
·Experienced engineers use Italian advanced design software to design, meeting the demand accurately ·Product suitable to the latest refrigerant such as R410A, CO2, ammonia, glycol and other special refrigerants are available ·Pipeline design adopts the direct oil return and counter-current heat exchanger to avoid the accumulation of refrigeration oil, which make full use of the heat transfer area, improve the heat exchange efficiency and ensure the degree of superheat
2. Reliable raw materials
·The fans of air cooler are famous brand ZIEHL-ABEGG and EMB, reasonably match with the gap between blades and blast rings, and the design of hyperbolic air duct to achieve the maximum effect ·Copper tubes are multi-tooth and internal thread with high-efficiency. The copper rate is more than 99.9%. All of these increase the surface area and heat transfer efficiency. ·Shell material of air cooler is 3003 aluminum alloy or DC51-D+180g. The paint is outdoor type and treated with high-temperature curing, which makes the shell high in strength and anti-corrosion.
3. Quality control in all
·Management of factory was approved by ISO9001-2008 and product quality control is through all courses ·Quality control in all: incoming quality control process inspection, finished product inspection.
4. Various choices
·Provide multiple models and size, choices of fin and coil type to meet the demands of different applications ·A variety of anti-corrosion treatment products, stainless steel products and other customized products are available
Product Features

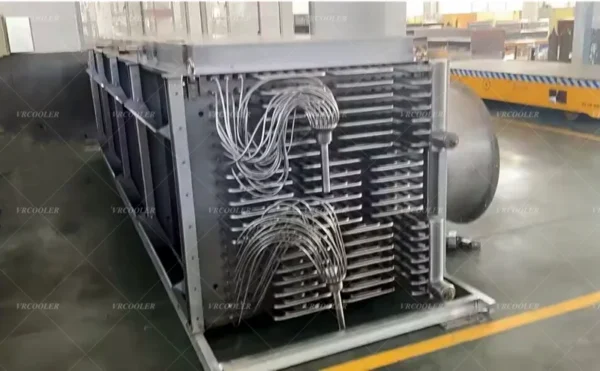

Coil Block
·Φ16mm Copper tube or stainless steel tube.
·High efficiency sine wave fin.
·Fin material:8011, AlMg3, 304(316L), Coated.
·Fin Pitch: 4.5mm, 7mm, 10mm, 12mm.
·Other fin pitchs can be customized by user.
·Φ16mm Copper tube or stainless steel tube.
·High efficiency sine wave fin.
·Fin material:8011, AlMg3, 304(316L), Coated.
·Fin Pitch: 4.5mm, 7mm, 10mm, 12mm.
·Other fin pitchs can be customized by user.
Heat Exchange Calculation Software
·We can calculate cooling capacity based on your specification with the software, which is imported from Germany.
·We can calculate cooling capacity based on your specification with the software, which is imported from Germany.
·Stainless steel Pipe running pressure to 5.0Mpa, Blasting pressure to 40Mpa.
·Nitrogen pressure 5.0Mpa which keeping 24 hours for leaking test.
*Seamless connection and high strength.
* Water tube expanding pressure to 30Mpa
Engineering Data
We have customized products for many customers, following are some projects we did before.
We can provide designing data and production drawings.
We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world. All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Customer feedback photos
Projects for Peru Food factory
Projects for Soy sauce factory in Thailand
Projects for myanmar ammonia cold room
Projects for Canada green house
Projects for Russia cold room
Projects for Cargo hold on board in Philippines
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China. Tel: +86-0519-81695177 E-mail: info@vrcooler.com ; sales@vrcooler.com Website: www.vrcoolertech.com ; www.vrcooler.com

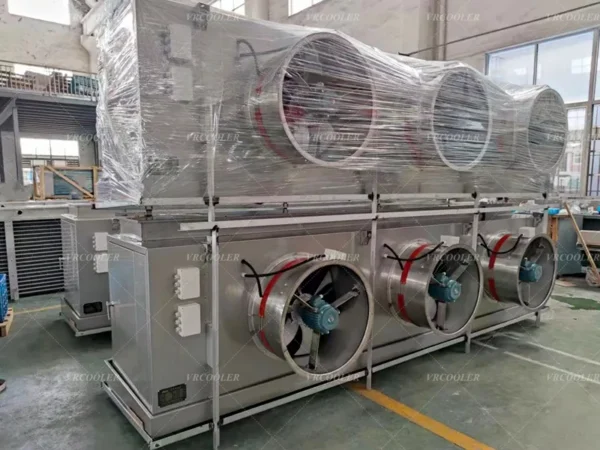

Packing and delivery
The normal package is wooden box.
If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Promotion
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–49 unit: US $9685 / unit
- 50+ unit: US $9332 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this freezer?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Vrcoolertech Refrigeration Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Changzhou Vrcoolertech Refrigeration Co., Ltd. range on HVACR Nexus.
