Key specification for this blast quick flash chiller: 380v 50hz 3phrase or customize, power 1700. Everything below is reproduced from the factory data sheet. Made by Luohe Orange Mechanical Equipment Co., Ltd. (14 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Blast Quick Flash Chiller
- Power(W): 1700
- Voltage: 380v 50hz 3phrase or customize
- Material: Stainless Steel 304
- Refrigerant: R404A
- Warranty: 1 Year
- Place Of Origin: China
Technical Specifications
| Type | Plate Freezer |
|---|---|
| Temperature Control | -45-0°c |
| Voltage | 380v 50hz 3phrase or customize |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Bearing, Motor |
| Key Selling Points | Competitive Price |
| Power(W) | 1700 |
| Place Of Origin | China |
| Weight (Kg) | 1000 |
| Brand Name | ORANGEMECH |
| Dimension(L*W*H) | 993*895*1400mm |
| Product Name | cheap blast freezer |
| Application | Food Quick Frozen Machine |
| After-Sales Service Provided | Online Support |
| Function | Meat Fish Seafood |
| Material | Stainless Steel 304 |
| Refrigerant | R404A |
| Tray | 60*40cm |
| Freezing Time | 10-50 Minute |
| MOQ | 1 Set |
| Freezer Type | Seafood Blast Freezer |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Overview
Commercial easy operation hot sale Instant freezer IQF small blast freezer
Quick freezer is a storage tool for storing various foods that need to be frozen. It is an effective, energy-saving and
multi-purpose quick-freezing device. It can freeze a large number of products in a short time, keep the nutrition of the food frombeing lost, and taste fresh. The refrigeration system is composed of four basic parts: compressor, condenser, throttle part and evaporator.
multi-purpose quick-freezing device. It can freeze a large number of products in a short time, keep the nutrition of the food frombeing lost, and taste fresh. The refrigeration system is composed of four basic parts: compressor, condenser, throttle part and evaporator.
Application of cabinet freezer:
The cabinet freezer is suitable for small batch operations with manual loading. It provides great flexibility for a variety of
foods, and the retention time can be long or short to maintain the freshness of the food for a long time.Reach to low temperature rapidly. Especially for fresh fish , meat , musse , cakes ,dumplings , glue pudding ,steamed buns , ice lolly , ice cream , etc.
foods, and the retention time can be long or short to maintain the freshness of the food for a long time.Reach to low temperature rapidly. Especially for fresh fish , meat , musse , cakes ,dumplings , glue pudding ,steamed buns , ice lolly , ice cream , etc.
Features of cabinet freezer:
1. The all-304stainless steel shell and inner tank have good corrosion resistance, durability and easy cleaning.
2. Using pure copper tube evaporator, the indoor temperature is balanced, and the food is kept fresh for a long time.
3. Original imported Taikang compressor, quick freezing, lower limit temperature, high efficiency, energy saving and low noise.
4. Automatic defrost system, frost water evaporates automatically.
5. One-button switch design, detachable integrated unit, easy to move and use.
6. The whole machine adopts high-pressure and high-density foaming, which greatly improves the insulation performance of the cabinet and realizes the purpose of energy saving.
7. Intelligent temperature control system to realize precise temperature adjustment.
8. The temperature can be as low as -45℃, or it can be customized to -80℃.
9. It can effectively reduce the loss of food juice, while ensuring the taste, hygiene and
freshness of the food.
10. The product has passed CE certification.
2. Using pure copper tube evaporator, the indoor temperature is balanced, and the food is kept fresh for a long time.
3. Original imported Taikang compressor, quick freezing, lower limit temperature, high efficiency, energy saving and low noise.
4. Automatic defrost system, frost water evaporates automatically.
5. One-button switch design, detachable integrated unit, easy to move and use.
6. The whole machine adopts high-pressure and high-density foaming, which greatly improves the insulation performance of the cabinet and realizes the purpose of energy saving.
7. Intelligent temperature control system to realize precise temperature adjustment.
8. The temperature can be as low as -45℃, or it can be customized to -80℃.
9. It can effectively reduce the loss of food juice, while ensuring the taste, hygiene and
freshness of the food.
10. The product has passed CE certification.
◆ Product Parameter ◆
Model | OR-178L | OR-300L | OR-650L | OR-1100L |
Capacity | 178L | 300L | 650L | 1100L |
Layers | 6 | 8 | 24 | 30-40 |
Voltage frequency | 220V/50Hz | 220V/380V/50Hz | 380V/50Hz | 380V/50Hz |
Efficiency | 40-80kg/h | 80-150kg/h | 150-250kg/h | 250-500kg/h |
Temperature limitation | -45℃ | -45℃ | -45℃ | -45℃ |
Refrigerant | R404A | R404A | R404A | R404A |
Power | 1.7kw | 2.3kw | 4.4kw | 4.8kw |
Dimension | 880*740*1400mm | 800*1136*1614mm | 1400*1142*1872mm | 1305*1780*2145mm |
Weight | 130kg | 228kg | 490kg | 600kg |

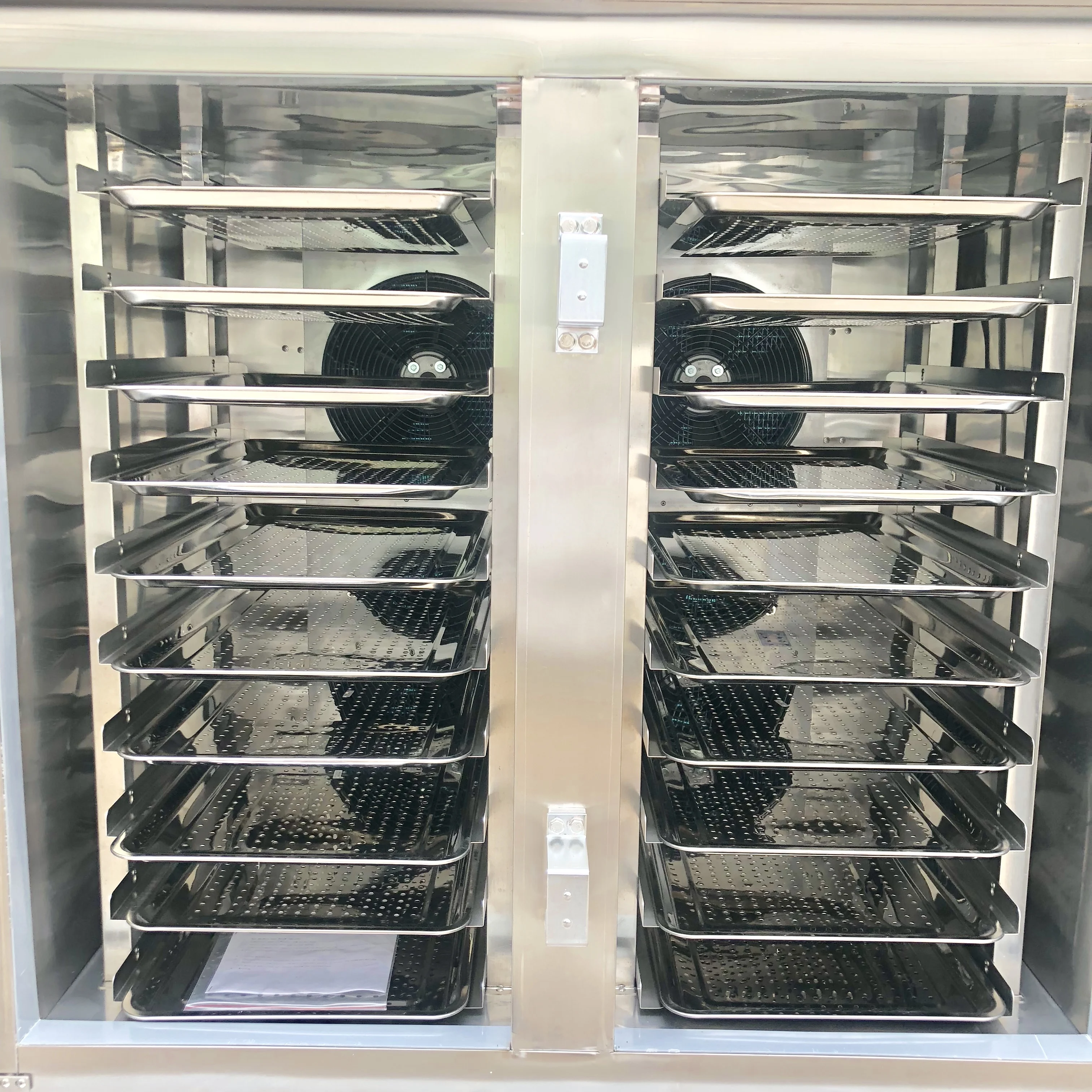

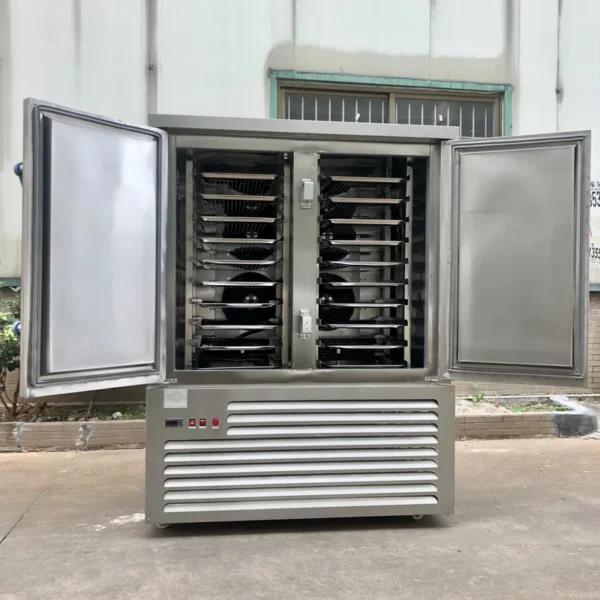

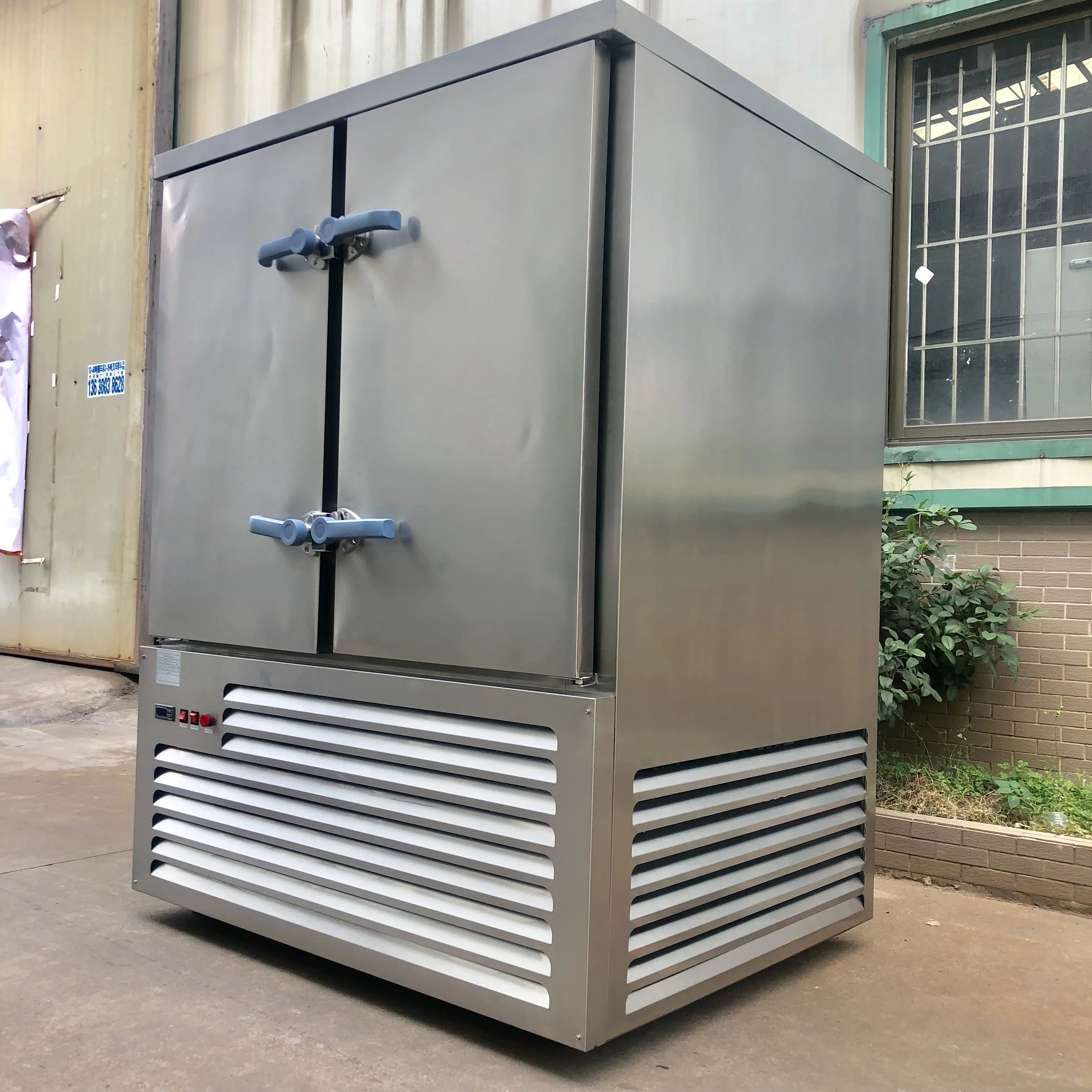

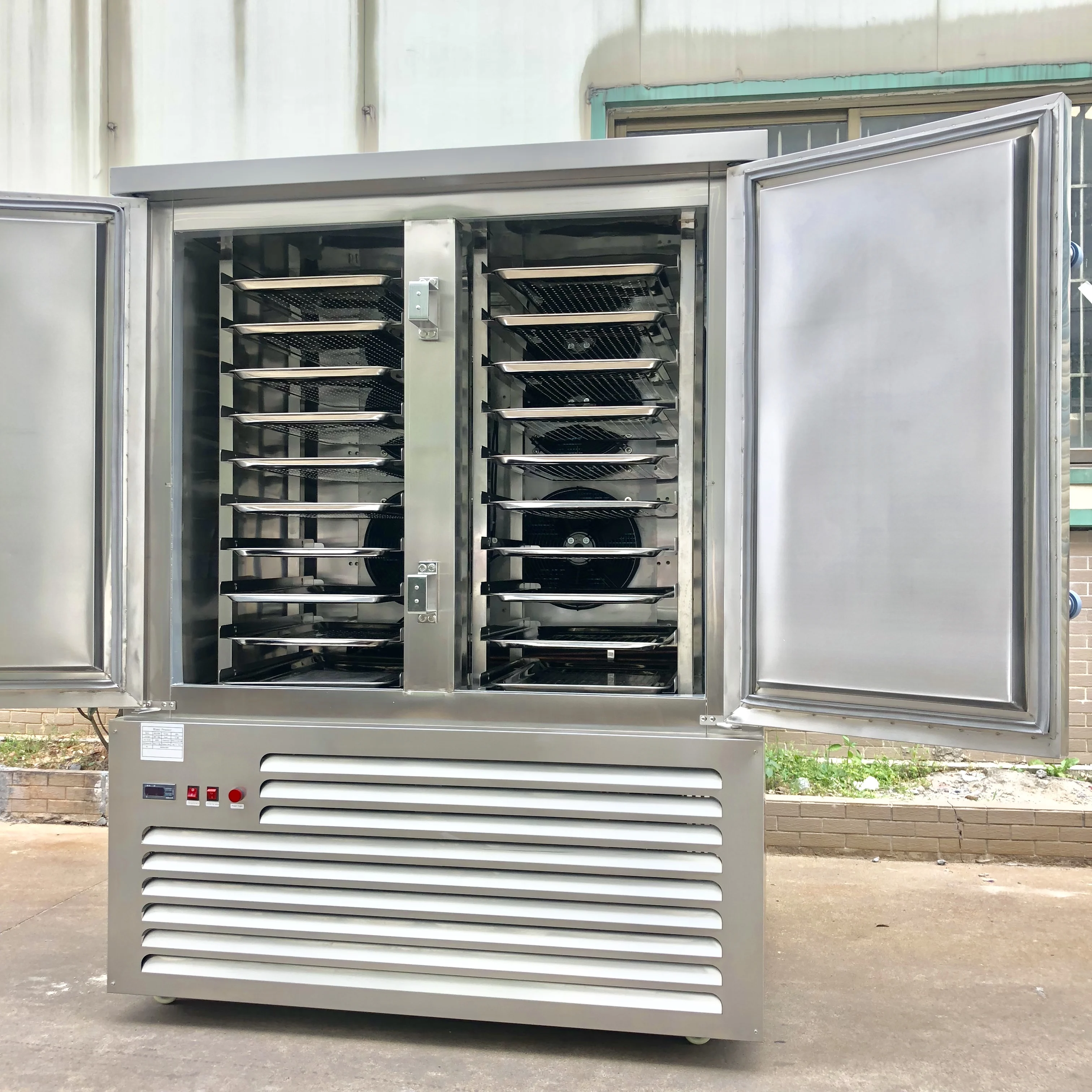

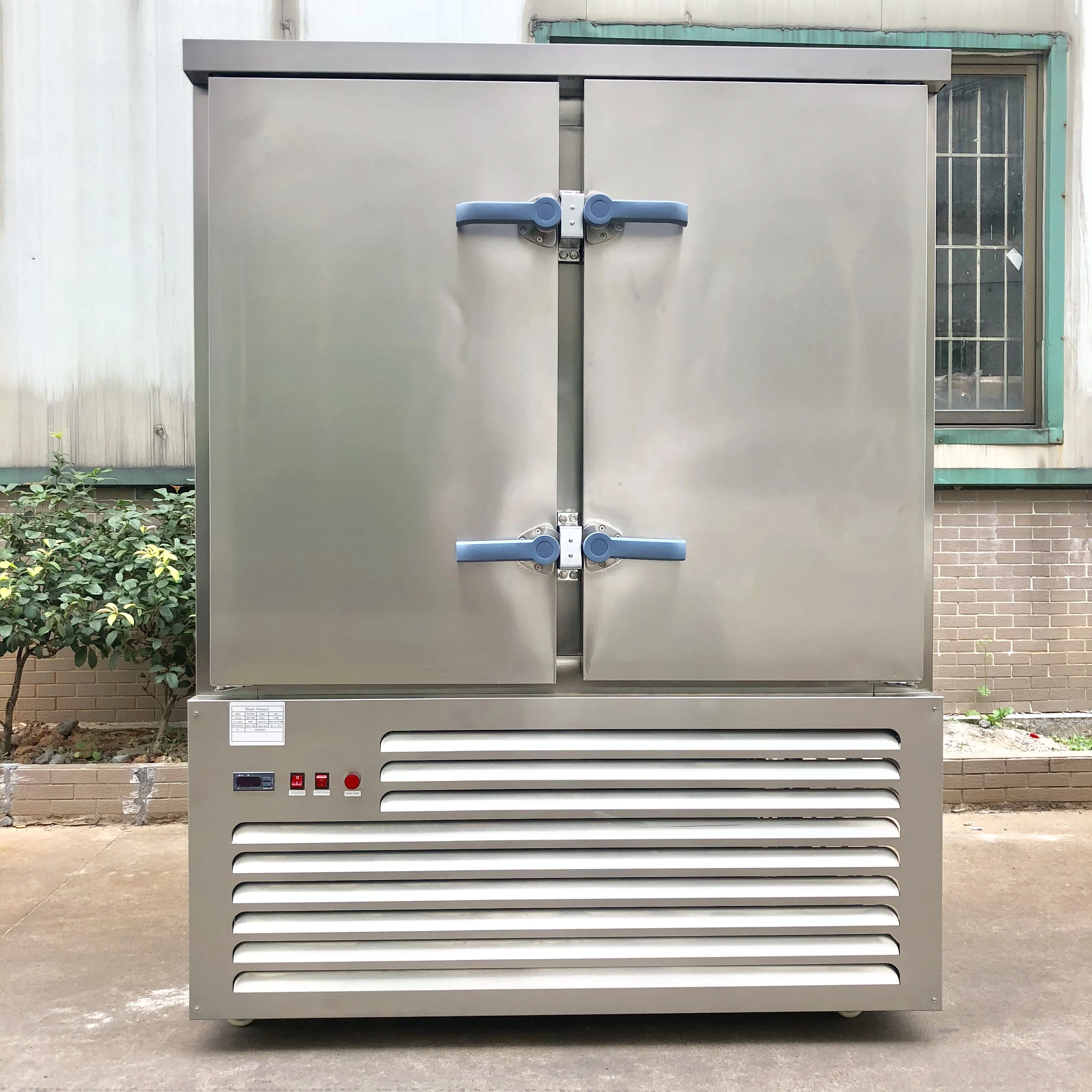

Details Images
Related Products
※ Company Profile
Luohe Orange Mechanical Equipment Co.,Ltd (Orange) is a professional mechanical equipment manufacturer which is located in Henan Province, China. The company is specialized in production, processing and sales of food machinery, agriculture machinery and other machineries. The main production scopes that we cover are: snack food processing machines, candy processing machines, fruit and vegetables processing machines, packaging machines, water well drilling machines, and various peeling machines.
The company covers 35,000 m2and the fixed asset of the company is RMB 10 million Yuan. There are over 100 employees, more than 30 technicians, and over 100 sets of various manufacturing equipment. The equipment are included: large scale forcing press machine, digital lathe, digital wire-electrode cutting equipment, various kinds of processing machines and equipment, etc. The company owns national patents and proprietary technology with Have independent research and development capabilities.
※ Certificate
※ Take a photo with customers
※ Overseas after-sales photo
Egypt after-sales
Guinea After Sales
India after sale
1. 24-hour communication service
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training
4. New design or product recommendation
5. Participate in international expositions and negotiate face-to-face with customers
6. If you come to China, please provide a formal invitation
7. Front desk service, help you book the hotel
8. Support local after-sales service
※ F A Q
Q1：What's your company after-sales service?
A1: Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation: 1. improper operation problem, we will solve all the usage problems by video call. 2. machine parts problem, we will send you accessories to ensure the normal use of the machine. 3.In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company . Q2：Any warranty ？
A2：One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ？ A3：We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service. Q4：Does your company provide training？ A4 : Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic. Q5：Differences from other brands in China ？ A5 : We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement. We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
