This centrifugal fan is published with the manufacturer’s full specification — 220V, blade material Stainless Steel. For a binding price and lead time, send the volume you need and where it ships to.
This centrifugal fan is listed with the manufacturer’s full published specification — voltage 220V, blade material Stainless Steel, warranty 1 Year. It is produced by Zhongshan Fulude Environmental Protection Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Voltage: 220V
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Mounting Type: Ceiling Fan
- Single Package Size: 90X55X28 cm
Technical Specifications
| Mounting Type | Ceiling Fan |
|---|---|
| Voltage | 220V |
| Blade Material | Stainless Steel |
| Place Of Origin | Guangdong, China |
| Customized Support | OEM, ODM, OBM |
| Brand Name | FULUDE |
| After-Sales Service Provided | Online support |

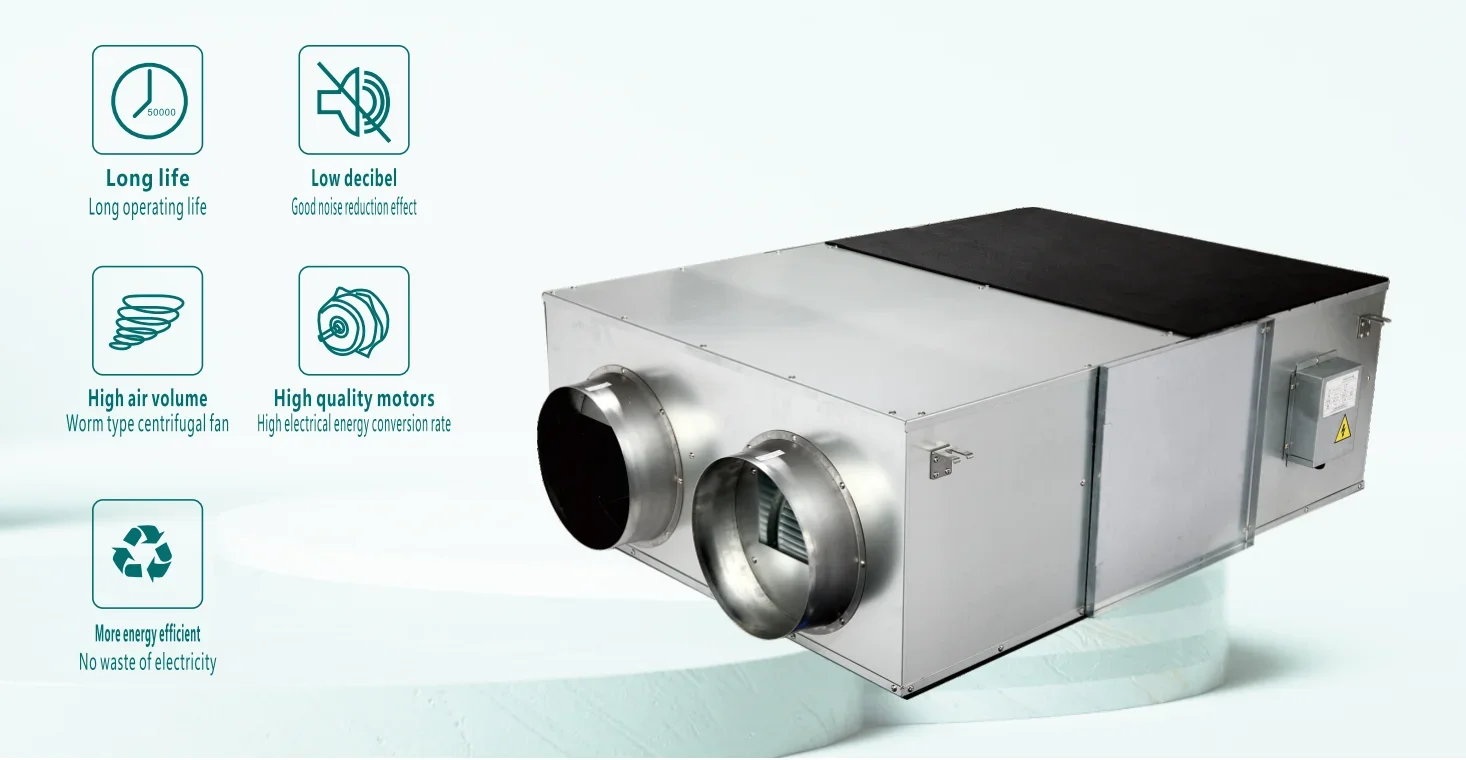

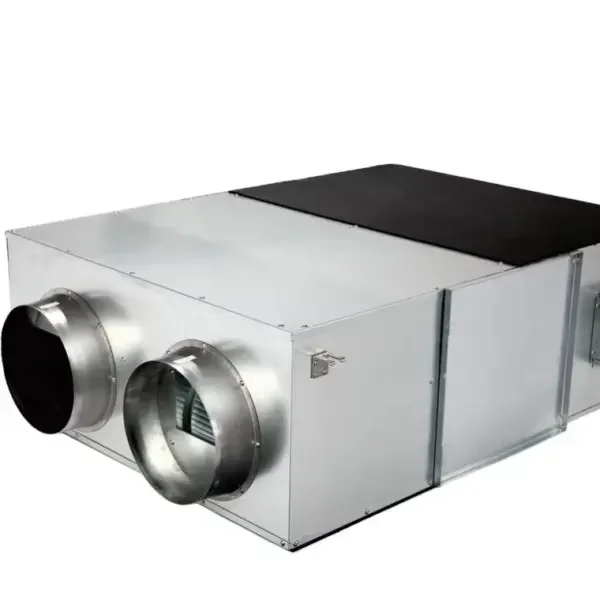

| Product Name | air to air heat exchanger |
| Weight (KG) | 26 |
| Showroom Location | None |
| Warranty | 1 Year |
| Selling Units | Single item |
| Single Package Size | 90X55X28 cm |
| Single Gross Weight | 36.000 kg |
Product Features:
2 , two-way flow equal amount of air exchange, the outdoor fresh air filtered into the indoor at the same time, the indoor dirty air exhausted to the outdoors, thoroughly improve the indoor air quality;
3 , LCD intelligent control system to achieve intelligent centralized control of the unit, a variety of work modes to complete a key, convenient and Quick control;
4 ; intelligent air detection system can monitor the indoor air pollution index in real time and control the air exchange volume of the fresh air exchange fully automatically to ensure that there is sufficient fresh air in the room at all times;
5 , high efficiency static heat exchange core, using non-porous film special ER full heat recovery core paper, mold resistance,flame retardant, high temperature exchange rate, enthalpy exchange rate;
6 , double medium-effect filter, medium-effect filtration of air at the same time can protect the service life of the original
core of the hot cross;
7 , high quality ball bearings to ensure smoother and quieter motor operation;
8 , resettable thermal protection device, when the product is in abnormally high temperature automatically disconnect the power supply to avoid safety hazards, use more peace of mind;
9 , professional air duct design, the product is more silent, more energy efficient;
1 0, -30℃~60℃ ultra-wide ambient temperature normal operation;
1 1. Protection class IP44;
1 2. Insulation class B;
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this centrifugal fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This centrifugal fan is produced by Zhongshan Fulude Environmental Protection Technology Co., Ltd.. Browse the full Zhongshan Fulude Environmental Protection Technology Co., Ltd. range on HVACR Nexus.
