Fume extractor — 220V, 550W. The complete factory specification follows. Made by Foshan Luomei Electric Technik Co.,ltd (10 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fume Extractor
- Power: 550W
- Voltage: 220V
- Blade Material: Cast Iron
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Weight: 9.5kg
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220V |
| Blade Material | Cast Iron |
| Warranty | 1 Year |
| After-Sales Service Provided | No after-sales service |
| Place Of Origin | Guangdong, China |
| Power | 550W |
| Air Volume | 870m3/h |
| Brand Name | LUOMEI |
| Color | grey |
| Pressure | 2400Pa |
| Frequency | 50Hz |
| Rotation | 2820r/min |
| Dimension | 355*445*480mm |
| Inlet/Outlet Diameter | 100/145/150mm choose |
| Product Name | fume extractor centrifugal exhaust fan for laser cutting machine |
| Current | AC power |
| Weight | 9.5kg |
| Usage | sand sucking,sawdust sucking,fume extractor |
| Packaging Details | 1unit/ carton fume extractor centrifugal exhaust fan for laser cutting machine |
| Port Of Dispatch | shenzhen |
| Selling Units | Single item |
| Supply Ability | 1000 pieces per Week |
Product Details

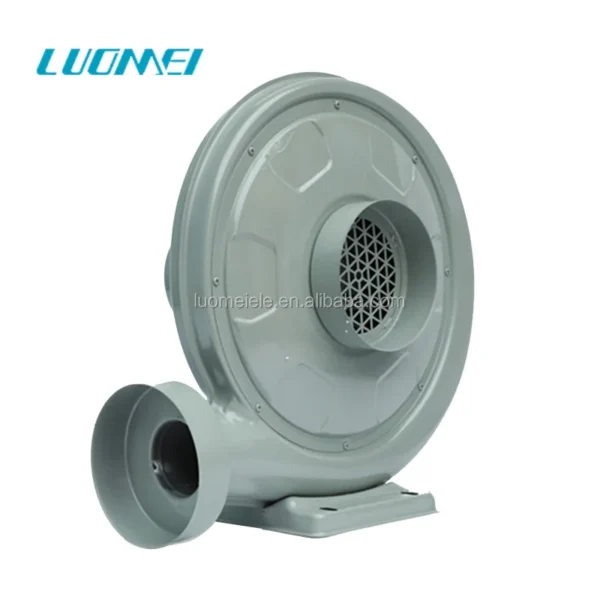

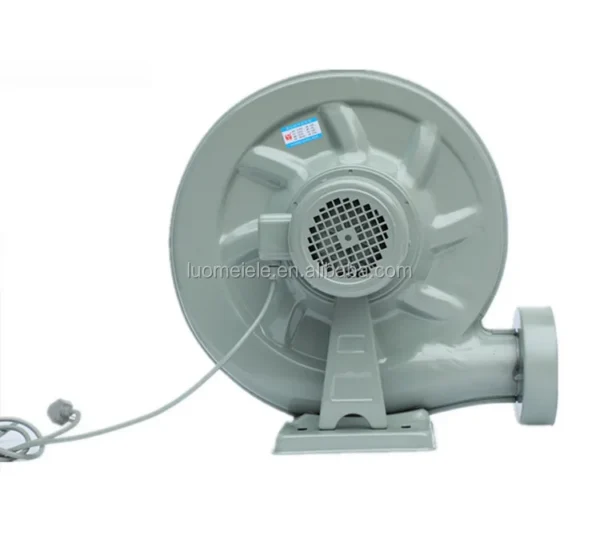

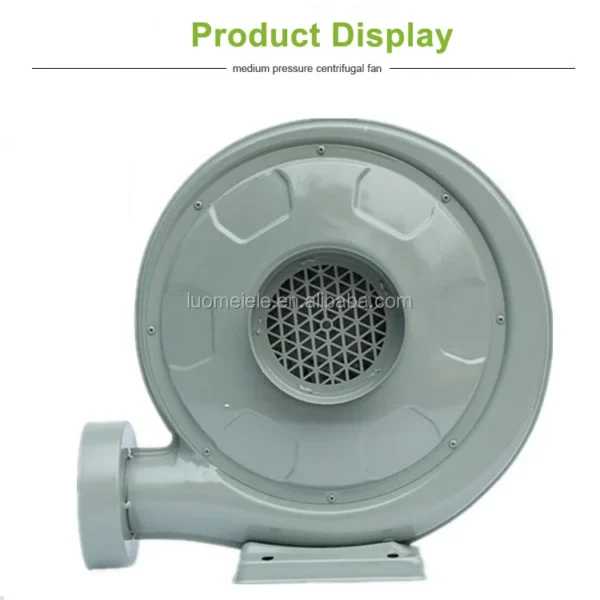

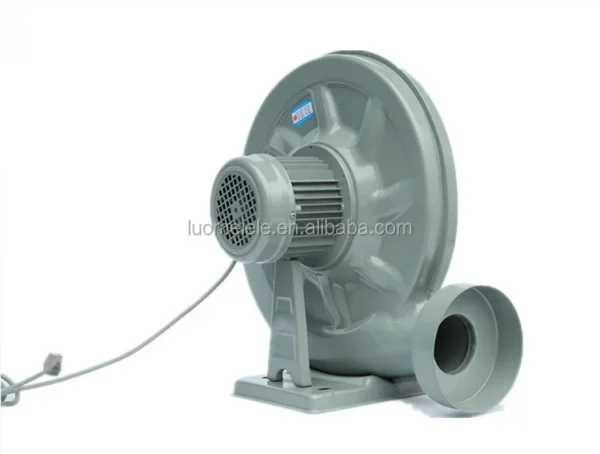

550W woodworking dust absorption centrifugal exhaust fan
Application:

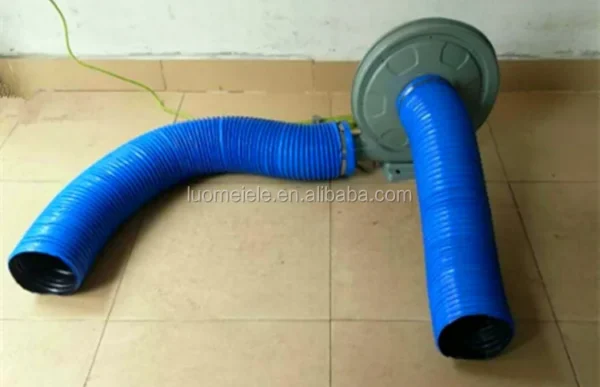

1,.Used to absorb and blower the smoke and smell air occurred when laser cutting machine is working, To make sure the laser cutting machine work in good condition. Also this air blower will reduce the fire rate when cutting wood.
2. Used to sand sucking,Ensure that the ground or working surface is clean and tidy.
3. Used to sawdust sucking, sawdust transport.
Technical Parameter:
|
Model |
Voltage v |
Frequency Hz |
Phase |
Power W |
Spin speed r/min |
Air Volume m3/H |
Pressure pa |
Inlet/Outlet diameter mm |
Weight kg |
|
CZ-250 |
220 |
50 |
1/3 |
250 |
2820 |
570 |
1350 |
100 or 145 |
6.5 |
|
CZ-370 |
220 |
50 |
1/3 |
370 |
2820 |
870 |
1800 |
100 or 145 | 9 |
|
CZ-550 |
220 |
50 |
1/3 |
550 |
2820 |
870 |
2400 |
100 or 145 or 150 | 9.5 |
|
CZ-750 |
220 |
50 |
1/3 |
750 |
2820 |
1200 |
2300 |
145 or 150 | 12 |
|
CZ-900 |
220 |
50 |
1/3 |
900 |
2820 |
1300 |
2400 |
145 | 14.5 |
Contact
Mr.William Wei
Email address: luomeiele(at)163.com
Skype: luomeiele(at)163.com
Wechat / Mobile phone / WhatsApp: 0086 18823126158
QQ: 3198296974
Ordering and Pricing
- Minimum order quantity: 10 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fume extractor?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fume extractor be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
