This gas heater is published with the manufacturer’s full specification — 9.4KW, material Galvanized sheet case. Made by Chongqing Haodong Technology Co., Ltd. (11 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Gas Heater
- Model Number: THD1200
- Power: 9.4KW
- Material: Galvanized sheet case
- Place Of Origin: Chongqing, China

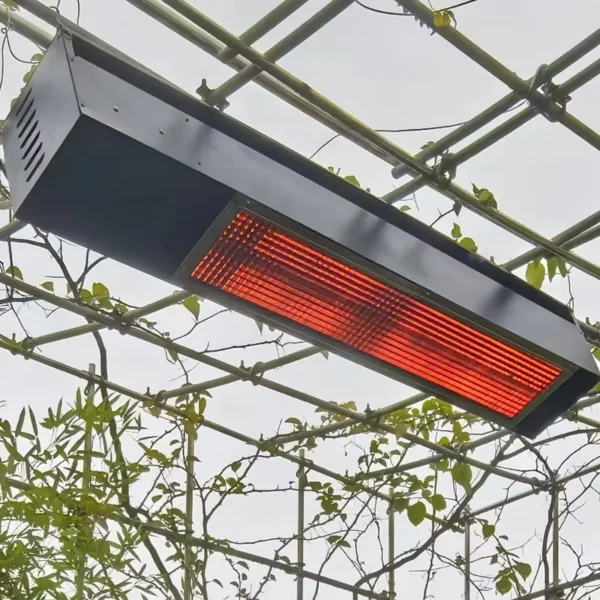

- Application: outdoor heating, outdoor gardening, Easy Operation
- Feature: Stocked
Technical Specifications
| Patio Heaters Type | LPG, butane, propane, natural gas |
|---|---|
| Power | 9.4KW |
| Material | Galvanized sheet case |
| Feature | Stocked |
| Application | outdoor heating, outdoor gardening, Easy Operation |
| Ignition | pulse ignition |
| Style | Modern, Gas saving technology |
| Shape | Rectangular |
| Type | Patio Heaters |
| Place Of Origin | Chongqing, China |
| Brand Name | THD |
| Model Number | THD1200 |
| Size | 1200*205*210mm |
| Net Weight | 18.3kg |
| Ignition Method | Electric pulse ignition, 24VDC Power adapter |
| Heat Output | 31960BTU/h, 8120Kcal/hr |
| Heater Technology | covered rare earth catalyst on combustion plate |
| Advantage | 20% gas saving than non-catalyst infrared gas heater |
| Heater Life | more than 11000hrs |
| Usage | patio, greenhouse, livestock, garden |
| Selling Units | Single item |
| Single Package Size | 126X26X26 cm |
| Single Gross Weight | 19.800 kg |
Product Details
Chongqing Haodong Technology co.,ltd, with more than 20 years experience, specialized in infrared catalytic gas burner & heater, covered with rare earth catalyst which can save 20% gas.
Widely used for farm poultry brooder, patio heater, garden brooder, bbq gas grill burner, gas burner, infrared burner, gas heater, heating panel, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.

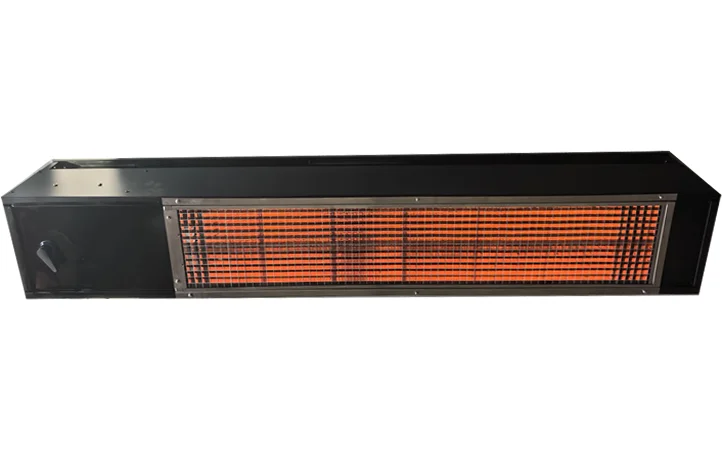

New type infrared catalytic flameless natural gas patio heater
1. Commercial Heating of sports hall, church, terrace, garage, exhibition hall, public building

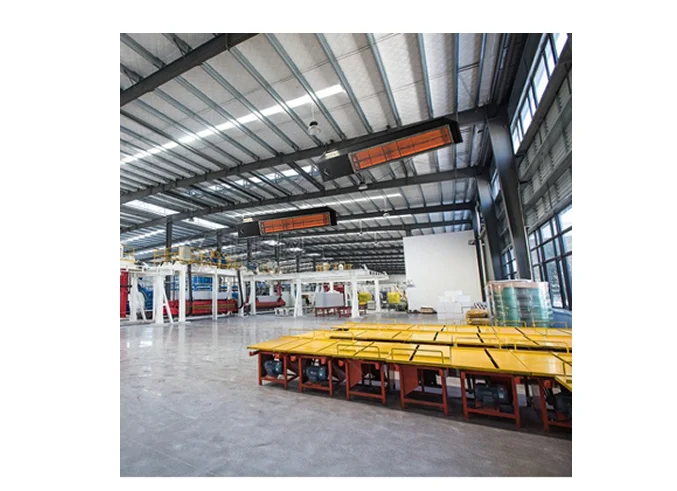

2. Industrial Heating: industrial building, workshop, vehicle repair, warehouse.
3. Poultry-livestock heating: widely used in poultry heating, farrowing, nursery, grower-finisher, wean-to-finish
MODEL | Dimension | N.W. | Heat Output | Gas Consumption |
mm | kg | BTU/h | LPG(kg/h) | |
THD1200 | 1200*205*210 | 18.3 | 31960 | 0.68 |
New type infrared catalytic flameless natural gas patio heater Feature

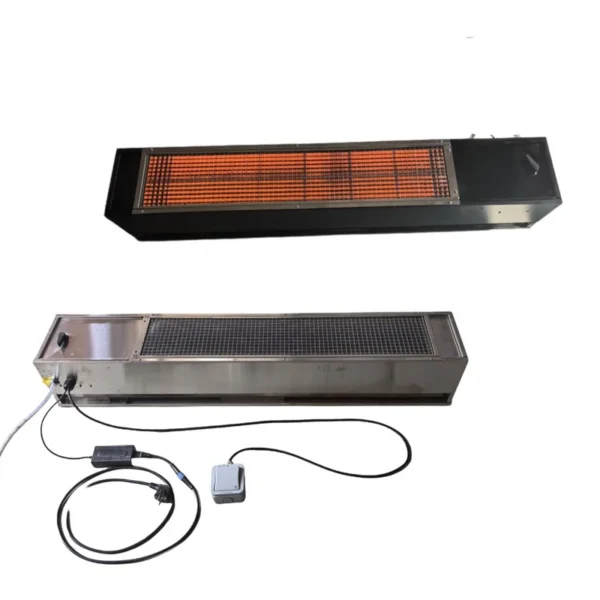

1. Shell Material: Stainless steel; Another type with powder spray;

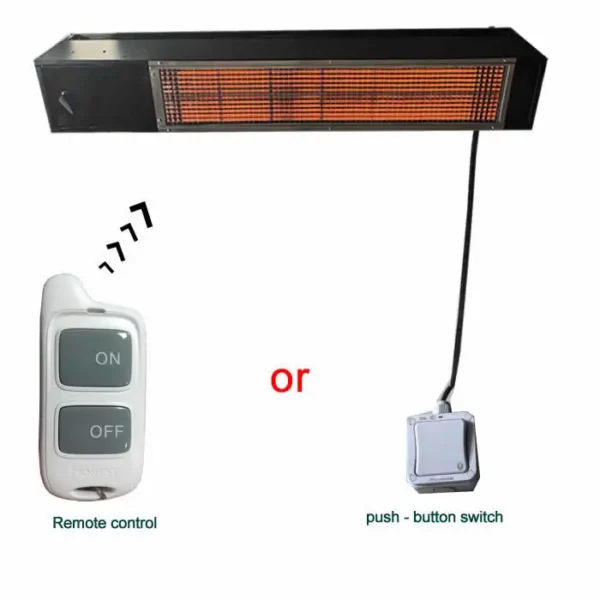

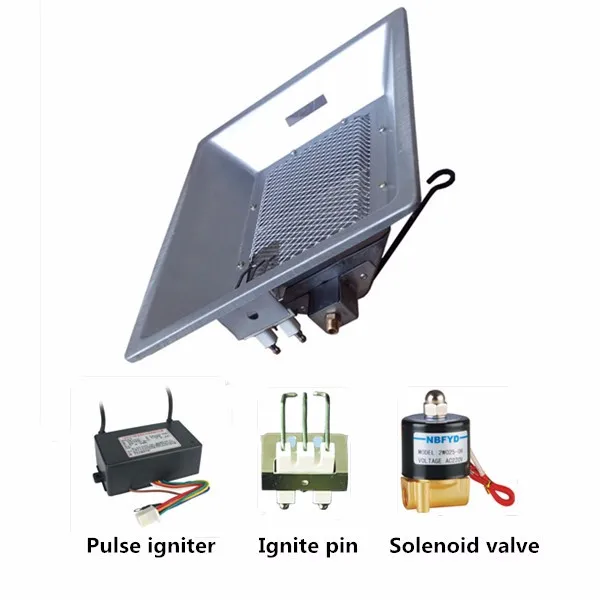

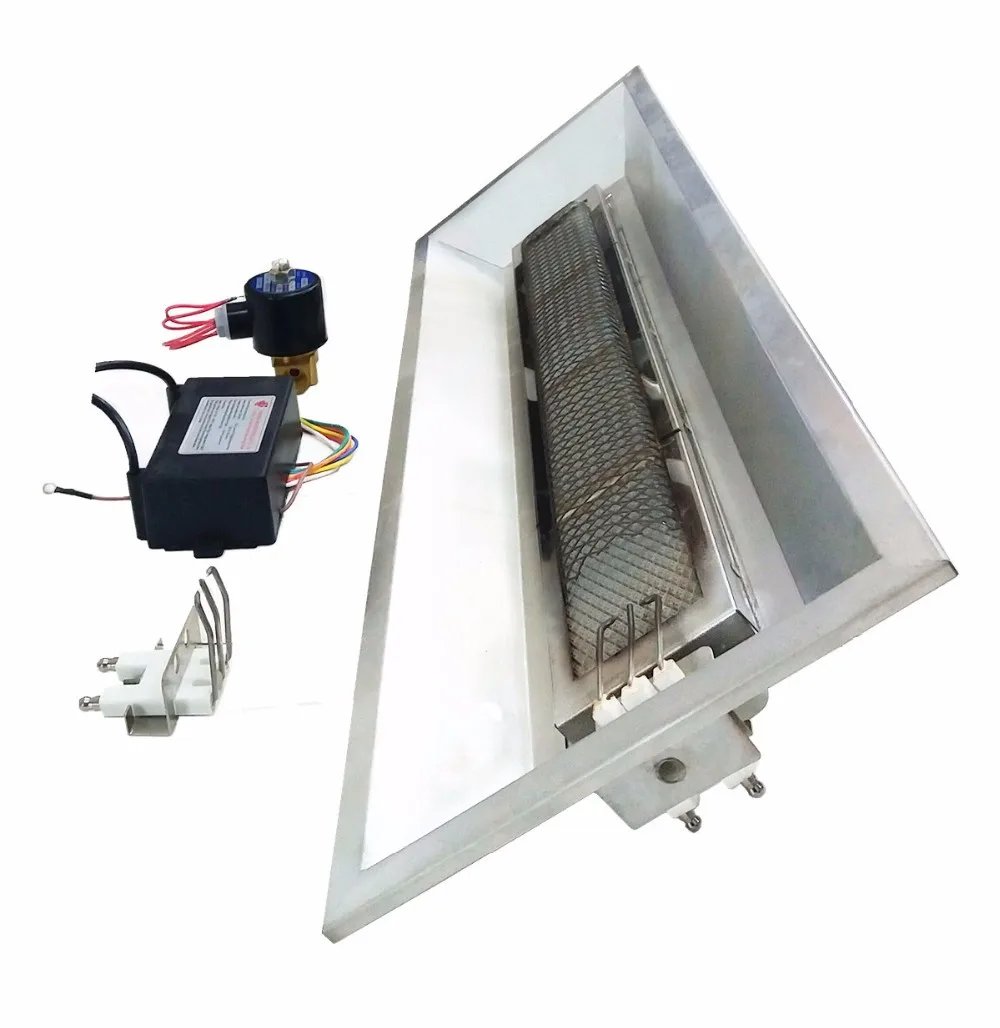

2. 24VDC Electric pulse ignition, high efficiency and safe;
3. Energy efficient, as high as 20% energy can be saved every year;
4. Flame-out protection device, cut off the gas automatically;
5. Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm;
6. Less maintenance
7. Wide operating range
8. Reliability, Silent, light and compact
9. Long useful time: ≥11000hr
10. Security and reliability of temperature

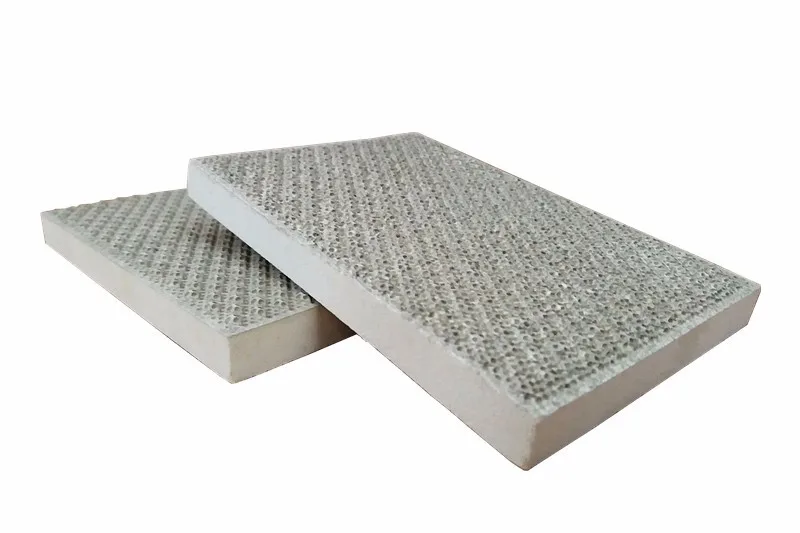

Catalytic cordierite ceramic combustion plate
Packaging | ||
Size | 130(L) * 30 (W) * 30 (H)cm | |
Weight | 20kg | |
Packaging Details | Normal is neutral packing. Inside 2 pcs inner boxes are packed in 1 out carton. If special mark or color box should be customized. | |
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–19 piece: US $298 / piece
- 20–99 piece: US $260 / piece
- 100+ piece: US $248 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas heater?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Chongqing Haodong Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company. Browse the full Chongqing Haodong Technology Co., Ltd. range on HVACR Nexus.
