Key specification for this coating oven infrared heater: voltage AC 110V and AC 220V, material Galvanized sheet,ceramic plate. Everything below is reproduced from the factory data sheet. Made by Chongqing Haodong Technology Co., Ltd. (11 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Coating Oven Infrared Heater
- Voltage: AC 110V and AC 220V
- Material: Galvanized sheet,ceramic plate
- Warranty: 1 Year
- Place Of Origin: Chongqing, China
- Special Feature: energy-saving
- Single Package Size: 96X23X14 cm
Technical Specifications
| Heat Source | Gas |
|---|---|
| Condition | New |
| Special Feature | energy-saving |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Place Of Origin | Chongqing, China |
| Weight | 5.9 |
| Brand Name | THD |
| Dimension(L*W*H) | 930*130*175 mm(36.61*5.12*6.89in) |
| Voltage | AC 110V and AC 220V |

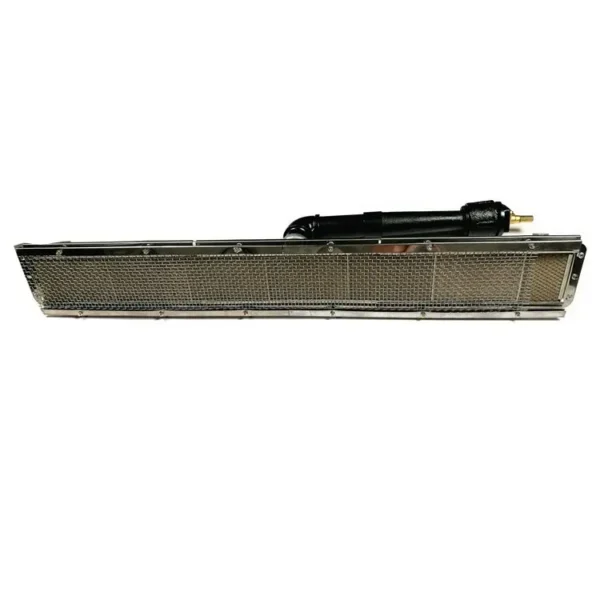

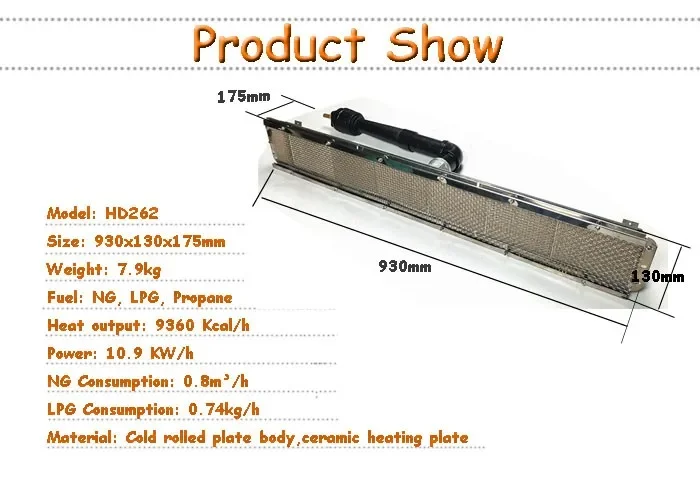

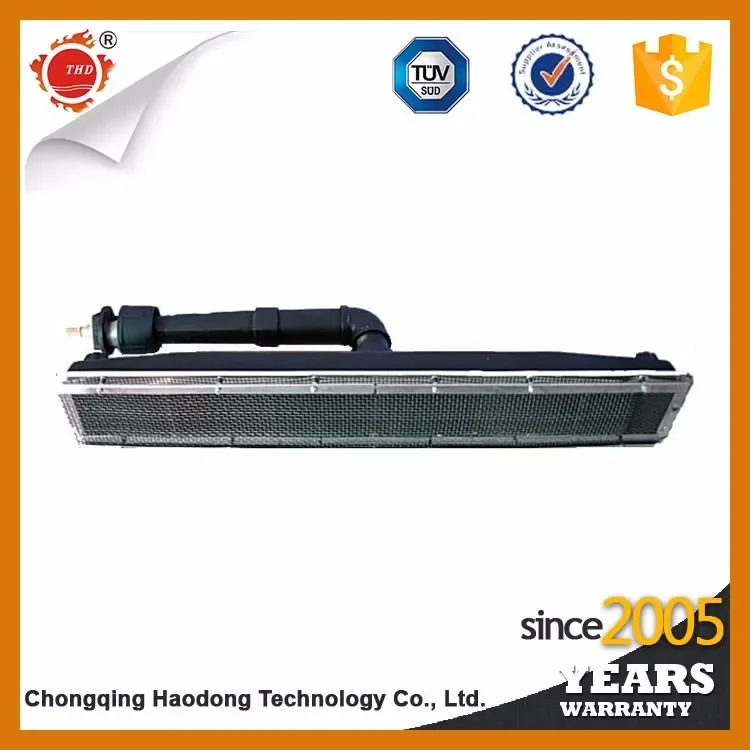

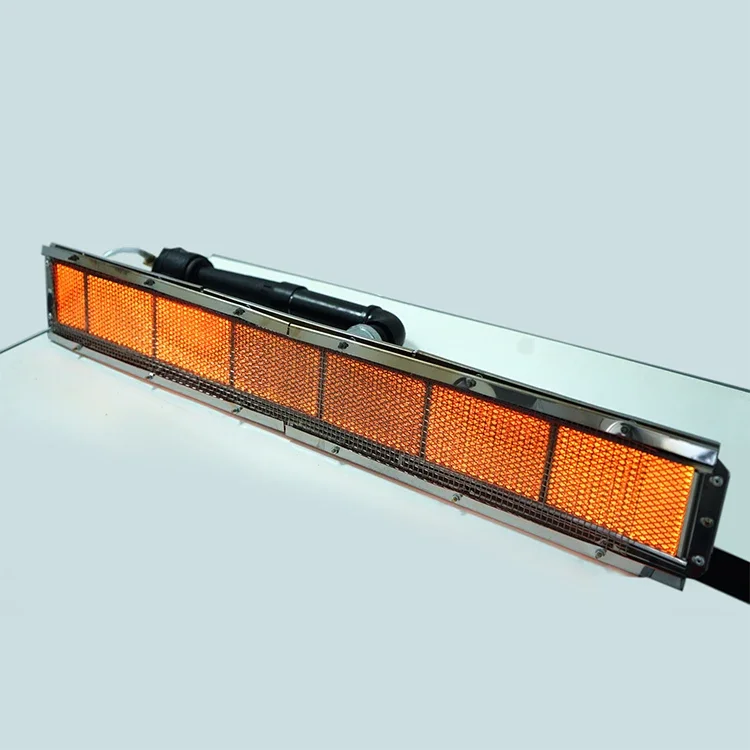

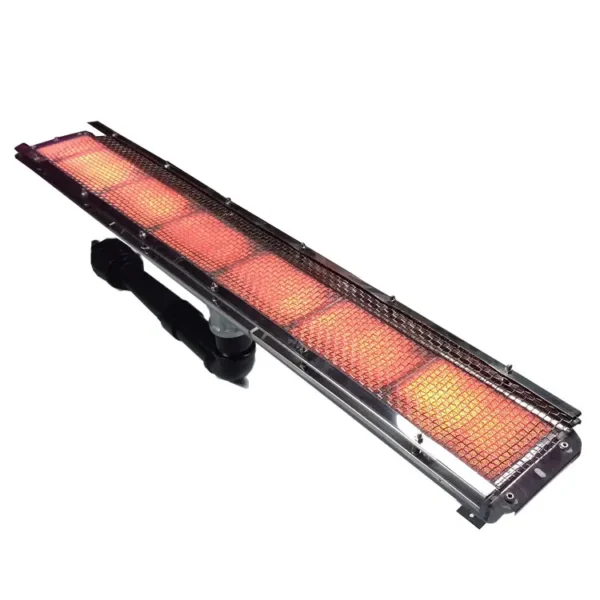

| Product Name | Powder coating oven gas heater HD262 |
| Material | Galvanized sheet,ceramic plate |
| Burning Plate | Ceramic plates with catalyst |
| Nozzle | Brass |
| Dimension | 930*130*175mm |
| Heat Output | 9360Kcal/h |
| Heat Transfer Rate | Above 90% |
| Working Pressure | 2000~5000pa |
| Plate Lifespan | Above 11000hrs |
| Advantage | Above 20% energy saving |
| Selling Units | Single item |
| Single Package Size | 96X23X14 cm |
| Single Gross Weight | 9.0 kg |
Product Details
SN | Items | Technical Parameters |
1 | Kinds of Gas | NG/LPG/Oil Field Gas/Artificial Gas |
2 | Perfect Combustion Temperature | ≤380℃ |
3 | Heat Source Temperature | 850℃ |
4 | Heating-up Temperature Range | 35℃-500℃ |
5 | Wavelength Range | 4 um -15 um |
6 | Working Pressure | 2000pa(NG)~5000pa 2800pa(LPG)~~5000pa |
7 | Life times | Above 11000hrs |
8 | Waste Gas Emission | CO≤80ppm;NOx≤10ppm;CHx≤50ppm |
9 | Conversion Rate | Above 90% |

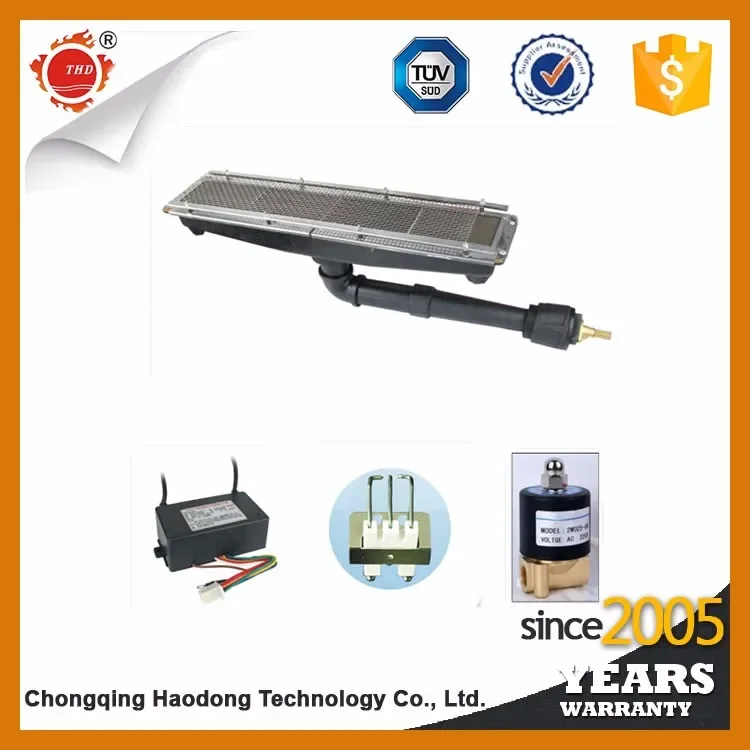

2. Air blast pipe: Cast Iron
3. Radiant Part: Rare earth ceramic heating part
4. Nozzle: Brass
5. Up cover: Stamped stainless iron

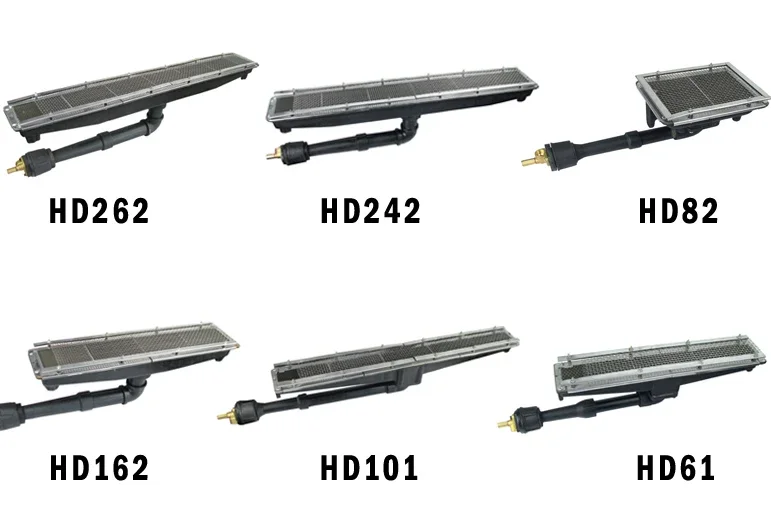

Model | Outer Dimension | Weight | Gas Type | Heat Output | Consumption | ||||
mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||||
HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.17 | ||
HD81 | 555*80*115 | 5.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.22 | ||
HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.22 | ||
HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.28 | ||
HD162 | 570*130*175 | 5.9 | NG/LPG | 6.3 | 5400 | 0.49 | 0.45 | ||
HD410 | 410*175*220 | 8.1 | NG/LPG | 6.3 | 5400 | 0.49 | 0.45 | ||
HD242 | 840*130*175 | 7.3 | NG/LPG | 9.4 | 8120 | 0.75 | 0.68 | ||
HD600 | 600*175*220 | 10.5 | NG/LPG | 9.4 | 8120 | 0.75 | 0.68 | ||
HD262 | 930*130*175 | 7.8 | NG/LPG | 10.9 | 9360 | 0.8 | 0.74 | ||
2.High Efficiency: start work in 8 seconds

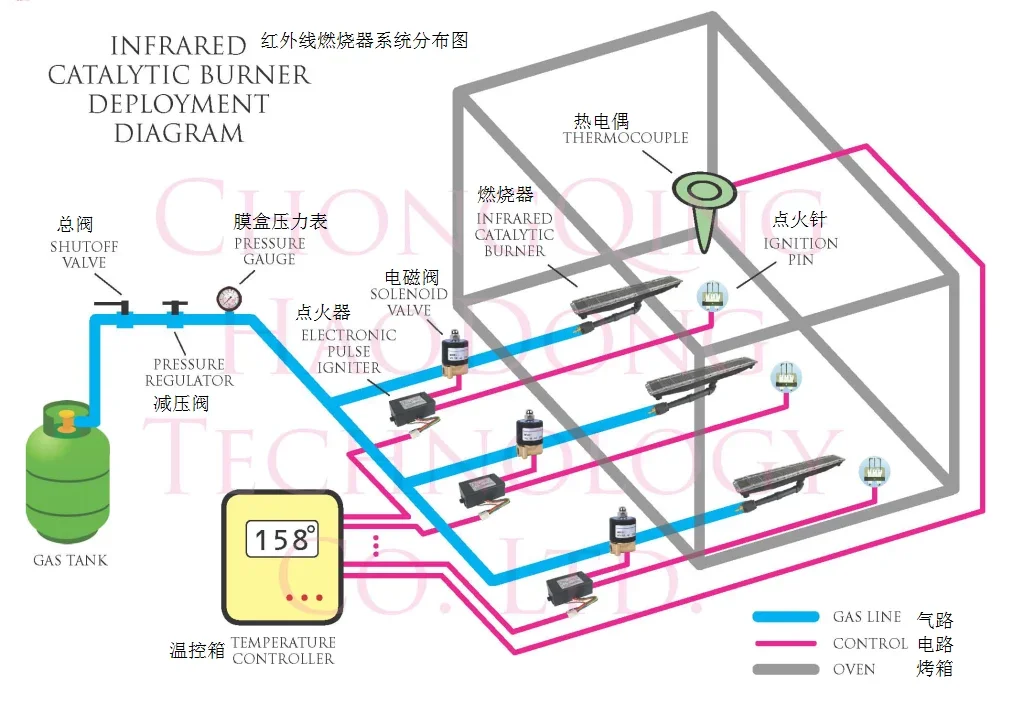

3.Individual operation: Each burner has individual ignition control system,some problem will not affect other burner’s working
4.IR heating directly : heat direct by Radiant Infrared Ray,no need combusion chamber ,blower
5.Environment protecting: Low pollution

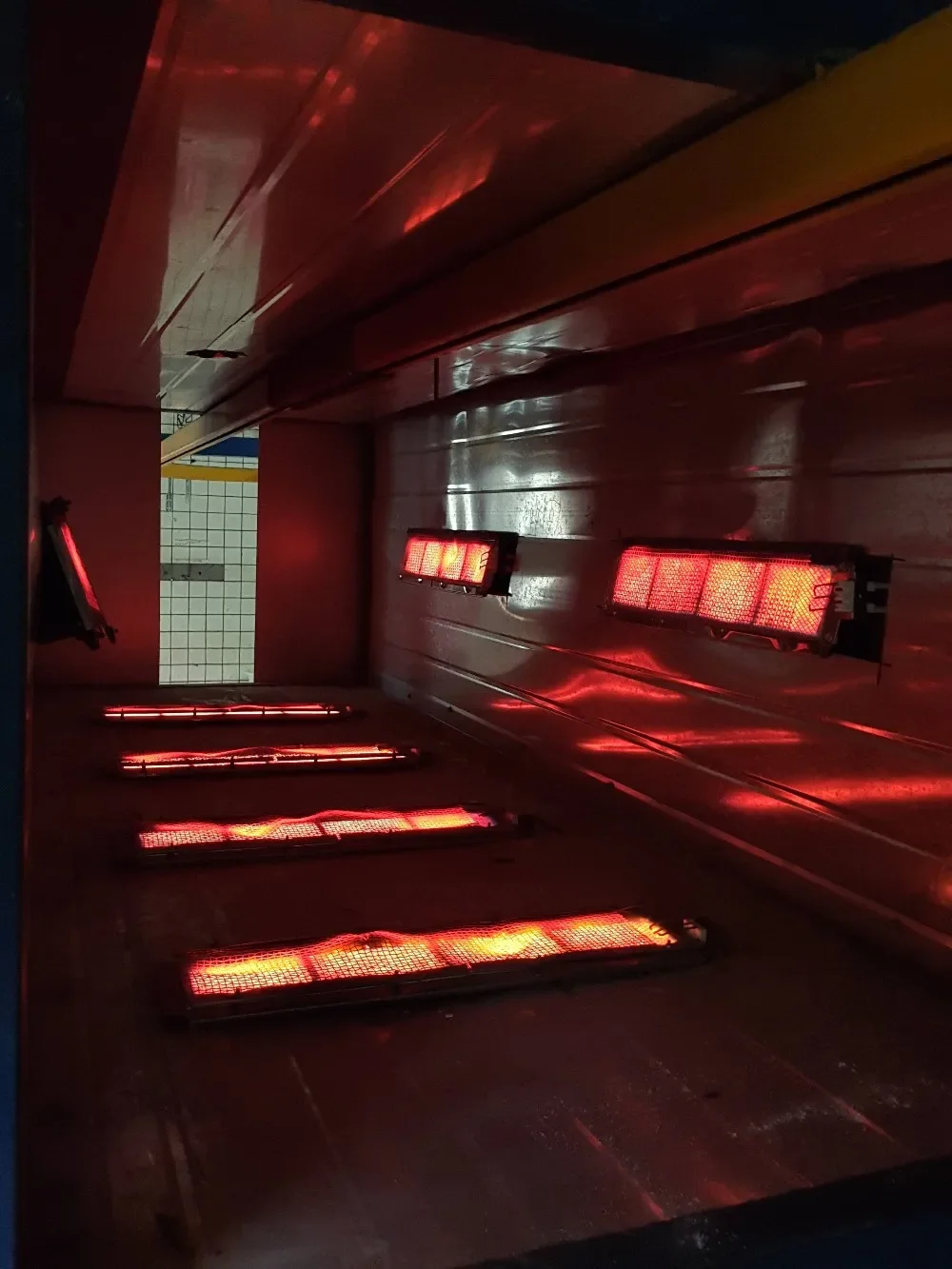

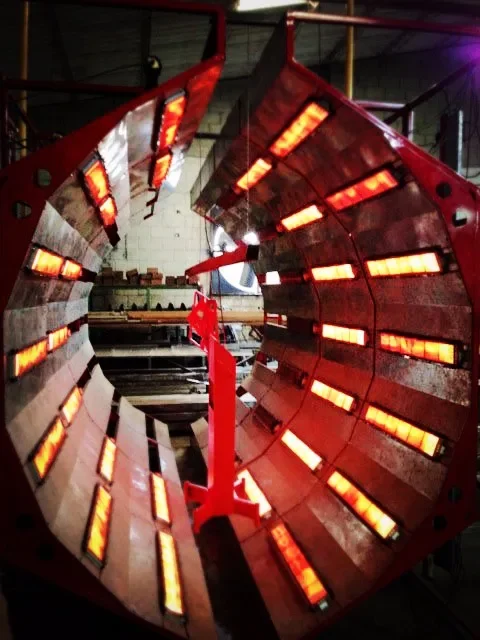

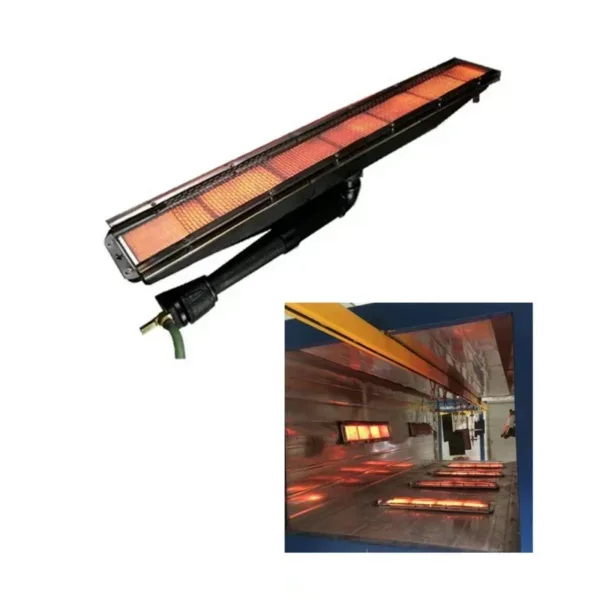

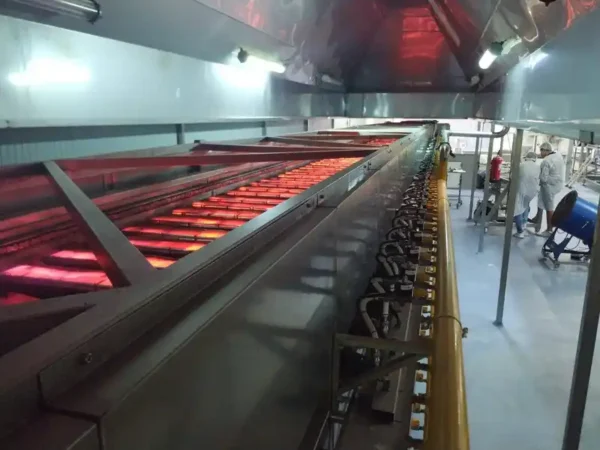

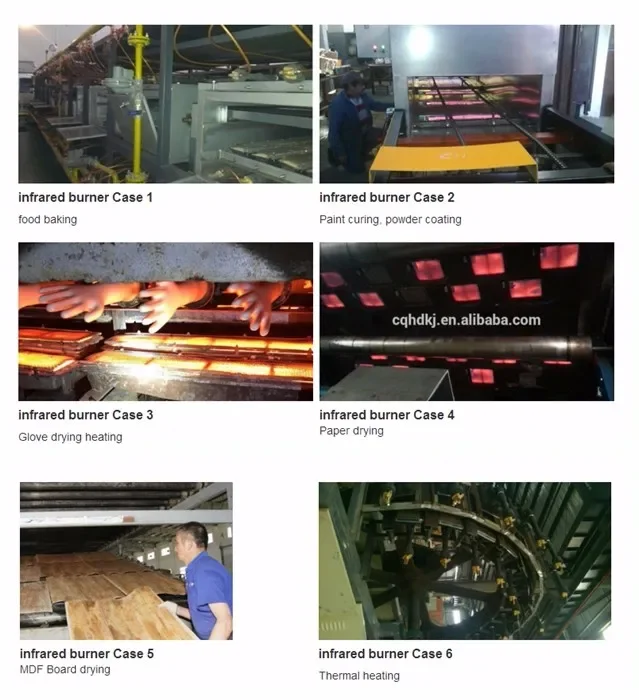

Curing oven – dry powder and wet paint coating applications, including stove enamelling and vitreous enamel
Plastic shrink wrapping.
Heat walls – for textile, carpet and paper drying.
Heat treatment ovens.
Forced draught installations – fabrication,pre-heating.
Foundry mould and core drying.
Die heating.
Ceramic holloware and flatware – prior/post glazing.
Metal billet heating.
Metal annealing.
Rubber&plastic forming,glass anneal process,nonwoven fiber drying.

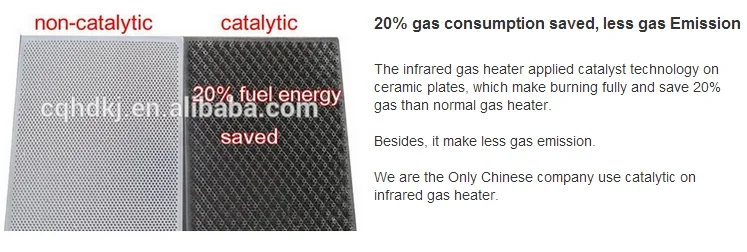

Unique Rare-earth Catalyst Technology has gotten Patent certificate, it makes our burner to save 15~25% gas energy than non-catalytic type.Located in Chongqing City, southwest of China.

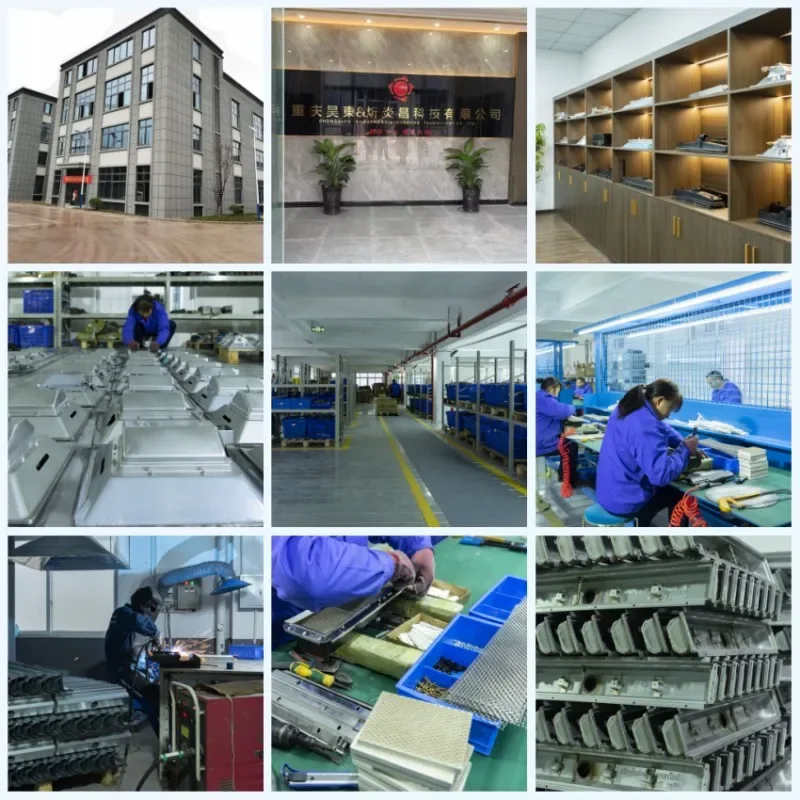

We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $87 / piece
- 50–199 piece: US $80 / piece
- 200+ piece: US $73 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this coating oven infrared heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the coating oven infrared heater be supplied for my local voltage?
The standard configuration is AC 110V and AC 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
