The gas steam boiler listed here carries material Carbon Steel, type Natural Circulation, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Gas Steam Boiler
- Steam Capacity: 1-20 T/h
- Material: Carbon Steel
- Boiler Material: Boiler specific carbon steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application Field: Food,Textile,Dyeing and Printing, Papermaking Industry
Technical Specifications
| Output | Steam, saturated steam, superheated steam |
|---|---|
| Usage | Industrial |
| Fuel | Gas (Natural gas, LPG, coal gas) |
| Pressure | Low Pressure |

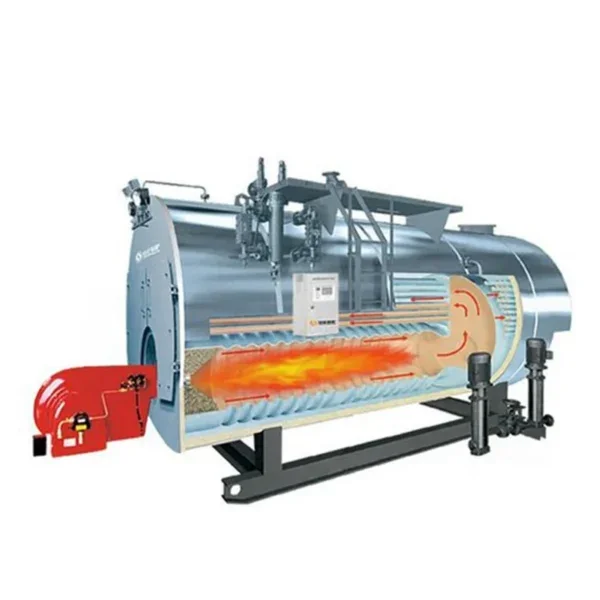

| Structure | Horizontal; Corrugated furnace; Wet back; |
| Type | Natural Circulation |
| Material | Carbon Steel |
| Core Components | Burner, Pump, Electric Control |
| Key Selling Points | Easy To Operate |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 6000 |
| Place Of Origin | Shandong, China |
| Brand Name | EPCB |
| Dimension(L*W*H) | Depends |
| Boiler Name | Industrial 1 to 20 ton gas fired steam boiler |
| Keywords | Gas fired steam boiler |
| Steam Capacity | 1-20 T/h |
| Working Pressure | 0.7-2.5Mpa (7-25 bar) |
| Steam Temperature | 170-225℃ |
| Boiler Material | Boiler specific carbon steel |
| Thermal Efficiency | Up to 94% |
| Application Field | Food,Textile,Dyeing and Printing, Papermaking Industry |
| Local Service Location | Philippines, Pakistan,Bangladesh,Uzbekistan |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Item/Type | Horizontal Fire Tube Automatic Oil/Gas Fired Steam Boiler | ||||||||||||||||
Rated capacity t/h | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | |||||||||
Rated steam pressure MPa | 0.7/1.0/1.25/1.6 | ||||||||||||||||
Rated steam temperature ℃ | 170/184/194/204 | ||||||||||||||||
Boiler thermal efficiency % | 92.55 | 92.6 | 92.5 | 92.9 | 93.1 | 93.4 | 93.5 | 93.7 | |||||||||
Body heating area m2 | Boiler body | 67.87 | 80.37 | 110.5 | 140.13 | 194.27 | 142.3 | 218.5 | 275.3 | ||||||||
Economizer | 30.4 | 43.41 | 46.5 | 57.1 | 74.4 | 112.6 | 155 | 225.5 | |||||||||
Boiler water volume m3 | 6.25 | 7.54 | 8.9 | 8.5 | 13.9 | 19.5 | 24.5 | 31.5 | |||||||||
Flue diameter mm | φ450 | φ520 | 750×410 | 800×410 | 940×520 | 850×500 | 1200×600 | 1500×600 | |||||||||
Water inlet diameter DN | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 80 | |||||||||
Main steam valve diameter DN | 100/40 | 100/40 | 125/40 | 125/40 | 150/40 | 150/40 | 200/50 | 200/65 | |||||||||
Safety valve diameter DN | 2×40 | 50+40 | 2×50 | 2×65 | 2×65 | 2×80 | 2×100 | 2×100 | |||||||||
Blowdown diameter DN | 40 | 40 | 40 | 40 | 40 | 2×50 | 2×50 | 2×50 | |||||||||
Fuel consumption | Diesel kg/h | 177.65 | 236.74 | 296.25 | 353.97 | 470.95 | 586.79 | 879.25 | 1169.83 | ||||||||
Natural gas Nm³/h | 217.25 | 289.51 | 362.28 | 432.40 | 573.44 | 717.57 | 1075.21 | 1430.55 | |||||||||
Largest transportation size | Length mm | 4600 | 4900 | 5250 | 5850 | 6500 | 6240 | 8500 | 9200 | ||||||||
Width mm | 2200 | 2300 | 2350 | 2400 | 2600 | 2850 | 3500 | 3950 | |||||||||
Height mm | 2500 | 2650 | 2680 | 2700 | 2850 | 3100 | 4000 | 4350 | |||||||||
Largest transportation weight kg | 8000 | 8700 | 11200 | 12500 | 17800 | 22000 | 32500 | 40500 | |||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
