This gas fired boiler is published with the manufacturer’s full specification — voltage used widely 220-460V/50-60Hz, capacity 0.2Million~16Million Kcal/hr. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Gas Fired Boiler
- Voltage Used Widely: 220-460V/50-60Hz
- Capacity: 0.2Million~16Million Kcal/hr
- Material: Carbon Steel
- Warranty: 1 Year
- Certification: ISO,CE,EAC,ASME
- Place Of Origin: Shandong, China
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Gas |
| Pressure | Low Pressure |
| Structure | Fire Tube |
| Type | Natural Circulation |
| Material | Carbon Steel |
| Core Components | Pressure Vessel |
| Key Selling Points | Automatic, High-Accuracy, Easy To Operate, High Safety Level, Remote Monitoring, Long Service Life, Patented Product, Energy Saving, Remote Control, Low Maintenance Cost, Accurate Temperature Control, Famous Brand PLC |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 8000 |
| Place Of Origin | Shandong, China |
| Brand Name | EPCB |
| Dimension(L*W*H) | Depends |
| Boiler Name | Oil/gas fired thermal oil boiler |
| Keywords | Thermal/Hot Oil Boiler |
| Thermal Efficiency | >=93% |
| Capacity | 0.2Million~16Million Kcal/hr |
| Emission | Environment Friendly |
| Voltage Used Widely | 220-460V/50-60Hz |
| Manufacture License | Class A |
| After-Sales Service Provided | Field maintenance and repair service |
| Certification | ISO,CE,EAC,ASME |
| Applicable Industries | Garment Shops,Printing Shops,Food Shop,Restaurant,Farms |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

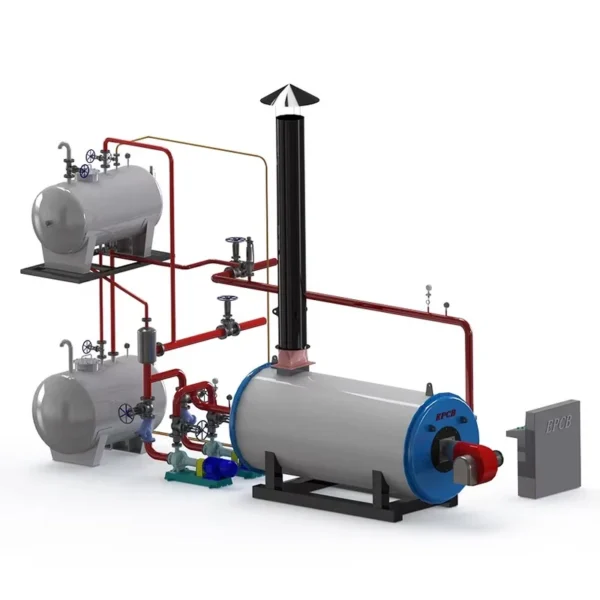

Factory Direct Automatic Gas Fired Boiler Industrial Thermal Oil Heater Thermic Fluid Heating System
Products Description

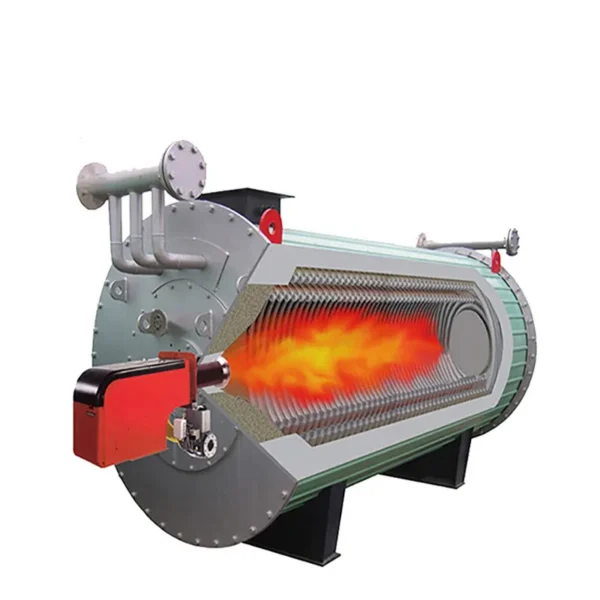

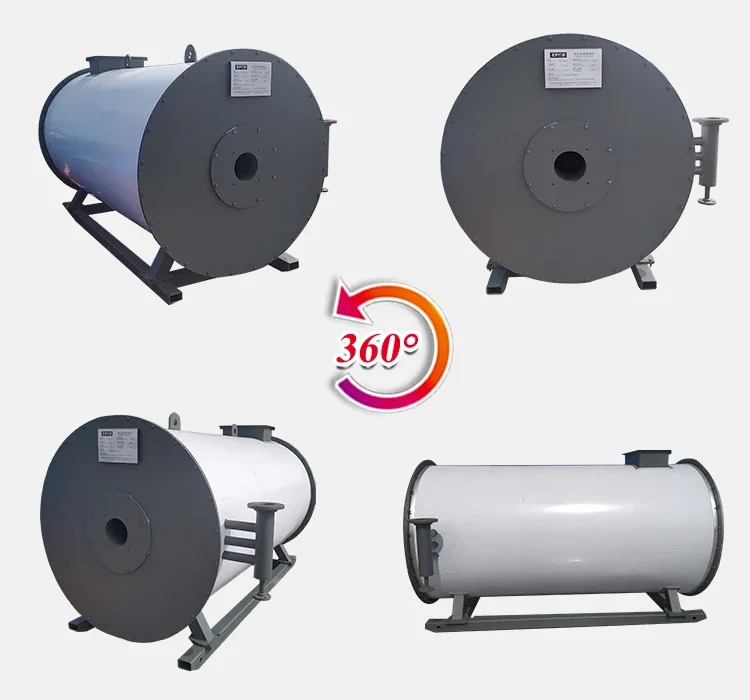

Gas/oil fired thermal oil boiler

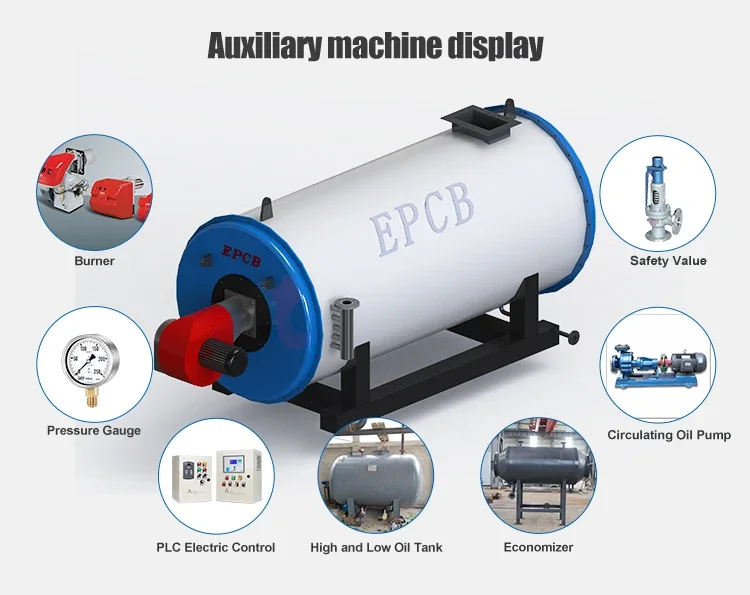

EPCB thermal oil boilers adopt double coil structure and three-pass flue gas design, which is compact, efficient and compact in size. This not only increases the heating surface, but also reduces the footprint of the boiler, saving steel and reducing overall costs. Safety is our top priority. Our boilers are equipped with multiple safety interlocks, instrument valves and monitoring systems to ensure safe operation. The PLC touch screen enables one-button operation, simplifies boiler control and saves labor costs. Efficient operation prolongs the service life of the equipment.
Rated steam capacity:350kw-16000kw;
Applicable fuel:Diesel, Heavy oil, Natural gas, LPG, Coke oven gas, etc;
Rated steam pressure:1.1Mpa(11bar).
Applicable fuel:Diesel, Heavy oil, Natural gas, LPG, Coke oven gas, etc;
Rated steam pressure:1.1Mpa(11bar).
EPCB boiler always upholds a professional, patient and meticulous service attitude to provide a full range of answers to every customer. Whether you have any questions about product specifications, technical parameters, application scenarios, installation and commissioning, or after-sales service, you can always consult us.

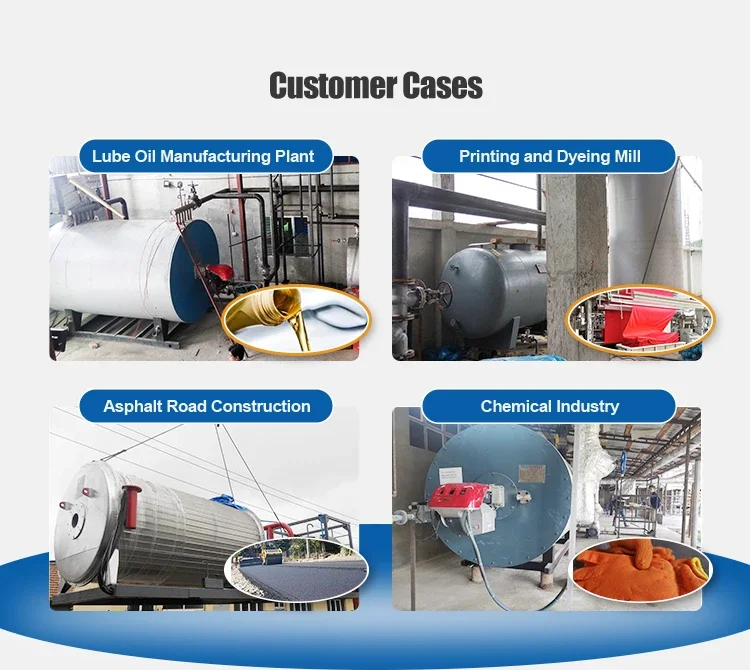

Customer Cases
EPCB Boiler is a professional boiler system solution provider. Our products are exported to more than one hundred countries and regions and are widely used in industrial production, food processing, chemical, textile, pharmaceutical, and other industries.
Details Images
Rated thermal power | kw | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | |
×104(Kcal/h) | 30 | 50 | 75 | 100 | 130 | 150 | 250 | 250 | ||
Boiler thermal efficiency % | 92 | 92 | 92 | 92 | 92 | 93 | 93 | 93 | ||
Design pressure MPa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
Max. working temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
Medium circulation flow m3/h | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | ||
Installation capacity kw | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | ||
Fuel consumption | Diesel kg/h | 27.11 | 46.48 | 69.71 | 92.95 | 116.19 | 137.93 | 176.24 | 222.22 | |
Natural gas Nm³/h | 32.43 | 55.59 | 83.39 | 111.18 | 138.98 | 164.98 | 210.81 | 265.80 | ||
Boiler size | Vertical type m (Diameter×H) | 1.3×2.5 | 2×2.3 | 2.1×3.5 | 2.2×3.5 | 2.2×4 | 2.4×4.4 | 2.7×5.1 | 2.8×6.5 | |
Horizontal type m (Diameter×L) | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | ||
Recommend Products
Why Choose Us

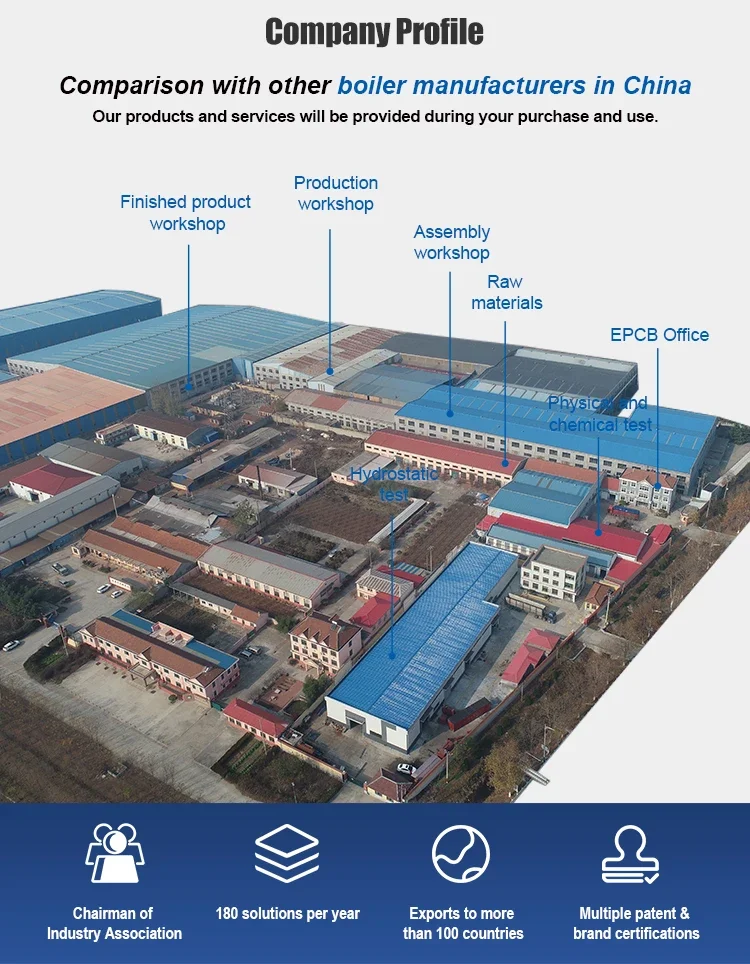

After more than seventy years of development, EPCB Boiler has grown into a professional boiler system solution provider integrating boiler design, manufacturing, installation, and maintenance. Our products cover steam boilers, thermal oil boilers, hot water boilers, power plant boilers, and other categories and can provide customized solutions according to customer needs. At present, our market has covered more than one hundred countries and regions in Asia, America, Europe, Africa, Oceania, etc. More than fifteen thousand companies around the world have chosen EPCB boilers, which are widely used in more than four hundred industries. The EPCB Boiler factory is located in Qingdao, an important industrial manufacturing base in China, covering an area of one hundred twenty thousand square meters. It has modern factory buildings, advanced production equipment, and a complete production line to ensure the stability and reliability of product quality. As of two thousand twenty-four, the annual production volume has reached two thousand units and continues to grow. Under a strict quality management system, we have obtained multiple international certifications: [Factory Certification] ISO nine thousand one; [Product Certification] CE, ASME, EAC, etc. EPCB Boiler always adheres to high-standard manufacturing to ensure the high performance, high safety, and long service life of each boiler, providing excellent heating solutions for global customers.

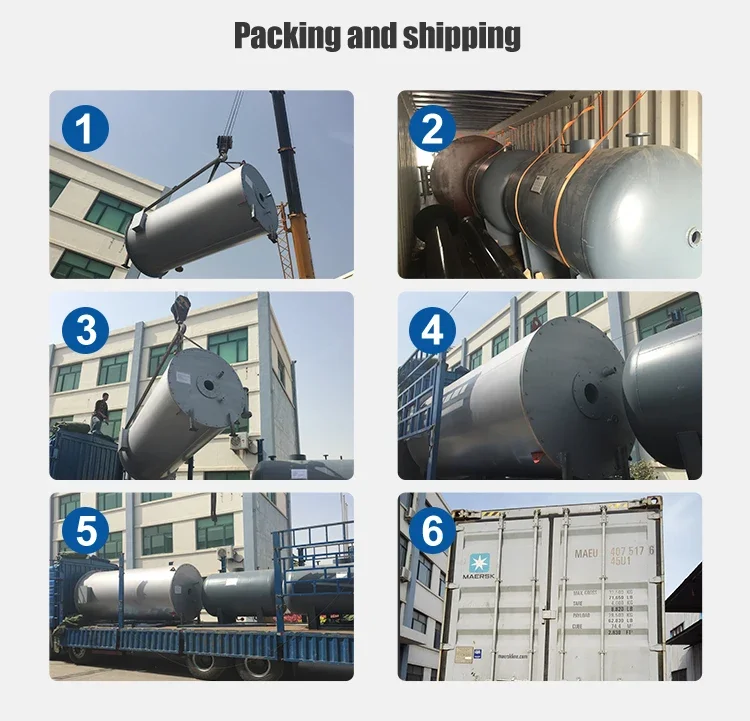

Product packaging
FAQ
① Q: What is your delivery time?
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
② Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
③ Q: What kind of transportation do you use?
A: We support various modes of transportation, such as by sea, by land and by air. You can choose any mode of transportation according to your actual situation.
④ Q: Do you provide any training services?
A: Yes, we do. Our engineer will go to customer’s factory site to give the user’s operator guidance and training during the period of commissioning until they are skilled in boiler operation.
⑤ Q：What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
⑥ Q: How can I get the best price quickly?
A: You can tell us the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we will give you the reasonable quotation immediately by Email, Whatsapp, Skype, Wechat or any other communication tool you use.
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
② Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
③ Q: What kind of transportation do you use?
A: We support various modes of transportation, such as by sea, by land and by air. You can choose any mode of transportation according to your actual situation.
④ Q: Do you provide any training services?
A: Yes, we do. Our engineer will go to customer’s factory site to give the user’s operator guidance and training during the period of commissioning until they are skilled in boiler operation.
⑤ Q：What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
⑥ Q: How can I get the best price quickly?
A: You can tell us the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we will give you the reasonable quotation immediately by Email, Whatsapp, Skype, Wechat or any other communication tool you use.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $7800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas fired boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this gas fired boiler carry?
It is supplied with ISO,CE,EAC,ASME documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the gas fired boiler be supplied for my local voltage?
The standard configuration is 220-460V/50-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
