The gear micro electric fan listed here carries type Synchronous Motor, speed 1-100rpm, documented exactly as the manufacturer publishes it. Made by Ningbo Mingjong Electric Industry Co., Ltd. (15 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Gear Micro Electric Fan
- Model Number: ME
- AC Voltage: 12-240V
- Speed: 1-100rpm
- Warranty: 3Years
- Certification: RoHS, TUV, UL
- Place Of Origin: Zhejiang, China
Technical Specifications
| Phase | Three-Phase |
|---|---|
| AC Voltage | 12-240V |
| Type | Synchronous Motor |
| Protect Feature | Explosion-Proof |
| Efficiency | IE 1 |
| Warranty | 3Years |
| Model Number | ME |
| Brand Name | LIMITED |
| Place Of Origin | Zhejiang, China |
| Frequency | 50/60Hz |
| Name | micro gear electric motor for fan |
| Speed | 1-100rpm |
| Torque | 0.5-16kgf-cm |
| Color | grey |
| Insulation Class | B |
| Certification | RoHS, TUV, UL |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 1.000 kg |
Product Details

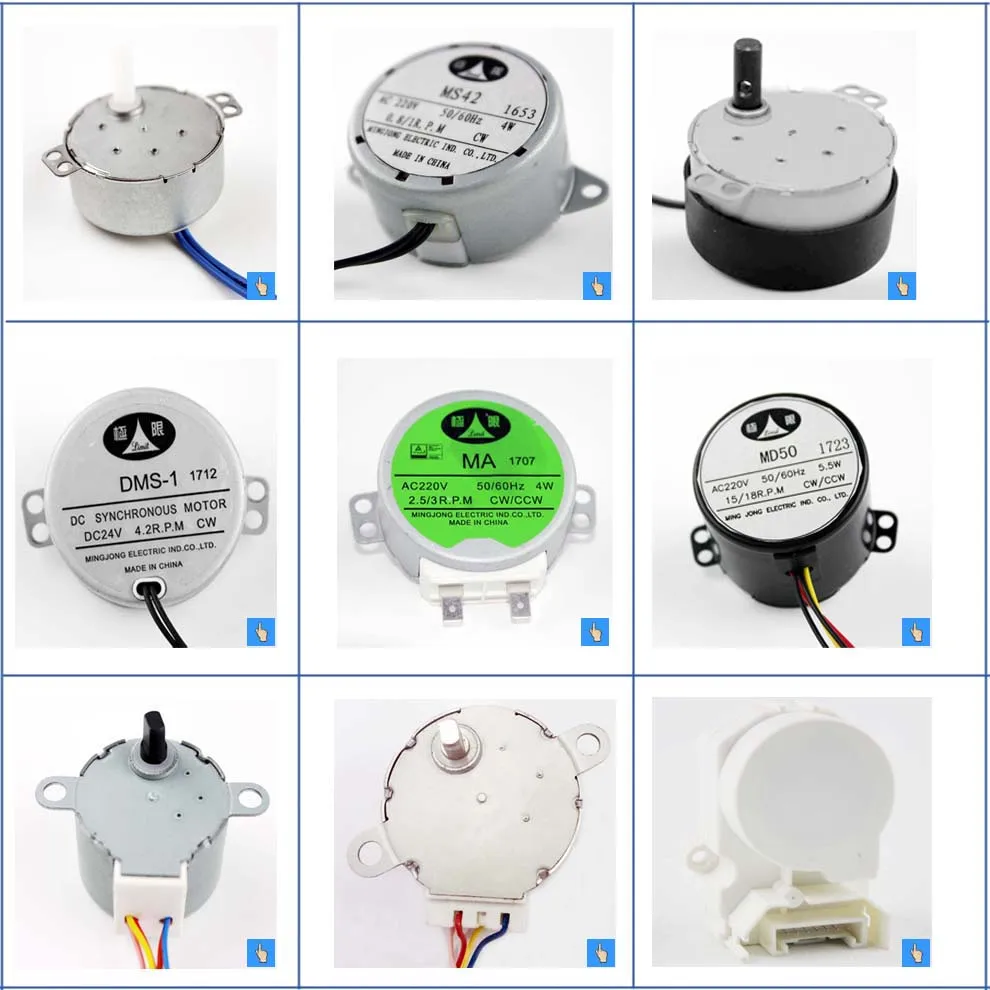

Ydk Micro High Torque Low Rpm Gear Electric Fan Motor
APPLICATIONS
1. Electric fan
2. Heater
3. Laminator
4. Healthful instrument
5. Video games
6. Spotlights
7. Air Conditioner
8. Other
Product Specifications
| Item | Specifications | Unit | ||||||
| Raged Voltage | 12 | 24 | 100 | 110 | 120 | 220 | 240 | VAC |
| Power Frequency | 50/60 | HZ | ||||||
| Rotation | CW,CCW,CW/CCW | |||||||
| Speed | 1/1.2 | 2/2.5 | 2.5/3 | 3.3/4 | 4.2/5 | 5/6 | 6/7 | R.P.M |
| 7.5/9 | 10/12 | 15/18 | 20/24 | 30/36 | 60/72 | 83/100 | ||
| Stall Torque | 16.0 | 16.0 | 16.0 | 10.0 | 10.8 | 9.0 | 7.0 | kgf-cm |
| 6.0 | 4.5 | 2.5 | 2.2 | 1.5 | 0.75 | 0.5 | ||
| Frictional Torque | 7~10 | kgf-cm | ||||||
| Number of Poles | 10 | Pole | ||||||
| Input Power | 3.8 , 4.0 | W | ||||||
| Insulation Strength | AC 1500V-1min Cut-Off Current :10mA | |||||||
| Insulation Class | A , E | Class | ||||||
.
Service:
With a professional engineer team, we can offer the professional opinions when you want
to make OEM products. With active and enthusiastic Sales team, they will be the bridge of
you and factory. Once inquiry received, we promise reply in less than 24 hours. Our mission
is try our best to offer a reliable product with reasonable cost to our valuable customers.
Warranty:
12months after delivery.
Introduction: Ningbo Mingjong Electric Industry Co., Ltd. was established in 1993 in Ningbo, China. In order to provide the best services and products for worldwide customers, we continuously carry out innovations with our core competence.
Main product: Mini Motors, timer switch, RF control…
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–49999 piece: US $3 / piece
- 50000+ piece: US $2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gear micro electric fan?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this gear micro electric fan carry?
It is supplied with RoHS, TUV, UL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the gear micro electric fan be supplied for my local voltage?
The standard configuration is 12-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Mingjong Electric Industry Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ningbo Mingjong Electric Industry Co., Ltd. range on HVACR Nexus.
