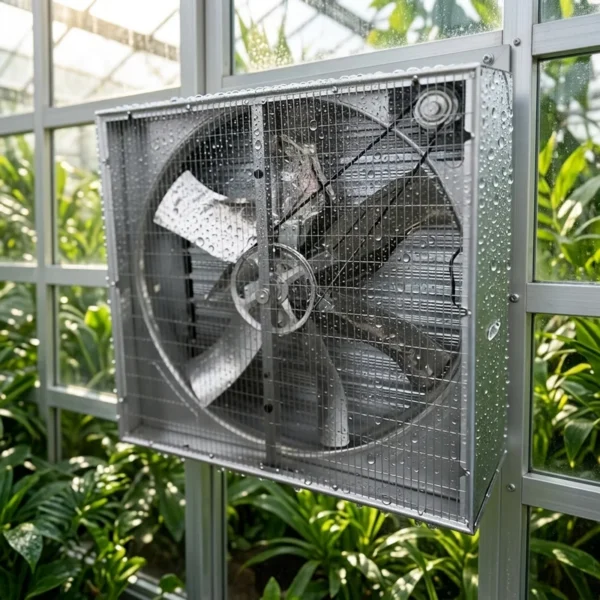

Greenhouse Ventilation Exhaust Fan, Stainless, Steel, 1400mm

Greenhouse ventilation exhaust fan — 220 V, 380 V, 51000m3/h. The complete factory specification follows. Made by Shandong Muhe Machinery Co., Ltd. (15 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Greenhouse Ventilation Exhaust Fan

• Model Number: MHC-1530
• Power Source: Electric
• Power: 1500w
• Voltage: 220 V, 380 V
• Air Flow: 51000m3/h
• Material: Stainless Steel

Technical Specifications

Product Details

Products Description

SHANDONG MUHE

Push-Pull Centrifugal Fan

For Poultry Farm Chicken House

Model (Drop Hammer)	Blade Dia(MM)	Blade Rotational Speed(RPM)	Air Flow (M³/H)	Noise (DB)	Input Power (W)	Rated Voltage (V)	Size High-Wide-Thickness(MM)
MHC-800	710(28")	650	18000	≤ 70	370	220/380	800-800-450
MHC-1000	910(36")	650	26000	≤ 70	550	220/380	1000-1000-450
MHC-1100	1000(40")	600	33000	≤ 70	750	220/380	1100-1100-450
MHC-1220	1100(43")	440	39500	≤ 70	1100	220/380	1220-1220-450
MHC-1380	1270(50")	440	43500	≤ 70	1100	220/380	1380-1380-450
MHC-1530	1400(55")	420	51000	≤ 70	1500	220/380	1530-1530-450

FAN MODEL	Dimention(MM)
		A	B	C	D	E
MHC-800  (28")	800	800	450	305	145
MHC-1000(36")	1000	1000	450	305	145
MHC-1100(40")	1100	1100	450	305	145
MHC-1220(43")	1220	1220	450	305	145
MHC-1380(50")	1380	1380	450	305	145
MHC-1530(55")	1530	1530	450	305	145

Main Feature

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust;
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Details Images

Frame With Plastic Handle

1. Frame: Hot Galvanized Sheet With Zinc

Thickness of 275g/㎡, High Anti-Corrosion

Performance
2. Plastic Handle, Easy To Carry ,

Convenient To Load
Advantage:
We Have the Laser Cutting Machine.

Auto Punching and Bending, the Accuracy of the Hole is 100%, Easy to Assemble.

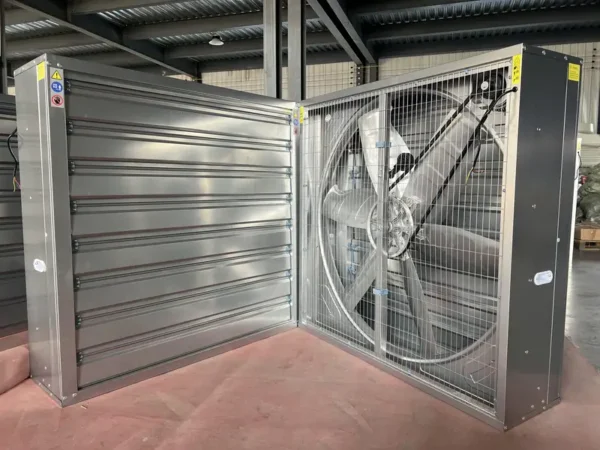

Fan Shutter

1. Material: Hot Galvanized Sheet with Zinc Thickness of 275 g/㎡
2. Shutter Fixed Parts: High Quality Nylon.

Advantage:
High Anti-Corrosion Performance, Open Flexibly, Long Service Life, No Deformation ,

No Rust, Running Stable.

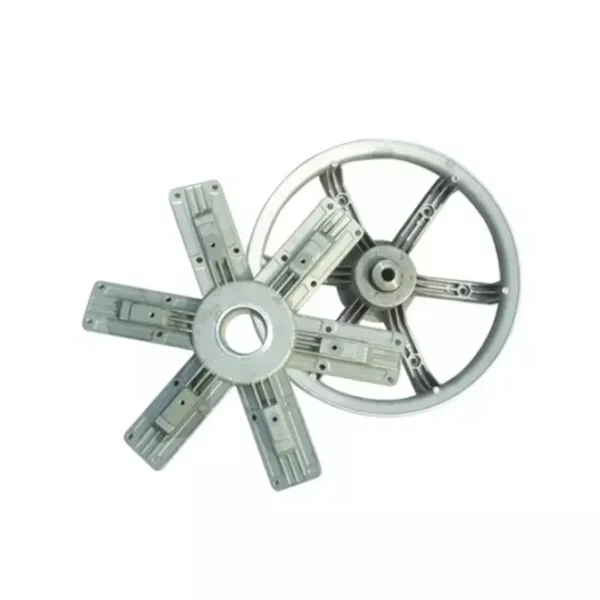

Belt Pulley

1. Material: High Strength Aluminum- Magnesium Alloy By Die-Casting.
2. Blast-Sanding Treatment, Eliminate Internal Stress to Improve Its Own Rigidity and Stability
Advantage:
Light Weight, Low Vibration ,

Attractive Appearance.

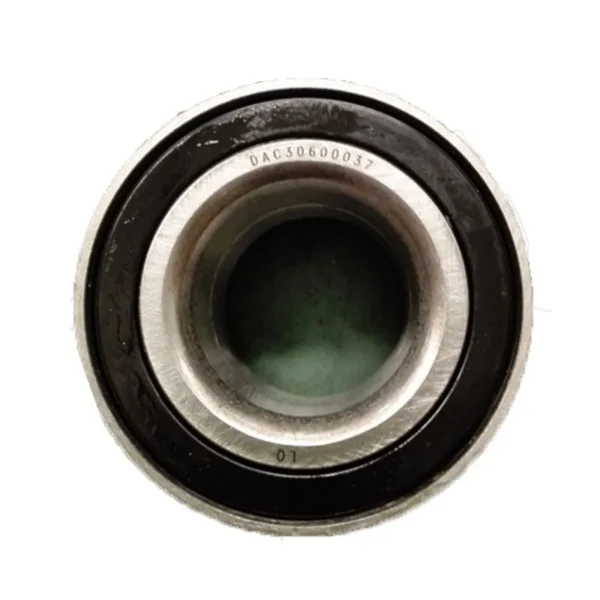

Bearing

Imported Double-Row Bearing With Special Waterproof Design.
Advantage:
High Strength, Low Noise, Free Maintenance And Long Service Life.

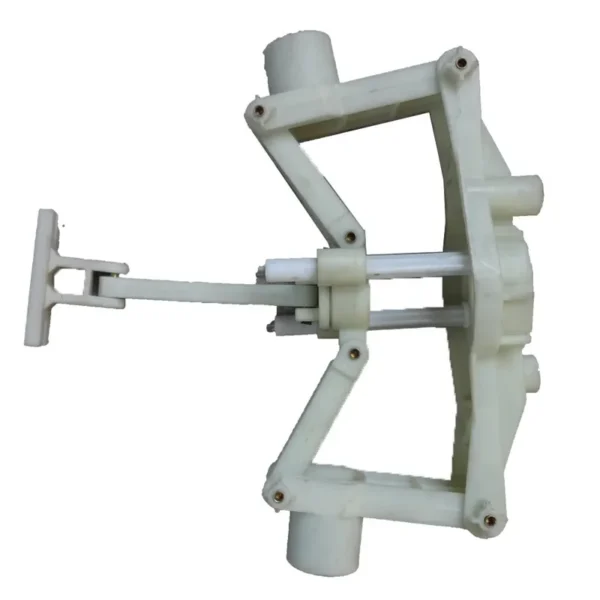

Centrifugal Device

1.Material: High Quality Nylon PA66
2.Guide Rod: 304 Stainless Steel With Special Material Outside, High Strength, No Rust, Reduce Friction.
3.Rivet: 304 Stainless Steel , Wear-Resisting, Do not Rust.
Advantage:
It Can Keep the Shutters Open at Complete 90 Degree to Ensure the Lowest Air Resistance and Biggest Air Volume.

Fan Blades

1. Material : Krupp 430 Stainless Steel, Thickness 1.2 mm
2. Diameter: 1270 mm
Advantage:
Large Air Flow, No Deformation, No Fracture, No Dust, Attractive and Durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

Belt

Brand: Mitsuboshi Belt (Japanese)
Type: B type, B88
Advantage:
B Type Belt is 3 Times Longer Service Life than A Type Belt, Maintenance Free.

Protect Net

Material: Hot-Dip Galvanized Wire is Coated With Plastic
Advantage:
Double Protection to Ensure Do Not Rust.

Linking Parts

1. Material: Aluminum Alloy
2. Spring: 304 stainless Steel, No Deformation ,No Rust.
Advantage:
Light Weight, No Deformation, Long Service Life. Added with Wear-Resistant Shaft Sleeve, Reducing Friction , Ensure the Shutters Open Smoothly.

Fan Motor

1. Brand: Chinese Famous Motor

Siemens & ABB & WEG motor Can Be Choose
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor Voltage and Frequency Can Be Customized.
100 % Copper Wire.

Shandong Muhe machinery Co., Ltd is a company that engages in the research of air-flow
dynamics and environmental control.lt specializes in designing and manufacturing temperature controlling machineny. through intensive cooperation with renowned universities in China, our company has established a research institute that combines the aspects of study, research and production in order to develop innovations in machinery involved with ventilation and heating as well as products for poultry facilities. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.
Shandong Muhe Machinery Co., Ltd is a pioneer and leader in the industry of ventilating, cooling and heating equipment that is used in workshops, conservatories and standard poultry shacks.
Muhe provides products in six series, as well as over thirty types of devices to include poultry fans,cooling pads, negative pressure blowers,gardening fans, roofing automatic ventilation devices,axial flow fans, air fumnaces, various tvpes of feeding eauipment and So on. These products can be widely used in a variety of settings within both agriculture and industry.

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–99 set: US $160 / set
  • 100–999 set: US $155 / set
  • 1000–9999 set: US $150 / set
  • 10000+ set: US $130 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this greenhouse ventilation exhaust fan?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the greenhouse ventilation exhaust fan be supplied for my local voltage?

The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
