Key specification for this grow tent overhead dehumidifier: voltage 220, capacity 330. Everything below is reproduced from the factory data sheet. Made by Jiangsu Shimei Electric Manufacturing Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Grow Tent Overhead Dehumidifier
- Model Number: SMS-156B
- Power Source: Electric
- Power (W): 1500
- Voltage (V): 220
- Capacity (Pints / 24h): 330
- Water Tank Capacity (L): 0
Technical Specifications
| Application | Garage, Commercial, Household |
|---|---|
| Capacity (Pints / 24h) | 330 |
| Coverage Area (Sq. Ft.) | 2700 |
| Type | Refrigerative Dehumidifier |
| Power Source | Electric |
| Water Tank Capacity (L) | 0 |
| Function | Adjustable Humidistat, Auto Restart, Automatic Defrost, Automatic Humidistat Control, External Drain Connect, Led Display, Washable Air Filter |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts, Overseas Call Centers |
| Voltage (V) | 220 |
| Brand Name | msshimei |
| Place Of Origin | Jiangsu, China |
| Dimensions (L X W X H (Inches) | 40.5”x24.8”x26.8” |
| Fan Speed | 0 |
| Power (W) | 1500 |
| Working Temperature Range | 5-38℃ |
| Model Number | SMS-156B |
| Product Name | Ceiling Mounted Dehumidifier |
| Dehumidifying Capacity | 156L/Day |
| Refrigerant | R410a |
| Packaging Details | Standard Export Packaging |
| Port Of Dispatch | Shanghai port |
| Selling Units | Single item |
| Single Package Size | 103X69X66 cm |
| Single Gross Weight | 80.000 kg |
| Supply Ability | 10000 pieces per Week |
Product Details
Product Description
Functions: The machine is placed in a suspended ceiling, which does not occupy indoor space and does not affect the indoor aesthetic effect With indoor air humidity display, the humidity can be set arbitrarily from 30% -90%. Set the humidity that needs to be controlled. When the set humidity is reached, it will automatically stop when it is higher than the set humidity. The
machine humidity control switch can be led out separately and placed at any place. It is convenient for users to control and observe in real time Can be customized according to customer requirements Note: The machine's air volume, appearance, flange mouth and body size can be changed according to customer requirements.
machine humidity control switch can be led out separately and placed at any place. It is convenient for users to control and observe in real time Can be customized according to customer requirements Note: The machine's air volume, appearance, flange mouth and body size can be changed according to customer requirements.
Model | SMS-26B | SMS-36B | SMS-56B | SMS-90B | SMS-138B | SMS-156B |
Dehumidify capacity | 26Liter/Day 55Pints/Day | 36Liter/Day 76Pints/Day | 56Liter/Day 118Pints/Day | 90Liter/Day 190Pints/Day | 138Liter/Day 292Pints/Day | 156Liter/Day 330Pints/Day |
Power | 350W | 450W | 1000W | 1300W | 1800w | 2300W |
Air circulation | 280m3/h | 350m3/h | 550m3/h | 900m3/h | 1100m3/h | 1500m3/h |
Working temperature | 5-38℃ 41-100℉ | 5-38℃ 41-100℉ | 5-38℃ 41-100℉ | 5-38℃ 41-100℉ | 5-38℃ 41-100℉ | 5-38℃ 41-100℉ |
Weight | 10kg | 15kg | 25kg | 51kg | 55kg | 65kg |
Applying space | 30m2 320ft² | 50m2 540ft² | 80m2 860ft² | 120m2 1300ft² | 180m2 1930ft² | 200m2 2150ft² |
Voltage | 110-240V 50,60Hz | 110-240V 50,60Hz | 110-240V 50,60Hz | 110-240V 50,60Hz | 110-240V 50,60Hz | 110-240V 50,60Hz |
Model | SMS-8kg | SMS-10kg | SMS-12kg | SMS-15kg | SMS-20kg | SMS-30kg |
Dehumidify capacity | 192Liter/Day 405Pints/Day | 240Liter/Day 507Pints/Day | 288Liter/Day 608Pints/Day | 360Liter/Day 760Pints/Day | 480Liter/Day 1015Pints/Day | 720Liter/Day 1521Pints/Day |
Power | 3000w | 4200w | 5500w | 6000w | 8000w | 10kw |
Air circulation | 2000m3/h | 2800m3/h | 3000m3/h | 4100m3/h | 5800m3/h | 8000m3/h |
Working temperature | 5-38℃ 41-100℉ | 5-38℃ 41-100℉ | 5-38℃ 41-100℉ | 5-38℃41-100℉ | 5-38℃41-100℉ | 5-38℃41-100℉ |
Weight | 80kg | 90kg | 95kg | 105kg | 115kg | 125kg |
Applying space | 250m² 2600ft² | 300m² 3200ft² | 350m² 3750ft² | 400m² 4300ft² | 500m² 5400ft² | 800m² 8600ft² |
Voltage | 380-415V 50,60Hz 3PH | 380-415V 50,60Hz 3PH | 380-415V 50,60Hz 3PH | 380-415V 50,60Hz 3PH | 380-415V 50,60Hz 3PH | 380-415V 50,60Hz 3PH |

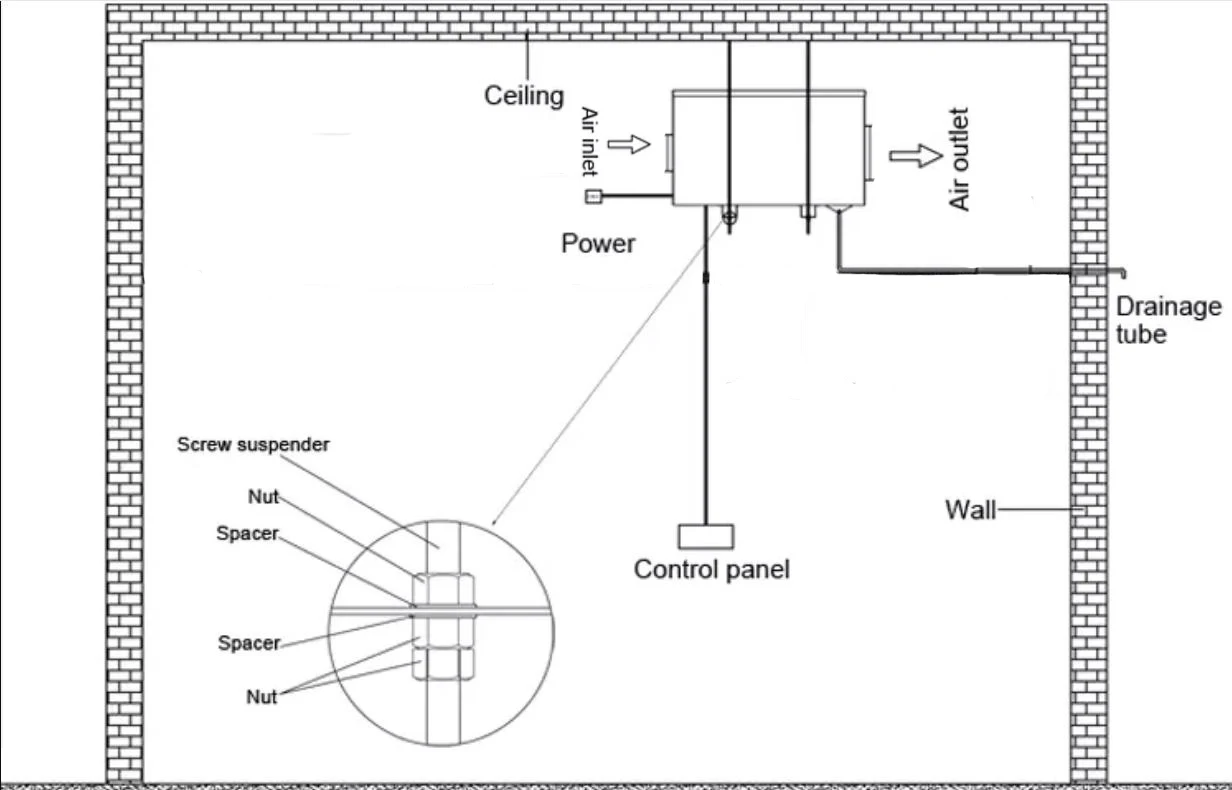

Installation diagram of ducted dehumidifier
.
How Ducted dehumidifiers work？
A ducted dehumidifier is a dehumidifier that is connected to a duct or ventilation shaft with either the supply air, return air,or both. The duct work can be connected to an existing HVAC system or ducted out on its own to an exterior area.
Are all dehumidifiers ducted?
Depending on the application, a dehumidifier doesn’t have to be ducted to do its job. Only dehumidifiers with a strong enough fan
to overcome the static pressure of the ductwork are capable of being ducted.
Why use a ducted dehumidifier?
Often the space that needs to be dehumidified is not the same space that houses the dehumidifier, the application requires a better distributed airflow, or there are multiple spaces needing dry airflow. By ducting the dehumidifier to these remote locations, the user has the freedom to install the dehumidifier where ever it is convenient, easily distribute dry air across a wide area, or can use a single dehumidifier to dry multiple spaces. Ducted dehumidifiers also have the added benefit of being able to condition fresh outside air to the space rather than just circulate stale indoor air.
Why might you need a ducted dehumidifier?
1. IF YOU HAVE AN ESPECIALLY LARGE SPACE.
If your space is very large, such as an indoor ice rink or a water treatment facility, using a ducted dehumidification system
maybe the best option. By nature, the system can distribute the air evenly or target trouble areas.
2. IF THE AREA NEEDING TO BE DRIED HAS LIMITED POWER AVAILABILITY OR SPACE CONSTRAINTS.
If, such as in an indoor pool, the area needing to be conditioned doesn’t have available space to house the dehumidifier, ducting the unit from a utility closet gives the flexibility needed to manage the space properly.
3. IF YOUR SPACE HAS POOR VENTILATION OR HAS MULTIPLE COMPARTMENTS.
Spaces that have poor ventilation often benefit from a ducted dehumidifier, as the system’s design allows for fresh air to
circulate through the space. Using a ducted dehumidifier can help such areas by maintaining a healthy air quality. This is also beneficial in facilities like Self-Storage or float spas where there are multiple smaller rooms that need to be addressed.
A ducted dehumidifier is a dehumidifier that is connected to a duct or ventilation shaft with either the supply air, return air,or both. The duct work can be connected to an existing HVAC system or ducted out on its own to an exterior area.
Are all dehumidifiers ducted?
Depending on the application, a dehumidifier doesn’t have to be ducted to do its job. Only dehumidifiers with a strong enough fan
to overcome the static pressure of the ductwork are capable of being ducted.
Why use a ducted dehumidifier?
Often the space that needs to be dehumidified is not the same space that houses the dehumidifier, the application requires a better distributed airflow, or there are multiple spaces needing dry airflow. By ducting the dehumidifier to these remote locations, the user has the freedom to install the dehumidifier where ever it is convenient, easily distribute dry air across a wide area, or can use a single dehumidifier to dry multiple spaces. Ducted dehumidifiers also have the added benefit of being able to condition fresh outside air to the space rather than just circulate stale indoor air.
Why might you need a ducted dehumidifier?
1. IF YOU HAVE AN ESPECIALLY LARGE SPACE.
If your space is very large, such as an indoor ice rink or a water treatment facility, using a ducted dehumidification system
maybe the best option. By nature, the system can distribute the air evenly or target trouble areas.
2. IF THE AREA NEEDING TO BE DRIED HAS LIMITED POWER AVAILABILITY OR SPACE CONSTRAINTS.
If, such as in an indoor pool, the area needing to be conditioned doesn’t have available space to house the dehumidifier, ducting the unit from a utility closet gives the flexibility needed to manage the space properly.
3. IF YOUR SPACE HAS POOR VENTILATION OR HAS MULTIPLE COMPARTMENTS.
Spaces that have poor ventilation often benefit from a ducted dehumidifier, as the system’s design allows for fresh air to
circulate through the space. Using a ducted dehumidifier can help such areas by maintaining a healthy air quality. This is also beneficial in facilities like Self-Storage or float spas where there are multiple smaller rooms that need to be addressed.
WHY WE USE R410 ECO-FRIENDLY GAS？
R22 refrigerant:
* Since 2010 R22 is no longer in use by manufacturer’s of new air conditioners and heat pumps
* As of 2020 R22 will no longer be imported or manufactured
* R22 contributes to the depletion of the ozone layer
* R22 is less capable of absorbing and releasing heat than R410a refrigerant, making it less energy efficient
* The price of R22 continues to rise as the remaining supply diminishes
R410a refrigerant:
* R410a comes in all newly-manufactured air conditioners and heat pumps
* Unlike R22, R410a does not contribute to the depletion of the ozone layer
* R410a is better at absorbing and releasing heat than R22, making it more energy efficient to use
* Since R410a operates at higher pressures it requires the use of tougher and more durable air conditioner parts. Better quality
parts reduce the risk of your system overheating and breaking down.
It’s not hard to see why R410a is a substantially better refrigerant.
* Since 2010 R22 is no longer in use by manufacturer’s of new air conditioners and heat pumps
* As of 2020 R22 will no longer be imported or manufactured
* R22 contributes to the depletion of the ozone layer
* R22 is less capable of absorbing and releasing heat than R410a refrigerant, making it less energy efficient
* The price of R22 continues to rise as the remaining supply diminishes
R410a refrigerant:
* R410a comes in all newly-manufactured air conditioners and heat pumps
* Unlike R22, R410a does not contribute to the depletion of the ozone layer
* R410a is better at absorbing and releasing heat than R22, making it more energy efficient to use
* Since R410a operates at higher pressures it requires the use of tougher and more durable air conditioner parts. Better quality
parts reduce the risk of your system overheating and breaking down.
It’s not hard to see why R410a is a substantially better refrigerant.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $490 / piece
- 10–99 piece: US $475 / piece
- 100+ piece: US $455 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this grow tent overhead dehumidifier?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the grow tent overhead dehumidifier be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Shimei Electric Manufacturing Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Shimei Electric Manufacturing Co., Ltd. range on HVACR Nexus.
