Heat exchanger — model number Tube sheet. The complete factory specification follows. Made by Henan Bebon Iron & Steel Co., Ltd. (8 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Heat Exchanger
- Model Number: Tube sheet
- Place Of Origin: Henan, China
- Single Gross Weight: 0.0 kg
- Brand Name: Steel Concrete Formwork
- Product Name: Tube sheet
- Flexible Holes: Round,tapered,elliptical,lumbar,square,tooth,diamond,irregular
Technical Specifications
| Place Of Origin | Henan, China |
|---|---|
| Brand Name | Steel Concrete Formwork |
| Model Number | Tube sheet |
| Product Name | Tube sheet |
| Flexible Holes | Round,tapered,elliptical,lumbar,square,tooth,diamond,irregular |
| Characteristic | High pressure and corrosion resistance |
| Process | Cutting/Bending/Leveling/Turning/Punching |
| Compressive Strength | 0.23kg-1134kg (0.5lb-2500lb) |
| Diameter | DN15-DN6000 |
| Molding Technics | Forging |
| ODM OEM Service | Available |
| Surface Treatment | CNC machined |
| MOQ | 1 piece |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Heat exchanger tube sheet perforated sheet baffle plate supplier steel plates punching drilling service provider
Various Materials of the tube sheet:
Traditional materials: carbon steel, stainless steel
Emerging materials: nickel base alloy, titanium,zirconium, carbon steel composite plate, stainless steel composite plate, etc.
Flexible Holes of the tube sheet:
Besides the most common round shapes, special patterns also can be processed, such as tapered hole, eliptical hole, square hole, dentate hole, diamond hole, irregular shaped hole, etc.
Application of the tube sheet:
Tube sheet is widely used in tube heat exchangers, boilers, pressure vessels, steam turbines, large central air-conditioning industry.
Specification of the tube sheet:
| 1 | For short hole tubesheet: the hole diameter range: Φ1.5mm-238mm |
| 2 | For deep hole tubesheet: the hole diameter range: Φ12mm-50mm |
| 3 | The max hole depth: 1100mm |
| 4 | The max tubesheet diameter: Φ8600mm |

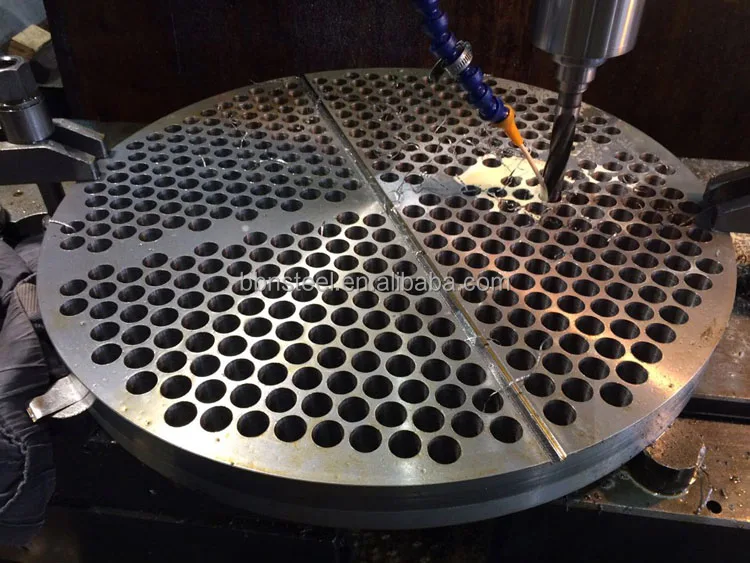

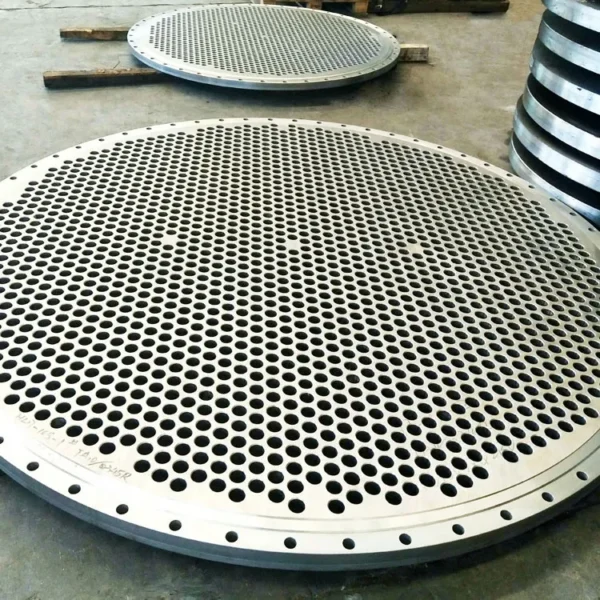

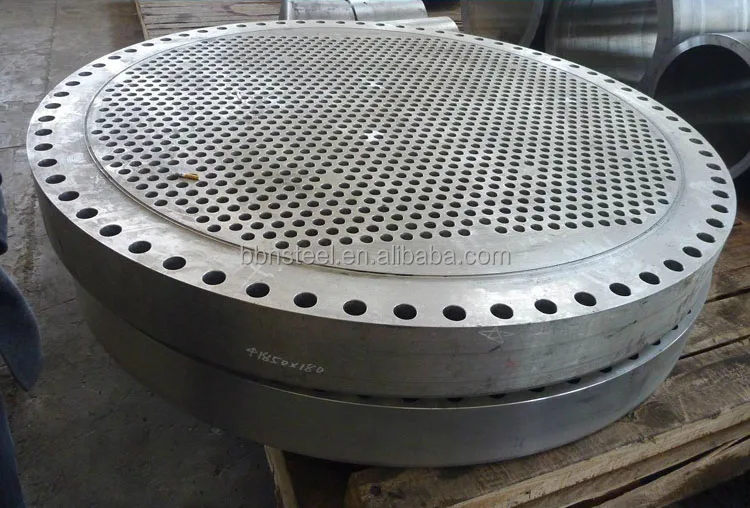

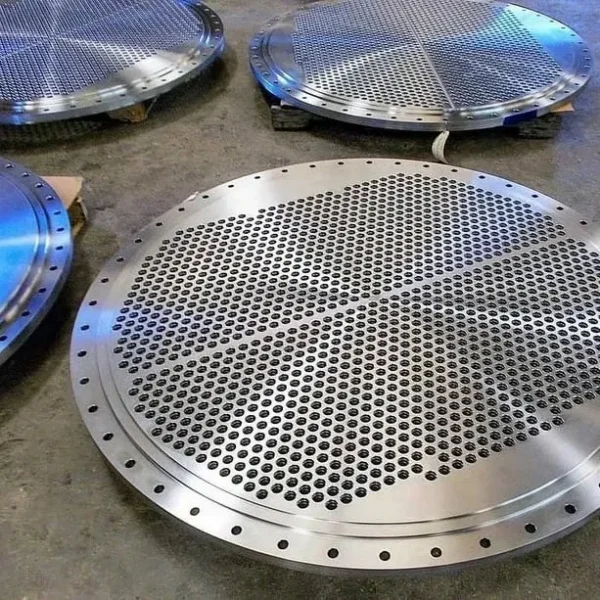

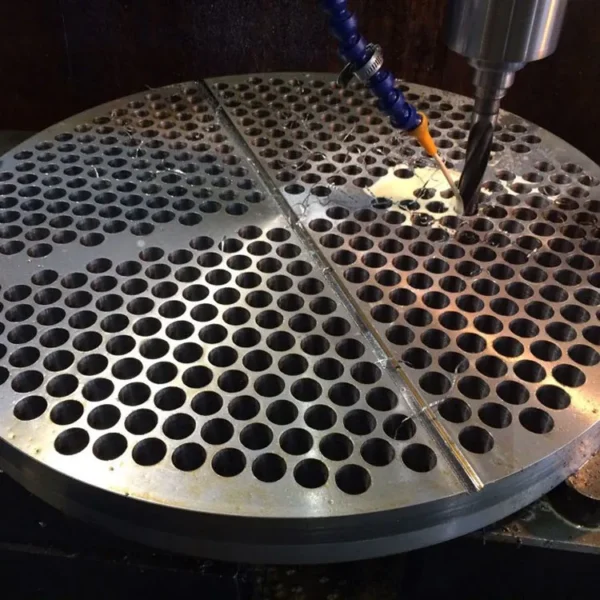

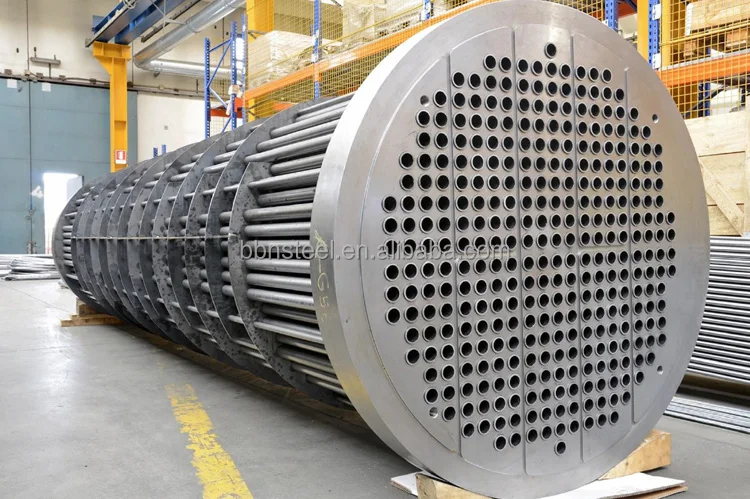

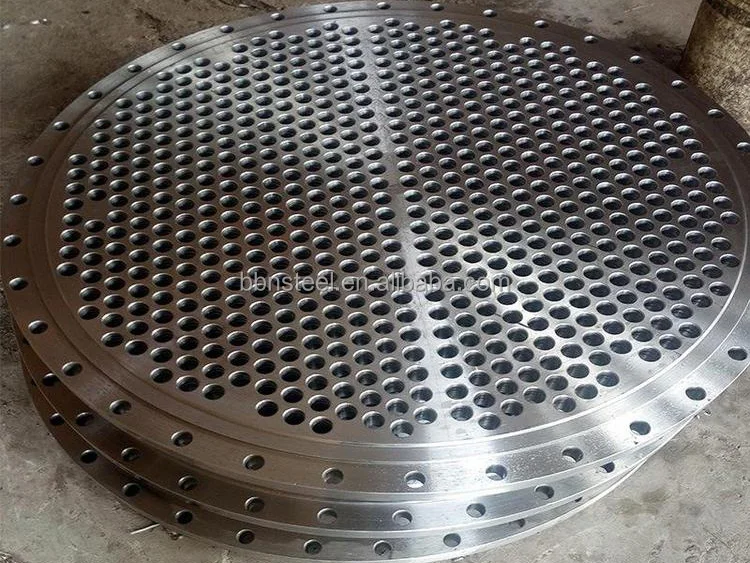

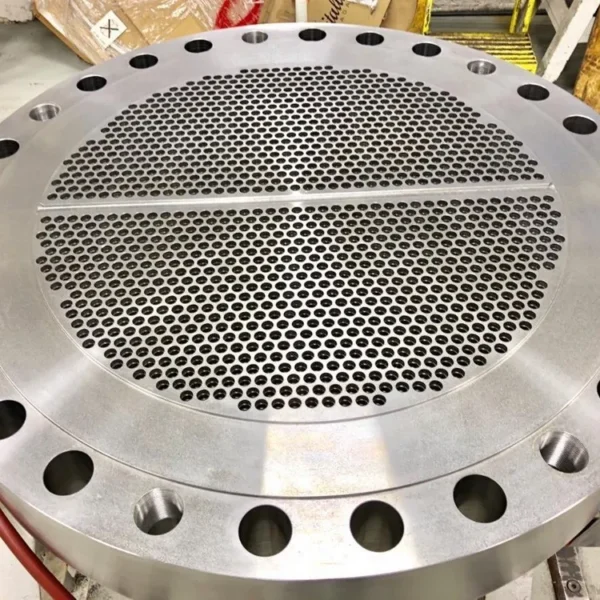

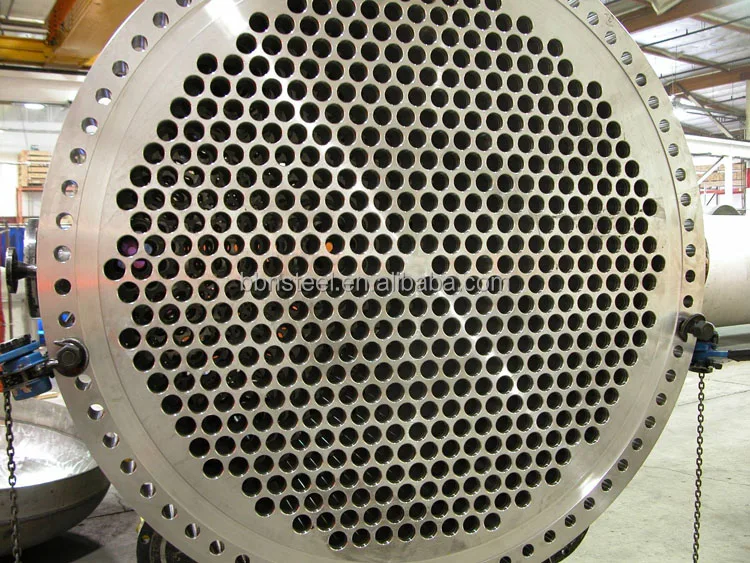

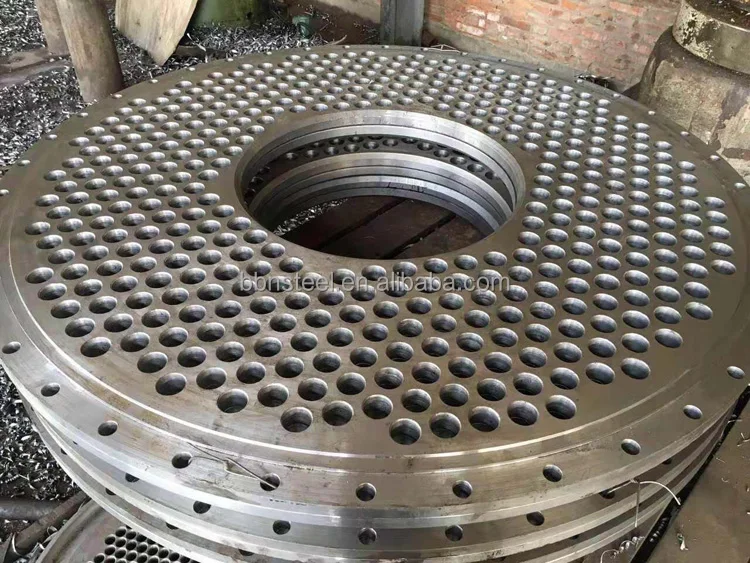

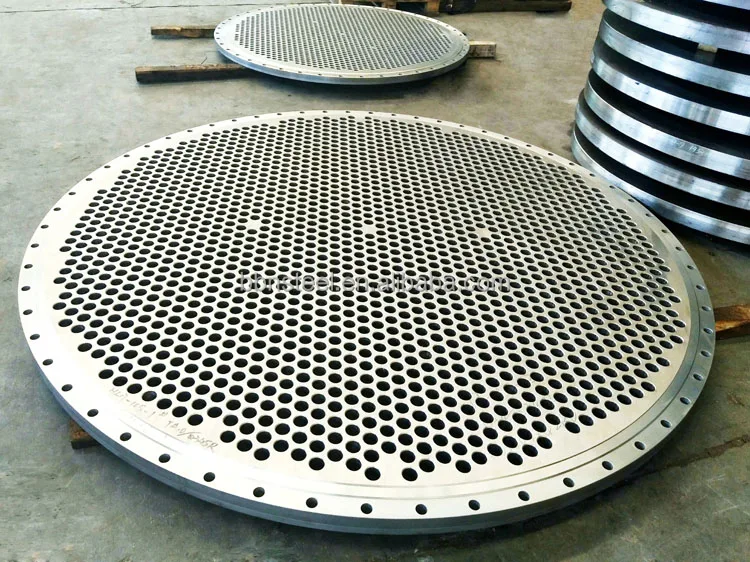

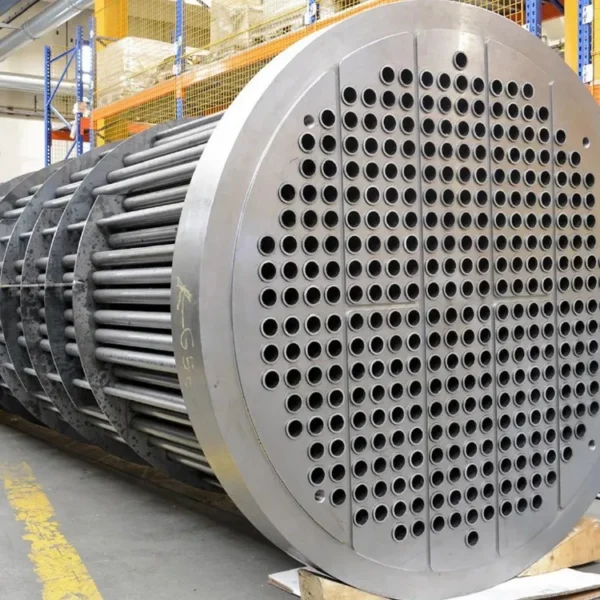

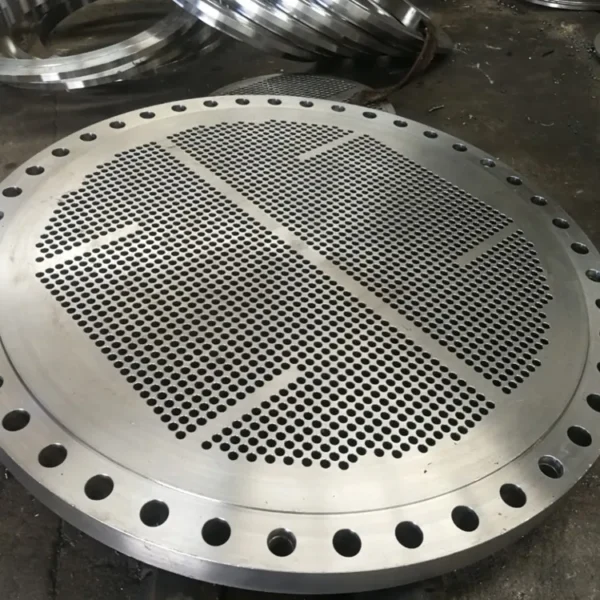

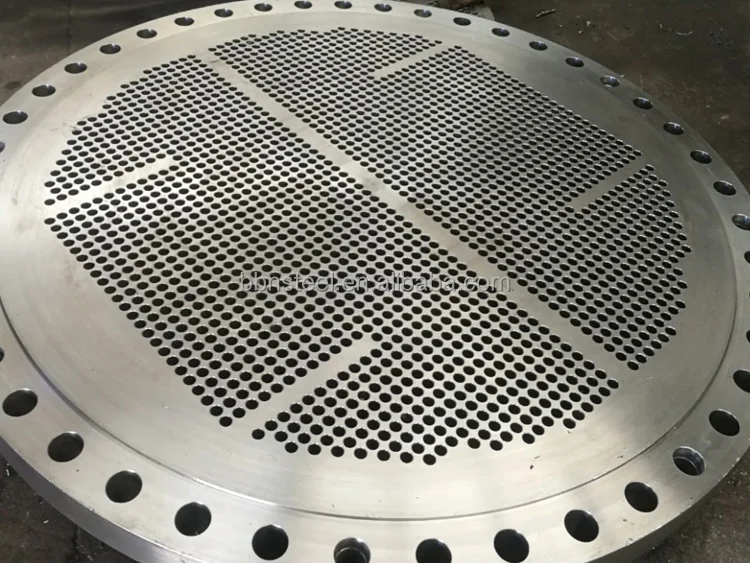

Tube sheet pictures:
Please click here>>>> Contact for more factory prices, shipping and discounts!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat exchanger?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Bebon Iron & Steel Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Bebon Iron & Steel Co., Ltd. range on HVACR Nexus.
