The filter drier listed here carries material metal, suitable refrigerants HCFC/HFC/CFC, documented exactly as the manufacturer publishes it. Made by Shanghai Xurui Refrigeration Equipment Co., Ltd. (12 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Filter Drier
- Material: metal
- Suitable Refrigerants: HCFC/HFC/CFC
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Application: Refrigeration Parts
- Features: Durable
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Filter Drier |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 1 |
| Place Of Origin | Shanghai, China |
| Color | Black,Blue,Gray |
| Material | metal |
| Product Name | Refrigeration Dry Filter |
| Features | Durable |
| Usage | refrigeration |
| Suitable Refrigerants | HCFC/HFC/CFC |
| Suitable Medium Temperature | -35℃-+70℃ |
| Condition | New |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |
| Showroom Location | Egypt, Canada, Viet Nam, Philippines, Peru, Indonesia, Pakistan, Mexico, Russia, UAE, Colombia, Sri Lanka, Romania, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia |
| Marketing Type | New Product 2020 |
| Packaging Details | Standard export packaging |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1000 sets per Month |
Product Details
VR

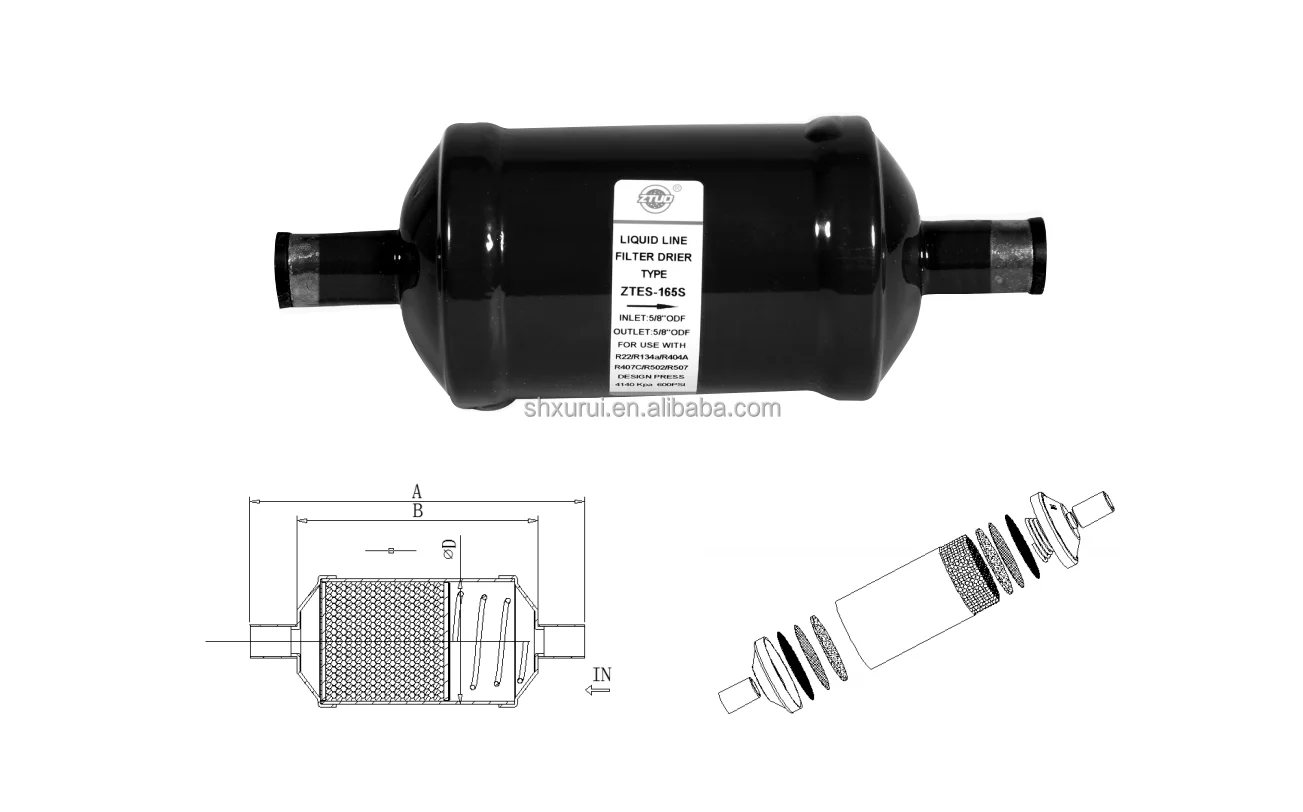

Refrigeration liquid line dry filter drier for refrigerator and heat exchange parts
Products Description
·Product Description:
·Features:
1. Shock resistant steel shell construction.
2. High dirt retention, down to 25 um particles, with minimal pressure
drop.
drop.
3. High absorbent and acid removable capacity.
4. Highly corrosion-resistant powder coating finish. Can be used in all
environments, including marine applications.
environments, including marine applications.
5. Maximum working pressure: 4.7Mpa/680Psig.
Parameters Table
Model | Connection In | SAE | Liquid Refrigeration Volume (kW) | |||||||||
ODF | SAE | R134A | R22/R410A | R407C | R404A/R507 | R502 | ||||||
ZTES-052 | 1/4 | 9.0 | 9.8 | 7.7 | 6.5 | 6.3 | ||||||
ZTES-052S | 1/4 | 13.3 | 14.4 | 12.3 | 9.6 | 9.4 | ||||||
ZTES-053 | 3/8 | 21.4 | 23.3 | 13.4 | 15.4 | 15.1 | ||||||
ZTES-053S | 3/8 | 26.5 | 28.7 | 16.9 | 19.1 | 18.7 | ||||||
ZTES-054S | 1/2 | 34 | 36 | 23 | 24 | 23.5 | ||||||
ZTES-082 | 1/4 | 11 | 11.3 | 10.6 | 9.7 | 9.5 | ||||||
ZTES-082S | 1/4 | 15.7 | 16.6 | 14.0 | 13 | 12.7 | ||||||
ZTES-083 | 3/8 | 21.8 | 23.7 | 15.1 | 15.7 | 15.4 | ||||||
ZTES-083S | 3/8 | 27.4 | 29.8 | 17.2 | 19.8 | 19.3 | ||||||
ZTES-084 | 1/2 | 36.4 | 39.6 | 25 | 23.2 | 25.7 | ||||||
ZTES-084S | 1/2 | 38.9 | 42.4 | 26.4 | 28.7 | 27.5 | ||||||
ZTES-085S | 5/8 | 60 | 67 | 35 | 42 | 41 | ||||||
ZTES-162 | 1/4 | 18 | 18 | 18 | 17 | 16 | ||||||
ZTES-162S | 1/4 | 22 | 23 | 23 | 15.4 | 15.6 | ||||||
ZTES-163 | 3/8 | 22.2 | 24.2 | 24 | 16 | 17 | ||||||
ZTES-163S | 3/8 | 31.7 | 34.3 | 26 | 25 | 24 | ||||||
ZTES-164 | 1/2 | 38.5 | 41.9 | 27 | 27.8 | 27.2 | ||||||
ZTES-164S | 1/2 | 49.6 | 54 | 31.6 | 35.8 | 35.1 | ||||||
ZTES-165 | 5/8 | 50.5 | 54.9 | 36.2 | 36.4 | 35.7 | ||||||
ZTES-165S | 5/8 | 67.2 | 73.1 | 37.6 | 48.5 | 47.5 | ||||||
ZTES-166 | 3/4 | 60 | 62 | 42 | 42 | 40 | ||||||
ZTES-167S | 7/8 | 70.6 | 76.8 | 58 | 51 | 49.5 | ||||||
ZTES-302 | 1/4 | 22 | 22 | 22 | 20 | 20 | ||||||
ZTES-303 | 3/8 | 24 | 24 | 24 | 22 | 22 | ||||||
ZTES-303S | 3/8 | 33 | 37 | 27 | 25 | 25 | ||||||
ZTES-304 | 1/2 | 43.6 | 47.5 | 30.2 | 31.5 | 30.8 | ||||||
ZTES-304S | 1/2 | 54.3 | 59.1 | 38 | 39.2 | 38.4 | ||||||
ZTES-305 | 5/8 | 55.6 | 60.5 | 39.7 | 40.1 | 39.3 | ||||||
ZTES-305S | 5/8 | 74 | 80.5 | 46.8 | 53.4 | 52.3 | ||||||
ZTES-306 | 3/4 | 65 | 67 | 47 | 47 | 51 | ||||||
ZTES-306S | 3/4 | 79 | 85 | 51 | 58 | 57 | ||||||
ZTES-307S | 7/8 | 83.4 | 90.8 | 62.9 | 60.2 | 59 | ||||||
ZTES-309S | 1-1/8 | 109.1 | 118.7 | 73.1 | 78.7 | 77.1 | ||||||
ZTES-413 | 3/8 | 45 | 45 | 45 | 43 | 41 | ||||||
ZTES-414 | 1/2 | 50 | 50 | 50 | 48 | 47 | ||||||
ZTES-414S | 1/2 | 58 | 58 | 59 | 52 | 52 | ||||||
ZTES-415 | 5/8 | 68.5 | 74.5 | 45 | 49.4 | 48.4 | ||||||
ZTES-415S | 5/8 | 79.3 | 85.2 | 63.6 | 56.5 | 55.3 | ||||||
ZTES-416 | 3/4 | 51.3 | 88.5 | 88.5 | 60.7 | 60.2 | ||||||
ZTES-416S | 3/4 | 93 | 101 | 78 | 71 | 60 | ||||||
ZTES-417S | 7/8 | 106.5 | 115.9 | 75.9 | 76.9 | 75.3 | ||||||
ZTES-419S | 1-1/8 | 113.8 | 123.8 | 103.3 | 82.1 | 80.4 | ||||||
Detail Pictures
Company Profile
About us
Shanghai Xurui is located in Shanghai with 15 years' experience in producing condensing unit, evaporator, condenser, water chiller for cold room, ice cream production line, quick-freezing tunnel…
All units adopt world famous brand compressors. It has been certified by ISO9001, CE, got import-export license and the license of National Industrial Product Manufacture of China.
Export to more than 30 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
Supply high quality & safety refrigeration equipment. Consecutive sales increase of 15 years.
Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xu Rui
Not only we have our own brand “XU RUI” , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
Our Advantages
At China Wholesale, we can handle your large drive-in refrigerated warehouse projects from start to finish. We have a vast inventory of refrigerant equipment to meet your needs and our nationwide installation teams are ready and waiting to do the job. We offer: • Top quality used or new equipment for any size refrigerated building. • Experienced crews to build your box from walls to ceiling. • Experience in special needs such as insulated floors, refrigeration parts. • Turnkey projects available. • Custom sizes and design services. • We will go anywhere to do the job. Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
Transportation & Installation
We provide the best packing service to our customers! Arrival safely.
Recommend Products
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–49 set: US $90 / set
- 50+ set: US $30 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this filter drier?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Xurui Refrigeration Equipment Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shanghai Xurui Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
See more in Refrigeration & Heat Exchange Parts on HVACR Nexus.
