Heat Pump, R22

Heat pump — voltage –, refrigerant R22/R134a/R407c/R410a. The complete factory specification follows. Made by Et Heat Exchanger Co., Ltd. (8 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Heat Pump

• Voltage: —
• Tube Material: High efficient copper tube
• Shell Material: Carbon Stainless
• Refrigerant: R22/R134a/R407c/R410a
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Product Description

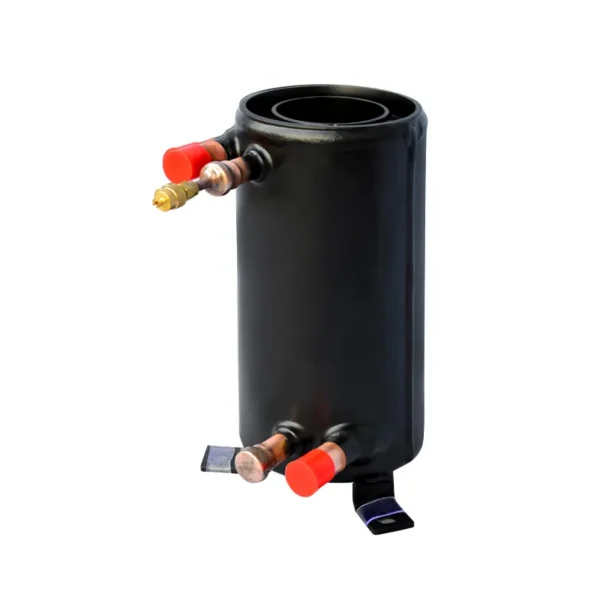

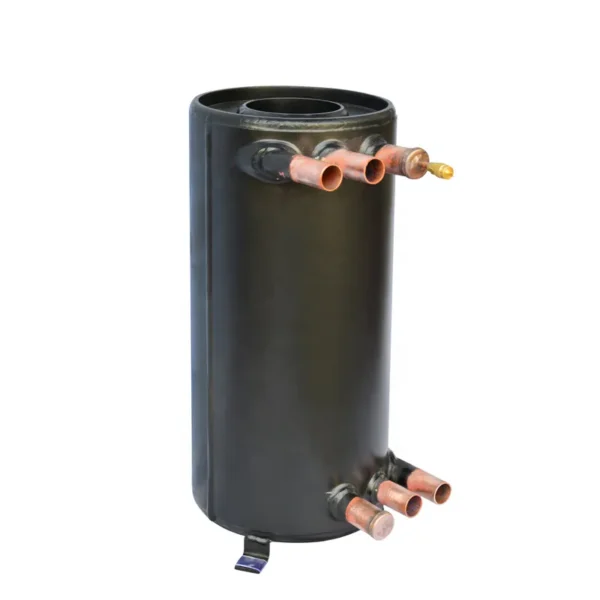

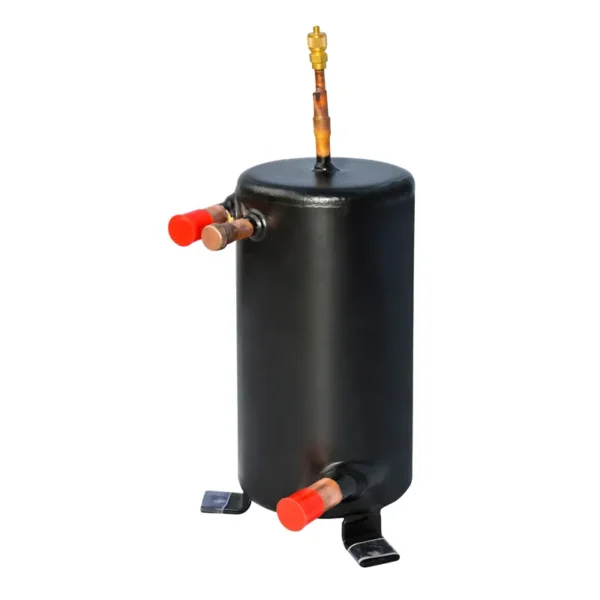

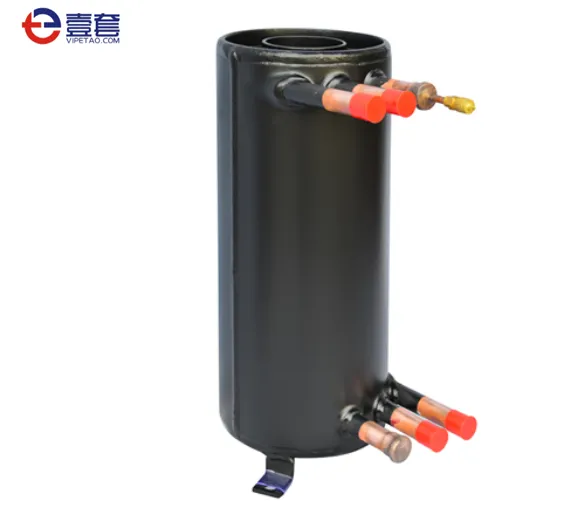

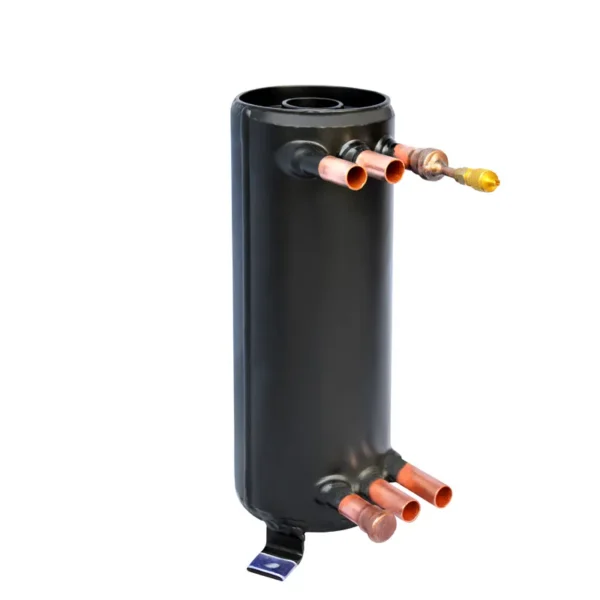

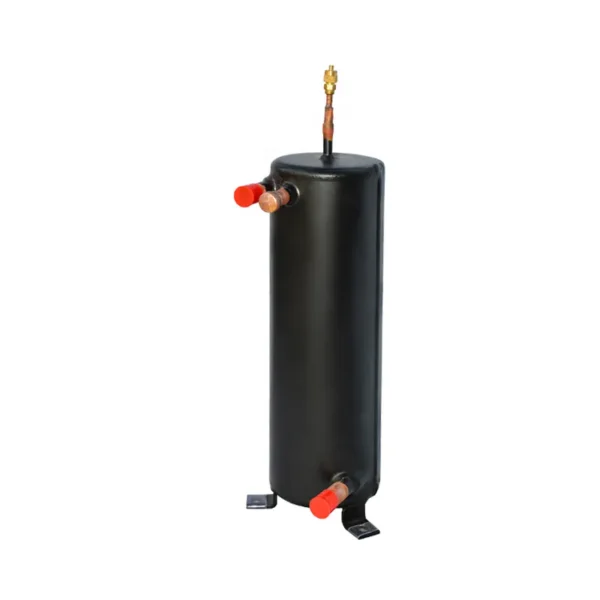

Tube in shell heat exchanger

High Efficiency Tube in Shell Heat Exchanger can be widely use in water-source air conditioner/industry chiller and heat pump etc.

Specification
Model	Heating capacity	Cooling capacity	Water flow	Heat exchanger tube
GBH 01-CMF	5.0KW	3.8KW	1.0 m3/h	19.05 Copper tube
GBH02-CMF	8.5KW	6.7KW	1.6 m3/h	19.05 Copper tube
GBH03-CMF	10.5KW	8.6KW	1.8 m3/h	19.05 Copper tube
GBH04-CMF	12.5KW	9.2KW	1.8 m3/h	19.05 Copper tube
GBH05-CMF	23.5KW	17.6KW	3 m3/h	19.05*2 Copper tube
GBH06-CMF	26.5KW	20.5KW	3.2 m3/h	19.05*2 Copper tube
GBL10-CMF	47KW	37KW	6.5 m3/h	24.5*2 Copper tube
GBL12-CMF	54.5KW	43.5KW	7 m3/h	24.5*2 Copper tube

For more models or customization please contact me!

Detailed Images

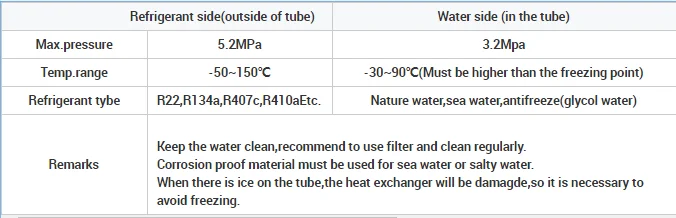

PRODUCT SPECIFICATIONS

Features

High Efficiency of Heat Exchanger:

1. Using high efficiency rifle tube ,heat exchanger area is 3.6time than the smooth type.

2.Fins inside & outside tube induce turbulence flow of freon and water .It's one cause of high efficiency.

3. The compact helix structure of the coil ensures sufficient heat exchanger between the gas and water.

Safety:

1) Whole tube inside shell has no internal jionts ,That' means no welding bug.

2) The copper is fully shaped and then installed into the shell thus free from curedamage.

3) There is not block on water loop and the water flow is smooth ,thus keep it free from ice and dirty.

4) The drain is on the lowest poin of the heat exchanger and easy for drainage in cold season.

Small volume:

Compact size is helpful to save the space for the heat pump and thus reduce the volume of the unit.

Structure:
When there is accumulator included,the gas pressure of the heat pump can be reduced obviously,thus enhance the heat exchanger
efficiency.

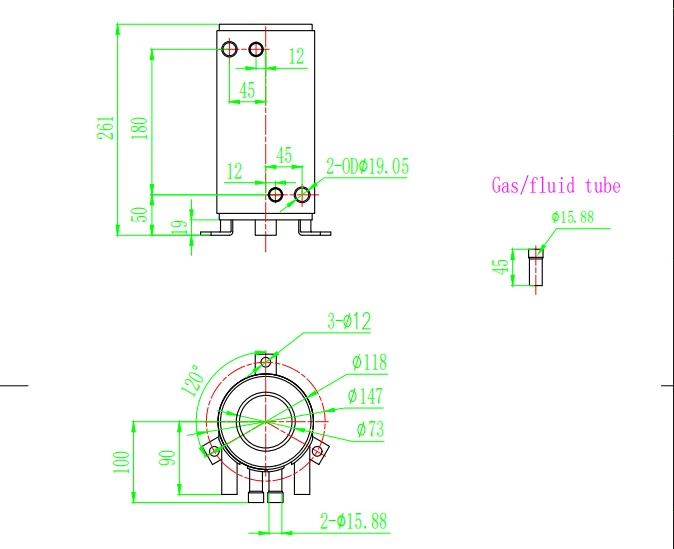

Product drawing

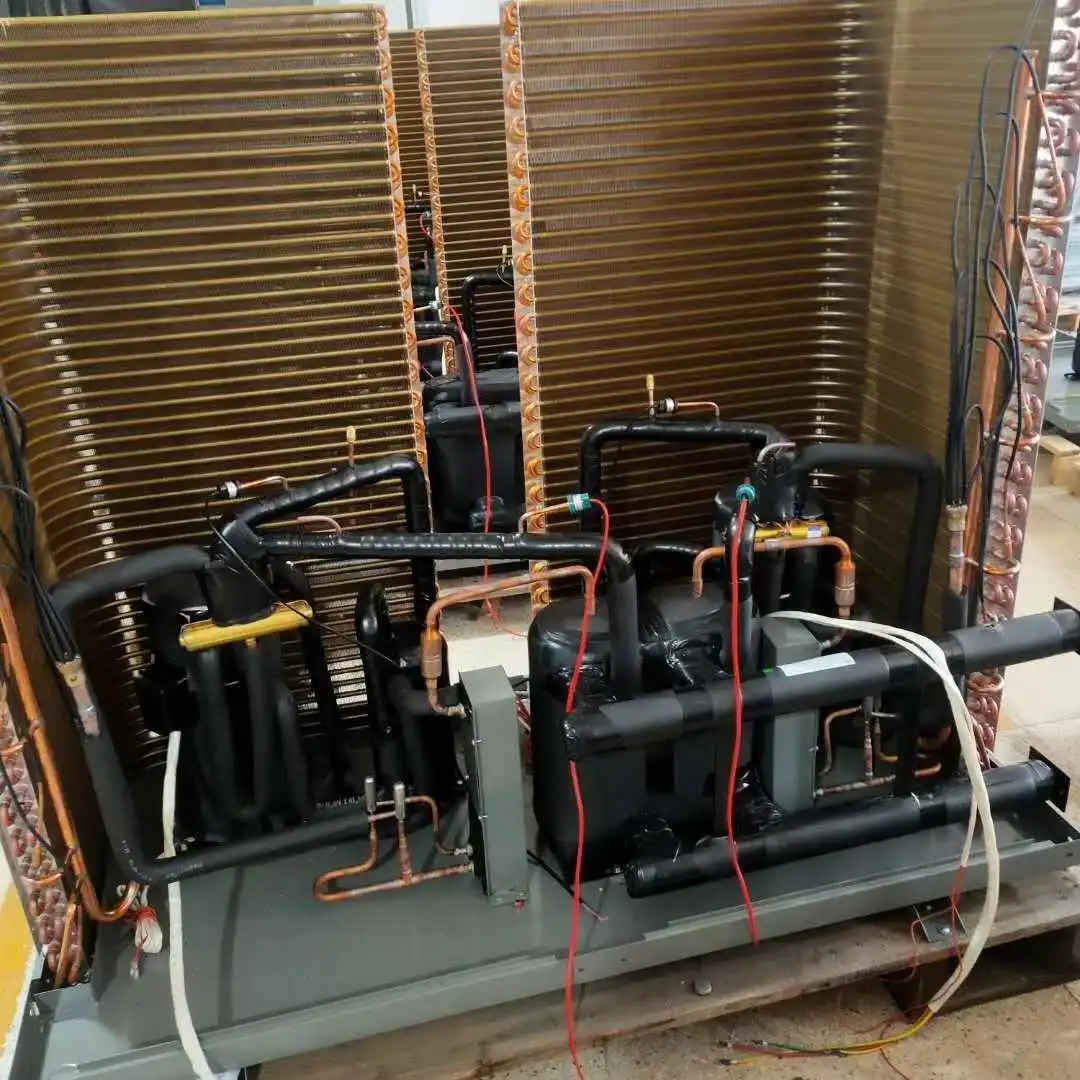

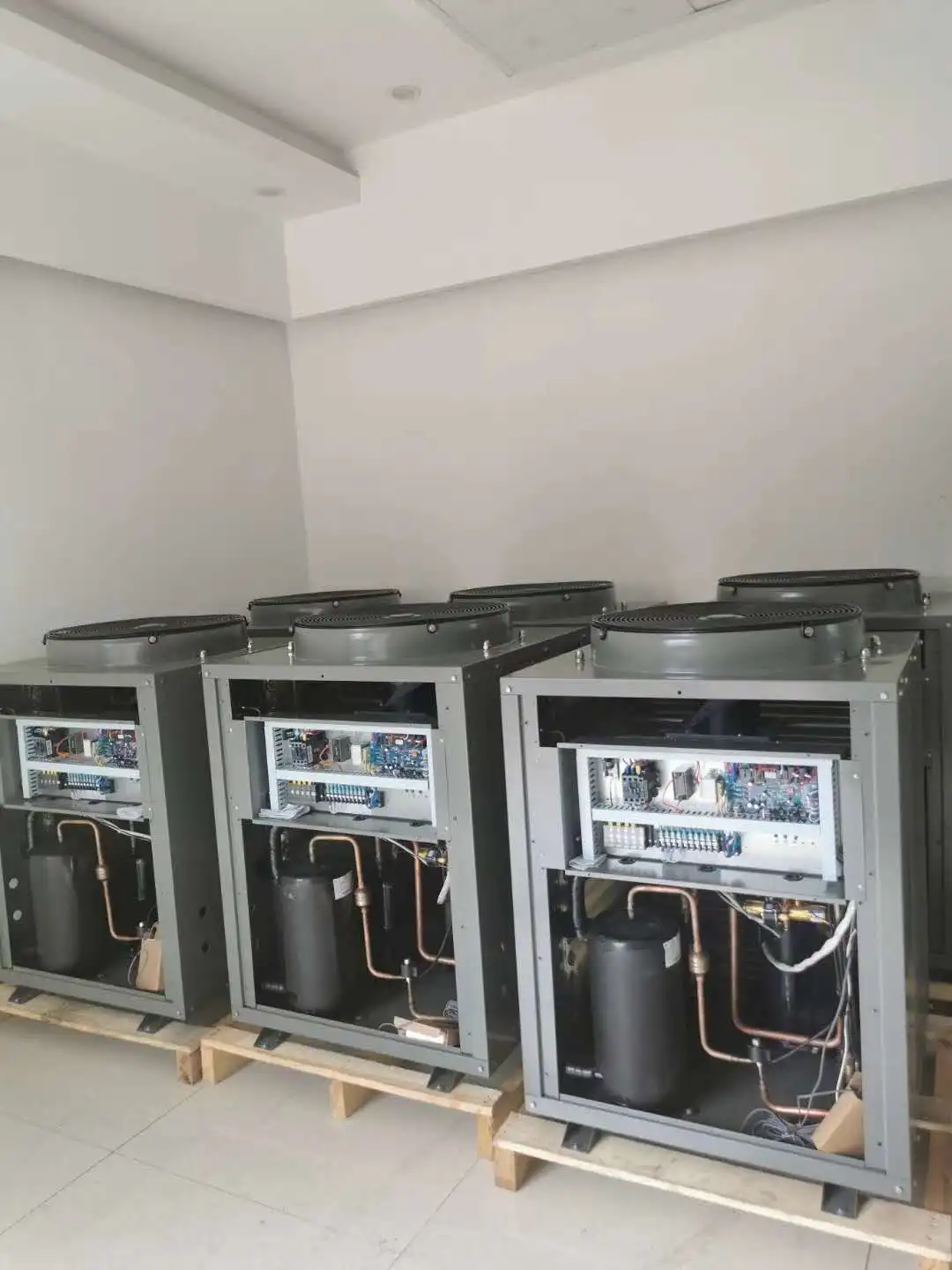

Successful Project

Looking for your inquiry

SALES AND SERVICE NETWORK

Related Products

Packing&Shipping

Wooden case packing fixation.

The stocking period is 15 days.
If you need customized packaging, please contact us.

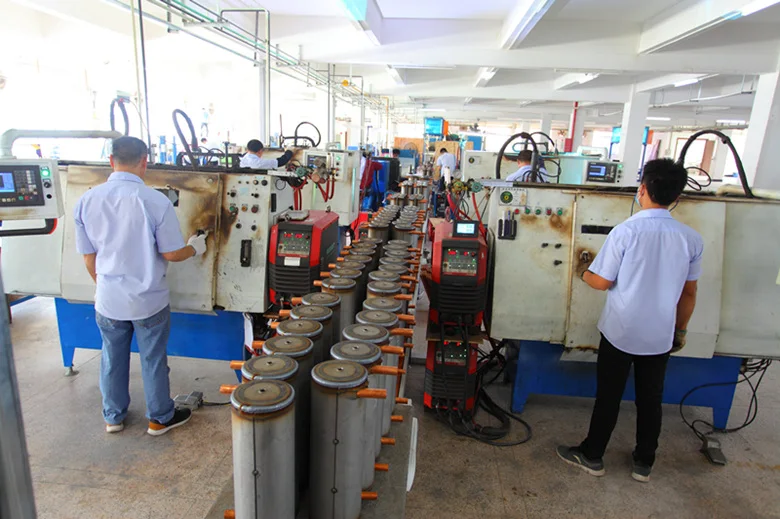

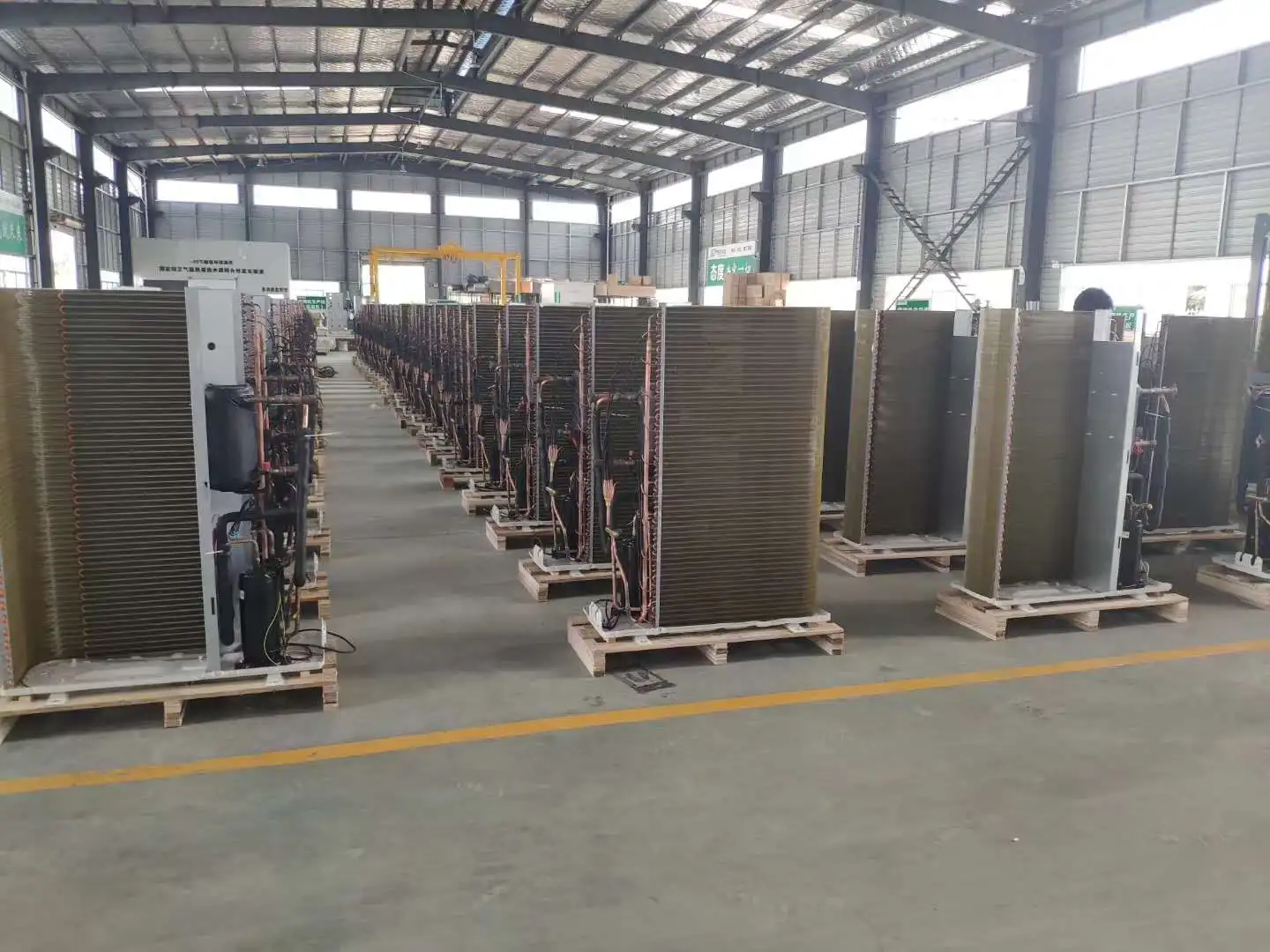

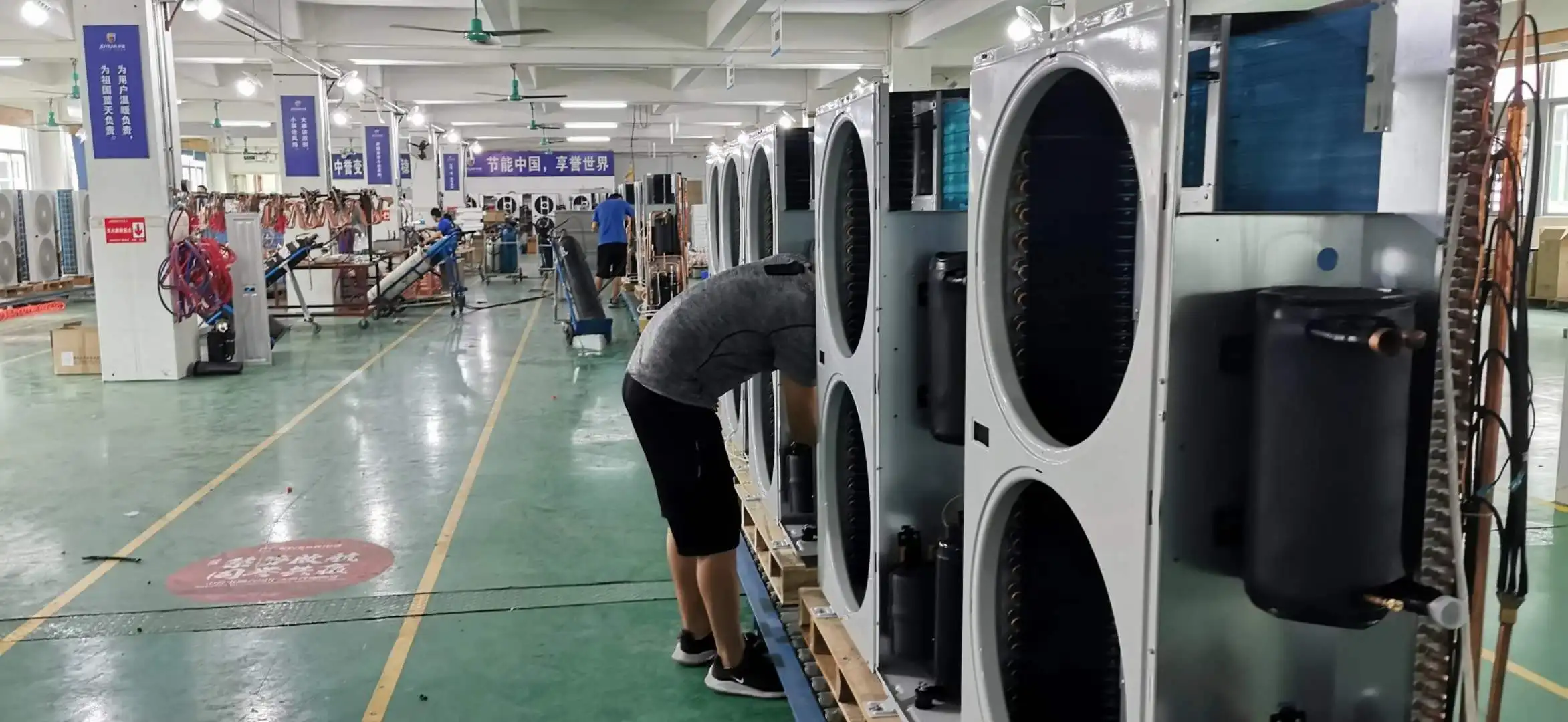

Company Introduction

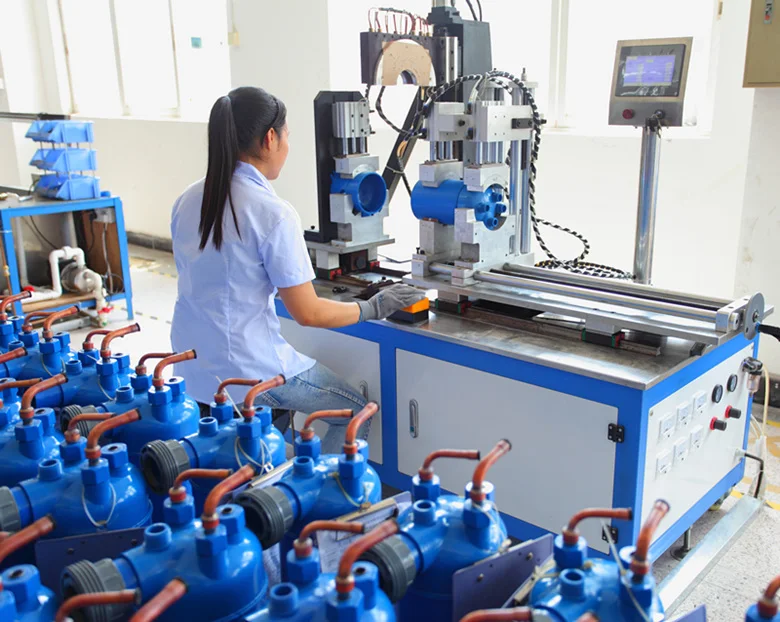

Guangzhou ET Energy-efficiency equipment Co.,Ltd starts in 2015,and is a professional manufacturer of titanium heat exchanger,coaxial heat exchanger,tube in shell heat exchanger,titanium shell water to water heat exchanger ,air heat exchanger etc.ET has excellent production base(cover 13000square meter,equipped with advanced production and inspection machines.ET owns an professional team of R&D,manufacture and sales to keep innovation,which has been dedicated for decades.ET has established a long-term and stable cooperation with the famed companies from domestic and oversea in HVAC,which promotes ET to gain strong experience and high-level in the field. "Satisfy you with high-efficient and energy-saving heat exchanger "Is our commitment to clients and the pursuit of forever.

Corporate honor

Quality Policy and Objectives

Quality policy:Satisfy clients' requirements,exceed customers expectation.
Business philosophy:Quality-oriented,service-available,credibility-first.

FAQ

About price:
The price is negotiable.It can be changed according to your quantity or package.Please let us know the quantity you require when
you make an inquiry.

About the sample:
The sample is free of charge, but the air freight is to be paid by you, otherwise you need to pay in advance.

About MOQ:
The moq is 100 pieces;We have some products in stock.The moq is 20 pieces.

About warranty:
we have confidence in our products and our packing is good, so normally you will receive your order in good condition.Any quality
problem will be dealt with immediately.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $110 / piece
  • 100–499 piece: US $105 / piece
  • 500+ piece: US $100 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this heat pump?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the heat pump be supplied for my local voltage?

The standard configuration is –. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
