Water Cooled Condenser, STEAM, –, Pure Titanium

The water cooled condenser listed here carries voltage –, material Pure Titanium, documented exactly as the manufacturer publishes it. Made by Et Heat Exchanger Co., Ltd. (8 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Water Cooled Condenser

• Voltage: —
• Material: Pure Titanium
• Refrigerant: R410a/ R407c/R22/R404a/R134a/R600a
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Heat Exchanger Type: Tube Heat Exchanger

Technical Specifications

Product Details

Product Description

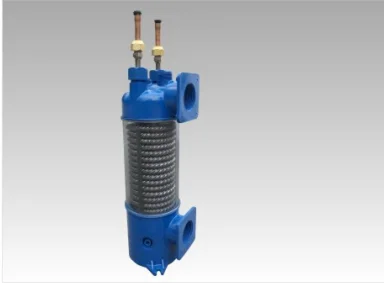

Titanium has the super strong corrosion proof ability.And the titanium heat exchanger use seamless pure titanium tube as heat conductor,can ensure the titanium .heat exchanger can be used for a long time ,without some charge in the service.Due to its good properties,the titanium heat exchanger widely used in swimming pool,marine central air conditioning unit,aquaculture,cool water irrigation,pharmacy,the food industry,electroplating industry and some heat recovery from the waste water or exhaust gas.

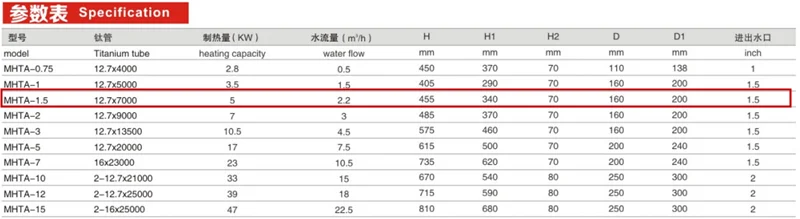

Model	MHTA-15
Titanium tube	2-16*25000
heating capcity	47KW
water flow	22.5m3/h
Max pressure	5.2MPa

Attention

1) Unspecified tolerances are performed         according to the tolerance standards         established by the process;

2) Before welding, titanium tubes are free       of impurities such as oily burr oxide            layer;

3) Max pressure in refrigerant                          side;5.0Mpa;

4) Titanium tube finished fluorine road            internal vacuum use rubber plug seal.

•


•


•

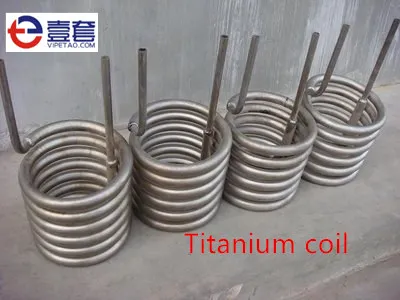

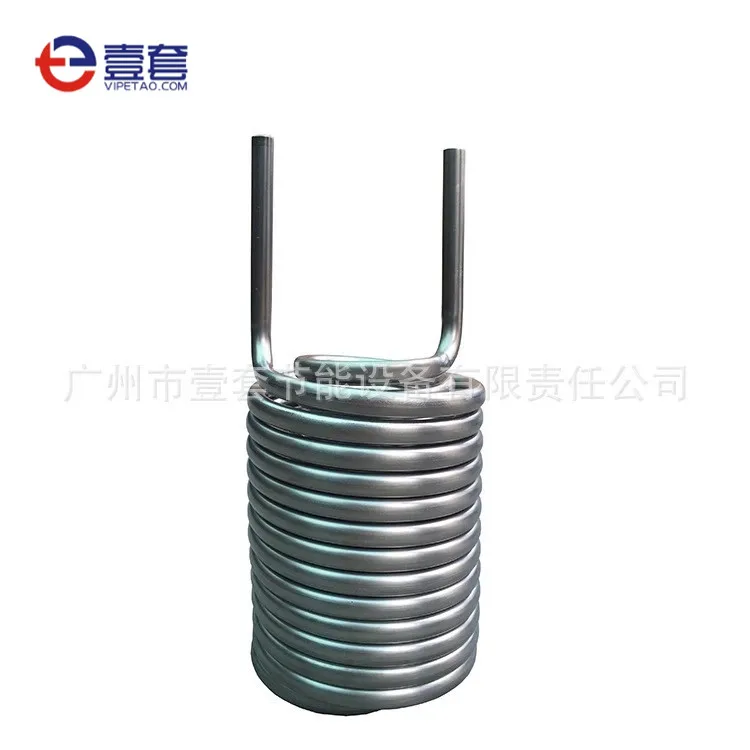

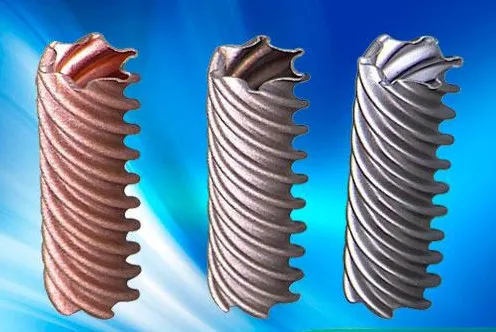

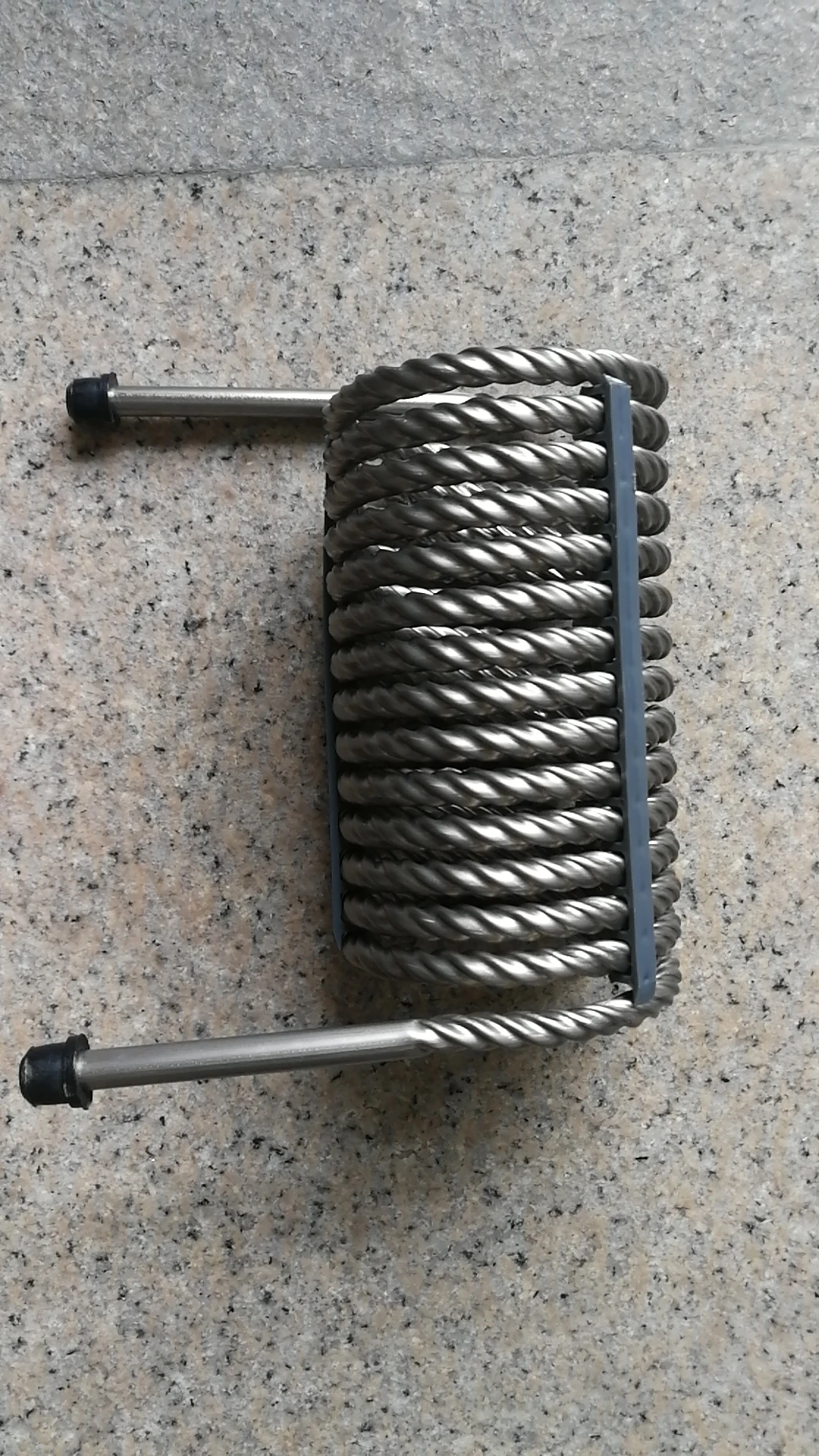

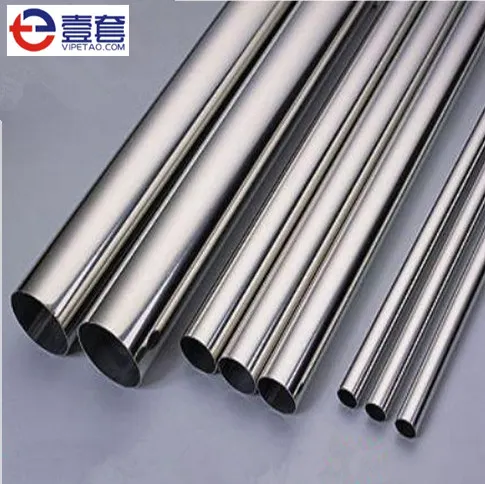

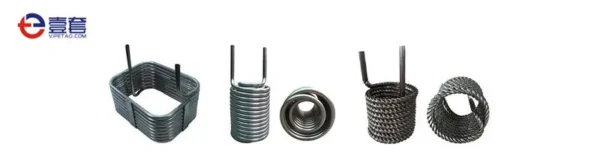

• The heat transfer tube:

Aeamless pure titanium tube .The grade is TA1,made according to standard GB/T3625-1995.There are 52 bar high pressure test and precise halogen leaking test in the production,make sure they are not leak.

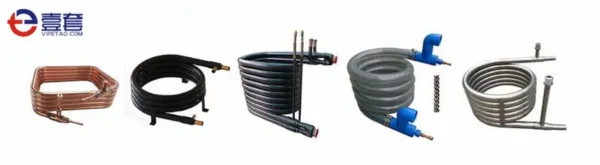

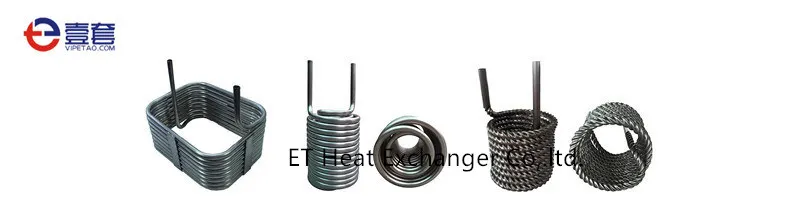

Detailed Images

Working condition:

	Refrigerant side(in titanium tube)			water side
Max.pressure	5.2MPa			0.5MPa(default) 0.6~2.1MPa(optional)
Temp.range	-50~150℃			0~50℃
Refrigerant type	R22/R407c/R134a/R404a/R410a/R600a			Swimming pool water/sea water etc.
Remarks	1.Please drain off water when the machine stopped during the cold season to avoid                                                                                       freezing.
		2.Please purge air from water system,and ensure the work pressure not exceed the max                                                                               pressue.
		3.Keep the water clean,suggest to install filter and clean the system regularly.

Size Information

Size Chart of This Design

                                                                                                     view more

Related Products

Packing&Shipping

Wooden case packing fixation.

The stocking period is 15 days.
If you need customized packaging, please contact us.

After Sales Service

Afer sales service

After-sales service is one year.

Provide video installation .services

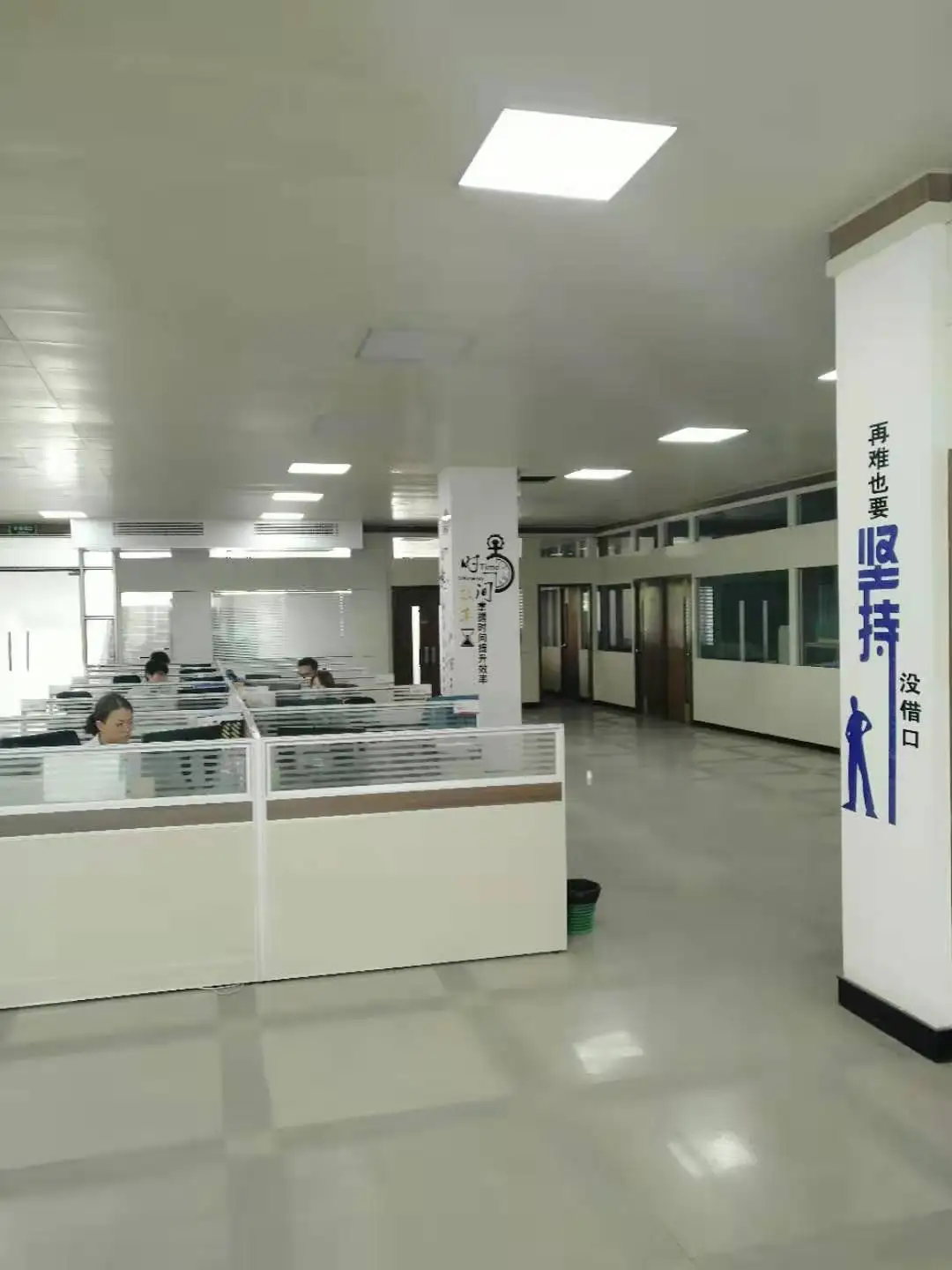

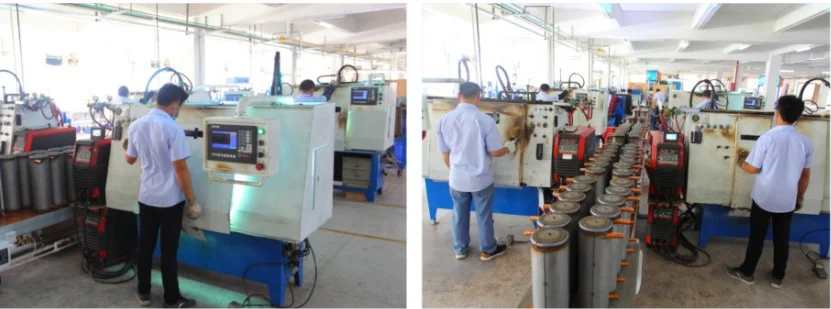

Company Introduction

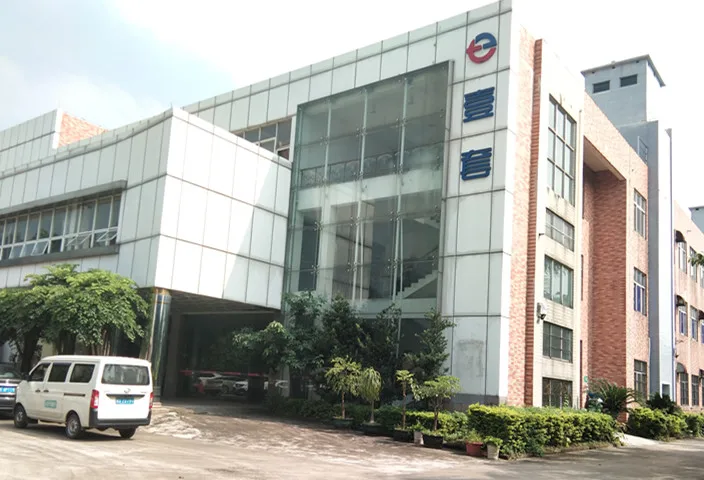

Guangzhou ET Energy-efficiency equipment Co.,Ltd starts in 2015,and is a professional manufacturer of titanium heat
exchanger,coaxial heat exchanger,tube in shell heat exchanger,titanium shell water to water heat exchanger ,air heat exchanger etc.ET has excellent production base(cover 13000square meter,equipped with advanced production and inspection machines.ET owns an professional team of R&D,manufacture and sales to keep innovation,which has been dedicated for decades.ET has established a long-term and stable cooperation with the famed companies from domestic and oversea in HVAC,which promotes ET to gain strong experience and high-level in the field. "Satisfy you with high-efficient and energy-saving heat exchanger "Is our commitment to clients and the pursuit of forever.

Quality Policy and Objectives

Quality policy:Satisfy clients' requirements,exceed customers expectation.
Business philosophy:Quality-oriented,service-available,credibility-first.

Corporate honor

Some cooperative partners

FAQ

About price:

The price is negotiable.It can be changed according to your quantity or package.Please let us know the quantity you require when you make an inquiry.

About the sample:

The sample is free of charge, but the air freight is to be paid by you, otherwise you need to pay in advance.

About MOQ:

The moq is 100 pieces;We have some products in stock.The moq is 20 pieces.

About warranty:

we have confidence in our products and our packing is good, so normally you will receive your order in good condition.Any quality problem will be dealt with immediately.

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–499 piece: US $120 / piece
  • 500–999 piece: US $115 / piece
  • 1000+ piece: US $110 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water cooled condenser?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the water cooled condenser be supplied for my local voltage?

The standard configuration is –. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Et Heat Exchanger Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Et Heat Exchanger Co., Ltd. range on HVACR Nexus.
