The heat recovery ventilation dehumidifier listed here carries voltage AC 220V/50Hz, material Galvanized sheet, documented exactly as the manufacturer publishes it. Made by Wenzhou Daqidi Technology Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Heat Recovery Ventilation Dehumidifier
- Model Number: AQCS-60
- Voltage: AC 220V/50Hz
- Dehumidification Capacity: 60L/Day
- Material: Galvanized sheet
- Warranty: 2 Years
- Place Of Origin: Zhejiang, China
Technical Specifications
| Type | Full – heat Exchange Fresh Air Dehumidifier |
|---|---|
| Application | Villa, Hotel, Apartment, Office Building, Hospital, Sports Venues, Mall, School, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Outdoor, Storage and Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Other |
| Voltage | AC 220V/50Hz |
| Feature | Easy Installation |
| Warranty | 2 Years |
| After-Sale Service | Online Technical Support |
| Design Style | Modern |
| Project Solution Capability | 3D model design, graphic design |
| Place Of Origin | Zhejiang, China |
| Brand Name | Decetomair |
| Model Number | AQCS-60 |
| Product Name | Energy Recovery Ventilaton |
| Function | Ventilaion/Dehumidification |
| Keyword | Total Heat Recovery Ventilation(THRV) |
| Installation | Ceiling Easy Installation |
| Material | Galvanized sheet |
| Certificate | CE/ROHS/IS09001/CCC |
| Control | Intelligent LCD controller |
| Motor | AC |
| Purification | >99% |
| Dehumidification Capacity | 60L/Day |
| Selling Units | Single item |
Product Details
Model | Dehumidification capacity | Power Supply (V/Hz) | Power (W) | Static Pressure (Pa) | Heat Exchange Rate (%) | Noise dB(A) | Fresh air volume (m³/h) | Applicable Area (m²) |
AQCS-60 | 60L/D(30ºC RH=80%) | 220/50 | 520 | 230 | 78 | 41 | 450 | 90-120 |
AQCS-80 | 80L/D(30ºC RH=80%) | 220/50 | 870 | 260 | 78 | 46 | 550 | 130-160 |

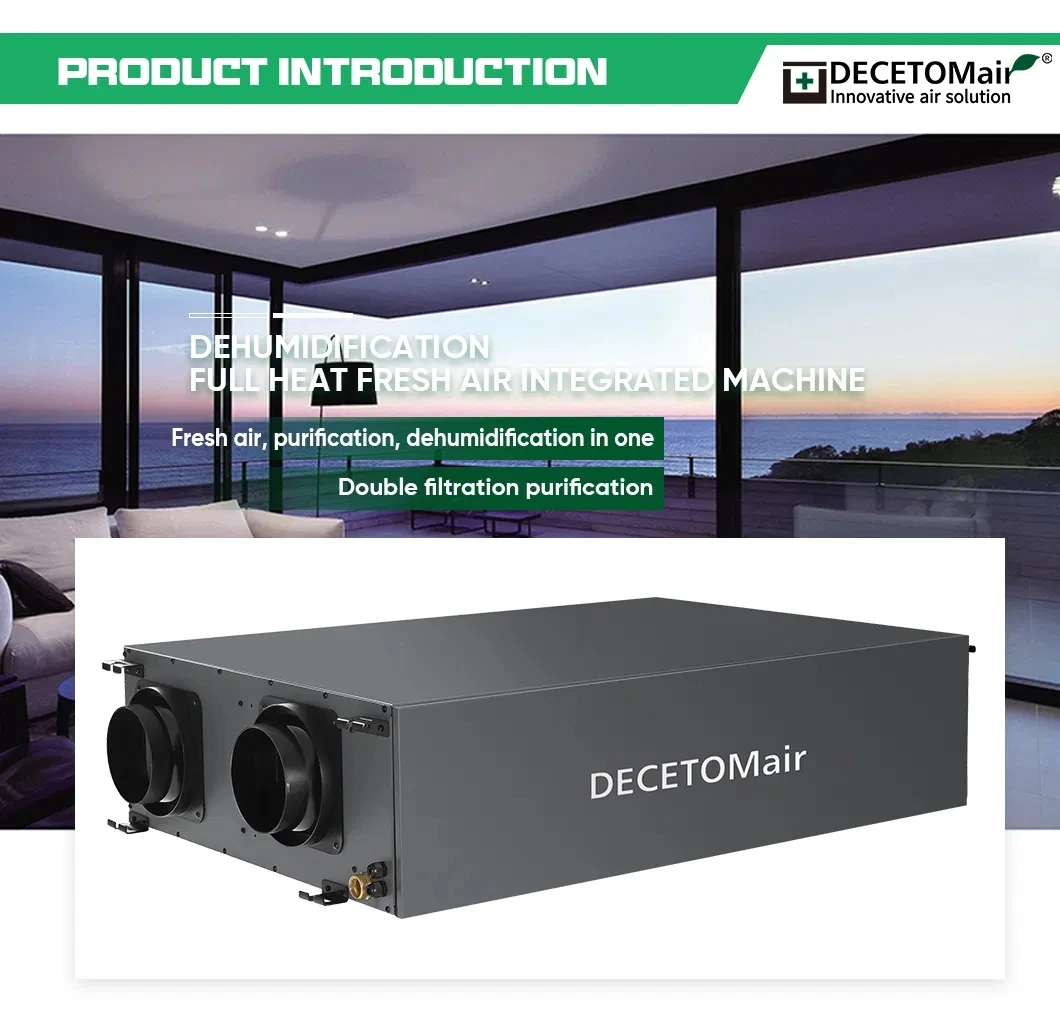

One top three functions
Central Dehumidifer
Heat Recovery Ventilation
Air Purifier
.

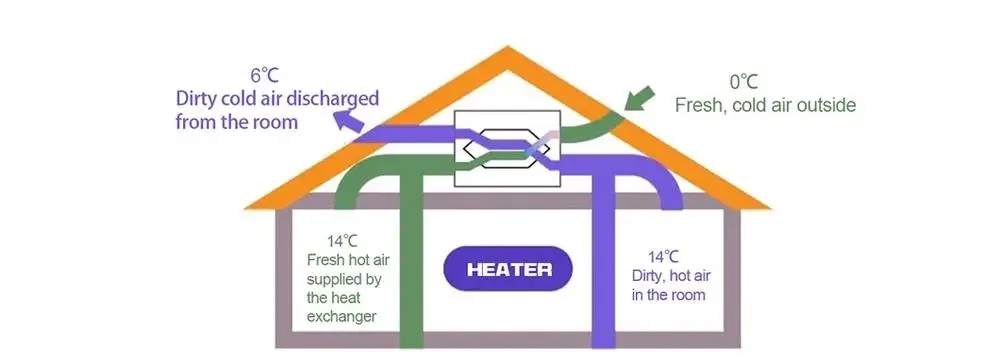

FINCTION IN WINTER
.
Heat exchange calculation formula: indoor air supply temperature =(indoor temperature – outdoor temperature) x heat exchange rate + outdoor temperature

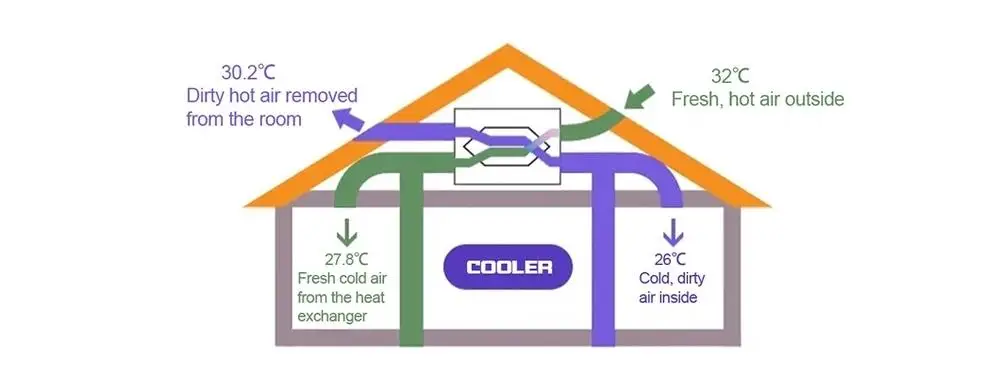

FINCTION IN SUMMER
Heat exchange calculation formula: indoor air supply temperature = outdoor temperature – (outdoor temperature -indoor temperature) x heat exchange rate

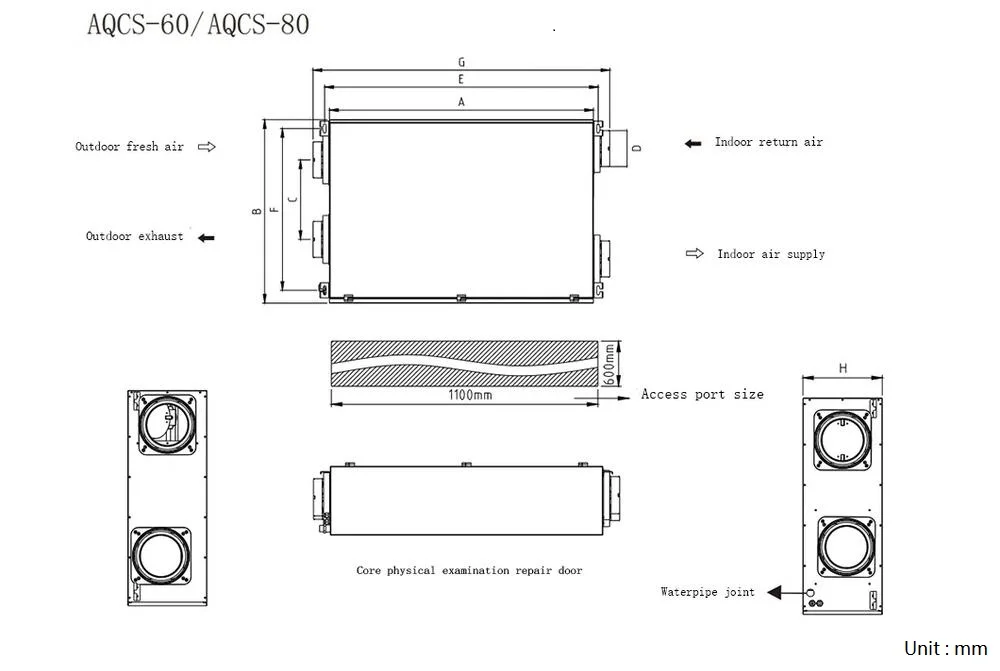

Model | A | B | C | D*4 | E | F | G | H |
AQCS-60 | 1050 | 730 | 316 | 150 | 1087 | 643 | 1181 | 263 |
AQCS-80 | 1052 | 731 | 317 | 150 | 1090 | 645 | 1183 | 265 |

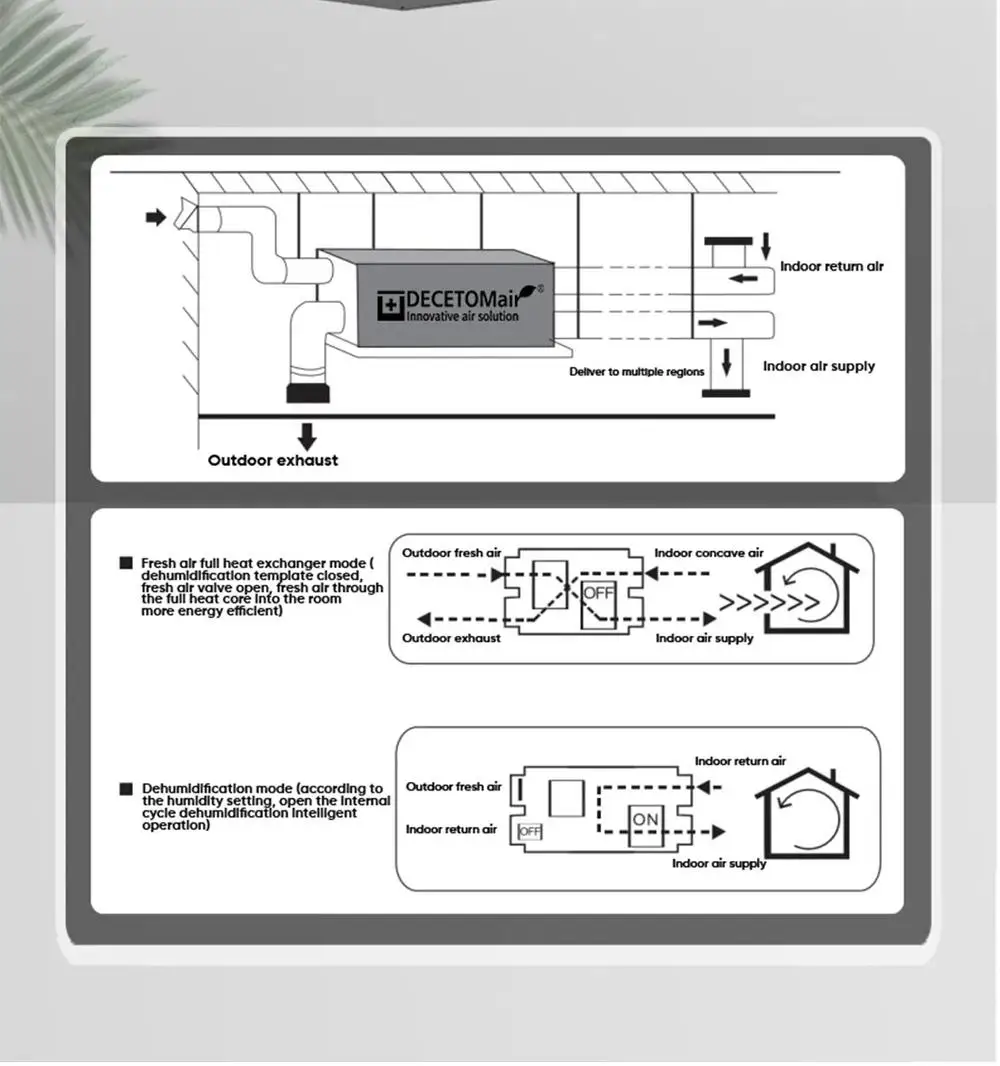

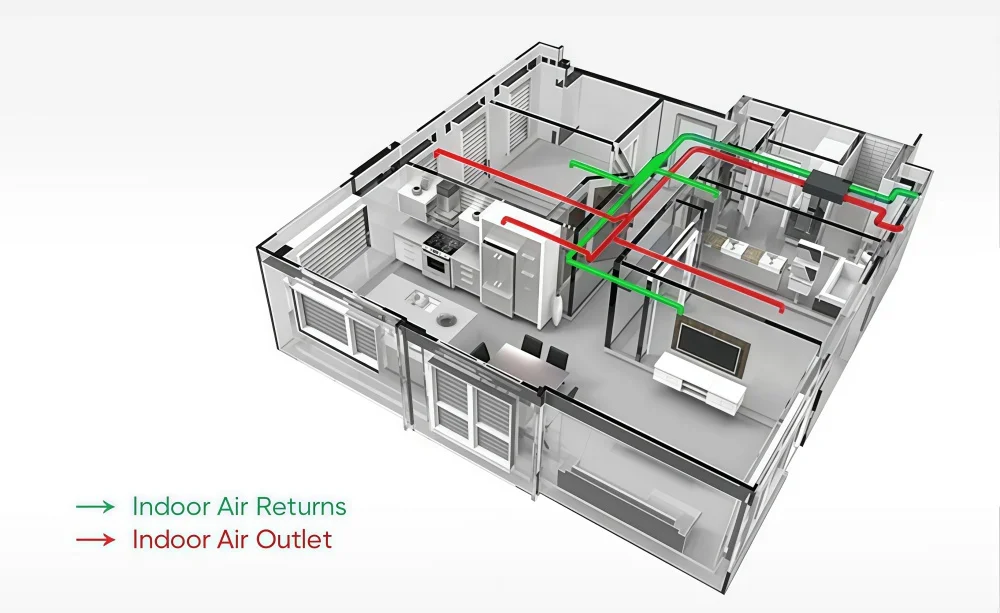

WHOLE HOUSE CYCLE
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.

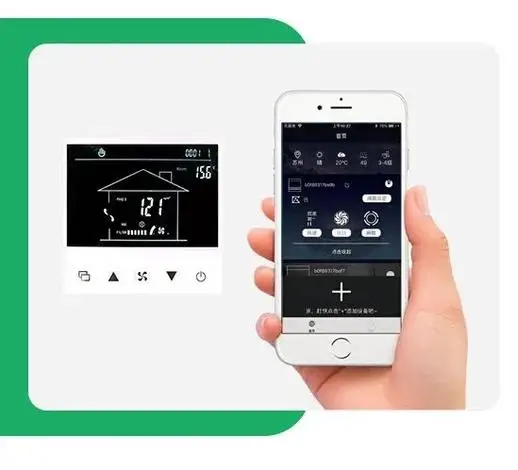

* PM2.5 Detection
* VOC detection
* Emnerafire annhumidity
detection intelligent
adjustment
* Three speed regulation
* Timing switch
* Filter reminder
* APP control

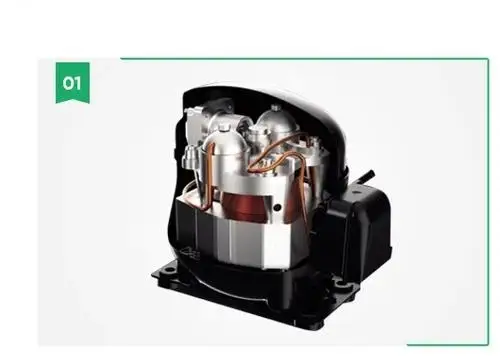

Choose professional brand compressors.Ensure the lifespan and long-lasting power of the compressors,The built-in silencing chamber plays a role in buffering airflow,And low working noise,
Unleash powerful performance

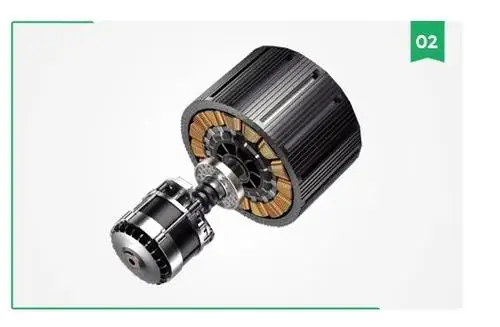

DC Variable
Frequency Motor
Newly upgraded DC variable frequency
motor,The surging power,Create a strong
load with low energy loss and high
power output,Smooth operation.
Silent without disturbing sleep

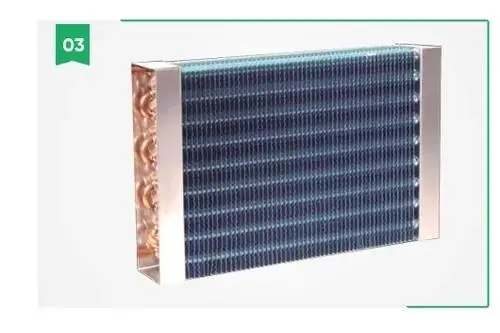

Membrane Condenser Dense thread structure effectively increase the contact area of cold catalyst super hydrophilic, durable.large déhumidification efficiency

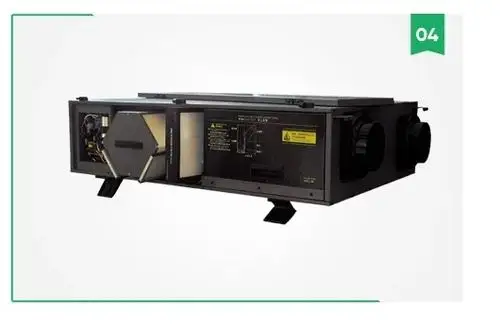

The modular design of
the whole machine is
easy to maintain
Modular design,Side flip cover
maintenance design,
Smooth switch.Convenient
maintenance.Maintenance has
never been so simple
PRODUCT APPLICATION
Wenzhou Daqidi Technology Co., Ltd is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. specializing in the research and development, production and sales of various types of home and commercial air system products, water purify products and new energy sources products.
The company has a production area of nearly 35,000 square meters, more than 500 employees, multiple production lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.
The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. After more than 10 years of cultivation, the company has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.
Q: What is your MOQ?
A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.
Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.
Q: Can you do the design for us?
A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.
A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.
Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.
Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.
Q: What is the quality assurance?
A: One year guarantee for the complete machine, three-year guarantee for motor and lifelong paid maintenance service. But warranty times will vary from product to product, depending on the product you choose.
Q: How will you arrange the shipment?
A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–4 unit: US $2035 / unit
- 5–19 unit: US $1583 / unit
- 20+ unit: US $1424 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat recovery ventilation dehumidifier?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this heat recovery ventilation dehumidifier carry?
It is supplied with CE/ROHS/IS09001/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the heat recovery ventilation dehumidifier be supplied for my local voltage?
The standard configuration is AC 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
