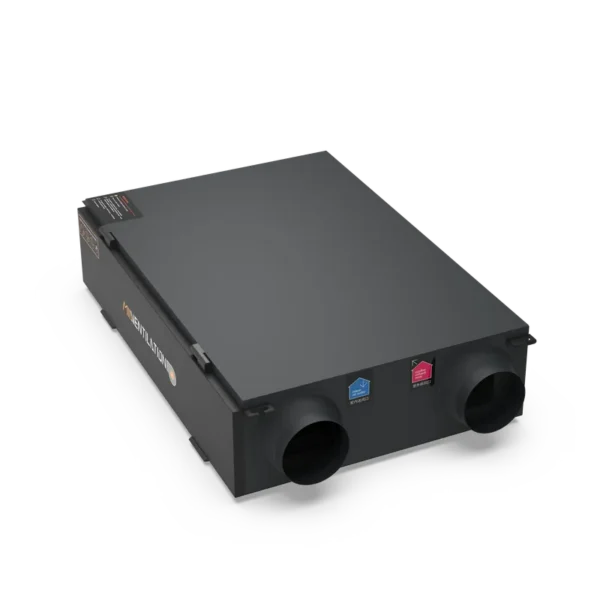

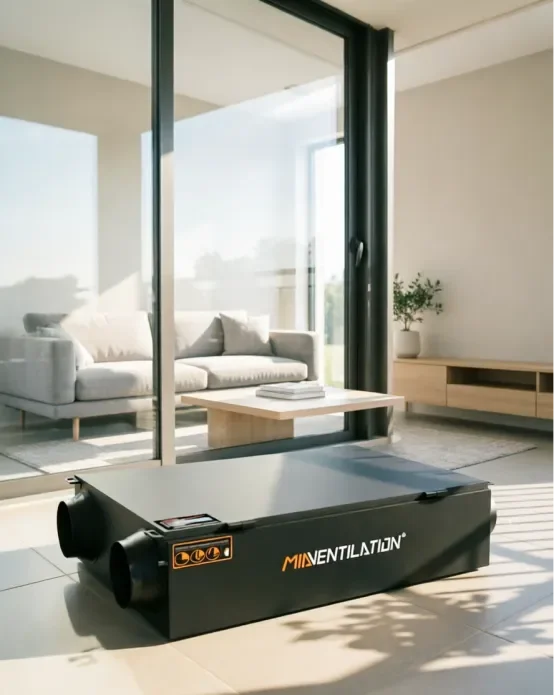

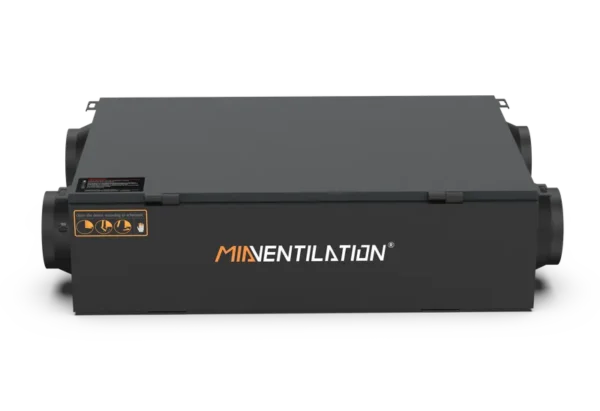

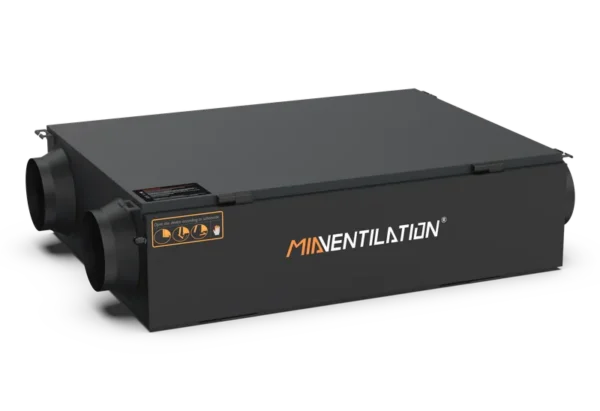

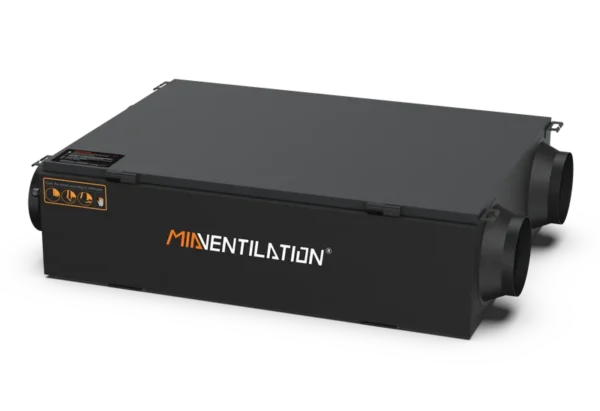

This heat recovery ventilator is published with the manufacturer’s full specification — voltage 110~240V, 98W. Made by Suzhou Mia Intelligent Technology Co., Ltd. (7 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Heat Recovery Ventilator
- Model Number: MIA-AHE15JDB/C
- Power: 98W
- Voltage: 110~240V
- Material: Galvanized Steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu,China
Technical Specifications
| Application | Villa, Hotel, Apartment, Office Building, Hospital, School, Mall |
|---|---|
| Material | Galvanized Steel |
| Installation | Ceiling Mounted |
| Shape | Rectangle |
| Feature | Easy Install |
| Design Style | Contemporary, Traditional, Modern, Minimalist, European, Tropical |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts, Return and Replacement, Factory training, Selection guide |
| Model Number | MIA-AHE15JDB/C |
| Place Of Origin | Jiangsu,China |
| Brand Name | MIA/ MIA Ventilation/ MIA Brand/ MIA Model |
| Voltage | 110~240V |
| Power | 98W |
| Volume | 150m³/h |
| Pressure | 285Pa |
| Efficiency | 86~92% |
| Noise | 30dB(A) |
| Dimension | 800*556*187mm |
| Vent Size | 120mm |
| Weight | 19.5kg |
| Selling Units | Single item |
Product Details
Product Details
Special Note:
The page only displays EXW price and distribution price. Please contact us to confirm the total payment (Transportation costs and other expenses) before you place the order!
Product Selling Points

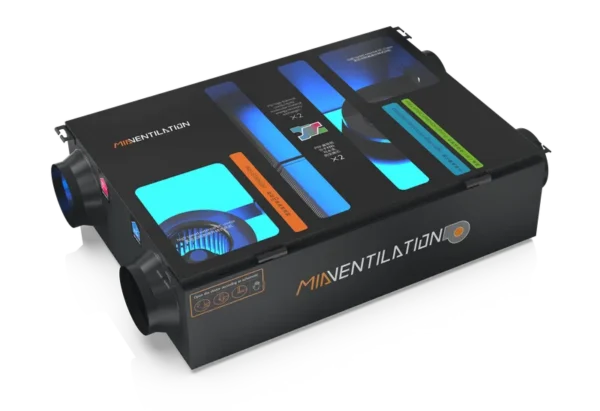

MIA Central ERV (220~240V high wind pressure series, 150~1500m³/h) Function: The outdoor air is pumped into the equipment for filtration, and then sent into the room after heat exchange. Meanwhile, the indoor air is pumped into the equipment for heat recovery and then discharged out of the room, so as to realize the purification and replacement of the whole room air while maintaining the indoor temperature and humidity. Features: Washable heat exchange core with high-performance energy exchange, highly to 92%, truly achieving energy saving and environmental protection. The PSY high thermal conductivity molecular material is washable and requires no consumables, effectively preventing the growth of bacteria due to mold. Configuration: Adopts high-speed external rotor motor with high wind pressure to meet the demand for powerful air supply and exhaust. Available in AC motor and DC motor, and the brushless DC model not only enables stepless speed regulation but also offers exceptional performance in terms of low power consumption and quiet operation. The filtration section offers optional configurations, including washable pre-filters, high-efficiency HEPA filters, and high-voltage electrostatic precipitator. Smart Control System: The ERV can be equipped with an optional MIA intelligent smart controller, which allows users to conveniently check indoor air quality and adjust ventilation; its optional supporting features cover temperature & humidity detection, PM2.5 and CO₂ monitoring, WiFi APP remote control, RS485 communication and intelligent ventilation management. Applications: DC brushless fan/AC high-speed external rotor fan, providing high wind pressure suitable for long-distance and multi-branch duct ventilation and exhaust.
Residential High-pressure Ceiling type Energy Recovery Ventilator 150m3/h-500m3/h
Model and cooresponding configuration instructions
MIA-AHE· NB:Ceiling Energy recovery ventilator equipped with activated carbon and AC outer rotor fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan
MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan
MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan
MIA-AHE· JDNB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan
MIA-AHE· JDNB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan
MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan
MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan
MIA-AHE· JDNB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan
MIA-AHE· JDNB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan
Technical Parameters
Filter Section: 1 Piece Early Effect Activated Carbon | ||||||||||||||
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor | |||||||
MIA-AHE15NB | 220V | 122W | 150m³/h | 290Pa | 86%~92% | 30dB(A) | AC | |||||||
MIA-AHE15NB/C | 220V | 92W | 150m³/h | 290Pa | 86%~92% | 30dB(A) | EC | |||||||
MIA-AHE25NB | 220V | 178W | 250m³/h | 370Pa | 86%~89% | 32dB(A) | AC | |||||||
MIA-AHE25NB/C | 220V | 166W | 250m³/h | 370Pa | 86%~89% | 32dB(A) | EC | |||||||
MIA-AHE35NB | 220V | 246W | 350m³/h | 392Pa | 85%~88% | 35dB(A) | AC | |||||||
MIA-AHE35NB/C | 220V | 233W | 350m³/h | 392Pa | 85%~88% | 35dB(A) | EC | |||||||
MIA-AHE50NB | 220V | 453W | 500m³/h | 425Pa | 84%~87% | 37dB(A) | AC | |||||||
MIA-AHE50NB/C | 220V | 288W | 500m³/h | 425Pa | 84%~87% | 37dB(A) | EC | |||||||
Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece HEPA 13 | ||||||||||||||
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor | |||||||
MIA-AHE15GLB | 220V | 130W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | AC | |||||||
MIA-AHE15GLB/C | 220V | 98W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | EC | |||||||
MIA-AHE25GLB | 220V | 182W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | AC | |||||||
MIA-AHE25GLB/C | 220V | 176W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | EC | |||||||
MIA-AHE35GLB | 220V | 265W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | AC | |||||||
MIA-AHE35GLB/C | 220V | 241W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | EC | |||||||
MIA-AHE50GLB | 220V | 462W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | AC | |||||||
MIA-AHE50GLB/C | 220V | 306W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | EC | |||||||
Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece High-voltage Electrostatic Dust + 1 Piece HEPA 13 | ||||||||||||||
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor | |||||||
MIA-AHE15JDB | 220V | 130W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | AC | |||||||
MIA-AHE15JDB/C | 220V | 98W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | EC | |||||||
MIA-AHE25JDB | 220V | 182W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | AC | |||||||
MIA-AHE25JDB/C | 220V | 176W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | EC | |||||||
MIA-AHE35JDB | 220V | 265W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | AC | |||||||
MIA-AHE35JDB/C | 220V | 241W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | EC | |||||||
MIA-AHE50JDB | 220V | 462W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | AC | |||||||
MIA-AHE50JDB/C | 220V | 306W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | EC | |||||||
Energy Recovery Exchange Principle
Air Ventilation System Controller
Company Profile
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat recovery ventilator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the heat recovery ventilator be supplied for my local voltage?
The standard configuration is 110~240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Mia Intelligent Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Mia Intelligent Technology Co., Ltd. range on HVACR Nexus.
