The heating capacity hvac unit listed here carries 17000m3/h, refrigerant R410A, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Heating Capacity Hvac Unit
- Fan Input Power (Kw): 7.5kw
- Cooling Capacity: 84Kw
- Heating Capacity: 96.4Kw
- Airflow: 17000m3/h
- Refrigerant: R410A
- Warranty: 1 Year
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Fan Motors Type | AC |
| Application | Hospital, Hotel, Home, School, Plant, Warehouse, Office, Apartment, Mall |
| Key Selling Points | Low Maintenance Cost, Eco-Friendly, High-Accuracy, Competitive Price, Easy to Operate, High Safety Level, High Productivity, Long Service Life, Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Beijing, China |
| Weight (Kg) | 100 |
| Brand Name | Holtop |
| Dimension(L*W*H) | 3390*2240*1340mm |
| Airflow | 17000m3/h |
| Cooling Capacity | 84Kw |
| Heating Capacity | 96.4Kw |
| E.S.P | 350 Pa |
| Fan Style | Centrifugal Fan |
| Fan Input Power (Kw) | 7.5kw |
| Compressor Type | Hermetic Scroll Compressor |
| Refrigerant | R410A |
| Dimension (Mm) | 3390*2240*1340mm |
| Selling Units | Single item |
| Single Package Size | 400X250X164 cm |
| Single Gross Weight | 1200.000 kg |

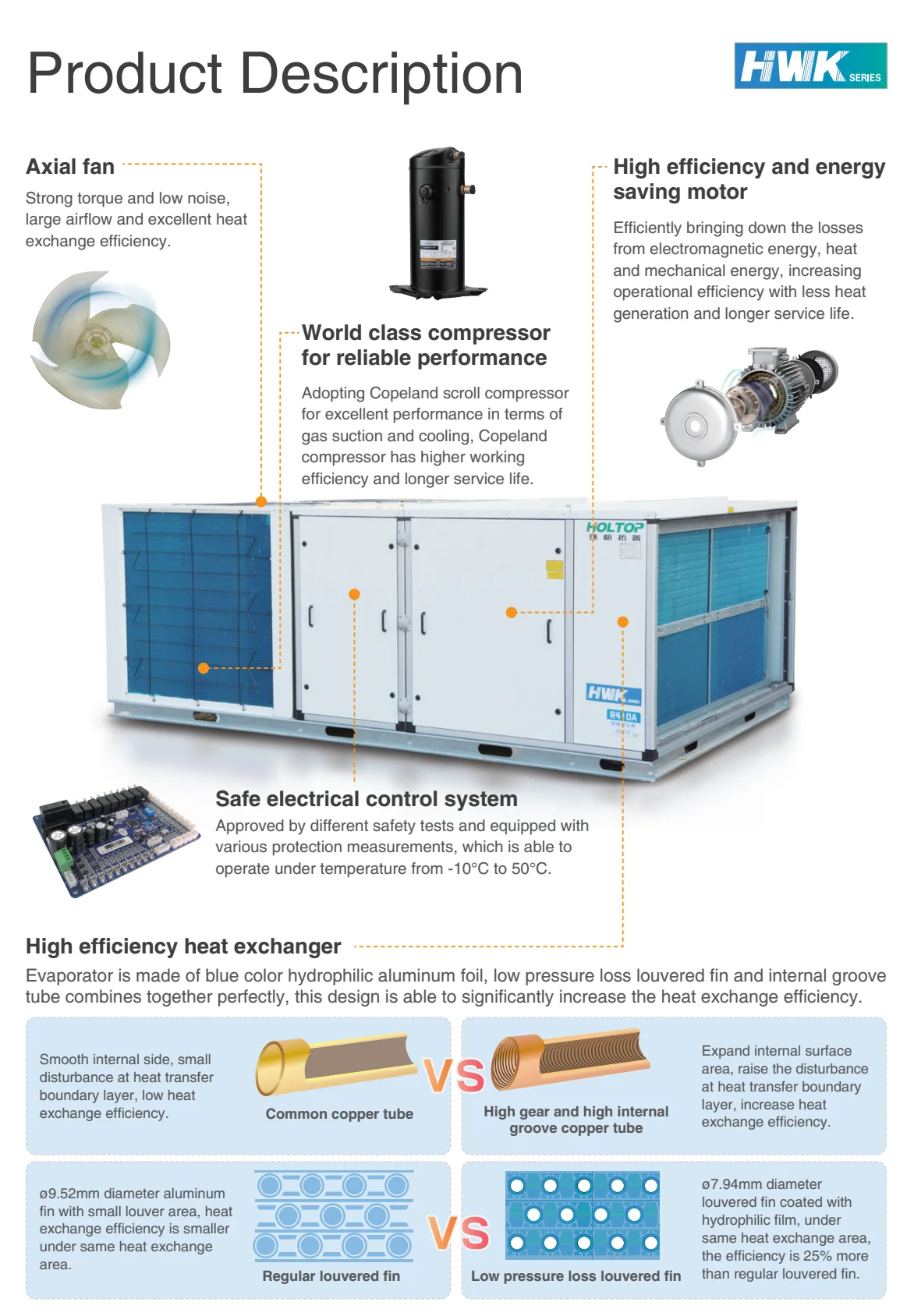

Product Details

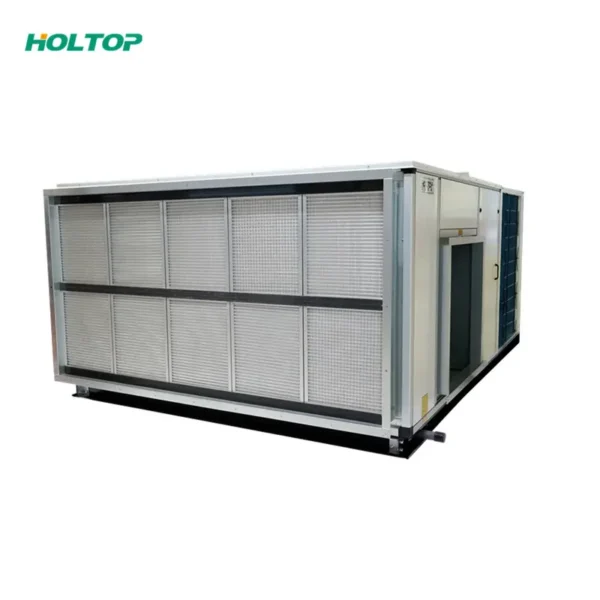

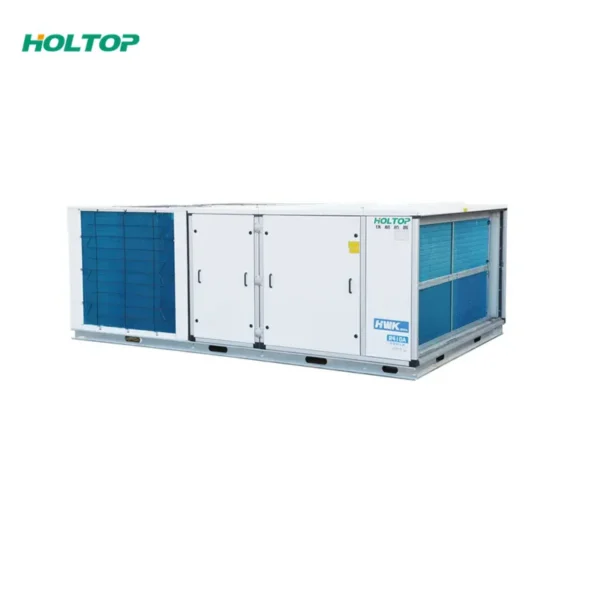

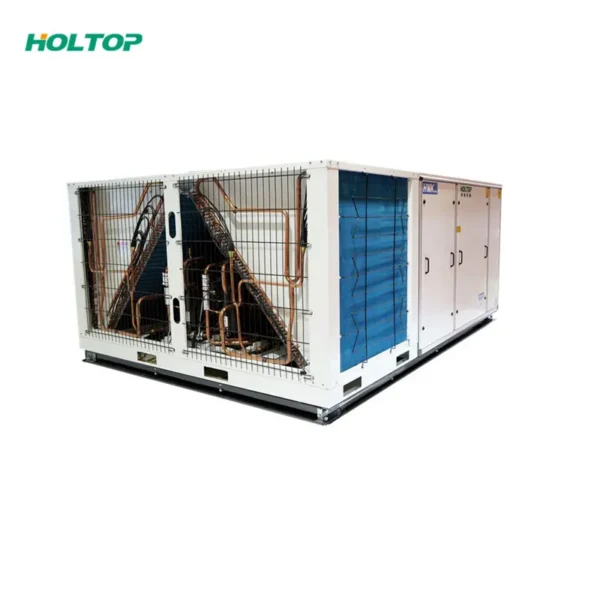

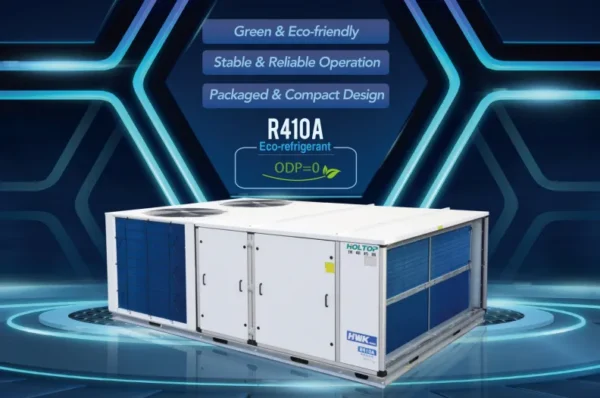

rooftop hvac units
Product Features:
1. Simplify System, Lower Investment:
Holtop rooftop packaged air conditioner ask for neither chilled nor cooling water system, which can save the cost of circulation pump, cooling tower, and other relevant equipment to this system, thus cutting down the total investment and maintenance cost on HVAC system to a great extent.
2. Compact Design, Easy and Flexible Installation, Low Footprint

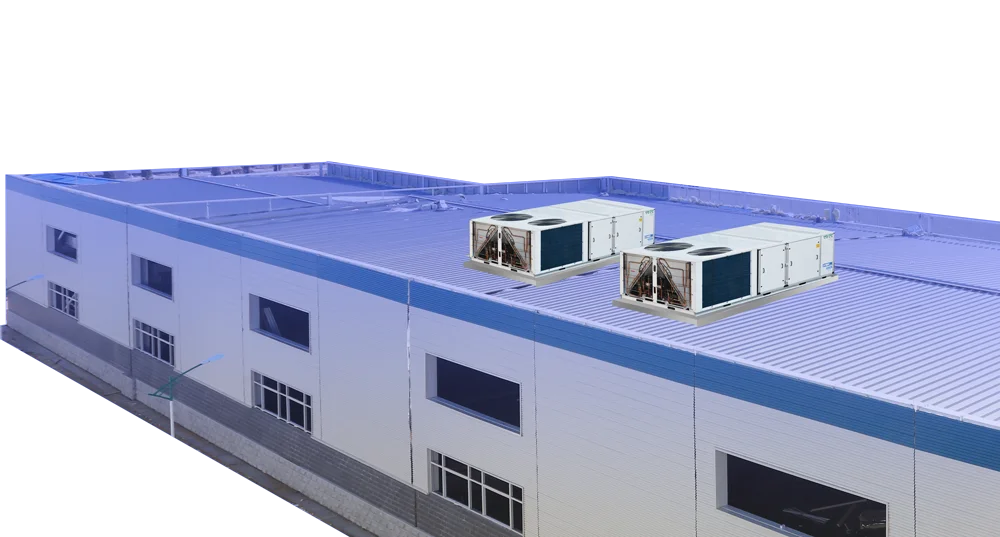

User's requirement on installation is fully considered. The unit is adopted compact design concept that integrating with indoor unit and outdoor condenser units so that there is no additional refrigerant pipe connection and welding jobs at site, and It is safe and easy for delivery and installation. Holtop rooftop packaged air conditioner could be placed outdoor on the ground or the roof deck, no required machine room or indoor space for housing the package unit. Only a few works for power cabling, control wiring, ducting are needed before system operation.
3. Corrosion Resistantace, Excellent Weather Conditions Acclimatization
The unit structural components are powder coated for anti-corrosion. High-strength thermal-insulated framework, double-skin PU sandwich panel, and weather-proof structure design particularly for outdoor installation, that are all ensuring its excellent adaptation to various of climate conditions in different areas.

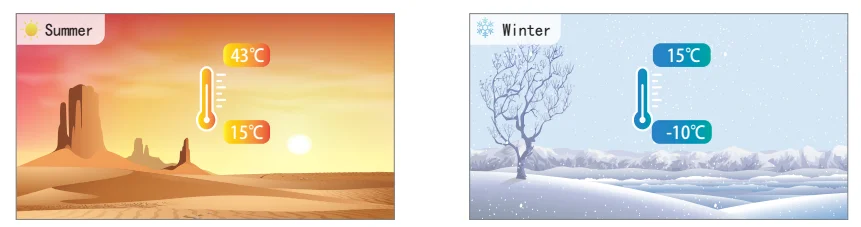

4. Wide Temperature Range Operation
Cooling mode is able to work with environment temperature is high up to 43°C, and also available when it is only 15°C, to satisfy the special cooling demand in some certain applications. Heating is available even the outdoor temperature is as low as -10°C.
5. Customization For Project

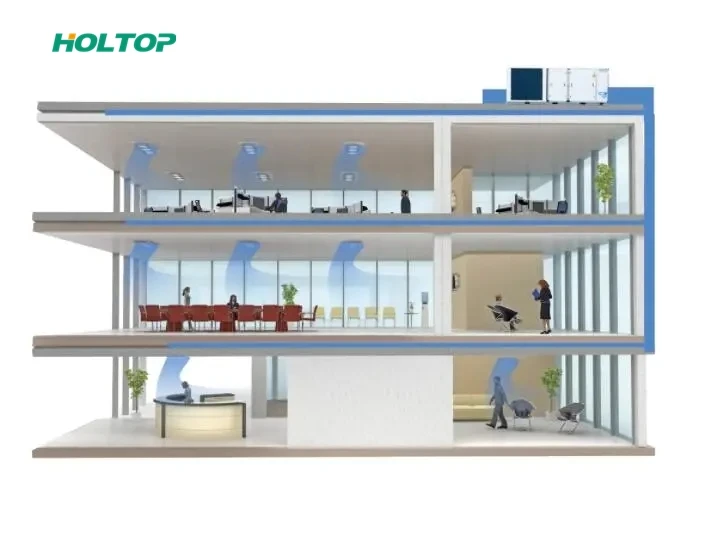

Holtop rooftop packaged air conditioner specifications and functional sections could be designed and manufactured according to specific project. For example, high external pressure is available for long-distance ducting ventilation to guarantee sufficient air to each corner room; optional sections could be equipped to satisfy the client’s requirement and create the ideal indoor climate condition.
Specifications:
| Model | HWK-20MA1 | HWK-24MA1 | HWK-30MA1 | HWK-36MA1 | HWK-40MA1 | HWK-48MA1 | HWK-60MA1 | HWK-72MA1 |
| Nominal Cooling Capacity (kw) | 51 | 60 | 70.8 | 84 | 102 | 120 | 141.6 | 168 |
| Nominal Heating Capacity (kw) | 61.4 | 67.2 | 76.6 | 96.4 | 122.8 | 134.4 | 153.2 | 192.8 |
| Power Supply | 380V/3N~/50Hz | 380V/3N~/50Hz | 380V/3N~/50Hz | 380V/3N~/50Hz | 380V/3N~/50Hz | 380V/3N~/50Hz | 380V/3N~/50Hz | 380V/3N~/50Hz |
| Dimension (mm) | 3156*2240*1340 | 3156*2240*1340 | 3390*2240*1340 | 3390*2240*1340 | 4980*4100*1340 | 4980*4100*1340 | 4980*4340*1340 | 4980*4340*1340 |
| Airflow | 11000 | 13000 | 16000 | 17000 | 22000 | 26000 | 32000 | 34000 |
| ESP (Pa) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Fan Type | Centrifugal Fan | Centrifugal Fan | Centrifugal Fan | Centrifugal Fan | Centrifugal Fan | Centrifugal Fan | Centrifugal Fan | Centrifugal Fan |
| Fan Input Power (kw) | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 15 |
| Compressor Type | Hermetic Scroll Compressor | Hermetic Scroll Compressor | Hermetic Scroll Compressor | Hermetic Scroll Compressor | Hermetic Scroll Compressor | Hermetic Scroll Compressor | Hermetic Scroll Compressor | Hermetic Scroll Compressor |
| Compressor Qty | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Input power Cooling (kw) | 17.8 | 20.8 | 24.5 | 29.1 | 35.6 | 41.6 | 49 | 58.2 |
| Input power Heating (kw) | 18.4 | 20.7 | 23.8 | 27.1 | 36.8 | 41.4 | 47.6 | 54.2 |
| Weight (kg) | 710 | 780 | 1030 | 1060 | 1420 | 1560 | 2060 | 2120 |
| Refrigerant Type | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| Refrigerant Charge Volume (kg) | 7.0kg*2 | 7.0kg*2 | 8.0kg*2 | 8.0kg*2 | 7.0Kg*4 | 7.0Kg*4 | 8.0Kg*4 | 8.0Kg*4 |
Compact Design rooftop 96.4kw heating capacity hvac units package ac price rooftop air conditioner sale
Product Detail
| Airflow | 17000m3/h |
| Cooling capacity | 84Kw |
| Heating capacity | 96.4Kw |
| E.S.P | 350 Pa |
| Fan style | Centrifugal Fan |
| Fan Input Power (kw) | 7.5kw |
| Compressor type | Hermetic Scroll Compressor |
| Refrigerant | R410A |
| Dimension (mm) | 3390*2240*1340mm |
| Type | Rooftop AC Air Conditioning Package Unit |
| Product Keywords | rooftop hvac units,package ac price,rooftop air conditioner sale |
Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products incluses energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop also offer turnkey hvac solutions for different industry.
Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with so many world famous brands, offering OEM /ODM service.
Holtop certificate
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, CB, RCM, RoHs, FCC, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
Holtop air handling units are widely used in commercial and industrial industry.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $16000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heating capacity hvac unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
