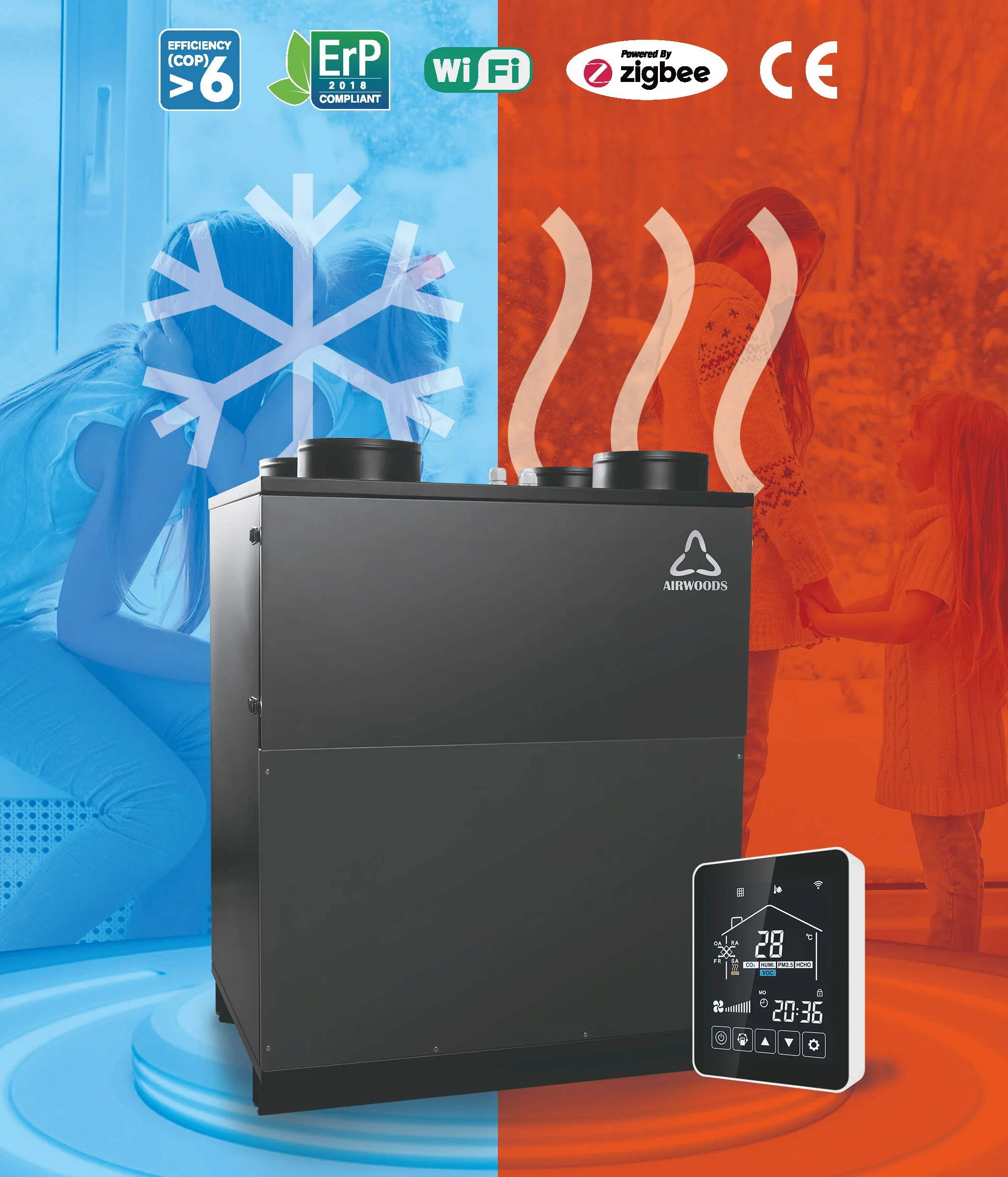

The whole house dehumidifier listed here carries voltage 220-240V, cooling capacity 6946, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Whole House Dehumidifier
- Model Number: AV-HTPF60
- Voltage: 220-240V
- Cooling Capacity: 6946
- Max Cooling Capacity: 6946
- Max Heating Capacity: 6921
- Airflow(L/M/H): 350/620/950 m3/h
Technical Specifications
| Application | Bedroom, Villa, Hotel, Apartment, Office Building, Hospital, School, Bathroom |
|---|---|
| Product Dimension | 740*1050*1030 |
| Material | Stainless Steel |
| Control Signal | ON/OFF |
| Installation | Floor Mounted |
| Shape | Square |
| Feature | Energy Saving |
| Design Style | Modern |
| Warranty | 1 Year |
| After-Sale Service | Free Spare Parts, Online Technical Support |
| Project Solution Capability | total solution for projects |
| Cooling Capacity | 6946 |
| Heating Element | 0 |
| Model Number | AV-HTPF60 |
| Place Of Origin | Guangdong, China |
| Brand Name | AIRWOODS |
| Product Name | Heat Pump Ventilation System |
| Voltage | 220-240V |
| Certification | CE |
| Airflow(L/M/H) | 350/620/950 m3/h |
| Noise | 40/44.6 |
| Regeneration Efficiency | ≤ 92% |
| Refrigerant | R32 |
| Max Cooling Capacity | 6946 |
| Max Heating Capacity | 6921 |
| Function | Ventilaion/Cooling /Heating/Dehumidify/Auto |
| Selling Units | Single item |
| Single Package Size | 119X84X129 cm |
| Single Gross Weight | 240.000 kg |
Product Details
Product Description
PURIFICATION
Outdoor fresh air passes through the primary filter and F8 filter at OA side, to arrest the dust/ PM2.5/ other pollutants.
VENTILATION AND HEAT RECOVERY
Introduce outdoor fresh air into the room & extract the stale air out; It recovers the heating in winter and recover cooling in summer.
PRE-HEATING/ PRE-COOLING
After the first stage heat recovery, the air passes through the condensor for further heating/cooling.
DEHUMIDIFICATION
The two airstreams run through the heat exchanger and condensor, it can decrease the moisture of fresh air.
1.Double energy recovery, COP over 6.
2Fresh air preconditioning, save your electricity bill on heating system and AC system greatly.
3.Work as an independent air conditioner in suitable seasons and places.
4.Low noise level of 37/42 dB(A).
5.Equipped with EC fans & DC inver ter compressor to minimize energy consumption.
6.Wide working ambient conditions from -15˚C~ 50˚C.
7.Indoor air quality monitoring like CO2, humidity, TVOC and PM2.5.
Advantages Compared with Standard ERV | ||||||
SUMMER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 35˚C | 59.10% | |||
2 | Inside Temperature RA | 27˚C | 49.80% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 29.24˚C | 55.48% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 20.95˚C | 79.18% | |||
WINTER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 5˚C | 71.90% | |||
2 | Inside Temperature RA | 25˚C | 50.70% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 20.30˚C | 53.88% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 37.88˚C | 17.76% | |||

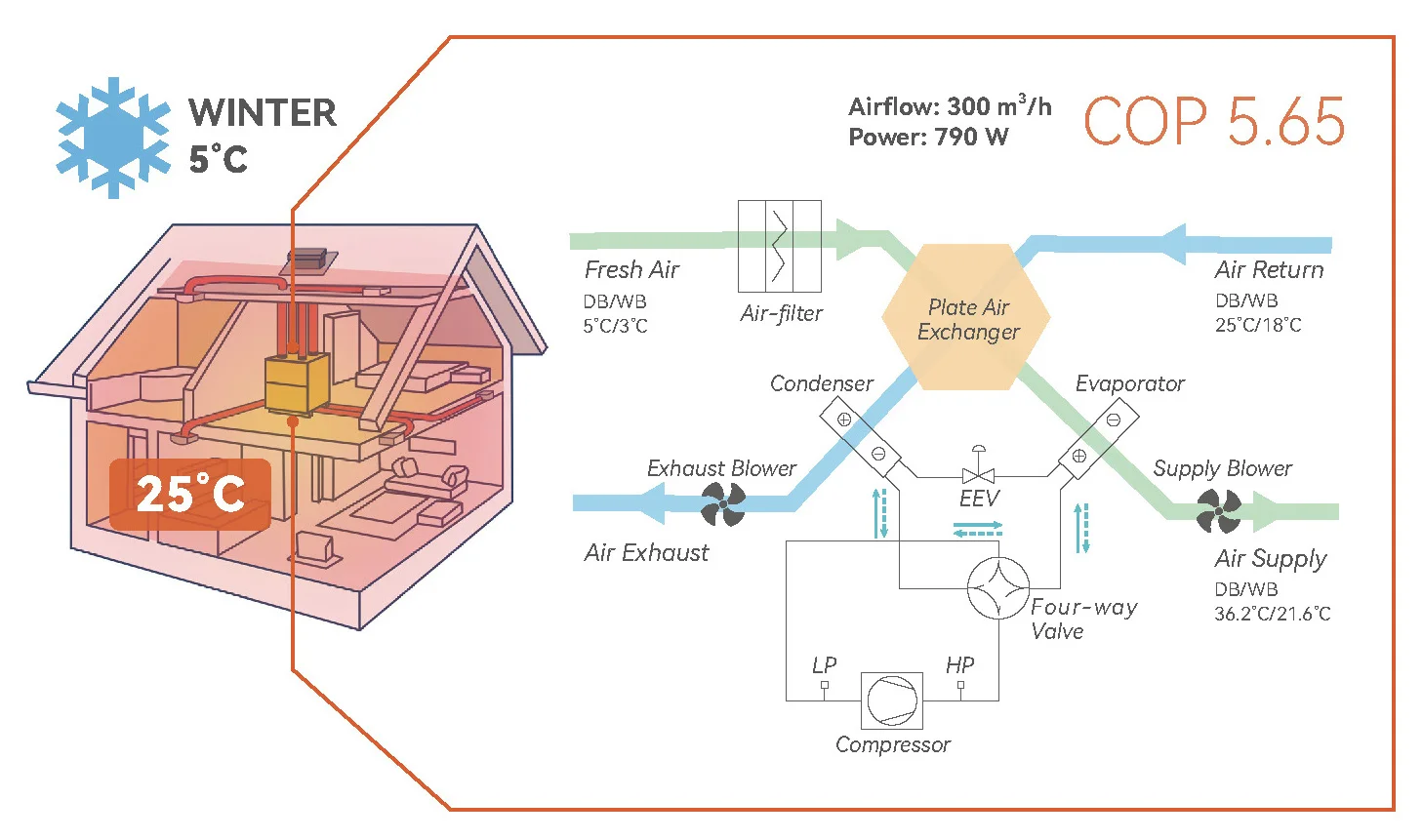

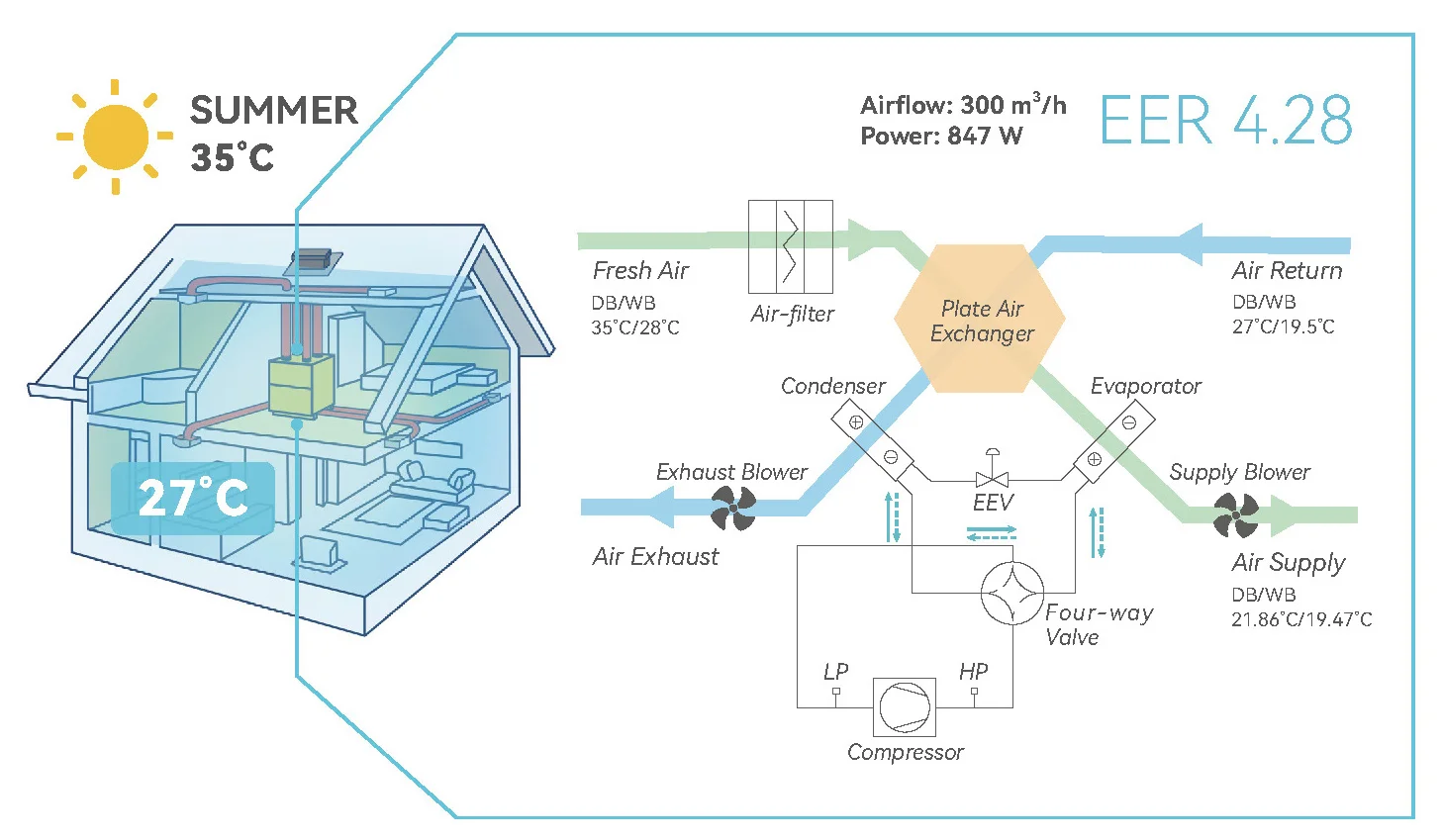

Working Principle

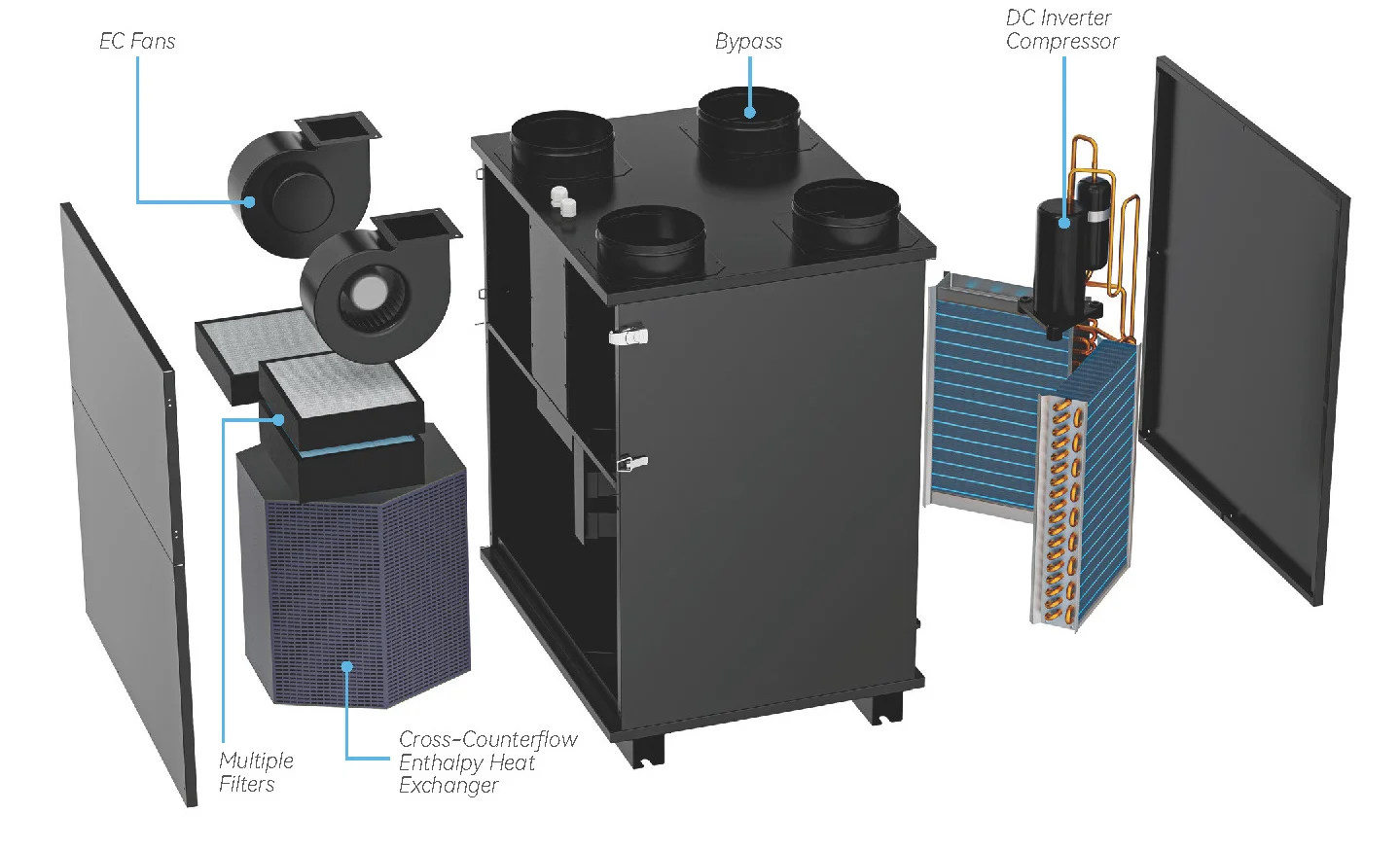

Product Design
EC Fans
To save energy and meet the ERP2018 standard, it’s built with the forward EC motors with 0-10 Voltage control. It has 10 speeds and is featured by small vibration, low noise, energy-saving, and longer service life.
Bypass
In summer, the 100% bypass contributes to improved comfort and it is controlled automatically on the basis of the measured outdoor temperatures.
Multiple Filters
The standard filters are G4 and F8 grade filters. The primary filter can remove dust, pollen and other pollutants from the incoming fresh air. They also protect the heat exchanger from clogging or corrosion. And the F8 filter can further purify the air. The PM2.5 particle filtration efficiency is over 95%. An optional air disinfection filter is available for higher filtration efficiency.
DC Inverter Compressor
It comes from the well-known brand GMCC. It
compresses and expands refrigerant to transfer
heat between the outdoor and indoor air
streams. It is DC inverter type which can adjust
its speed and output according to the load
demand, ensuring energy saving performance
and low noise level. It can also operate in a wide
temperature range of -15˚C to 50˚C. Both R32
and R410a refrigerant available.
CROSS-COUNTERFLOW ENTHALPY HEAT EXCHANGER
The cross-counterflow enthalpy heat exchanger can transfer heat and moisture between the outdoor and indoor air streams without mixing them. It can recover up to 80% of the energy from the exhaust air, reducing the heating or cooling load on the compressor. It is washable and easy to maintain. It has a lifetime of up to 15 years.

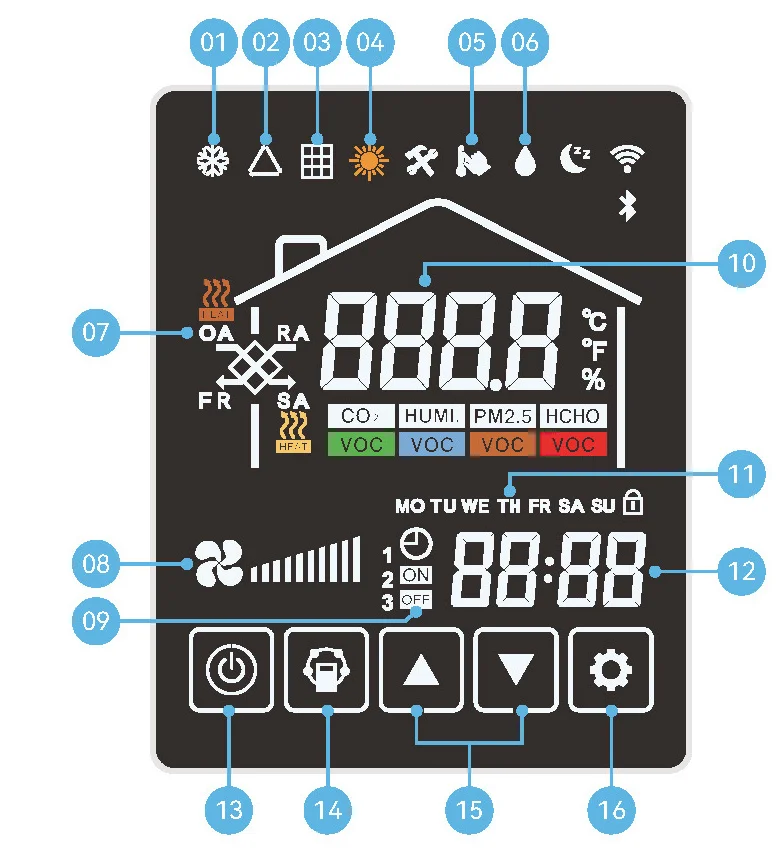

LCD Remote Control Panel
CONTROL & FUNCTIONS
01. Cooling mode 02. Ventilation mode 03. Filter alarm 04. Heating mode 05. SA setting 06. Dehumidification mode 07. Temperature type 08. Fan speed
09. Weekly timer on/off 10. Temperature display 11. Week day 12. Clock 13. ON/OFF button 14. Mode button 15. Up/Down button 16. Set button

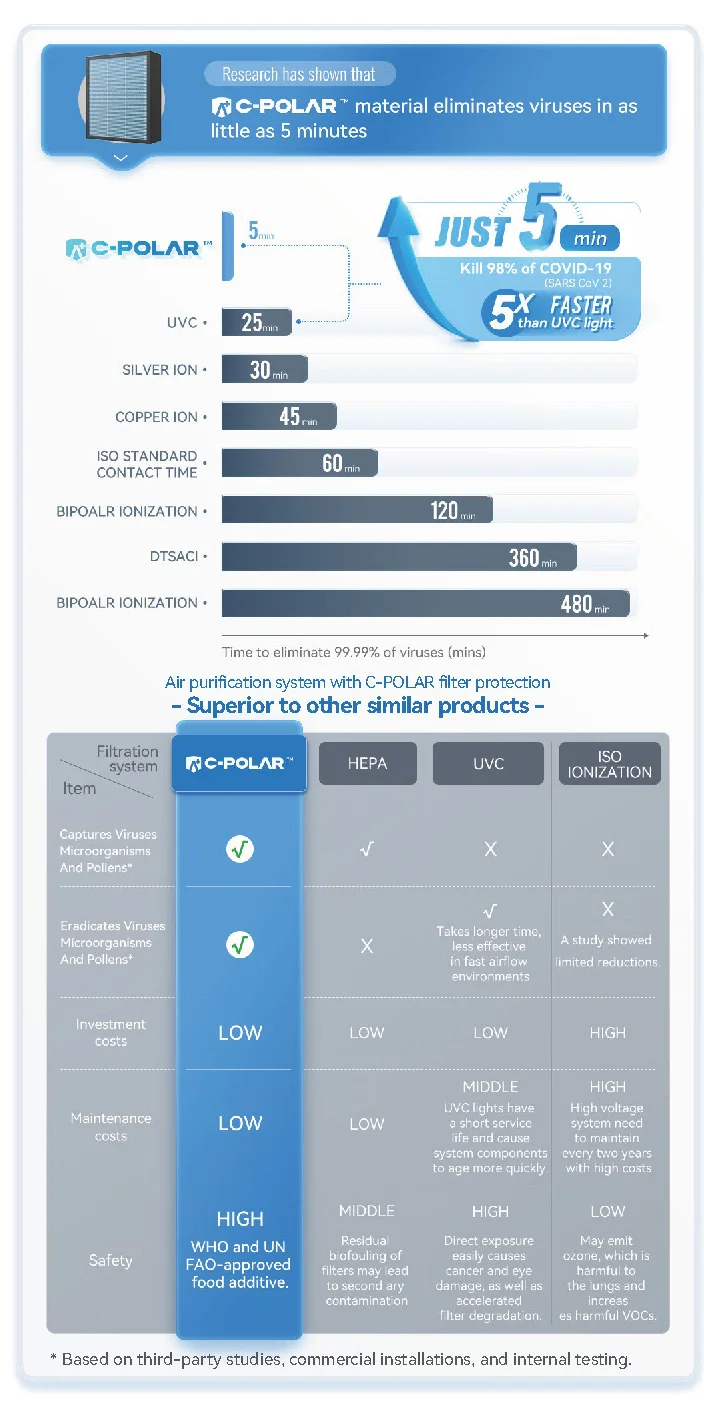

Optional C-POLAR Disinfection Filter
Company Profile
Since 2007, Airwoods dedicated to provide comprehensive building air quality solutions for various applications. Its a brand for better air quality and better life products. AIRWOODS brand mainly focus on the marketing, sales and product development to meet different market demand. The main products include air purifier, air disinfection system, fresh air ventilator, energy recovery ventilator, heat pump type heat recovery ventilator, air heat exchanger, air handling unit, water chiller, heat pump, etc. Our products have exported to more than 100 countries, certified by SGS CE, CB, EPCS, etc. and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. We aim to deliver good building air quality to the world with energy efficient products, optimized solutions, cost-effective prices and great services to our customers.
Certifications
FAQ
1. How to select the suitable model ?
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $2499 / piece
- 10–99 piece: US $2374 / piece
- 100+ piece: US $2249 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this whole house dehumidifier?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this whole house dehumidifier carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the whole house dehumidifier be supplied for my local voltage?
The standard configuration is 220-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
