Dba bathroom extractor — voltage 220-240V, rated airflow 300 CMH. The complete factory specification follows. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Dba Bathroom Extractor
- Model Number: AS-EC30-AGE
- Power Input: 150 W
- Ambient Voltage: 100 Pa
- Voltage: 220-240V
- Rated Airflow: 300 CMH
- Material: EPP
Technical Specifications
| Application | Villa, Hotel, Apartment, Office Building, Home Office, Living Room, Bedroom, Dining |
|---|---|
| Ambient Voltage | 100 Pa |
| Product Dimension | 680mmx490mmx230mm |
| Material | EPP |
| Installation | Wall-mounted |
| Shape | Rectangle |
| Feature | Flexible, Easy Install |
| Design Style | Contemporary, Modern |
| Warranty | 1 Year |
| After-Sale Service | Free Spare Parts |
| Project Solution Capability | total solution for projects |
| Model Number | AS-EC30-AGE |
| Place Of Origin | Guangdong, China |
| Brand Name | Airwoods |
| Product Name | EPP Extract Fan |
| Rated Airflow | 300 CMH |
| Voltage | 220-240V |
| Power Input | 150 W |
| Motor Type | EC Motor |
| Noise Level | 36-38 dB(A) |
| Control | Smart Controller / WiFi / Humidity Control |
| Duct Diameter (In/Out) | 125 / 150 mm |
| Selling Units | Single item |
| Single Package Size | 70X54X26 cm |
| Single Gross Weight | 8.700 kg |
Product Details

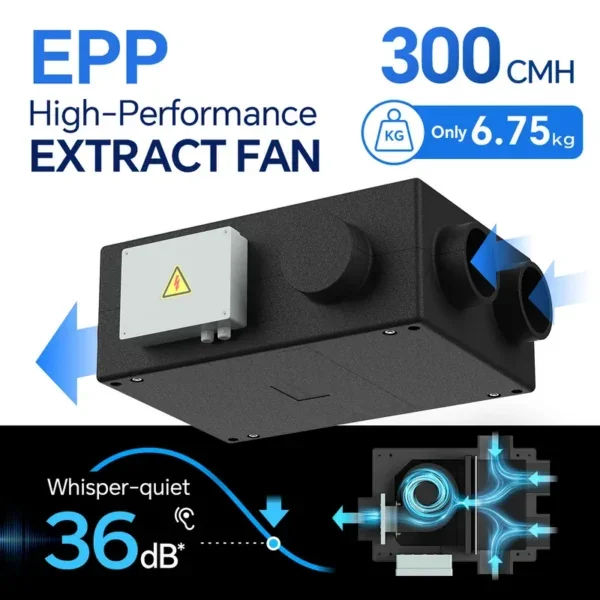

- 300 CMH Airflow Extract Fan : Provides stable ventilation performance for bathroom, kitchen, hotel, apartment and commercial ventilation applications.

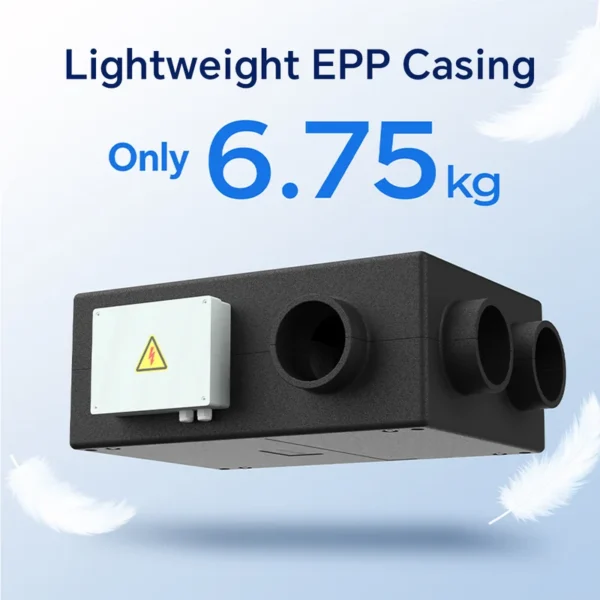

- Lightweight EPP Housing:Made with EPP casing, the unit weighs only 6.75 kg, making it easier to handle, transport and install.

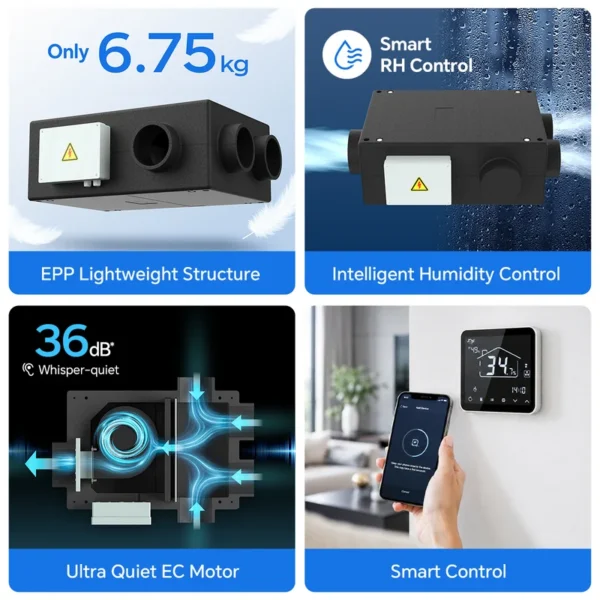

- Smart Ventilation Fan:Supports WiFi control, timer setting, humidity setting, daily speed scheduling, temperature display and RH display.
- Automatic Humidity Control Commercial Ventilation Fan:Built-in RH sensor automatically boosts speed when humidity rises above the setpoint and returns to preset speed when dry.
- Low Noise Ventilation Fan:Equipped with EC motor, with noise as low as 36 dB(A) for quiet indoor air extraction.
and intermittent-use spaces.
Model | AS-EC30-AGE | AS-EC30-EGE |
Rated Airflow | 300 CMH | 300 CMH |
External Static Pressure | 100 Pa | 190 Pa |
Power Supply | 220~240V / 1P / 50Hz | 220~240V / 1P / 50Hz |
Power Input | 150 W | 87 W |
Noise Level | 38 dB(A) | 36 dB(A) |
Dimensions (L×W×H) | 680×490×230 (mm) | 680×490×230 (mm) |
Net Weight | 6.75 kg | 6.75 kg |
Duct Diameter (In/Out) | 125 / 150 mm | 125 / 150 mm |
Operating Temperature | -30 °C ~ 60 °C | -30 °C ~ 60 °C |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $165 / piece
- 11–20 piece: US $154 / piece
- 21+ piece: US $149 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this dba bathroom extractor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the dba bathroom extractor be supplied for my local voltage?
The standard configuration is 100 Pa. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
See more in Centrifugal Fans on HVACR Nexus.
