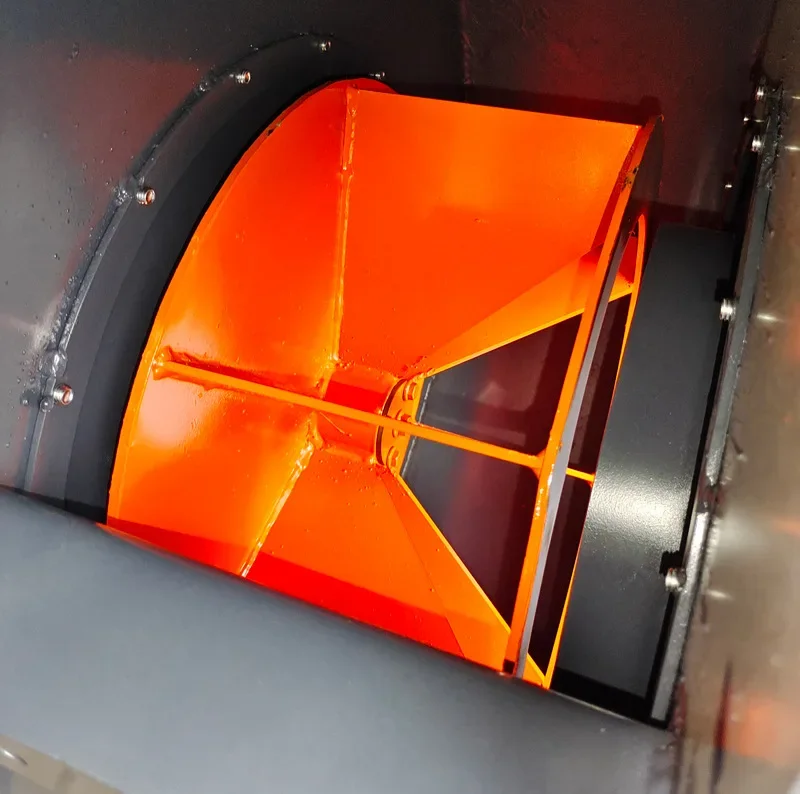

Specification for this backward curved centrifugal impeller is reproduced here as the factory publishes it. For a binding price and lead time, send the volume you need and where it ships to.
This backward curved centrifugal impeller is listed with the manufacturer’s full published specification. It is produced by Shandong Hanqi Industrial Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
This series of products applicable to forge and highpressure ventilation,and can be used for delivery of fuel ga ir and non corrosive, non spontaneous combustion non sticky material.
|
Fan type
|
Rpm(r/min)
|
Pressure(Pa)
|
Air Volume(m³/h)
|
Motor power(Kw)
|
|
4A
|
2900
|
3584-3597
|
824-1264
|
2.2-2
|
|
4A
|
2900
|
3507-3253
|
1410-1704
|
3-2
|
|
4.5A
|
2900
|
4603-4447
|
1174-2062
|
4-2
|
|
4.5A
|
2900
|
4297-4112
|
2281-2504
|
5.5-2
|
|
5A
|
2900
|
5697-5323
|
1610-3166
|
7.5-2
|
|
5A
|
2900
|
5323-5080
|
3166-3488
|
11-2
|
|
5.6A
|
2900
|
7182-7109
|
2262-3619
|
11-2
|
|
5.6A
|
2900
|
6954-6400
|
3996-4901
|
18.5-2
|
|
6.3A
|
2900
|
9149-9055
|
3220-5153
|
18.5-2
|
|
6.3A
|
2900
|
8857-8148
|
5690-6978
|
30-2
|
|
7.1D
|
2900
|
11717-11596
|
4610-7376
|
37-2
|
|
7.1D
|
2900
|
11340-10426
|
8144-9988
|
55-2
|
|
8D
|
2900
|
15034-14546
|
6594-11649
|
75-2
|
|
8D
|
2900
|
14021-13362
|
12968-14287
|
110-2
|
|
8D
|
1450
|
3620-3647
|
3297-4616
|
7.5-4
|
|
8D
|
1450
|
3584-3231
|
5257-7144
|
15-4
|
|
9D
|
1450
|
4597-4551
|
4695-7511
|
15-4
|
|
9D
|
1450
|
4453-4101
|
8294-10171
|
22-4
|
|
10D
|
1450
|
5941-5495
|
6440-12450
|
30-4
|
|
10D
|
1450
|
5244-4958
|
13952-15455
|
37-4
|
|
11.2D
|
1450
|
7364-7236
|
9047-15380
|
45-4
|
|
11.2D
|
1450
|
6927-6246
|
17471-21713
|
75-4
|
|
11.2D
|
960
|
3182-2996
|
5900-11580
|
15-6
|
|
11.2D
|
960
|
2860-2705
|
12978-14375
|
22-6
|
|
12.5D
|
1450
|
3182-2705
|
12577-30186
|
110-4
|
|
12.5D
|
960
|
3975-3377
|
8327-19985
|
37-6
|
|
14D
|
1450
|
11668-11771
|
17670-25916
|
132-4
|
|
14D
|
1450
|
11464-9878
|
30040-42409
|
220-4
|
|
14D
|
960
|
5004-5047
|
11699-17158
|
37-6
|
|
14D
|
960
|
4917-4249
|
19888-28078
|
75-6
|
|
16D
|
1450
|
15425-14488
|
26377-50995
|
315-4
|
|
16D
|
1450
|
13808-13035
|
57150-63305
|
410-4
|
|
16D
|
960
|
6570-6627
|
17463-25613
|
75-6
|
|
16D
|
960
|
6456-5575
|
29687-41912
|
110-6
|
OEM&ODM
ELITE TEAM
Frequently Asked Questions
What is the minimum order quantity for this backward curved centrifugal impeller?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
