Key specification for this radial fan: 380V.50Hz,3 Phase, power 79. Everything below is reproduced from the factory data sheet. Made by Qingdao Pengsheng Electric Appliance Co., Ltd. (12 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Radial Fan
- Model Number: 3C, 4C, 5C, 6C, 7C, 12C
- Power(Eff%): 79
- Voltage: 380V.50Hz,3 Phase
- Blade Material: Stainless Steel
- Material: Carbon Steel
- Warranty: 1 Year
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 380V.50Hz,3 Phase |
| Blade Material | Stainless Steel |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Shandong, China |
| Brand Name | PengSheng |
| Model Number | 3C, 4C, 5C, 6C, 7C, 12C |
| Medium Temperature | <250*C |
| Total Pressure | 1886-2093 Pa |
| Color | blue, green or your requirements |
| Power(Eff%) | 79 |
| Application | Industrial Equipment,construction,workhouse |
| Motor | 100% Copper Wire |
| Usage | Fresh Air |
| Material | Carbon Steel |
| Selling Units | Single item |
| Single Package Size | 60X40X70 cm |
| Single Gross Weight | 50.0 kg |
Product Details

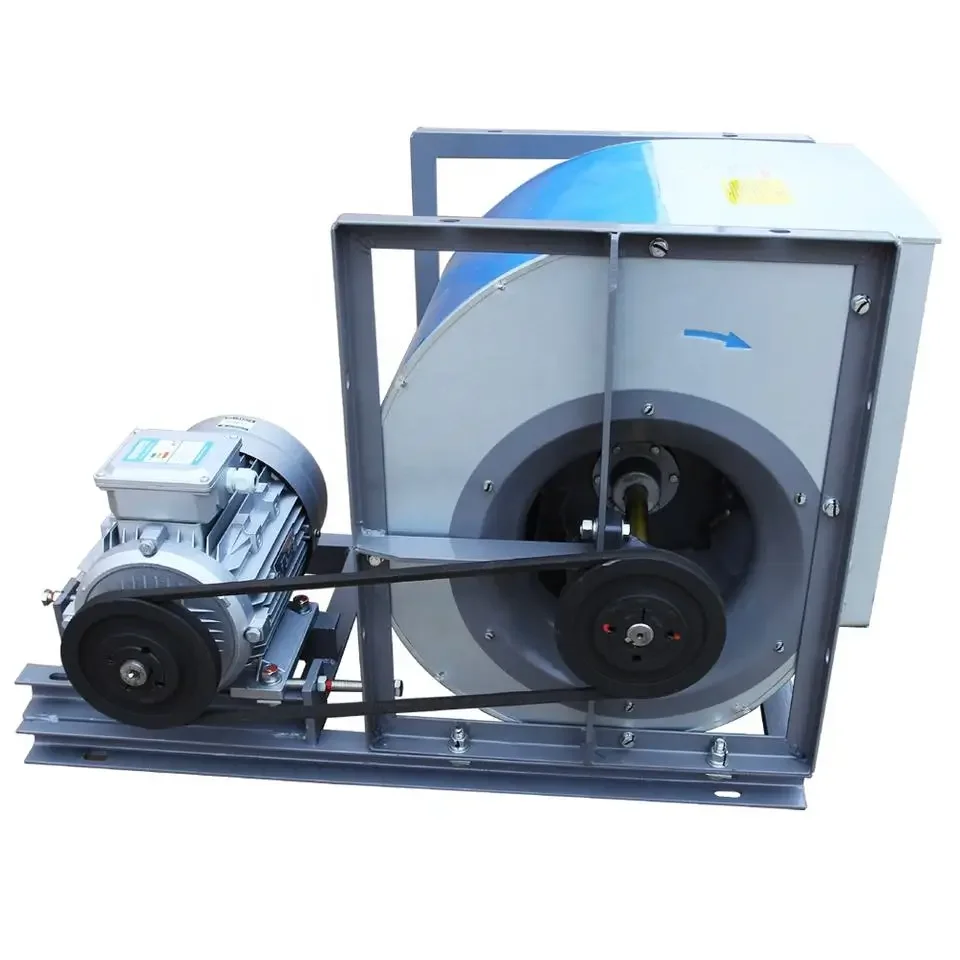

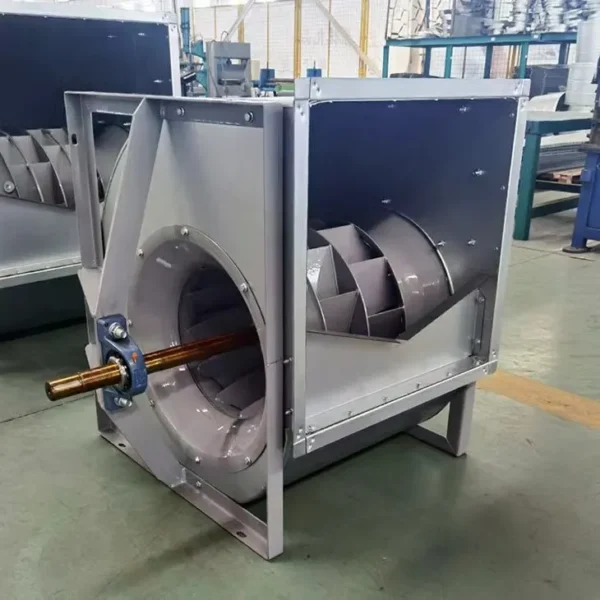

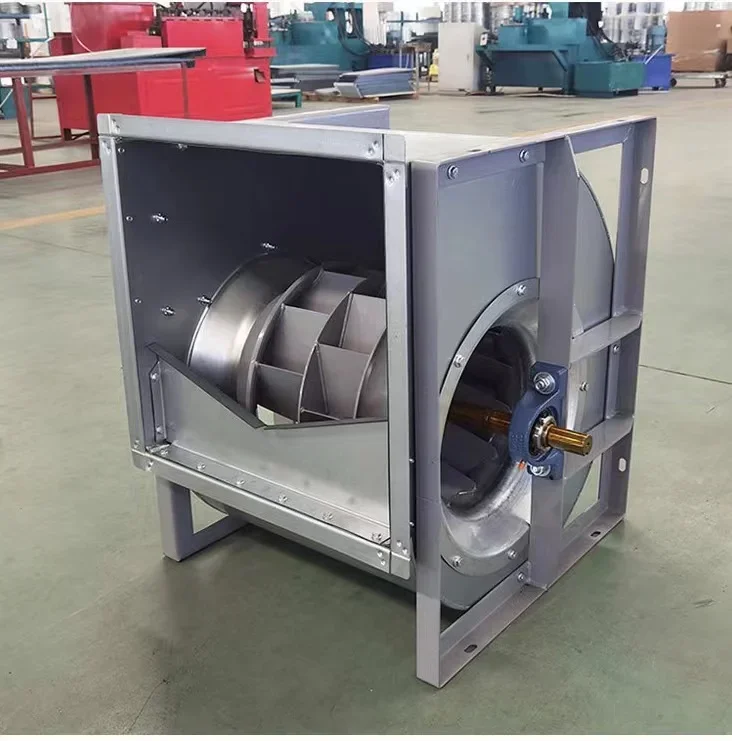

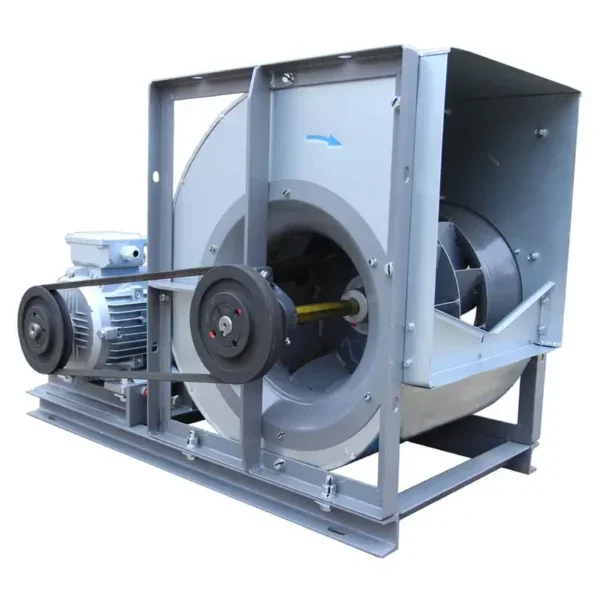

7.5kw 1450rpm Induced Draft Draught Industrial Boiler Centrifugal Exhaust Radial Fan
- low noise centrifugal fan /centrifugal blower are combined with domestic and foreign advanced technology on design. The sizes of inlet duct and outlet duct are the same. Connected the fan and piping .Special housing could reduce noise and vibration, best design on the impeller base on aerodynamics. Design for blow, exhaust, circle, renew and filtration could be used in hotel marketplace gymnasium supermarket store room and most of public place.
- Consist of housing, impeller, motor, base and connection box
- low noise centrifugal fan /centrifugal blower is an in-line centrifugal duct fan with high capacity and excellent reliability. The straight through radial fan is compact and very easy to install. It can cope with high pressure and long duct runs, whilst still operating at acceptable noise levels.
- low noise centrifugal fan /centrifugal blower can be controlled by voltage variation regulators. Several fans can be connected to the same controller providing the total rating of the controller is not exceeded. The motors are an external rotor type asynchrony motor. They have maintenance free sealed ball bearings and are protected from over heating by thermo contacts.
| Model | Power (kW) | Rotation Speed (r/min) | Volume (m³/h) | Pressure (Pa) |
| 3.15C | 1.5 | 3250 | 1323~2496 | 1049~716 |
| 1.5 | 2990 | 1218~2297 | 883~608 | |
| 1.5 | 2750 | 1120~2112 | 745~520 | |
| 4C | 4 | 3300 | 2751~5190 | 1922~1393 |
| 3 | 2900 | 2417~4561 | 1481~1079 | |
| 5C | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 5.5 | 2620 | 4267~8048 | 1893~1373 | |
| 6C | 18.5 | 2850 | 8020~15129 | 3364~2452 |
| 15 | 2620 | 7372~13908 | 2844~2069 | |
| 7C | 30 | 2580 | 11529~21747 | 3756~2746 |
| 22 | 2320 | 10367~19556 | 3040~2206 | |
| 18.5 | 2200 | 9830~18545 | 2736~1991 | |
| 15 | 2050 | 9159~17280 | 2373~1716 | |
| 8C | 30 | 2020 | 13474~25417 | 3001~2187 |
| 22 | 1860 | 12407~23404 | 2550~1853 | |
| 9C | 45 | 1900 | 18045~34039 | 3364~2452 |
| 37 | 1800 | 17095~32247 | 3020~2197 | |
| 4D | 3 | 2900 | 2393~4514 | 1451~1059 |
| 5D | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 6D | 18.5 | 2930 | 8245~13492 | 3550~3168 |
| 22 | 14523~15553 | 2903~2589 | ||
| 10D | 37 | 1480 | 19281~31551 | 2697~2246 |
| 11D | 55 | 1480 | 25663~48410 | 3050~2216 |
| 12D | 90 | 1480 | 54520~62850 | 3236~2638 |
Company introduction
Qingdao Peng Sheng Electrical Appliance Co., Ltd. is a scientific enterprise specializing in the production of air blower, exhaust fan, axial flow fan, centrifugal fan, a negative pressure fan ventilation equipment, company's existingprocessing equipment more than 100 Taiwan (sets), various types of testing equipment more than 20 Taiwan (sets),including the advanced computer control and detection equipment and CNC machining equipment, can satisfy the different customer quality requirements and batch ordering.
1. Official certificate of quality and managemnet.
We approved ISO certificate, whick can be check on official website.
2. After-sale service.
All the model have an ONE YEAR GUARANTEE period, if any part goes wrong, we replace it for free, and we supply parts for maintaining with abusolutely reasonable price.
3. Flexibble payment service.
For good clients we accept Flexible Payments, like T/T, one month L/C, give our clients better purchasing experience and financing.
4. Welcome to visit us!
If you can't find the datas you need, pls send us your performance requirements,
we will provide you customized design service in 8 hours.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–299 set: US $499 / set
- 300+ set: US $399 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this radial fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the radial fan be supplied for my local voltage?
The standard configuration is 380V.50Hz,3 Phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Pengsheng Electric Appliance Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Pengsheng Electric Appliance Co., Ltd. range on HVACR Nexus.
