Key specification for this home hvac systems: type Ventilation, model number MC-DK. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Home Hvac Systems
- Model Number: MC-DK
- Warranty: 3 Years
- Place Of Origin: Zhejiang, China
- Application: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Warehouse, Living Room, Home Bar, Home Office, Other
- Feature: Easy Installation
- Type: Ventilation
Technical Specifications
| Type | Ventilation |
|---|---|
| Application | Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Warehouse, Living Room, Home Bar, Home Office, Other |
| Feature | Easy Installation |
| Warranty | 3 Years |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Design Style | Modern |
| Project Solution Capability | 3D model design |
| Place Of Origin | Zhejiang, China |
| Brand Name | COMAYJOHN |
| Model Number | MC-DK |

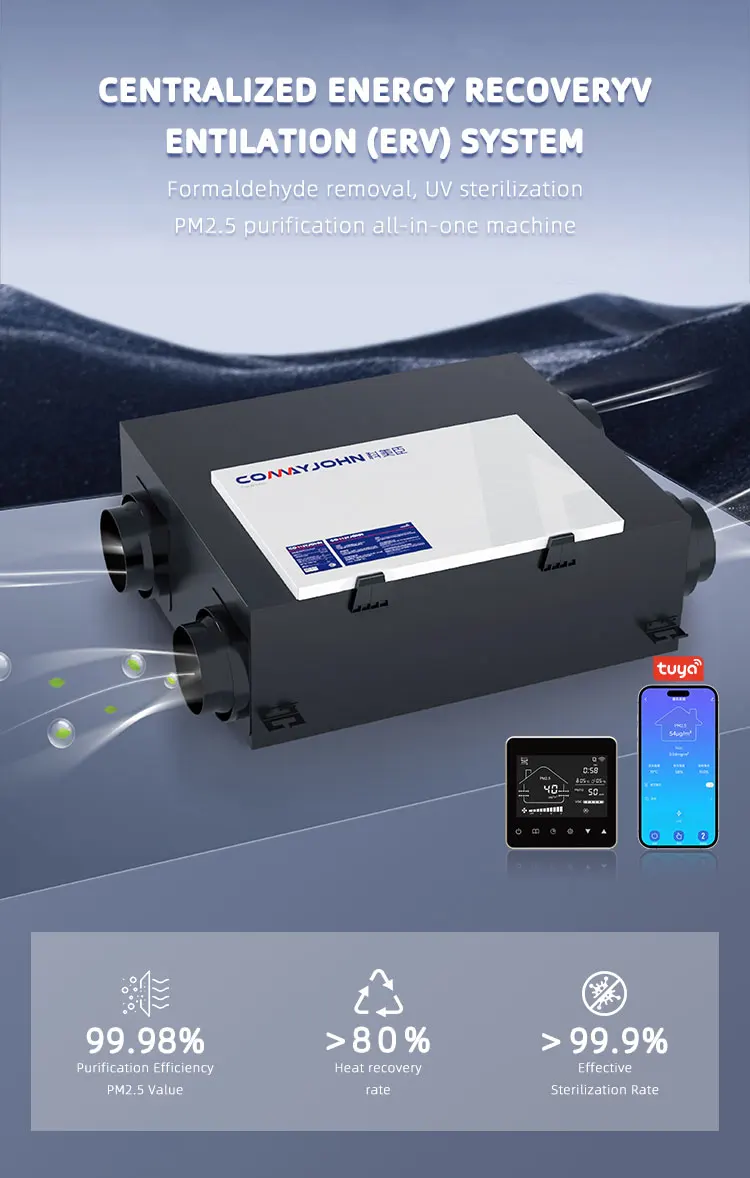

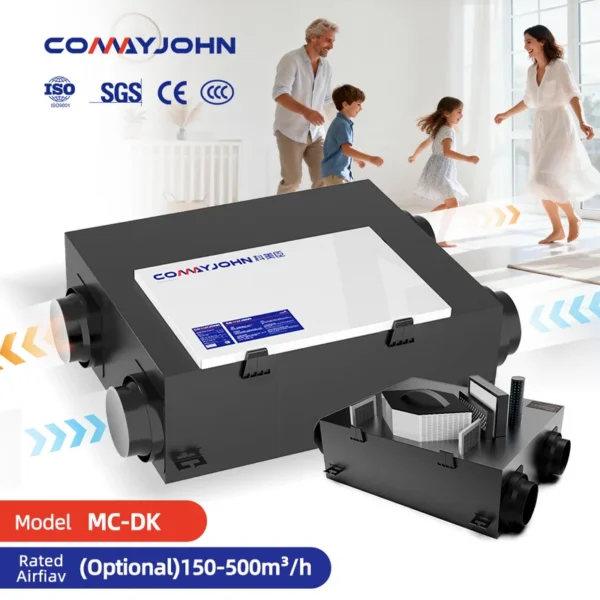

| Product Name | Energy Recovery Ventilator |
| Function | Ventilaion |
| Keyword | Recuperator Ventilation |
| Selling Units | Single item |
| Single Package Size | 81X68X32 cm |
| Single Gross Weight | 27.0 kg |
Product Details
Model | Voltage | Power | Air Volume | Static Pressure | Heat Recovery Rate | Noise |
MC-DC150-DK | 220V | 71W | 150 m³/h | 118 Pa | 88%-95% | 26 dB(A) |
MC-DC250-DK | 220V | 79W | 250 m³/h | 135 Pa | 87%-94% | 28 dB(A) |
MC-DC350-DK | 220V | 93W | 350 m³/h | 145 Pa | 87%-94% | 29 dB(A) |
MC-DC500-DK | 220V | 125W | 500 m³/h | 165 Pa | 87%-94% | 30 dB(A) |
MC-JD150-DK | 220V | 73W | 150 m³/h | 118 Pa | 88%-95% | 26 dB(A) |
MC-JD250-DK | 220V | 81W | 250 m³/h | 135 Pa | 87%-94% | 28 dB(A) |
MC-JD350-DK | 220V | 95W | 350 m³/h | 145 Pa | 87%-94% | 29 dB(A) |
MC-JD500-DK | 220V | 127W | 500 m³/h | 165 Pa | 87%-94% | 30 dB(A) |
MC-DC150-ZLDK | 220V | 37W | 150 m³/h | 138 Pa | 88%-95% | 24 dB(A) |
MC-DC250-ZLDK | 220V | 43W | 250 m³/h | 165 Pa | 87%-94% | 26 dB(A) |
MC-DC350-ZLDK | 220V | 62W | 350 m³/h | 198 Pa | 87%-94% | 27 dB(A) |
MC-DC500-ZLDK | 220V | 108W | 500 m³/h | 208 Pa | 87%-94% | 28 dB(A) |
MC-JD150-ZLDK | 220V | 39W | 150 m³/h | 138 Pa | 88%-95% | 24 dB(A) |
MC-JD250-ZLDK | 220V | 45W | 250 m³/h | 165 Pa | 87%-94% | 26 dB(A) |
MC-JD350-ZLDK | 220V | 64W | 350 m³/h | 198 Pa | 87%-94% | 27 dB(A) |
MC-JD500-ZLDK | 220V | 110W | 500 m³/h | 208 Pa | 87%-94% | 28 dB(A) |

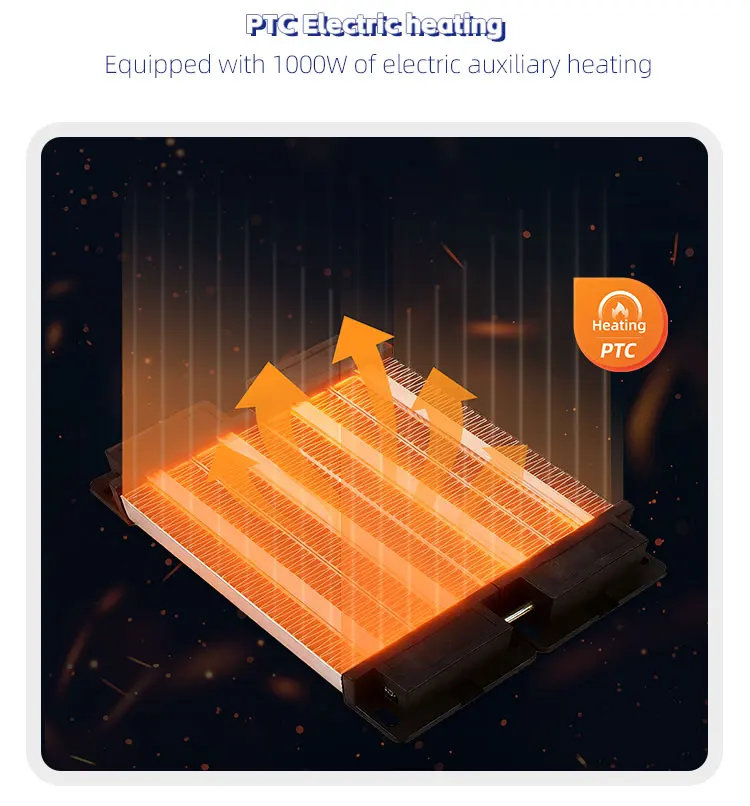

MC-PTC150-ZLDK | 220V | 39W+1KW | 150 m³/h | 138 Pa | 88%-95% | 24 dB(A) |
MC-PTC250-ZLDK | 220V | 45W+1KW | 250 m³/h | 165 Pa | 87%-94% | 26 dB(A) |
MC-PTC350-ZLDK | 220V | 64W+1KW | 350 m³/h | 198 Pa | 87%-94% | 27 dB(A) |
MC-PTC500-ZLDK | 220V | 110W+1KW | 500 m³/h | 208 Pa | 87%-94% | 28 dB(A) |

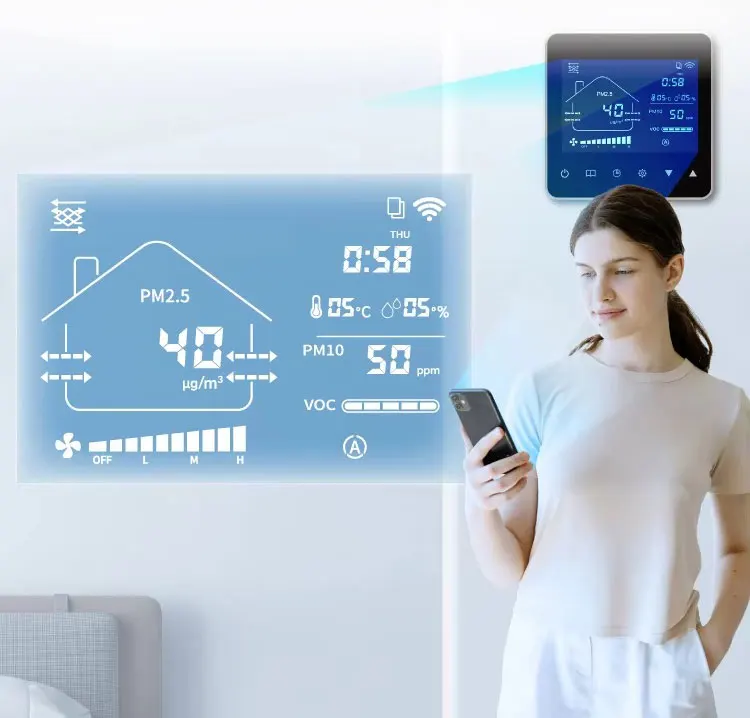

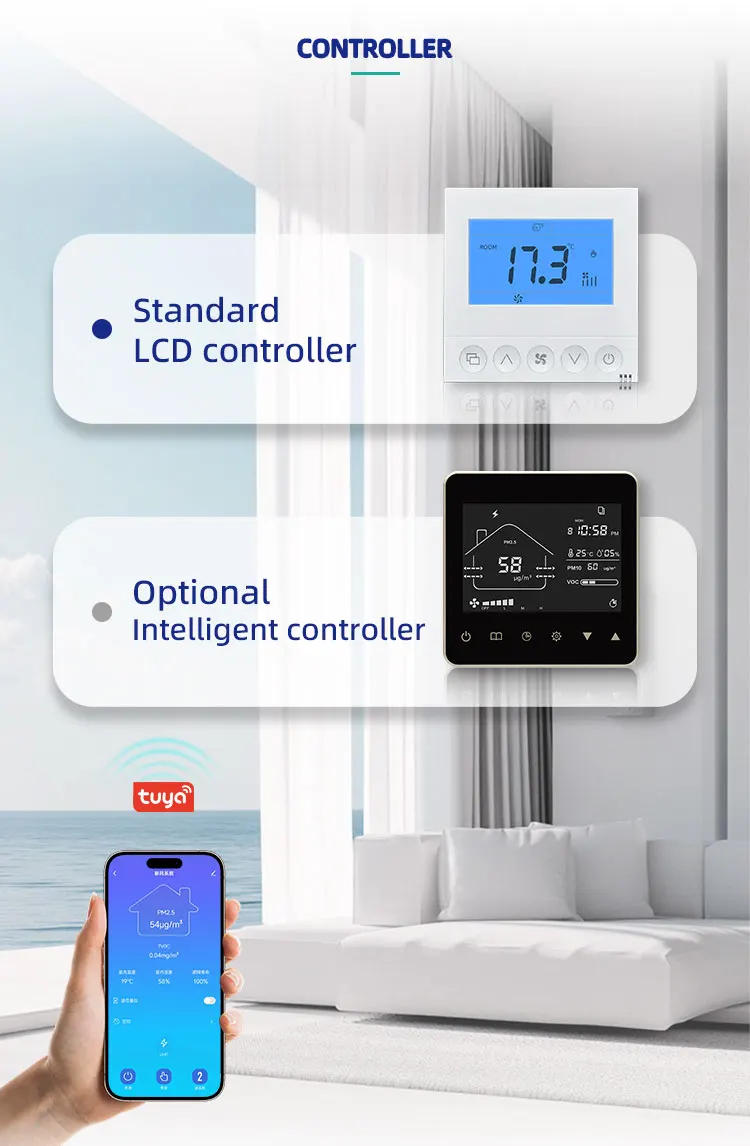

Intelligent controkker+Tuya APP
-Smart mode can automatically adjust the wind speed and turn on/offbased on air -Quality Touch control to adjust various fan speedsettings, providing different air supply volumes -ESP-Monitor temperature, humidity, VOC concentration, PM2.5/PM10concentration -Optional CO2 concentration -Can be linked to mobile phone Tuya APP for remote contro -RS485 link port can be used for BMS central control-Weekly timer function ensures -Perfect indoor air quality at the sametime to minimize power consumption-Filter -Alarm to remind users to clean the filter in time -Working statusand fault display

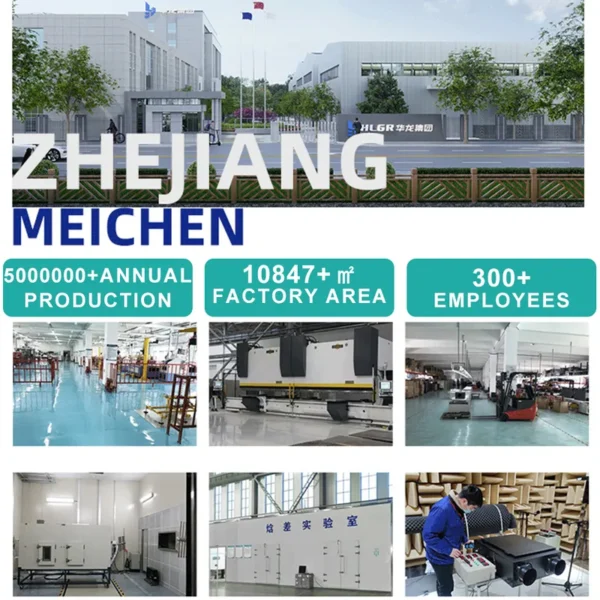

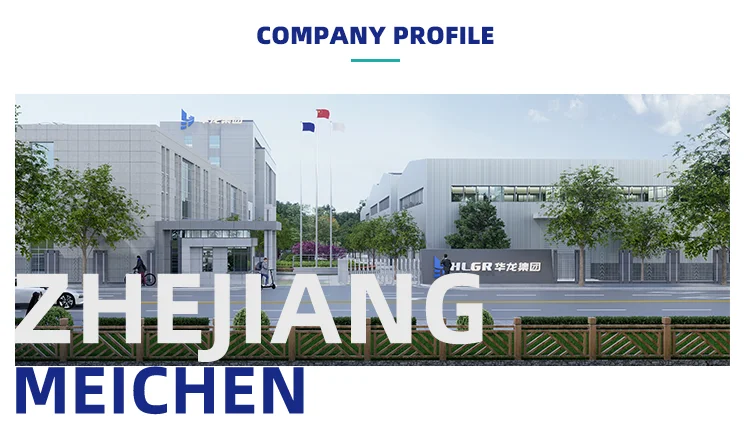

Zhejiang Meichen Environmental Technology Co., Ltd., a subsidiary of Hualong Co.,
Ltd. established in 1999, is a high-tech enterprise integrating R&D, production, sales,
and service. Headquartered in the Sino-German Industrial Park in Taizhou, Zhejiang,
the company specializes in developing and manufacturing fresh air systems and environmental protection equipment.

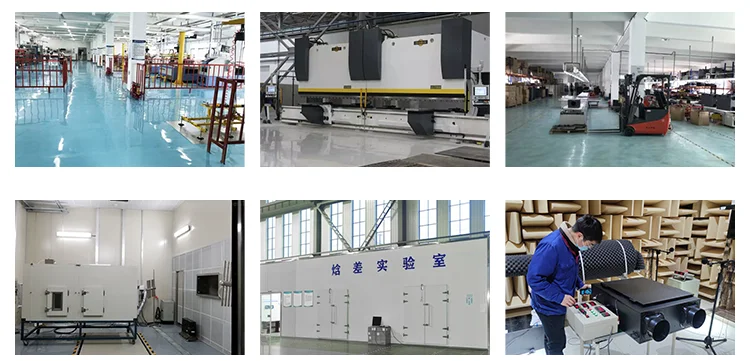

The company operates a 30-acre industrial park with five production plants and one
R&D office building, totaling over 15,000 square meters. Equipped with advanced
facilities including CNC punching machines, laser cutting systems, and automated
spray lines, it maintains an annual production capacity of 200,000 fresh air units,
establishing itself as a large-scale production base in China. Guided by the principle of "Integrity, Pragmatism, Efficiency, and Innovation," Meichen
has assembled a professional team of technical and marketing talents. Since 2003,
under the leadership of British engineer Johnny, the company has incorporated
European technology to develop healthier, more energy-efficient products, earning
over 100 invention and utility patents. Recognized as a top-ten brand in China's fresh air industry, Meichen has contributed
to national industry standards and obtained international certifications including CE
and ISO9001. Its products have been exported to nearly 30 countries, providing air
solutions for renowned real estate developers. Committed to sustainable development, Meichen creates shared value for customers, investors, and global communities.
Q1: Do you provide customized production line solutions?
A: Yes, we can provide customized production line solutions based on the specific
requirements of our cllents.
Q2: Do you offer technical consultation and support?
Yes, we provide comprehensive technical consultation and support, including production
line design, process optimization, and equipment selection.
Q3: What payment methods do you accept?
A: We generally accept various payment methods, such as bank transfers and letters
of credit.
Q4: Do you provide quality assurance and traceability services?
A: Customers can obtain timely technical support and maintenance services through our service hotline or online platform.
Q5: Do your production lines meet quality standards and certification requirements?
A: Our production lines meet international quality standards and certification
requirements, ensuring stable and reliable product quality.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this home hvac systems?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Meichen Environmental Technologv Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Meichen Environmental Technologv Co., Ltd. range on HVACR Nexus.
