Key specification for this home hvac systems: 110V-240V/50-60HZ, 350m3/h. Everything below is reproduced from the factory data sheet. Made by Sichuan Guigu Renju Technology Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Home Hvac Systems
- Model Number: TFPW-025(C1-1D2)
- Voltage: 110V-240V/50-60HZ
- Airflow: 350m3/h
- Material: Galvanized Steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Application | Villa, Hotel, Apartment, Office Building, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Courtyard, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Outdoor, Storage and Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage and Shed, Gym |
|---|---|
| Material | Galvanized Steel |
| Feature | Flexible, Energy Saving, Anti-Corrosion, Easy Install |
| Design Style | Modern |
| Warranty | 1 Year |
| After-Sale Service | Free Spare Parts, Online Technical Support, Other |
| Project Solution Capability | graphic design |
| Model Number | TFPW-025(C1-1D2) |
| Place Of Origin | Jiangsu, China |
| Brand Name | IGUICOO |
| Function | ventilation and heat recovery |
| Voltage | 110V-240V/50-60HZ |
| Filter | Hepa 12 |
| Size | 850*400*750mm |
| APP | Tuya App |
| Sensor | Co2, PM2.5, humidity, temperature |
| Airflow | 350m3/h |
| Color | White |
| Installation | Wall Mounted Installation |
| MOQ | 1set |
| Selling Units | Single item |
| Single Package Size | 91X91X61.5 cm |
| Single Gross Weight | 80.000 kg |
Product Details
Specification & Dimensions
Item | Vertical enthalpy exchange fresh air system |
Warranty | 1 year |
After-sale Service | Online technical support, Free spare parts |
Project Solution Capability | Provide overall solution |
Application | Hotel/School/Commercial building/Real estate project |
Design Style | Modern |
Place of Origin | China |
Model Number | TFPW-025(C1-1D2) |
Size | 850*400*750mm |
Air Flow(m³/h) | 250 m³/h |
Install type | Wall/Standing mounted |
Maintenance | Side door |
Heat Recovery Type | Enthalpy exchanger |
Heat Recovery Efficiency(%) | 75%-93% |
Power Voltage(V)/Frequency(HZ) | 210-240/50HZ |
Noise | 34dB(A) |
OEM/ODM | Accept |
Features & Benefits

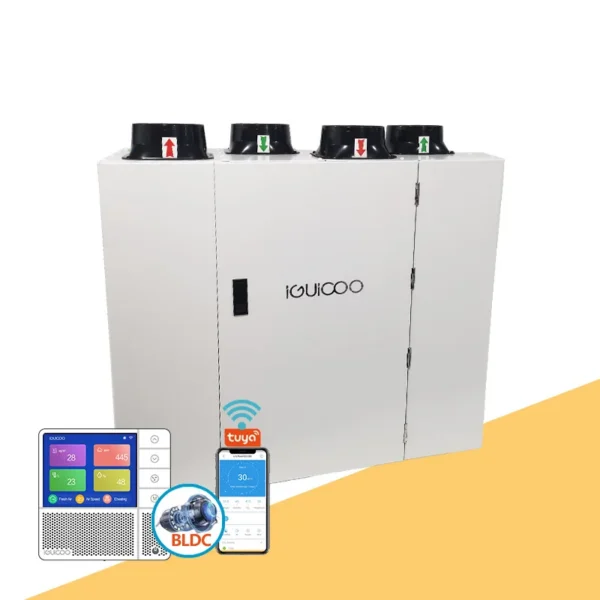

This Vertical ERV is suitable for house unit with insufficient headspace
• The system uses air energy recovery technology. • It integrates balanced ventilation, pre- heating of fresh air in winter. • It provides healthy and comfortable fresh air while achieving maximum energy savings,heat recovery efficiency is up to 93%. • Reserve positions for custom function modules. • Bypass function is standard. • PTC heating,ensure operation in low temperature environment in winter
Washable cross-counterflow enthalpy heat exchanger
1.High efficiency cross-counterflow enthalpy heat exchanger 2.Easy to maintain 3.5~10 years life 4.Up to 93% heat exchange efficiency
Intelligent Controller operation
•Intelligent detection Indoor temperature, humidity, CO2 concentration, PM2.5 concentration detection •Smart display 2.8 inch color LCD display, all data real-time display; •4 speed speed High speed, medium speed, low speed, automatic 4 speed, to meet the needs of more customers; •A variety of working modes Pre-heating, ventilation, bypass,to meet the needs of different seasons
WIFI function
Work with Tuya Smart APP
Intelligent control
According to indoor air quality
Optional Centralized control
Up to 128pcs ERV controlled by one Data acquisition unit
Technical parameter | ||||||
Model | TFPW-025(C1-1D2) | TFPW-035(C1-1D2) | TFPW-050(C1-1D2) | |||
Airflow（m³/h） | 250 | 350 | 500 | |||
Rated E.S.P（Pa） | 100 | 100 | 100 | |||
Temp.Eff. (%) | 80-93 | 75-90 | 73-88 | |||
Noise dB（A） | 34 | 36 | 42 | |||
Power input (W)（Fresh air only） | 90 | 140 | 200 | |||
PTC preheating （W）（Anti-freezing） | 300 | |||||
Rated voltage/frequency | AC 210-240V / 50（60）Hz | |||||
Energy recovery | Enthalpy exchange core，heat recovery efficiency is up to 93% | |||||
Purification efficiency | 99% | |||||
Controller | TFT Liquid crystal display / Tuya APP | |||||
Motor | DC motor（Double intake direct current centrifugal fan） | |||||
Purification | Primary filter + H12 Hepa filter | |||||
Operation mode | Fresh air purification + By-pass function | |||||
Operating ambient temperature（℃） | -20～40 | |||||

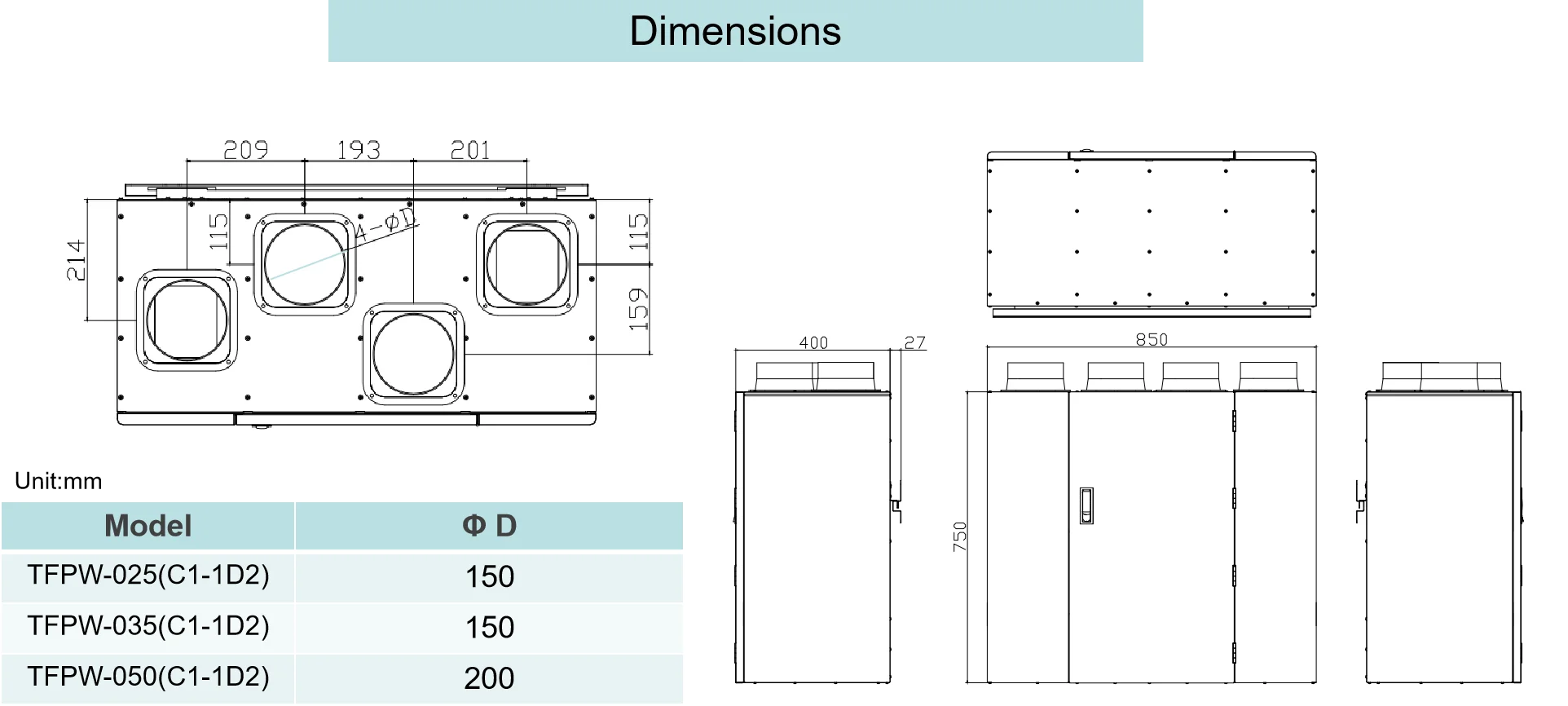

Product size（L*W*H）mm | 850x400x750 | |||||
IFD sterilization filter | Optional | |||||
Fixation | Wall-mounted or standing-mounted | |||||
Connect size（mm） | φ150 | φ150 | φ200 | |||
Configuration list | ||||||
Item | Specification | |||||
Intelligent controller | 1pcs | |||||
G4 filter | 2pcs | |||||
H12 filter | 1pcs | |||||
Cross reverse enthalpy exchange core | 1pcs | |||||
