Manufactured by Nanjing Long Medical Technology, this hot water boiler is documented here exactly as the factory publishes it. Supplier profile: 9 years on the platform. Quantity and destination market determine the final price — tell us both for a firm quote.

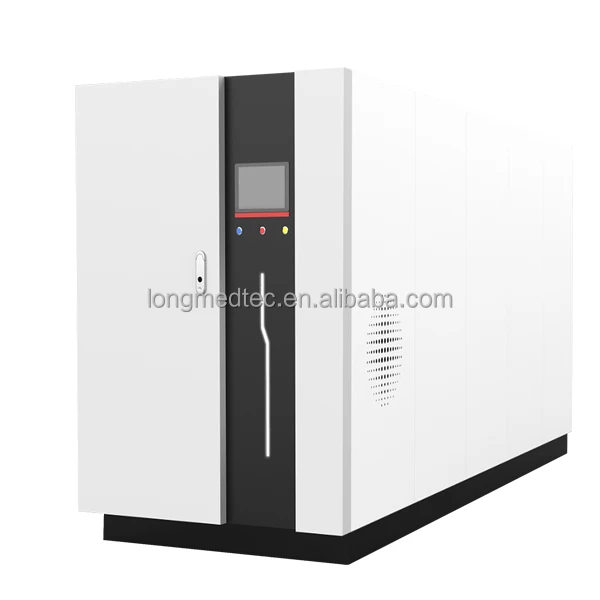

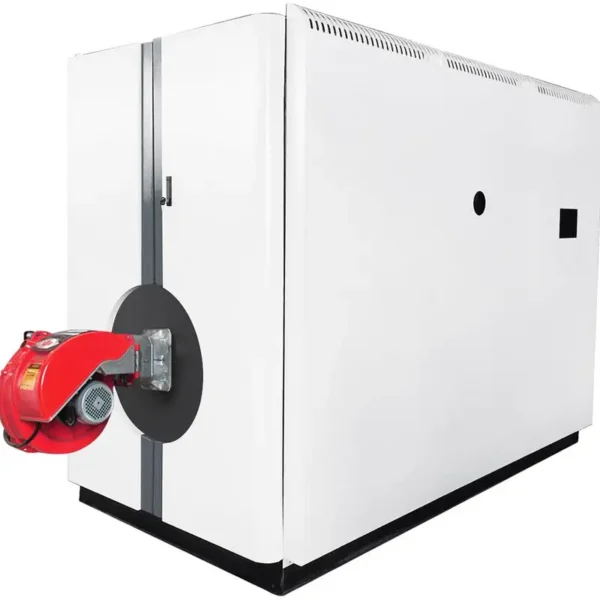

Key Features of This Hot Water Boiler
- Operation Voltage: 380V/50HZ
- Raw Material: Carbon steel Stainless steel
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Warranty Of Core Components: 1 Year
- Place Of Origin: China
Technical Specifications
| Instrument Classification | Class II |
|---|---|
| Application | Hospital |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Place Of Origin | China |
| Raw Material | Carbon steel Stainless steel |
| After Warranty Service | Video technical support |
| Color | White |
| Operation Voltage | 380V/50HZ |
| Gas Fuel | natural gas |
| Condition | New |
| Warranty Of Core Components | 1 Year |
| Weight | 500 |
| Applicable Industries | medical |
| Year | 2024 |
| Selling Units | Single item |
| Single Package Size | XX cm |
Product Details
Recommend Products
Products Description
Details Images
The expert team conducted a large number of calculations, simulations, and emulations through computers, and then conducted repeated tests through the gas combustion test platform of Yuanda Boiler, and created a unique "comb-type" burner structure, and highly coupled the burner and the boiler, and then comprehensively utilized air cooling and water cooling technology to make the unit's nitrogen oxide emissions less than 30mg under all operating conditions. The ultra-low nitrogen premixed condensing hot water unit has multiple functions such as heating hot water and sanitary hot water, and can provide multiple hot water according to user requirements. The boiler combustion chamber structure adopts a full-membrane wall natural circulation water tube single-return structure. The unique water tube single-return structure has a more compact water tube arrangement and a high flue gas heat transfer coefficient. The normal operating water volume of the boiler is only one-third of that of the fire tube boiler, and the boiler heats up faster. The boiler adopts post-premixed combustion technology, and a combination of air cooling and water cooling reduces the flame temperature to achieve ultra-low nitrogen emissions. (1) The boiler operates under negative pressure, without explosion risk: (2) The burner adopts post-prewetting combustion, and no deflagration will occur: (3) The special combustion head has a double anti-backfire structure and does not backfire; (4) The valve group has an automatic leak detection function; (5) It has multiple over-humidity and over-pressure interlocking protection such as outlet water temperature, boiler water temperature, exhaust gas temperature, and furnace body pressure; (6) The ultimate mechanical explosion-proof device automatically opens when the set pressure is exceeded.
Product Parameters | |||||||||||
Rated heating capacity | 100,000 kcal | 30 | 60 | 90 | 120 | 180 | |||||
kw | 350 | 700 | 1050 | 1400 | 2100 | ||||||
power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |||||
Electric power | |||||||||||
Power distribution | 2.2 | 3 | 4 | 4 | 5.5 | ||||||
Consumption | 33 | 67 | 100 | 133 | 200 | ||||||
pressure | 5-8 | 5-10 | 5-10 | 5-15 | 5-20 | ||||||
interface | 40 | 50 | 50 | 50 | 65 | ||||||
Note: 1. The standard pressure of the heat exchanger is 1.0MPa; if 1.6MPa or 2.0MPa pressure is required, it can be customized; 2. Natural gas is calculated based on the low calorific value of 8600 kcal; 3. Condensate is generated during the operation of the unit, and it is recommended to drain the machine room; if detailed parameters are required, please consult the account manager. 4. The rated exhaust temperature of the unit is: return water temperature + (5-10) degrees; 5. The above parameters may be changed due to technical improvements. Please understand if we cannot inform you in time;
Packing & Delivery
Company Profile
NANJING LONG MEDICAL TECHNOLOGY CO., LTD.
NANJING LONG MEDICAL TECHNOLOGY CO., LTD. is a leading supplier of medical equipment in China, specializing in the medical device industry. Our broad product range covers surgical equipment, X-ray machines, laboratory equipment, patient monitors, electrocardiograms, ultrasound scanners, dental equipment and hospital furniture.
We have been committed to providing customers with high quality, competitive prices and good after-sales service for the long term of medical equipment made in China. LongMed has built an efficient global marketing network. Over the years, our products have been exported to Africa, Latin America, the Middle East, Southeast Asia, Europe and the United States, and have gained a good reputation. We welcome customers from all over the world to visit our company and our website, and we can assure you that our products are of high quality, attentive service and competitive prices. Your cooperation with us will surely create a win-win situation.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $10000 / set
- 20–99 set: US $8000 / set
- 100+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hot water boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the hot water boiler be supplied for my local voltage?
The standard configuration is 380V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nanjing Long Medical Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company. Browse the full Nanjing Long Medical Technology Co., Ltd. range on HVACR Nexus.
