This hvac fan is published with the manufacturer’s full specification — material Aluminum Foil, ABS Plastic, model number FC610. Made by Shenzhen Bandary Technology Co., Ltd. (10 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Hvac Fan
- Model Number: FC610
- Output Voltage: relay or analog output
- Material: Aluminum Foil, ABS Plastic
- Warranty: 2 Years
- Certifications: RoHS CE UKCA
- Place Of Origin: Guangdong, China
Technical Specifications
| Application | Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Supermarket |
|---|---|
| Material | Aluminum Foil, ABS Plastic |
| Installation | Wall-mounted |
| Shape | Round |
| Feature | Flexible, Energy Saving, Anti-Corrosion, Easy Install |
| Design Style | Modern |
| Warranty | 2 Years |
| After-Sale Service | Online Technical Support, Onsite Training, Return and Replacement |
| Project Solution Capability | graphic design |
| Model Number | FC610 |
| Place Of Origin | Guangdong, China |
| Brand Name | Bandary /customized |

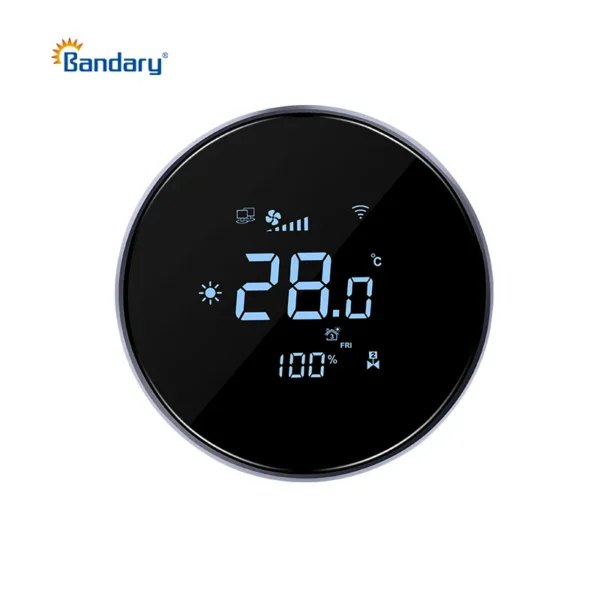

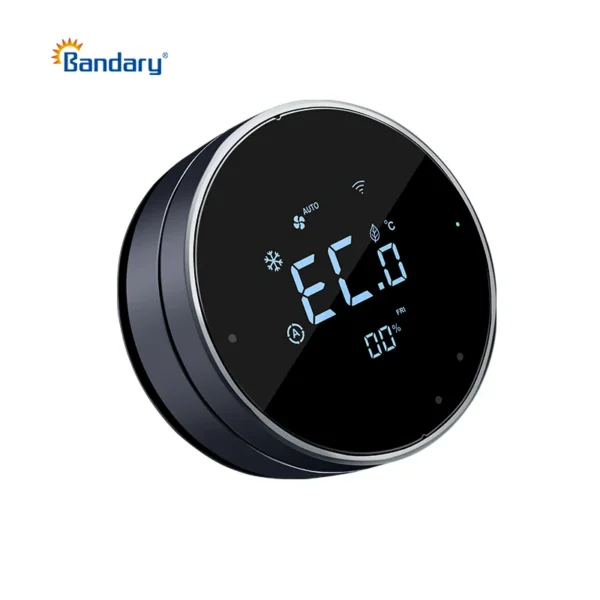

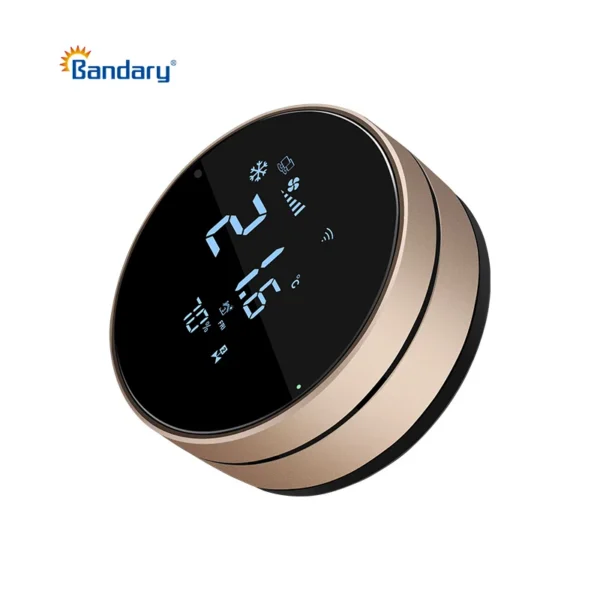

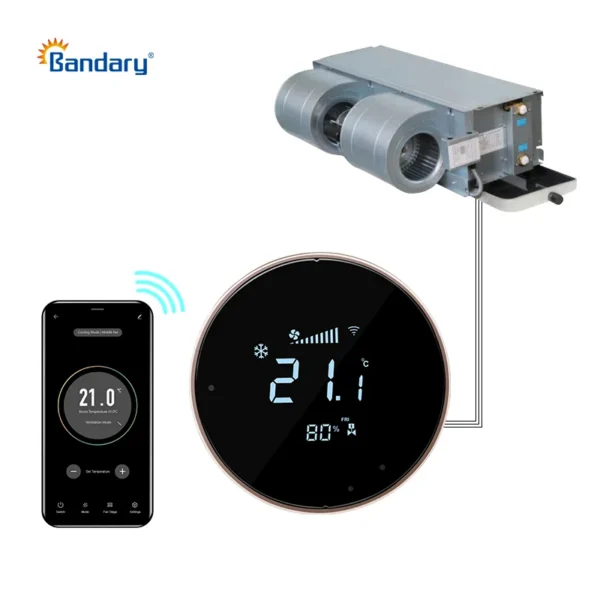

| Name | smart air conditioner fan coil thermostat |
| Output Voltage | relay or analog output |
| Communication | WIIF/RS485 modbus protcol |
| Sensor | NTC Sensor or build -in sensor |
| Occupied Sensor | Room card sensor |
| Set Temperature | 1~50 degree, |
| Certifications | RoHS CE UKCA |
| Selling Units | Single item |
| Single Package Size | 23X16X8 cm |
| Single Gross Weight | 0.51 kg |
Product Details
Measuring values | Temperature | ||||
Output switch contact | 2 normally open contacts, 250v load max 3A(heating & cooling via 2-point control) | 3 normally open contact, 250v load max. 3A, Fan | |||
Output voltage | 2*0-10v for heating & cooling | 1*0-10v for fan | |||
Inputs | Input for external sensor NTC 10K | Input digital for floating contact, window contact, dew point sensor | Input digital for floating contact, occupancy sensor, key card switch | ||
Network technology | RS485 Modbus, RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400, parity: non (2 stopbits), even or odd (1 stopbit) WIFI 2.4G wififi communication | ||||
Power supply | 24v DC/AC 50/60Hz | ||||
Power consumption | Max. 3W | ||||
Max load current | ＜3A | ||||
Measuring range temp. | +1~+50 °C | ||||
Accuracy temperature | ±1K (typ. at 21 °C) | ||||
Control functions | Set point adjustment +1..+50 °C, (default +16..+30 °C) | ||||

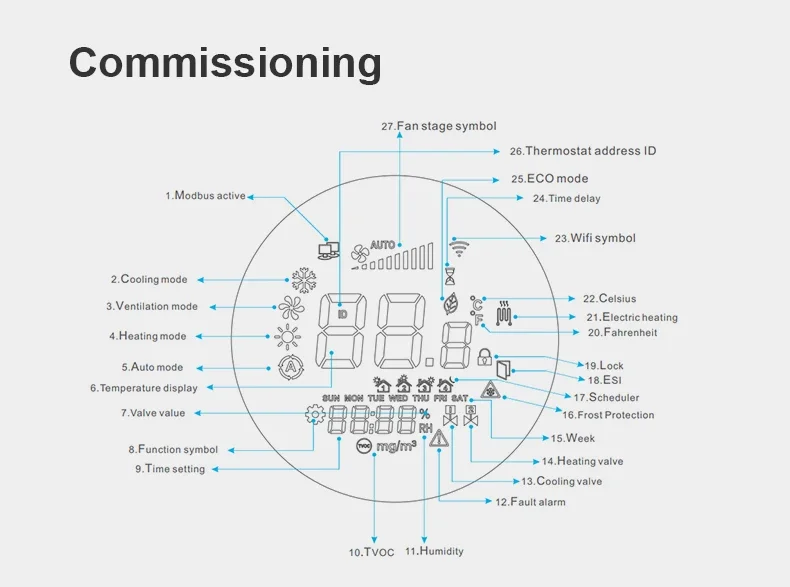

Display | LCD Ø49 mm, black background white lighting | ||||
Enclosure | Power unit :Fire proof PC+ABC Display unit : Aluminum Alloy + High strength 3D Curved tempered glass | ||||
Protection | IP20 according to EN 60529 | ||||
Cable entry | Rear entry | ||||
Connection electrical | Terminal block max. 1,5 mm² | ||||
Ambient condition | -10..+50 °C, max. 95% rH non-condensing | ||||

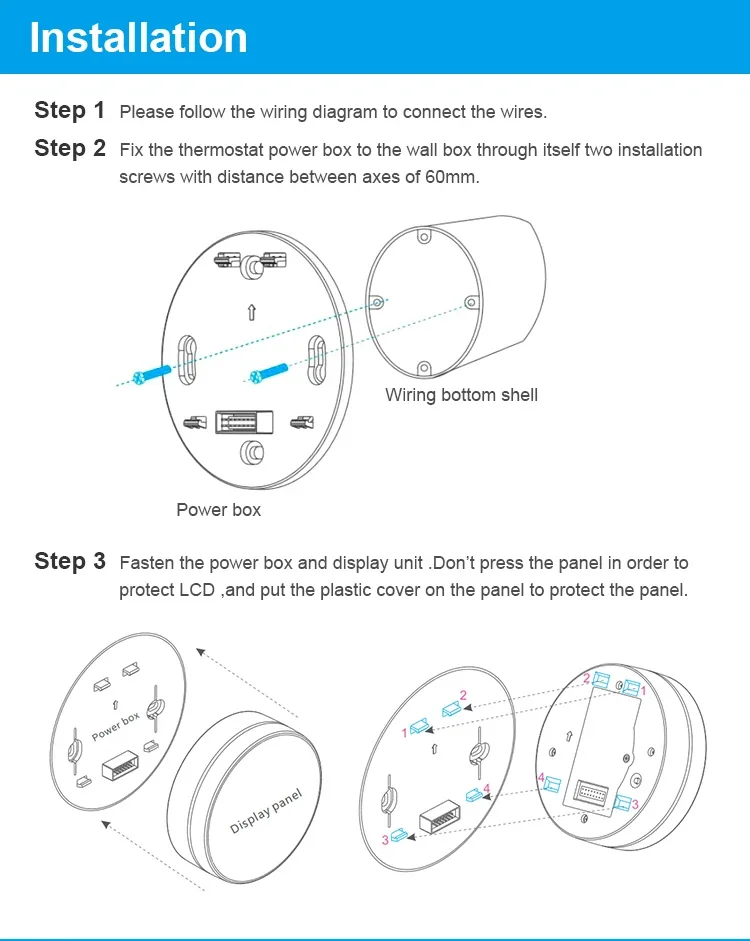

Mounting | Flush mounted with standard 86*86 wall box (Ø=60 mm) | ||||

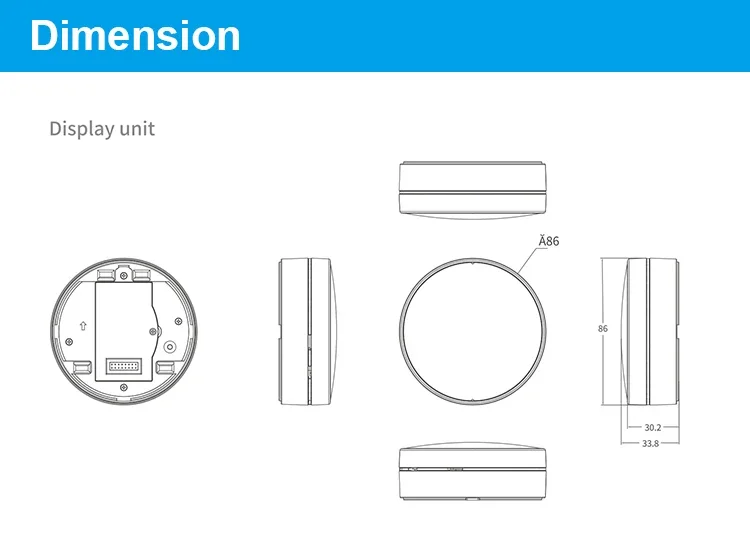

Dimension(L*W*H) | 86*86*61mm | ||||
20-year, we provide OEM ODM service to meet with customer unique requirement, we have 1-plant and 3-office in Shenzhen , Dongguan and Suzhou, there are total about 150 people in our company.
Q2. How can you guarantee quality?
We provide 3-year long warranty for our product from shipping date. And all time life free charge upgraded service.
Q3. Can I order a sample for testing and checking quality?
Yes, for the first order,we welcome sample order to test and check the quality.
Q4. What about your leading time?
Stock items, we can send immediately. Mass production time is about 20-40 days according to your order quantity.
Q5. Why should you buy from us not from other suppliers?
Over 13 years of EMS manufacurer, we have three senior engineer has worked in HVAC filed for more than 20-year, and they have worked in famous brand air conditioner manufacturer in DC inverter technology research, so that they have rich practical experience. Honestly, not big company, but we are accumulating small innovation from client feedback all the time. Dedicated to be reliable brand, we can grow together.
Q6. What services can we provide?
1. Before sale technical consultant service
2. In sale ,technical supports
3. 24-hour online technical supports after sales service
4. Online technical trainning
5. Custom design hardware and software development
Q7. What is the payment method you support?
Alibaba trade assurance, PayPal, Western Union, Bank T/T, Credit card etc.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $47.95 / piece
- 100–499 piece: US $46.85 / piece
- 500–999 piece: US $45.75 / piece
- 1000+ piece: US $44.66 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hvac fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this hvac fan carry?
It is supplied with RoHS CE UKCA documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the hvac fan be supplied for my local voltage?
The standard configuration is relay or analog output. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Bandary Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Bandary Technology Co., Ltd. range on HVACR Nexus.
