Key specification for this hvls fan: 220 V, 230 V, 380 V, 440 V, 1.5KW. Everything below is reproduced from the factory data sheet. Made by Shanghai Yesen Ventilation Equipment Co., Ltd. (11 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Hvls Fan
- Power Supply: 1.5KW
- Voltage: 220 V, 230 V, 380 V, 440 V
- Blade Material: Aluminum Alloy
- Noise Level: 40.0db+
- Speed: 52rpm
- Warranty: 3 Years
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 220 V, 230 V, 380 V, 440 V |
| Speed | 52rpm |
| Blade Material | Aluminum Alloy |
| Blade Diameter | 24 ft |
| No. Of Fan Blades | 6 |
| Noise Level | 40.0db+ |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Core Components | Motor, Gearbox |
| Place Of Origin | Shanghai, China |
| Color | Silver |
| Size | 24FT |
| Power Supply | 1.5KW |
| Motor Type | AC |
| Certification | ce |
| Blade Color | silver |
| Blade Quantity | 5/6/8/10 |
| Air Quantity | 13000-18700m³/min |
| Selling Units | Single item |
| Single Package Size | 78X78X52 cm |
| Single Gross Weight | 125.0 kg |
Product Details
Model no | YS-7300 | YS-6100 | YS-5500 | YS-4900 | YS-3600 | YS-2500 |
Diameter | 24FT | 21FT | 18FT | 16FT | 12FT | 8FT |
Blade number | 6 | 6 | 6 | 6 | 6 | 6 |
Power | 1.5KW | 1.5KW | 1.5KW | 1.1KW | 1.1KW | 0.75KW |
Max speed | 20-50RPM | 20-50RPM | 20-50RPM | 20-72RPM | 20-72RPM | 20-100RPM |
Weight | 140KG | 130KG | 125KG | 120KG | 110KG | 85KG |
Air volume | 13500m3/min | 9000m3/min | 7500m3/min | 6000m3/min | 4500m3/min | 1600m3/min |
Cover area | 850m2 | 550m2 | 460m2 | 370m2 | 260m2 | 90m2 |

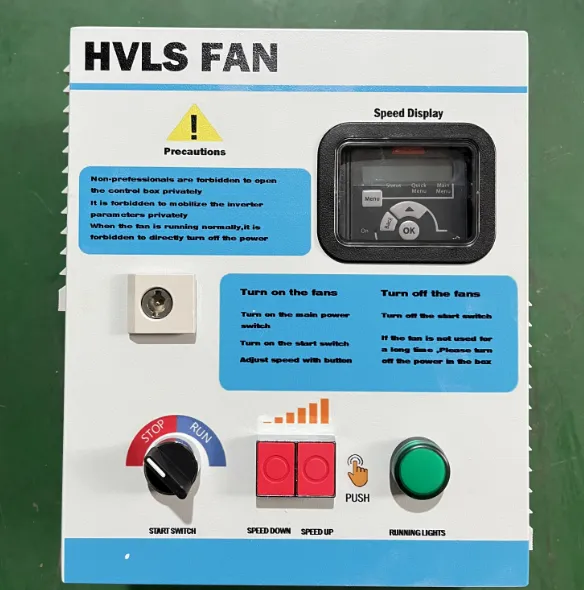

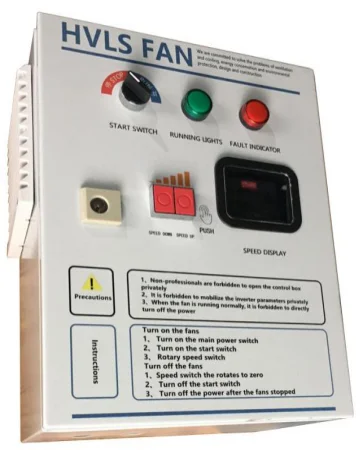

big ceiling fan industrial ceiling fan using Toshiba/Danfoss/Schneider inverterwhich is the most famous inverter in worldwide. The overload protective device in controller box can automatically disconnect the power supply once accident occurs. So safety is assured. You can regulate the wind speed at will by rotary switch. What's more, the inverter can control the fan to rotate in forward and reversing direction. |

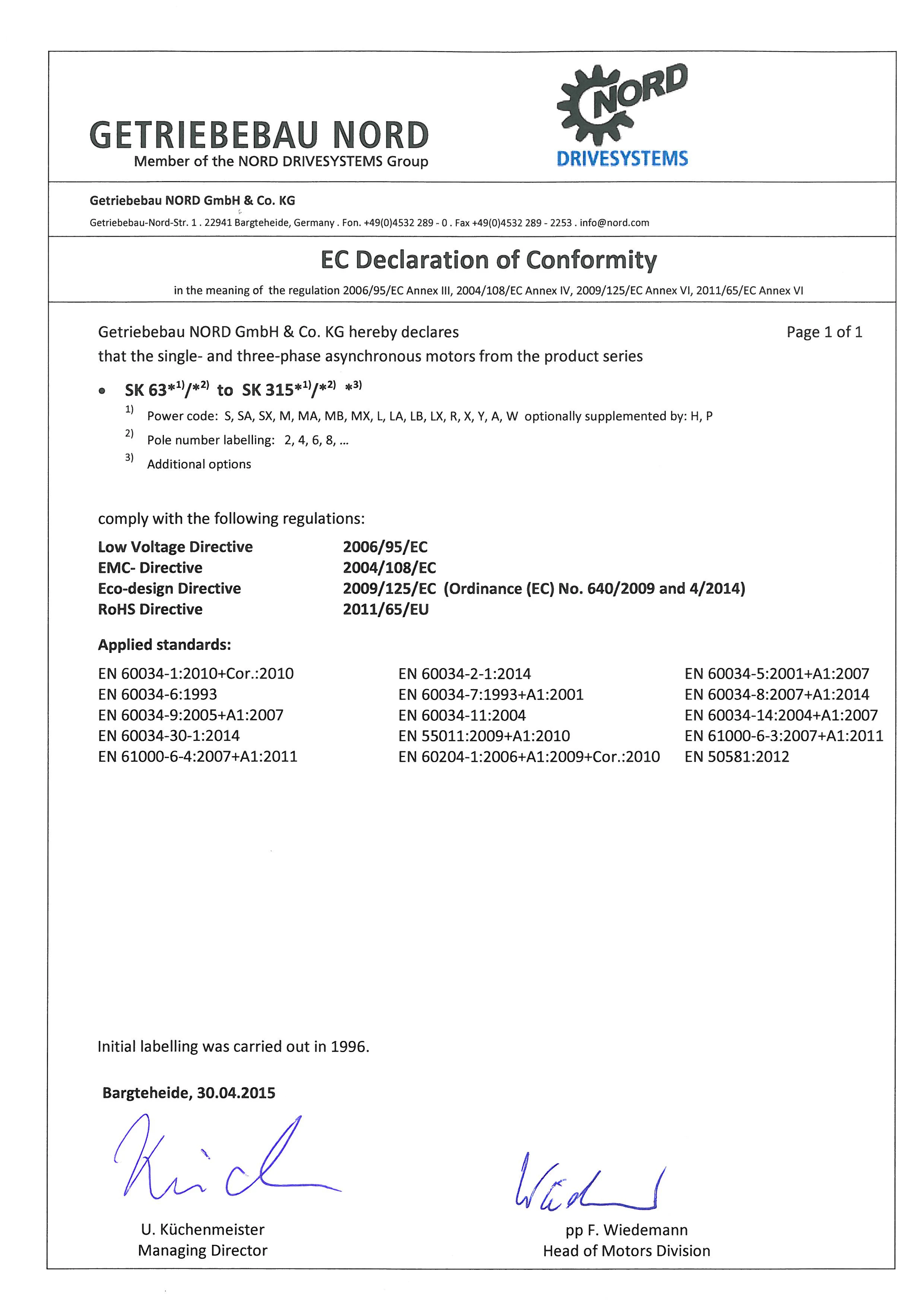

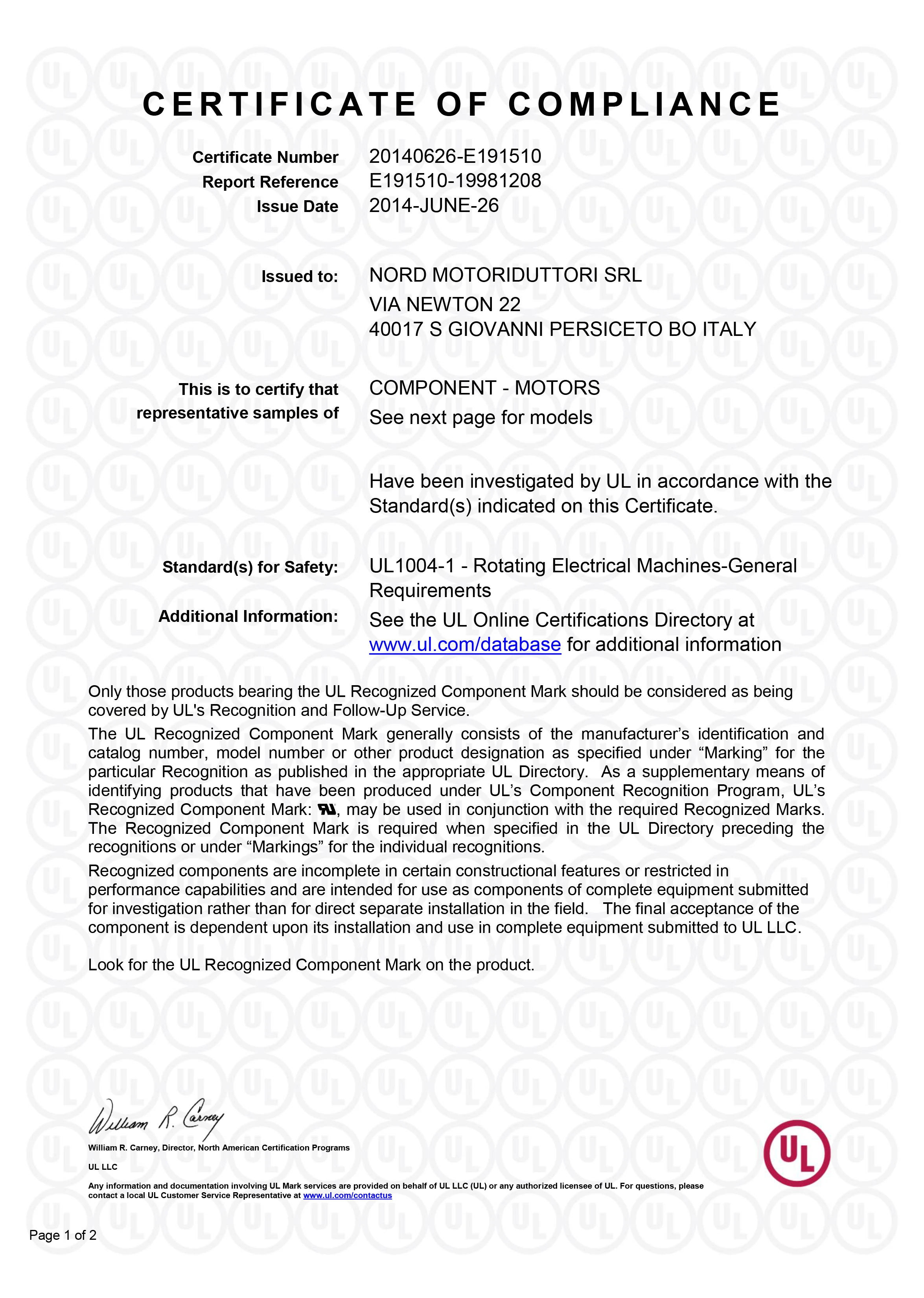

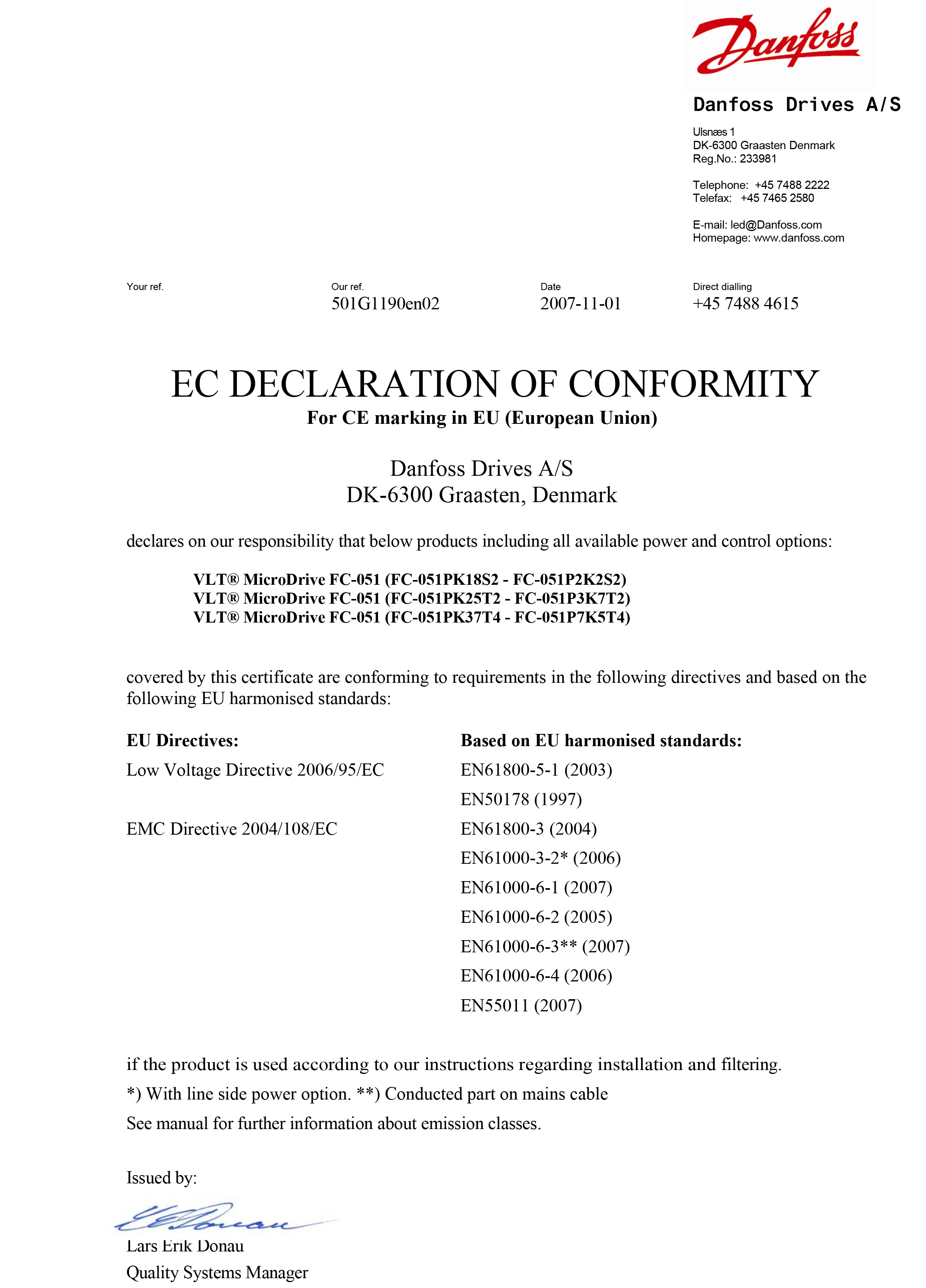

1.Low backlash assembly process and gear grinding technique,lower noise 2.Strength the bearing frame structure,increase oil seal and strength the motor structure with trapezoidal shaft structure,higher safety 3.Passed CCC,CE,UL certificates |
The blade is the core technique of the fan. We use simulation software ANSYS to make the blades with most reasonable transversal surface and inner limiting plate. HVLS fans have 6/8/10 PCS of blades and winglets to ensure maximum airflow and efficiency. Unique designed winglets at the airfoil tips greatly eliminate wind noise. The blades is made of aluminum alloy with plastic spraying finish, so it can resist corrosion and dust very well. |

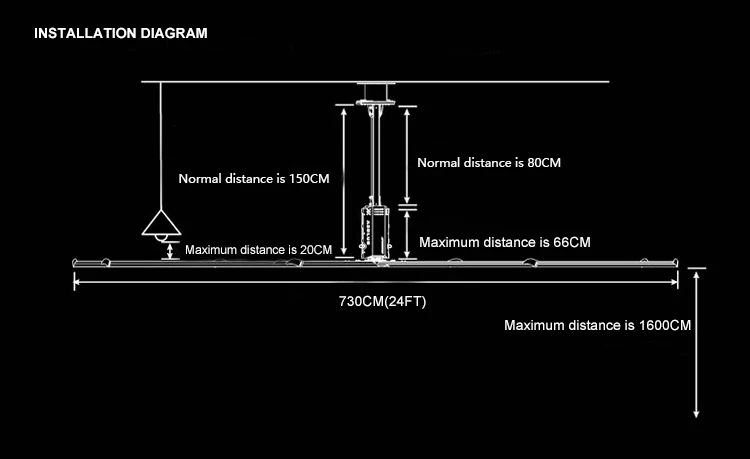

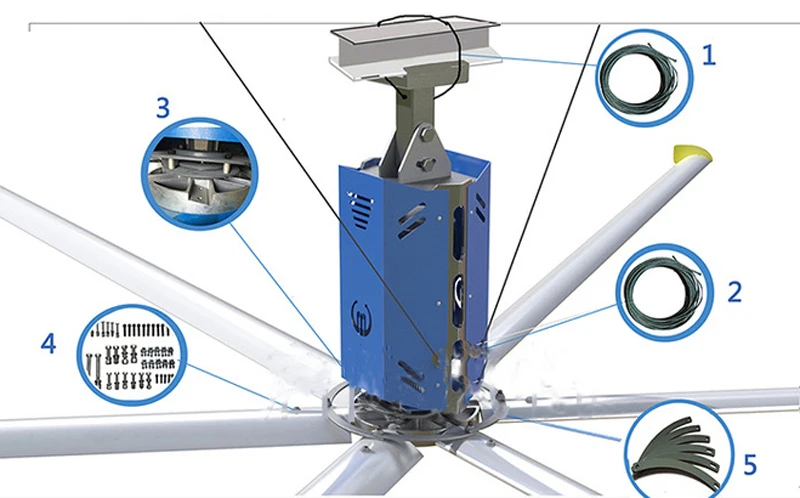

1 | Super thick steel wire rope passing through suspender and steel beam,When the ceiling fan falls off accidentally, lift it firmly |
2 | Four wire ropes pass through the motor shell, the tail end is fixed on the roof, balancing the ceiling fan, and preventing the ceiling fan from falling off accidentally |
3 | Laser cutting integrated molding,no longer have the risk of fracture, no longer have the risk of screw fall off |
4 | grade fastener:all the fasteners use high-intensity industrial bolt,and actualstress can reach more than 10 times, |
5 | Fan blade connector,It connects six individual blades together,To make them whole, and when one fan leaf falls off unexpectedly,Because of the presence of fan-blade connectors,The other blades will pull on the fallen ones |
Motor and Accessories | 0.80M*0.80M*0.50M |
Blade | 3.52M*0.30M *0.30M |
Off season: 150 units in stock
Peak season: 50-100 units in stock
If you need us to prepare goods in advance, please contact us in advance:
1-50 sets, 2 weeks
50-100 sets, 35 days
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.

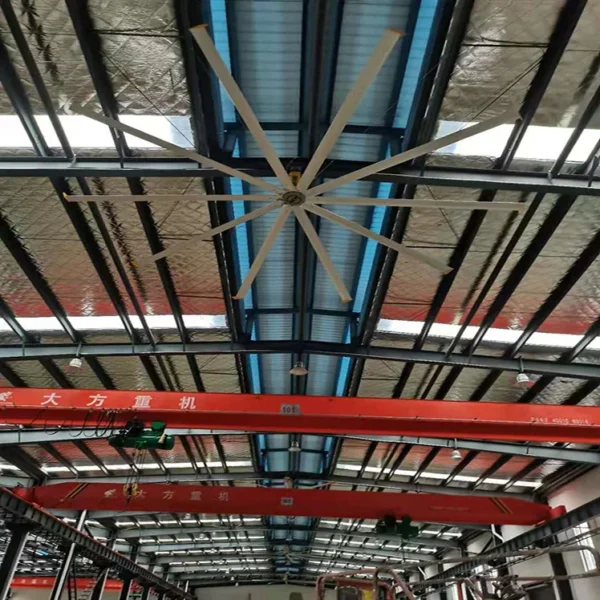

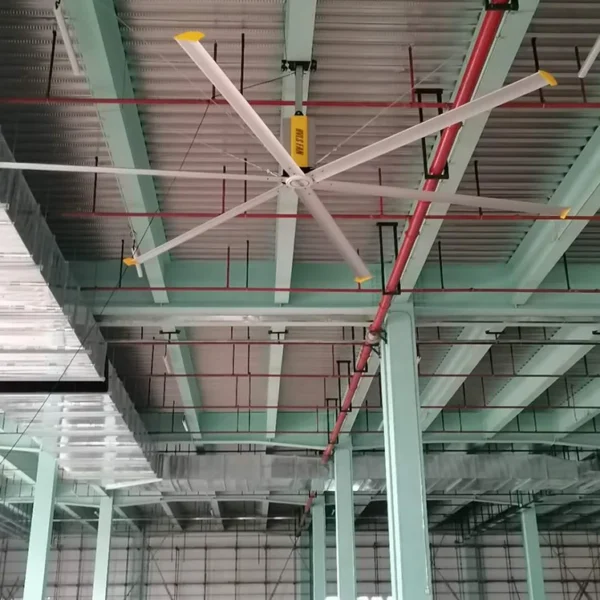

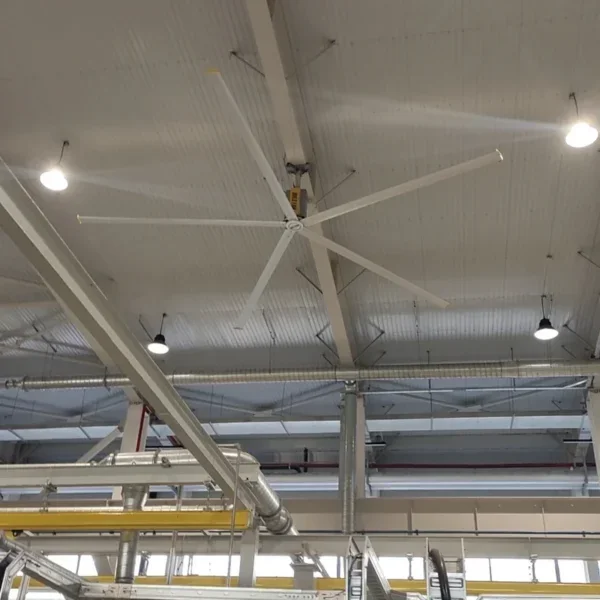

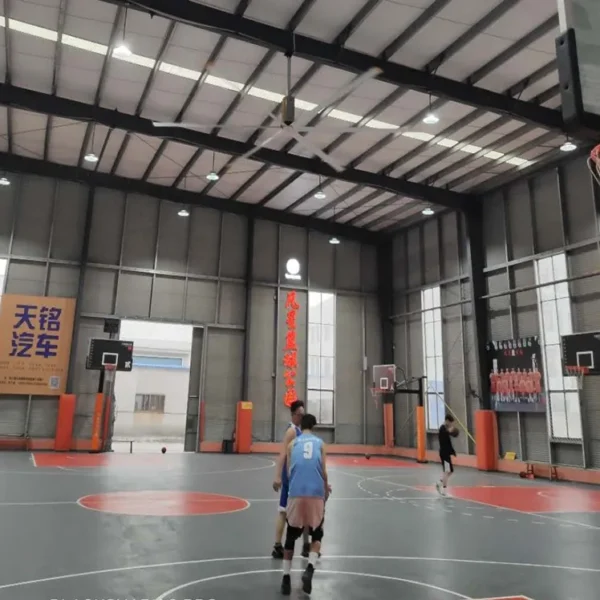

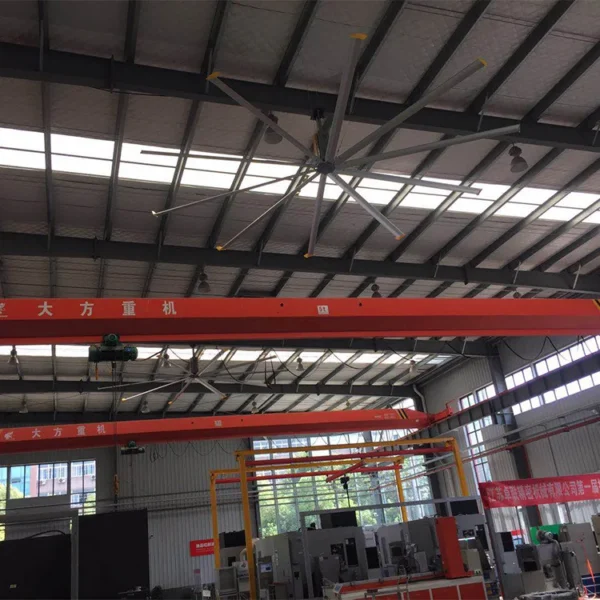

A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
A: We will offer you the best price according to the qty and the model.
A: Normally 7-10 working days.
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–19 set: US $1100 / set
- 20+ set: US $1050 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hvls fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this hvls fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the hvls fan be supplied for my local voltage?
The standard configuration is 220 V, 230 V, 380 V, 440 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Yesen Ventilation Equipment Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shanghai Yesen Ventilation Equipment Co., Ltd. range on HVACR Nexus.
