Key specification for this ice machine: 220V-440V, capacity 2T/24H. Everything below is reproduced from the factory data sheet. Made by Focusun Technology (Shanghai) Corporation (19 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Voltage: 220V-440V
- Ice Storage Capacity: Other
- Capacity: 2T/24H
- Material: SUS304 Staineless Steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 220V-440V |
| Compressor Brand | Bitzer |
| Key Selling Points | Competitive Price |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Gearbox, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu, China |
| Brand Name | Focusun |
| Dimension(L*W*H) | 2800*1400*2000mm |
| Ice Type | Block Shape |
| Product Name | Ice Block Making Machine |
| Capacity | 2T/24H |
| Material | SUS304 Staineless Steel |
| Color | blue |
| Packaging Details | 1. Standard wooden case. 2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine comes into use, customer only need prepare power for the machine. 4. All required components for installing the machine will be provided. |
| Selling Units | Single item |
| Single Package Size | 1X1X1 cm |
| Single Gross Weight | 15.000 kg |
Product Details
Product Description

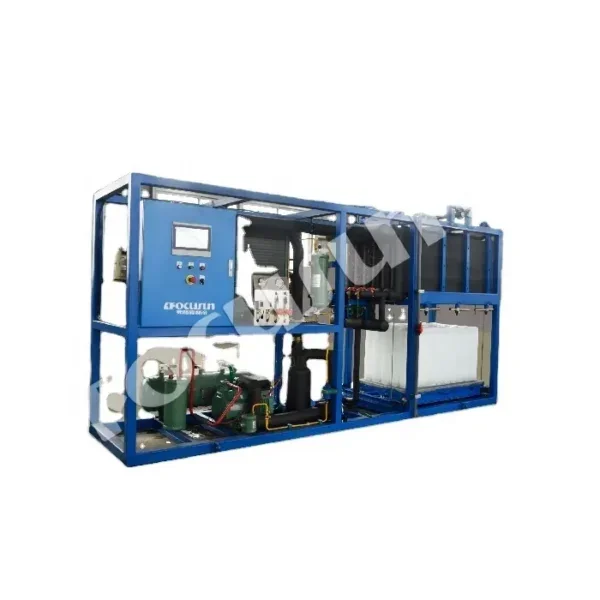

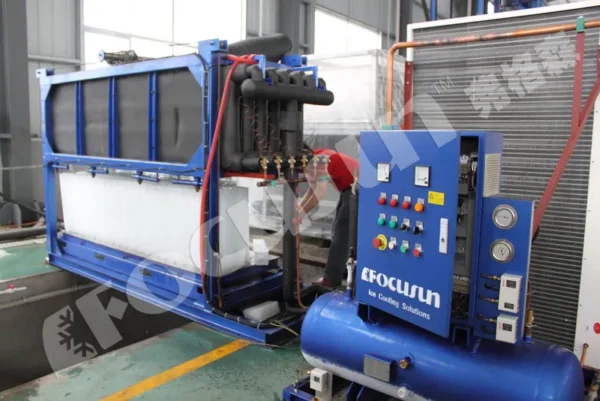

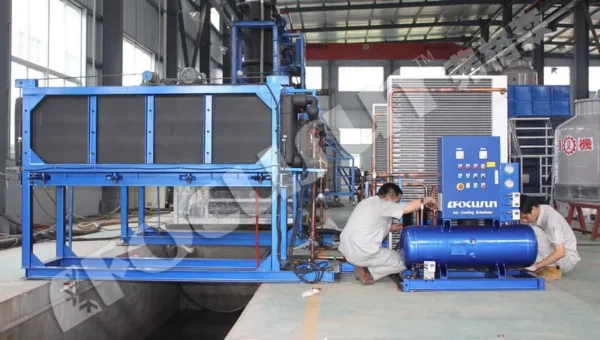

Direct cooling block ice machine introducion:
The Focusun direct-cooling block ice machine adopts the new German technology, which has excellent cooling effect and low carbon dioxide emission value. The machine adopts modular design, plug and play electronic operating system, especially designed for tropical and coastal environmental conditions.
Working principle
Ice making principle:
During ice making, water is automatically injected into the ice box. The refrigerant in the outer channel of each ice box is
directly heat exchanged with water, and the water in the water tank is then cooled and frozen. At this time, the system will
automatically switch to the deicing mode, and the hot gas will melt the ice surface. The whole deicing process will only take 25 minutes to complete.
directly heat exchanged with water, and the water in the water tank is then cooled and frozen. At this time, the system will
automatically switch to the deicing mode, and the hot gas will melt the ice surface. The whole deicing process will only take 25 minutes to complete.
Product Features
Equipment features:
1. Full-automatic ice making and deicing process reduces labor output and saves time and labor.
2. The evaporator adopts special aluminum alloy plate to ensure the service life of the ice maker and meet the food hygiene requirements.
3. Integrated unit, compact design and space saving.
4. The Bitzer semi-closed piston compressor is adopted, which is efficient and reliable.
5. Siemens PLC control system and touch screen control system are adopted with strong anti-interference ability.
6. Danfoss expansion valve, Danfoss high and low pressure controller and high and low pressure meter are adopted to improve reliability.
7. The ice storage device adopts steel wire rope and one-button lifting system, which is easy to install and more durable.
8. The ice mold is made of special aluminum alloy to ensure that the ice is clean and sanitary.
2. The evaporator adopts special aluminum alloy plate to ensure the service life of the ice maker and meet the food hygiene requirements.
3. Integrated unit, compact design and space saving.
4. The Bitzer semi-closed piston compressor is adopted, which is efficient and reliable.
5. Siemens PLC control system and touch screen control system are adopted with strong anti-interference ability.
6. Danfoss expansion valve, Danfoss high and low pressure controller and high and low pressure meter are adopted to improve reliability.
7. The ice storage device adopts steel wire rope and one-button lifting system, which is easy to install and more durable.
8. The ice mold is made of special aluminum alloy to ensure that the ice is clean and sanitary.

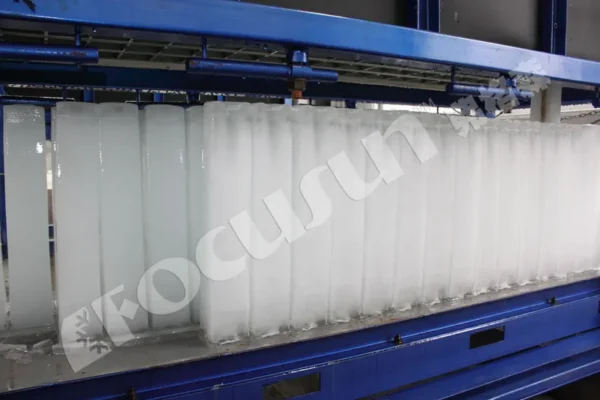

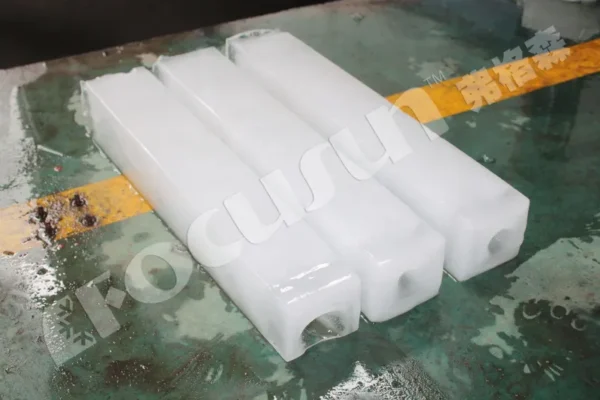

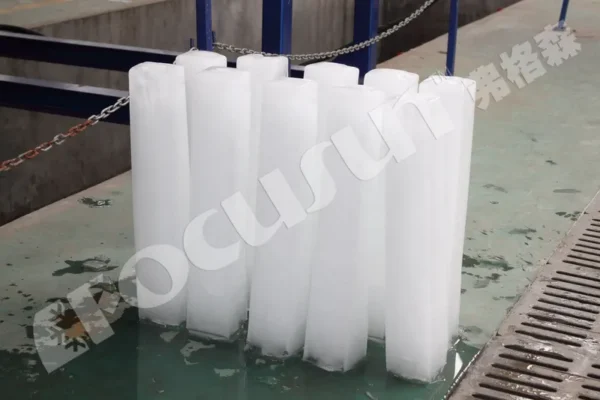

Block ice
color
The ice has creamy white, transparent and other colors. Transparent ice can be used to make ice sculptures.
shape
Block ice is relatively dense, not easy to melt, and has a long shelf life.
transport
The shape of the ice block makes it convenient for storage and transportation.
Comparison
Direct cooling block ice machine
Brine refrigeration block ice machine
Comparison between the direct and brine refrigeration technology in block ice making:
1 Difference of cost
Brine system block ice have a advantage that Initial investment is lower. But in long run. to consider energy consumption and the cost for replacing the ice cans and brine tank, the direct technology is more economical.
2 Difference of ice discharge time
For direct technology, just 20 Mins enough for the whole batch of blocks discharging at the same time.
For brine technology ice, to large degree discharge's time depends on the worker's proficiency. Usually, lift one row ice bucket, melting, doffing, feed water, put into brine water tank, the complete process takes about 15 mins. After one row discharge finished, another row started. Considering workers' manual operation, you can also take another 20 mins for granted.
3 Material choice dilemma
For the brine refrigeration type block ice maker, the ice cans of galvanized steel is easy to be corrosive, but if you choose
stainless steel ice cans, the price is more expensive.
Brine system block ice have a advantage that Initial investment is lower. But in long run. to consider energy consumption and the cost for replacing the ice cans and brine tank, the direct technology is more economical.
2 Difference of ice discharge time
For direct technology, just 20 Mins enough for the whole batch of blocks discharging at the same time.
For brine technology ice, to large degree discharge's time depends on the worker's proficiency. Usually, lift one row ice bucket, melting, doffing, feed water, put into brine water tank, the complete process takes about 15 mins. After one row discharge finished, another row started. Considering workers' manual operation, you can also take another 20 mins for granted.
3 Material choice dilemma
For the brine refrigeration type block ice maker, the ice cans of galvanized steel is easy to be corrosive, but if you choose
stainless steel ice cans, the price is more expensive.
Product Application
1. Fisheries and aquatic food processing;
2. Vegetables distribution and fresh-keeping;
3. Supermarket/hotel fresh keeping;
4. Edible ice,
5. ice carving etc.
2. Vegetables distribution and fresh-keeping;
3. Supermarket/hotel fresh keeping;
4. Edible ice,
5. ice carving etc.
Packing & Delivery
PACKING DETAILS
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with
reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with
reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.

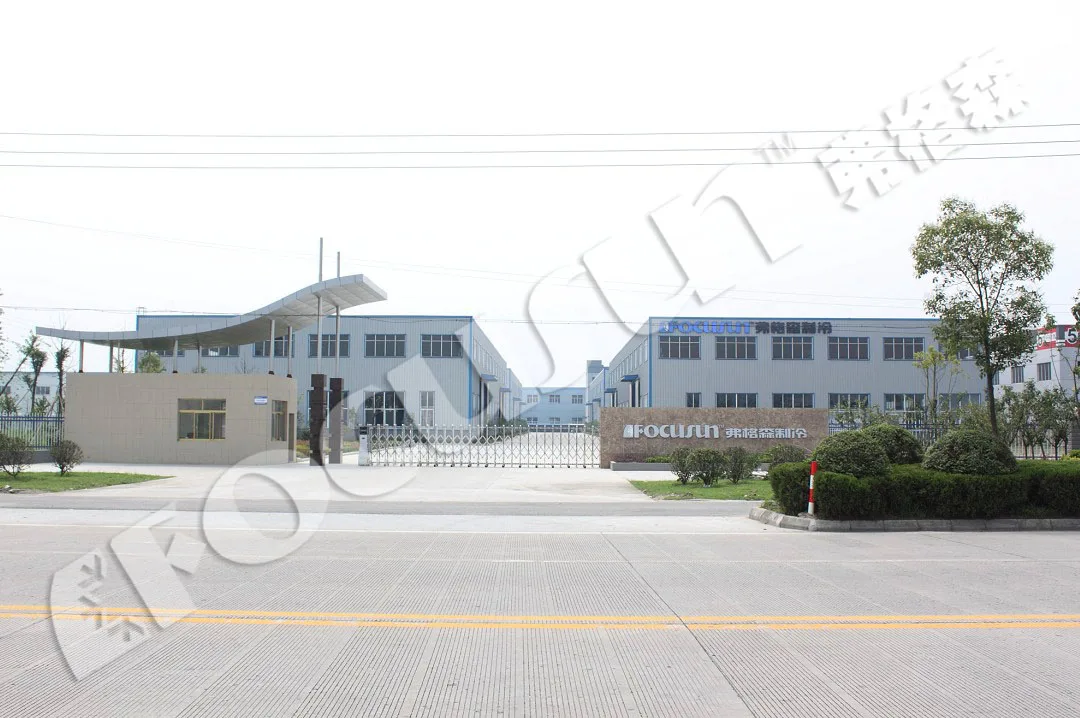

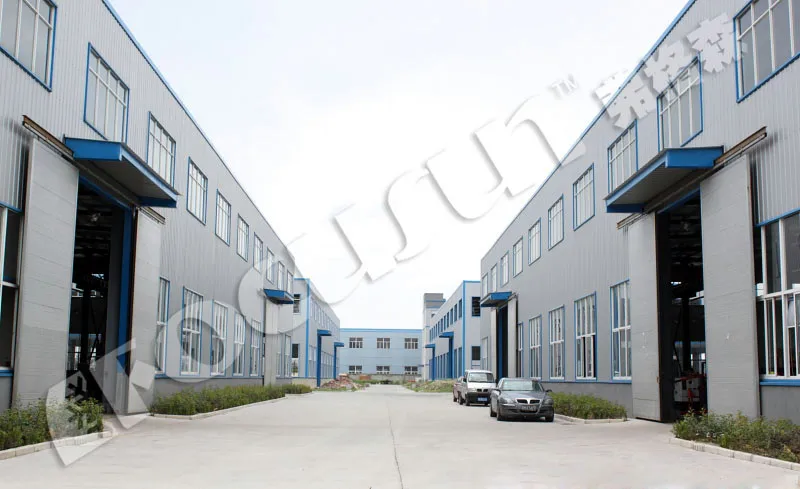

our company
As the top manufacturer of ice machine in China, Focusun™ dedicates itself into researching and developing advanced refrigeration technology. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, slurry ice machine, water chiller, vacuum cooler, concrete cooling system, automatic ice storage system, dynamic ice storage system, snow making system, ice crusher and all kinds of cold rooms.
Related Products
snow making machine
water chiller
Ice tube plant
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–2 unit: US $2999 / unit
- 3+ unit: US $2500 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 220V-440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Focusun Technology (Shanghai) Corporation, based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Focusun Technology (Shanghai) Corporation range on HVACR Nexus.
