Key specification for this ice machine: 380v, 23.18KW. Everything below is reproduced from the factory data sheet. Made by Foshan Omex Industry Co., Limited (9 years on the platform, typical reply ≤8h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Model Number: OTF50-LFK
- Power: 23.18KW
- Voltage: 380v
- Ice Storage Capacity: 5000kg
- Max, Production Capacity: 5,000kg/24hours
- Refrigerant: R22
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | 5000kg |
| Voltage | 380v |
| Power | 23.18KW |
| Compressor Brand | Danfoss |
| Key Selling Points | Easy To Operate |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Pump, Engine |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Not Available |
| Place Of Origin | Guangdong, China |
| Brand Name | OMT |
| Model Number | OTF50-LFK |
| Dimension(L*W*H) | 2000*1650*1470mm |
| Model | OTF50 |
| Max, Production Capacity | 5,000kg/24hours |
| Water Source | for fresh water |
| Water Pressure | 0.1-0.5MPA |
| Ice Freezing Surface | Carbon steel |
| Compressor | Brand: Germany Bitzer |
| Refrigerant | R22 |
| Condenser | Air cooled type |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model | OTF50 | ||
Max. production capacity | 5,000kg/24hours | ||
Water Source | for fresh water | ||
Water pressure | 0.1-0.5MPA | ||
Ice freezing surface | Carbon steel | ||
Ice temperature | -5 degree | ||
Compressor | Brand: Germany Bitzer | ||
Type: Semi-Hermetic Piston | |||
Power: 28HP | |||
Refrigerant | R22 | ||

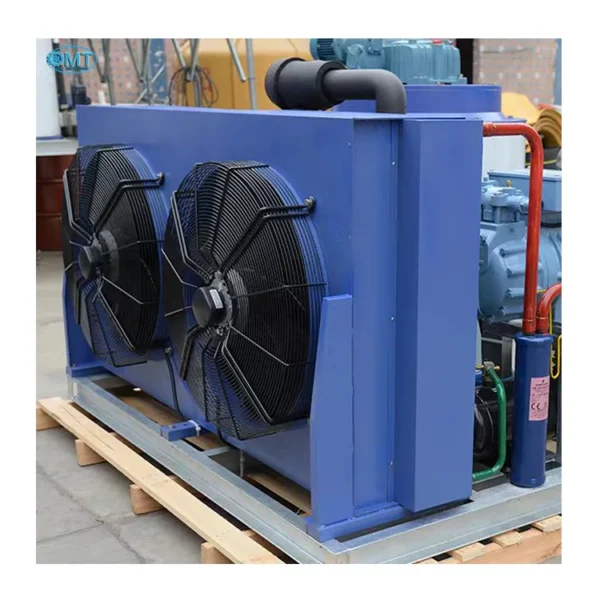

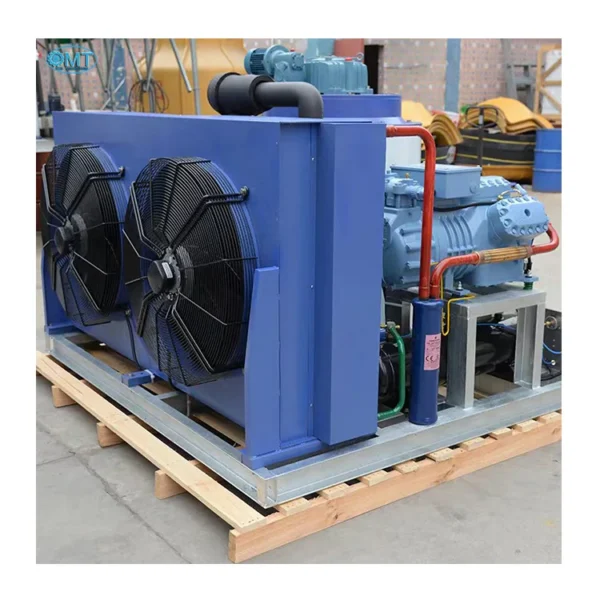

Condenser | Air cooled type | ||
Operating power | Condenser power | 3.2KW | |
Reducer | 0.37KW | ||
water pump | 0.12KW | ||
Compressor power | 19.49KW | ||
Total power | 23.18KW | ||
Electricity connection | 380V, 50Hz, 3phase | ||
Control format | By press button/touch screen | ||
Controller | Korea LG/LS PLC | ||
Machine size (include bin) | 2000*1650*1470mm | ||
Weight | 960kg | ||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $15500 / set
- 3+ set: US $12500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Omex Industry Co., Limited, based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Omex Industry Co., Limited range on HVACR Nexus.
