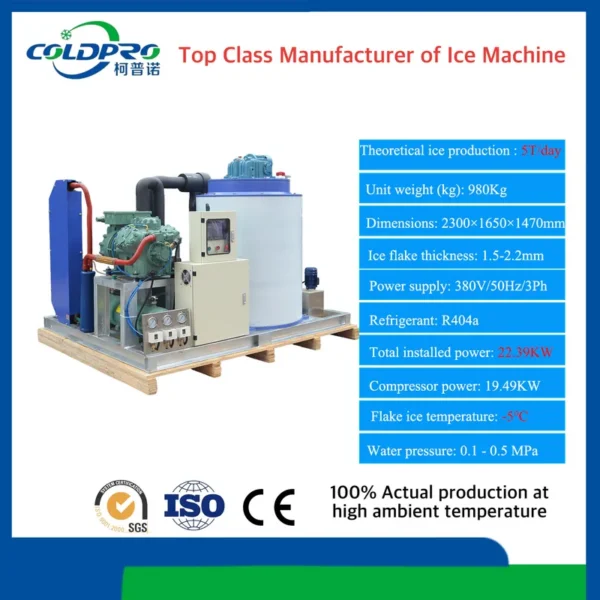

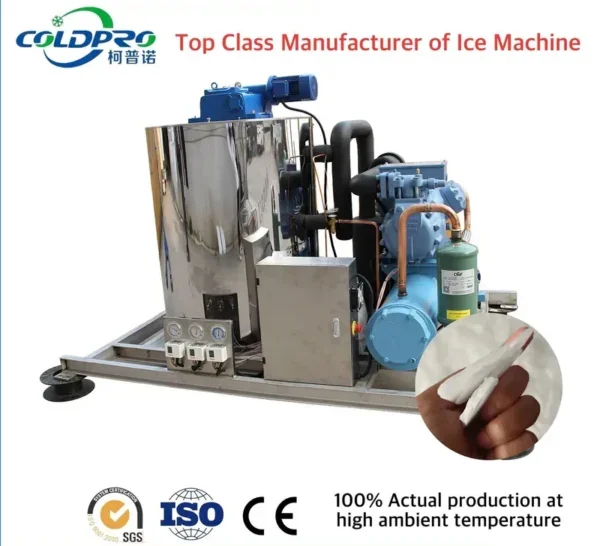

Ice machine — 380 V, 220 V, 19.6KW. The complete factory specification follows. Made by Changzhou Coldpro Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Model Number: CF-5T
- Power: 19.6KW
- Voltage: 380 V, 220 V
- Ice Storage Capacity: 5T
- Warranty: 2 Years
- Certification: CE ISO9001
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Size(Kg) | 1.6mm-2.3mm |
| Ice Storage Capacity | 5T |
| Voltage | 380 V, 220 V |
| Power | 19.6KW |
| Compressor Brand | Bitzer |
| Key Selling Points | Food-grade materials |
| Application | Industrial |
| Warranty | 2 Years |
| Core Components | Bearing, Gear, Ice skates, evaporator |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu, China (Mainland) |
| Weight (Kg) | 960 |
| Brand Name | COLDPRO |
| Model Number | CF-5T |
| Dimension(L*W*H) | 2070*1650*1470mm |
| After-Sales Service Provided | Overseas Machinery Service |
| Certification | CE ISO9001 |
| Cooling Mode | Air Cooling |

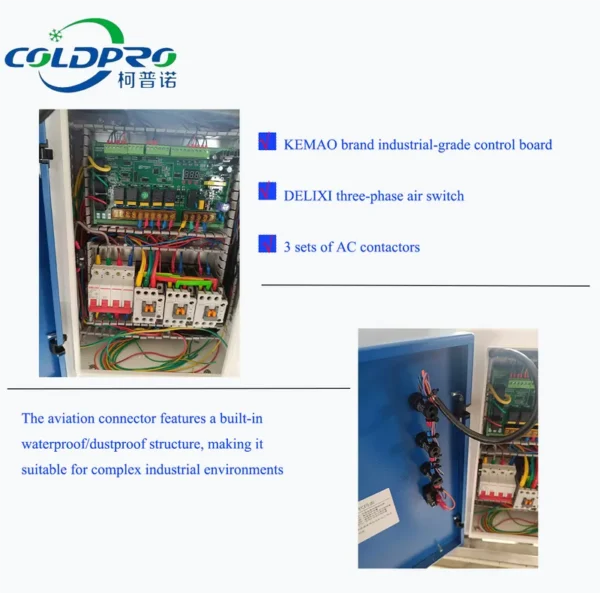

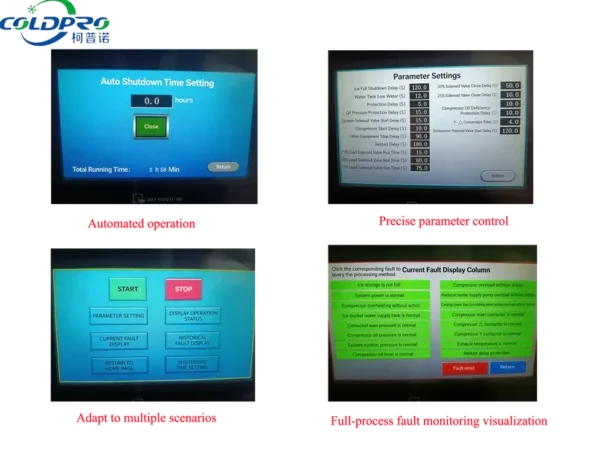

| Control System | PLC+Touch Screen |
| Name | Flake ice making machine |
| Selling Units | Single item |
| Single Package Size | 207X165X147 cm |
| Single Gross Weight | 960.000 kg |
Product Details
Products Description
Technical Parameters
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional.
* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional.
* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).
Model | 24H Ice Production | Ice Storage | Voltage Power | Cooling Methode | Weight | Machine Size |
CF-0.3T | 300KG | 150KG | 380/220V/1.5KW | Air/Water | consult us about the weight of our flake ice machines with or without ice storage bins | 1050*800*1465mm |
CF-0.5T | 500KG | 300KG | 380/220V/2.6KW | Air/Water | 1170*900*1720mm | |
CF-1T | 1000KG | 400KG | 380/220V/4.6KW | Air/Water | 1370*1030*2035mm | |
CF-1.2T | 1200KG | 400KG | 380/220V/5.8KW | Air/Water | 1370*1030*2035mm | |
CF-1.5T | 1500KG | 400KG | 380/220V/7.1KW | Air/Water | 1370*1030*2135mm | |
CF-2T | 2000KG | 500KG | 380/220V/8.5KW | Air/Water | 1440*1200*2250mm | |
CF-2.5T | 2500KG | 800KG | 380/220V/9.6KW | Air/Water | 1640*1400*2350mm | |
CF-3T | 3000KG | 1000KG | 380/220V/11KW | Air/Water | 1740*1400*2400mm | |
CF-4T | 4000KG | Custom | 380/220V/15.7KW | Air/Water | 870KG | 1500*1200*1200mm |
CF-5T | 5000KG | 380/220V/19.5KW | Air/Water | 960KG | 2070*1650*1470mm | |
CF-6T | 6000KG | 380/220V/22.5KW | Air/Water | 960KG | 2070*1650*1470mm | |
CF-8T | 8000KG | 380/220V/26.6KW | Air/Water | 1670KG | 2330*1890*1630mm | |
CF-10T | 10T | 380/220V/44.3KW | Air/Water | 2250KG | 2500*1900*1890mm | |
CF-12T | 12T | 380/220V/45.5KW | Air/Water | 2680KG | 2500*1900*2130mm | |
CF-15T | 15T | 380/220V/55.9KW | Air/Water | 3650KG | 2500*1900*2390mm | |
CF-20T | 20T | 380/220V/63.2KW | Air/Water | 4410KG | 3300*2100*2200mm | |
CF-25T | 25T | 380/220V/78.5KW | Air/Water | 4960KG | 3300*2100*2500mm | |
CF-30T | 30T | 380/220V/104.4KW | Air/Water | 5380KG | 4100*2000*2650mm | |
CF-40T | 40T | 380/220V/131.25KW | Air/Water | 9600KG | 5200*2360*3450mm | |
CF-50T | 50T | 380/220V/198.75KW | Air/Water | 11500KG | 5500*2360*3780m |
100% Rated Output Guaranteed Intelligence and High Efficiency
—-The technology of our industrial flake ice machines is the core of our business. Designed for simplicity, they are dependable,durable and reliable.Failure rate near zero, reliable quality guaranteed. Both owners personally oversee after-sales service for superior careand efficiency.
—-Coldpro’s industrial flake ice machines produce fresh, clean flake ice (scale ice), 1.8-2.2mm thick, ideal for food and
fishing industries.Water forms a film on the inner drum, freezes into ice, is sub-cooled to be brittle, then scraped into storage by an ice knife.

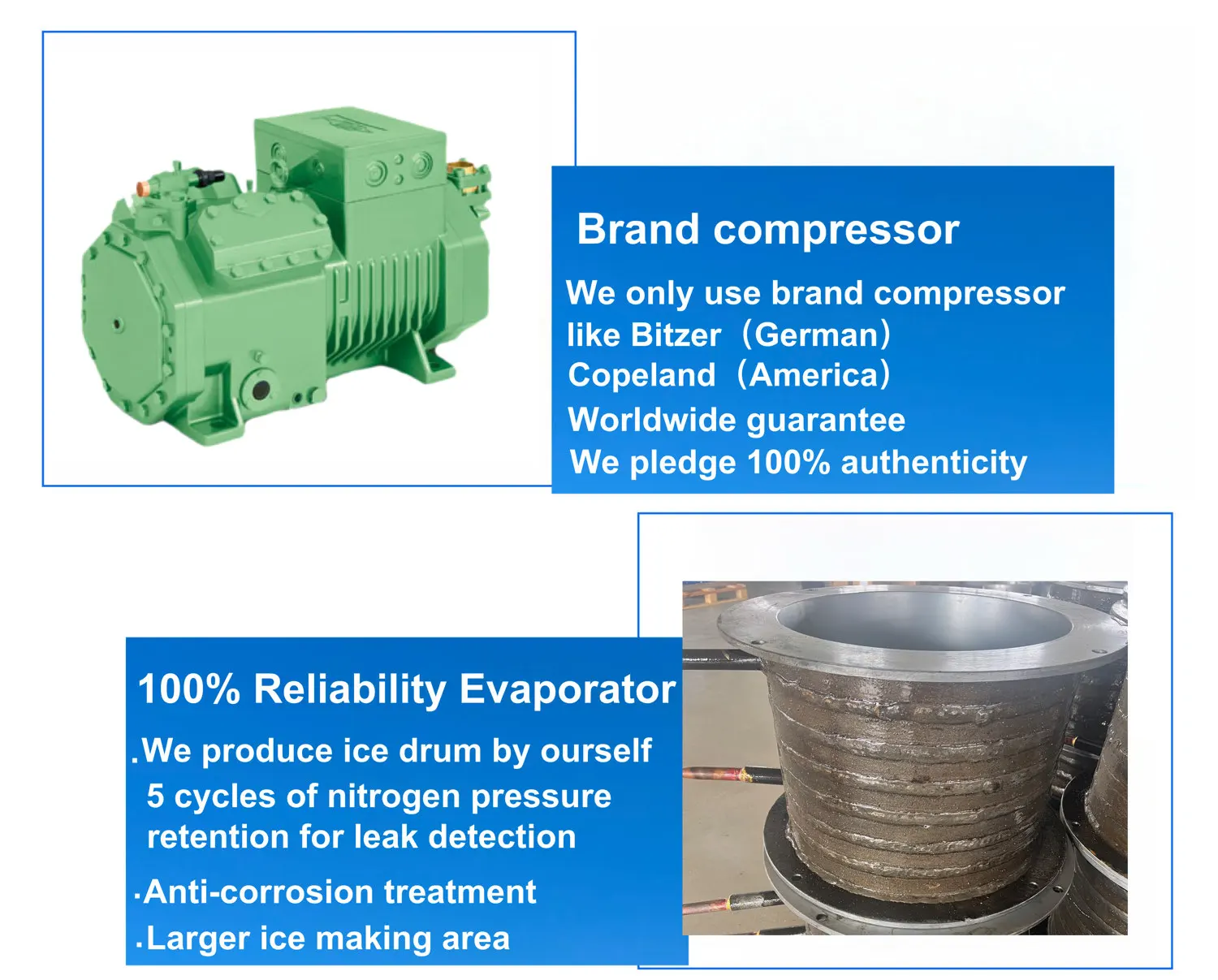

—-All ice drums for our flake ice machines are manufactured by ourselves. Every drum is tested 5 times with nitrogen pressure and kept for over half a year to guarantee no leakage at all.

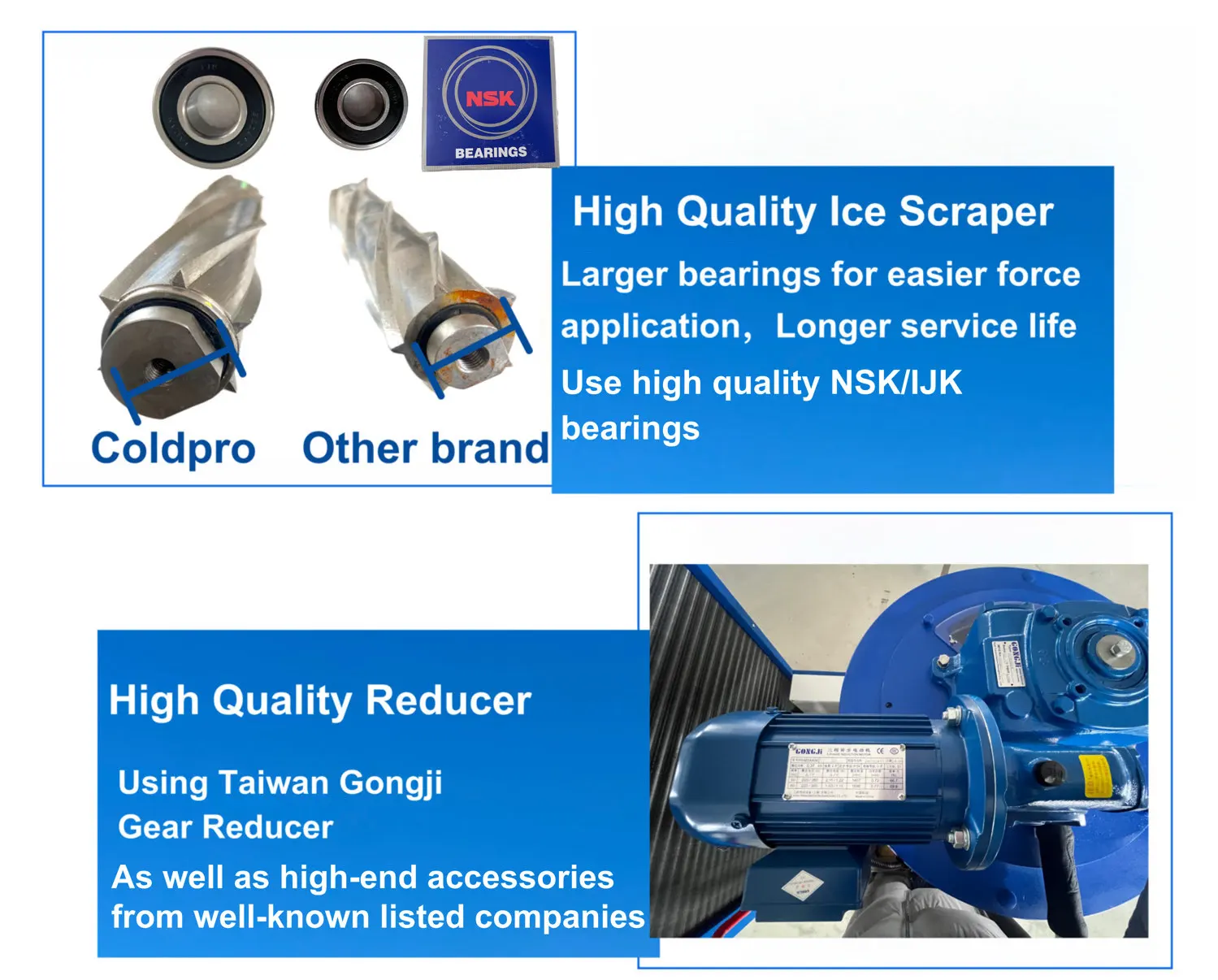

—-Equipped with heavy-duty food-grade stainless steel ice knives, the machine adopts non-contact ice scraping technology, which means the knives scrape ice flakes without direct contact with the inner wall of the vertical ice drum. This professional design is tailored or long-term industrial continuous operation, with stable performance and strong wear resistance.
—-All equipment complies with the strictest food safety standards, suitable for the food industry.Each machine is fully tested before delivery and is plug-and-play.
—-Different from commercial models in capacity, our industrial machines produce up to 50 tons per day, available in water-cooled (with cooling tower) and evaporative-cooled versions.
—-Coldpro’s industrial flake ice machines produce fresh, clean flake ice (scale ice), 1.8-2.2mm thick, ideal for food and
fishing industries.Water forms a film on the inner drum, freezes into ice, is sub-cooled to be brittle, then scraped into storage by an ice knife.
—-All ice drums for our flake ice machines are manufactured by ourselves. Every drum is tested 5 times with nitrogen pressure and kept for over half a year to guarantee no leakage at all.
—-Equipped with heavy-duty food-grade stainless steel ice knives, the machine adopts non-contact ice scraping technology, which means the knives scrape ice flakes without direct contact with the inner wall of the vertical ice drum. This professional design is tailored or long-term industrial continuous operation, with stable performance and strong wear resistance.
—-All equipment complies with the strictest food safety standards, suitable for the food industry.Each machine is fully tested before delivery and is plug-and-play.
—-Different from commercial models in capacity, our industrial machines produce up to 50 tons per day, available in water-cooled (with cooling tower) and evaporative-cooled versions.

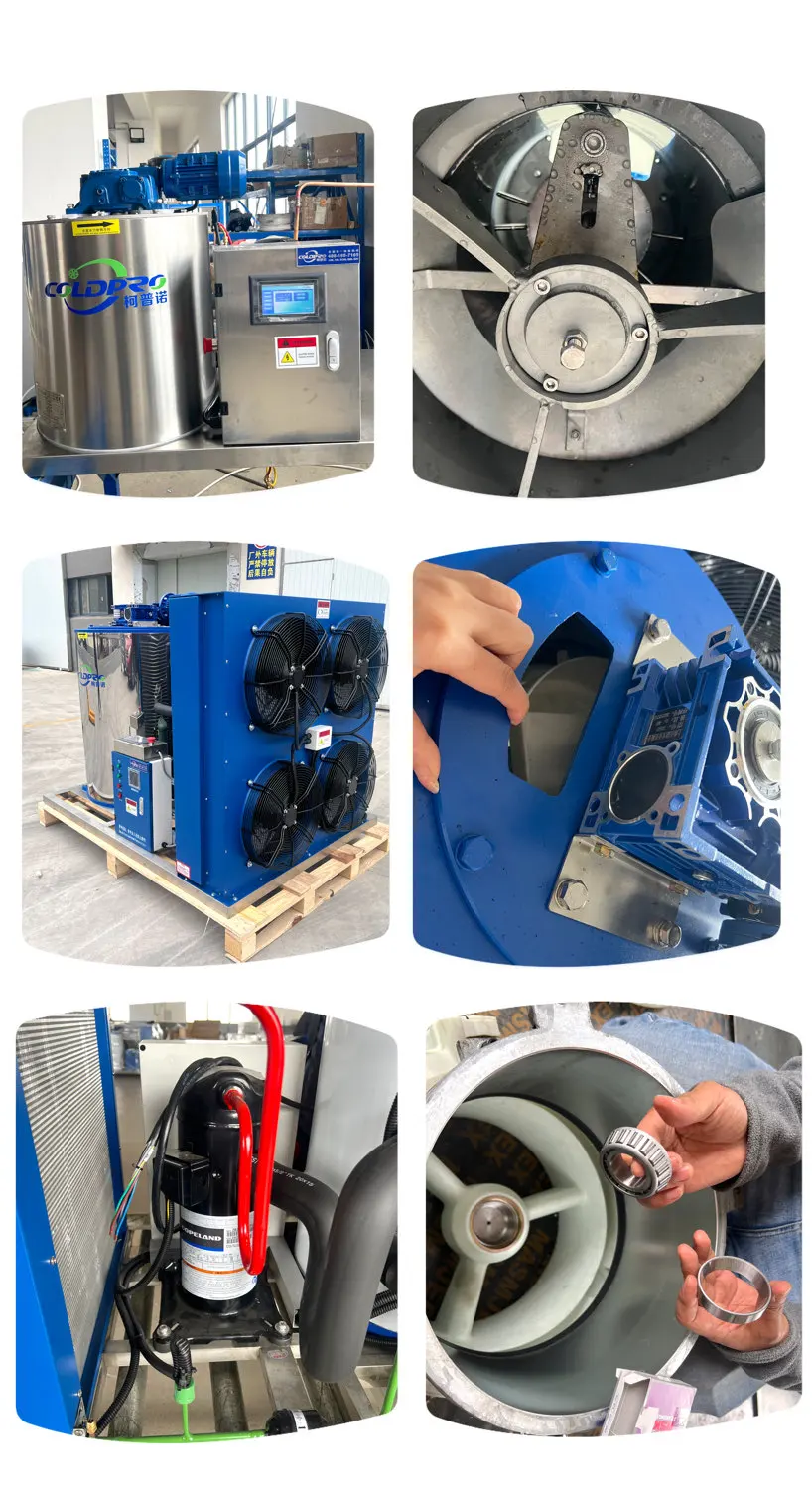

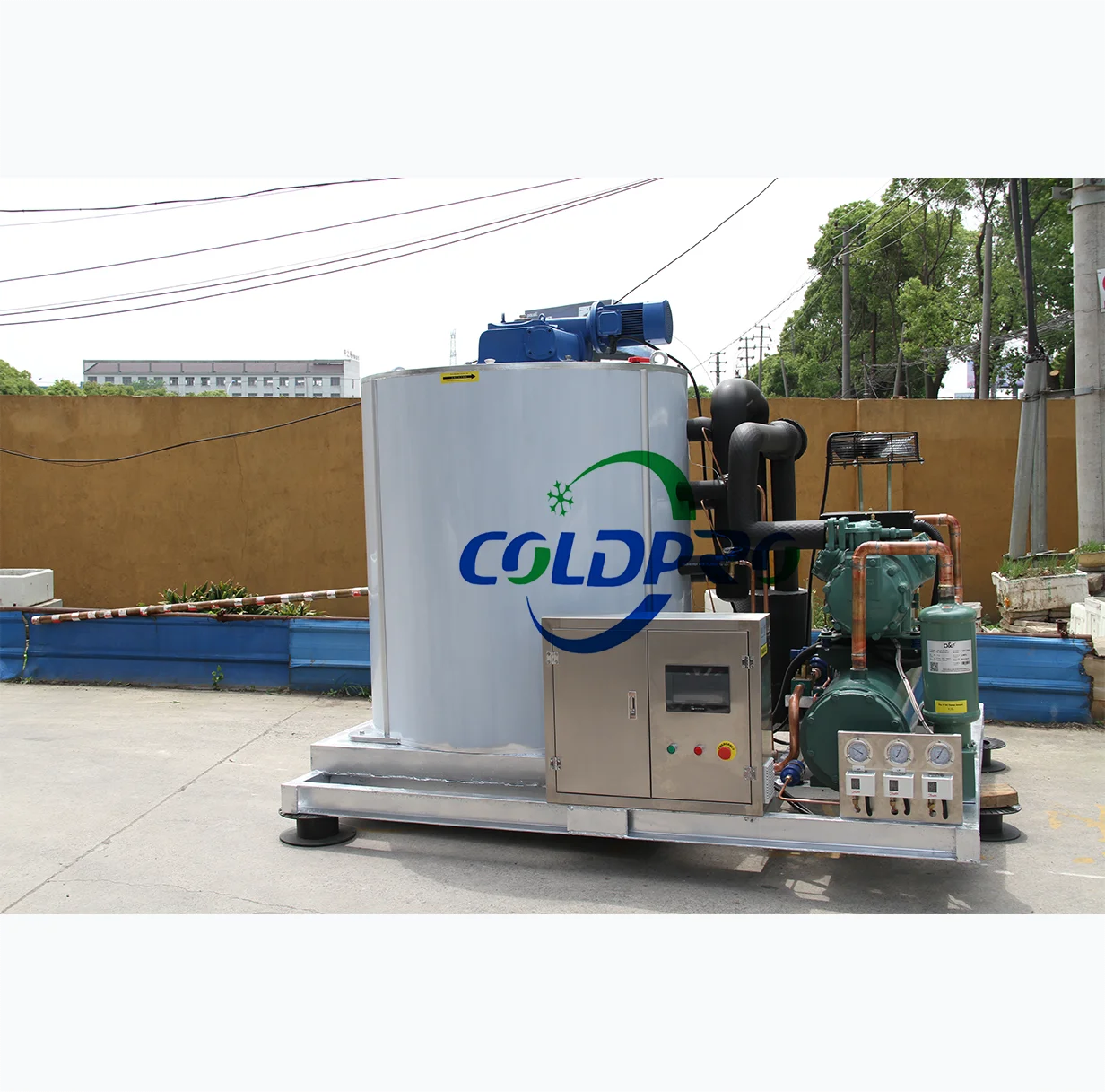

Machine Show

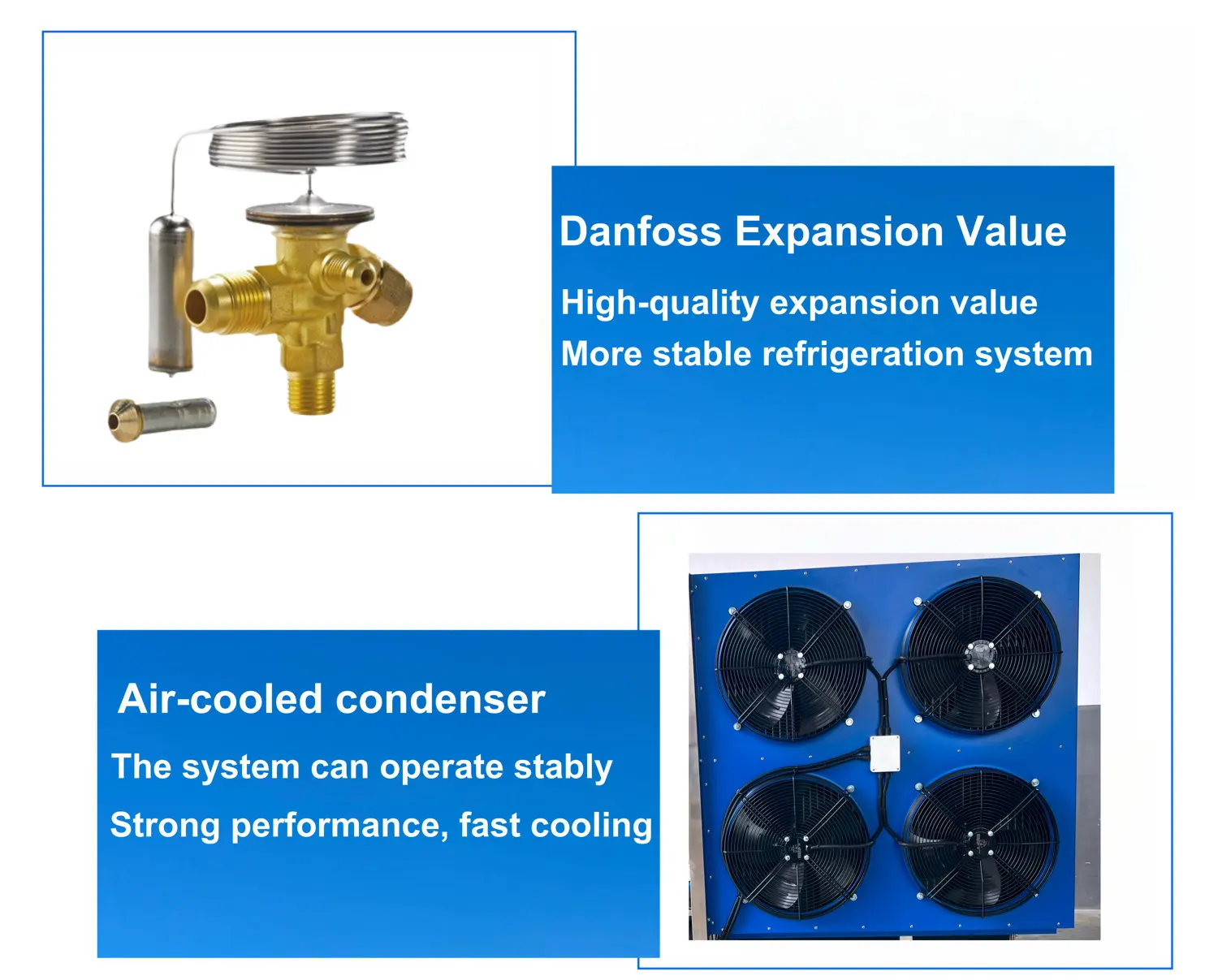

Product Advantages
Company Profile
High-end Ice Maker Manufacturer
Changzhou Coldpro Refrigeration Equipment Co., Ltd., based in Changzhou, China, is a professional manufacturer specializing in high-end ice makers. Focused on R&D, production and sales of premium ice making equipment, we offer a full range of commercial and industrial ice makers, including cube ice, flake ice ,tube ice and block ice machines. Adopting advanced refrigeration technology, strict quality control and premium materials, our products feature high efficiency, energy saving, stable performance and long service life.
We stick to quality-oriented and customer-first principles, providing reliable products and customized solutions for global clients. Committed to becoming a leading supplier in the ice making equipment industry, we strive to build long-term win-win partnerships with customers worldwide.
Package and Delivery
FAQ
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C What’s the power supply?
D. What is the application of the ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C What’s the power supply?
D. What is the application of the ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
F.Where is it mainly used, and in which city?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of COLDPRO.
B. Installed by COLDPRO engineers.
a. COLDPRO would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before COLDPRO engineers arrive.
B. Installed by COLDPRO engineers.
a. COLDPRO would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before COLDPRO engineers arrive.
3. Warranty & Technical support
A. 2 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, COLDPRO will supply the spare parts for free.
C.COLDPRO provide full technical support and training courses after equipment installation and commissioning.
D. Permanent technical support & consultation all life long for the machines.
E. Over 50 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance.
B. Any failure occurred within the period due to our responsibility, COLDPRO will supply the spare parts for free.
C.COLDPRO provide full technical support and training courses after equipment installation and commissioning.
D. Permanent technical support & consultation all life long for the machines.
E. Over 50 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance.
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. COLDPRO engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. COLDPRO engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $13400 / set
- 2–4 set: US $12730 / set
- 5+ set: US $12060 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with CE ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Coldpro Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changzhou Coldpro Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
