The ice machine listed here carries 380V/420V, 50Hz, 3P, refrigerant R22 or R404a, documented exactly as the manufacturer publishes it. Made by Guangzhou Koller Refrigeration Equipment Co., Ltd. (19 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machine
- Voltage: 380V/420V, 50Hz, 3P
- Ice Storage Capacity: Other
- Refrigerant: R22 or R404a
- Warranty: 12 Months
- Certification: ce, ISO
- Place Of Origin: Guangdong, China
Technical Specifications
| Ice Shape | Cylindrical tube Ice |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380V/420V, 50Hz, 3P |
| Compressor Brand | Other, Bitzer, Copeland, Refcomp |
| Key Selling Points | Famous Brand Low Voltage Components |
| Application | Commercial |
| Warranty | 12 Months |
| Core Components | Motor, Other, Pump, Gearbox, Engine, PLC, compressor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Brand Name | Koller |
| Dimension(L*W*H) | 1650mm*1920mm*2140mm |
| Certification | ce, ISO |
| Evaportor | Cylinder tube evaporator |

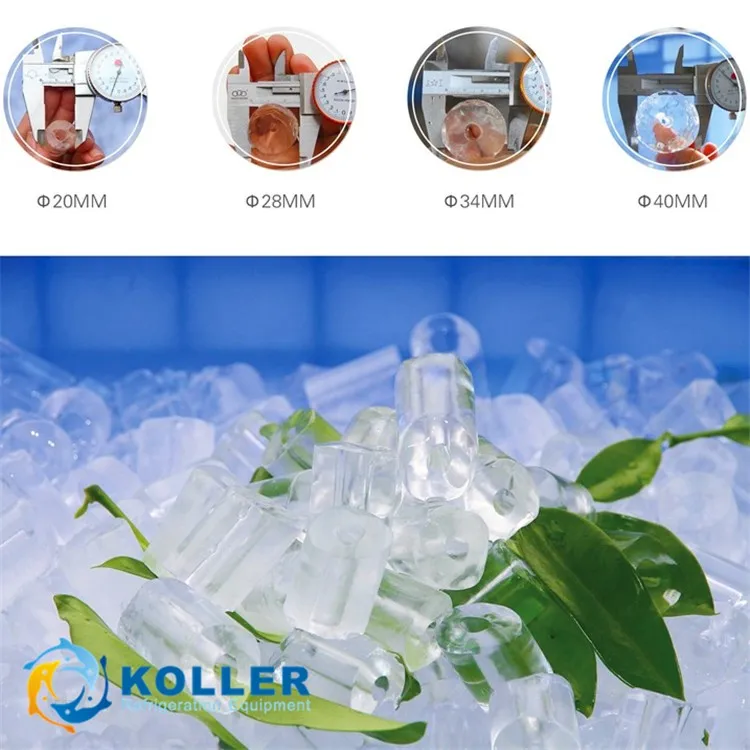

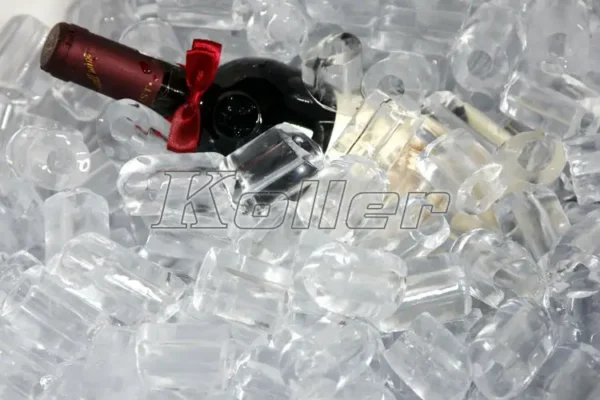

| Tube Ice Diameter | 26mm, 28mm, 30mm and 34mm in diameter |
| Freezing Time | Every 20 minutes for a cycle |
| Framework Struture | SUS304 stainless steel |
| Control System | Siemens PLC program control |
| Refrigeration Components | Danfoss/Castal |
| Refrigerant | R22 or R404a |
| Cooling System | Water cooled or air cooled |
| Harvest Ice Way | Hot gas defrost |
| Marketing Type | Hot Product 2022 |
| Packaging Details | 1. Packed in plywooden case. 2. TV50 tube ice machine use water cooling system, so it has two parts: tube ice machine and cooling tower; Tube ice machine: 1650mm*1920mm*2140mm; Cooling tower: 1670mm*1670mm*1800mm. it has 12.5CBM after being packed in plywood case for shipping; 3. We will test the machine in our factory to inspect the machine performance and capacity. |
| Port Of Dispatch | Guangzhou port |
| Selling Units | Single item |
| Supply Ability | 50 sets per Month even more |
Product Details

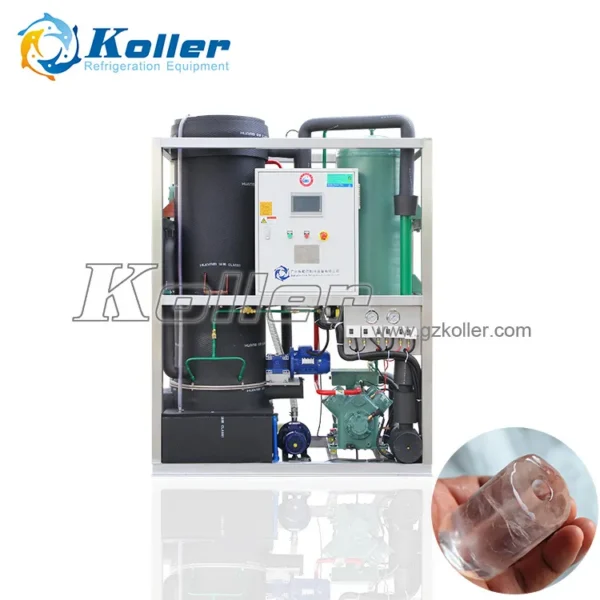

Koller Hot Sale 5-tons Cylinder Industrial High Capacity Ice Tube Maker Tube Ice Machine Design For Cold Drinks

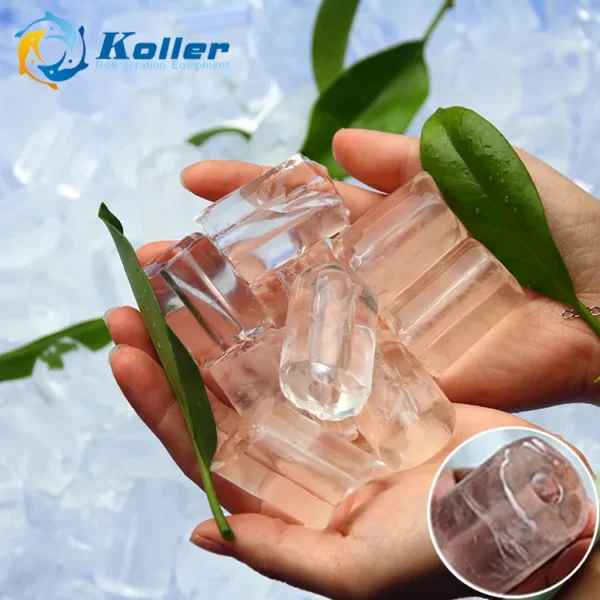

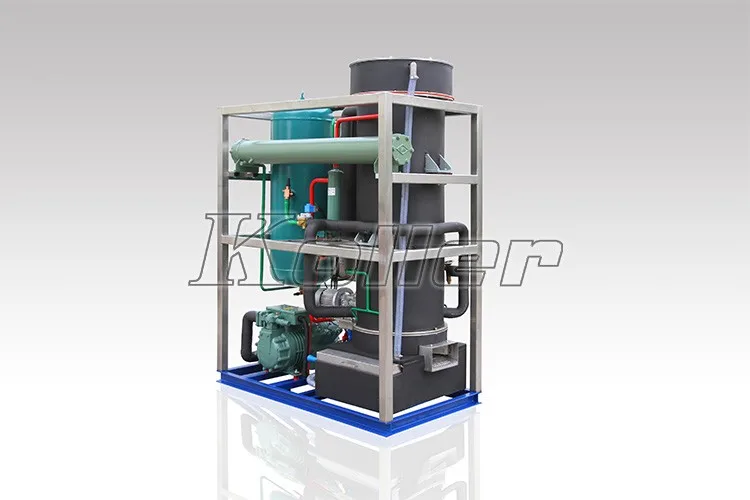

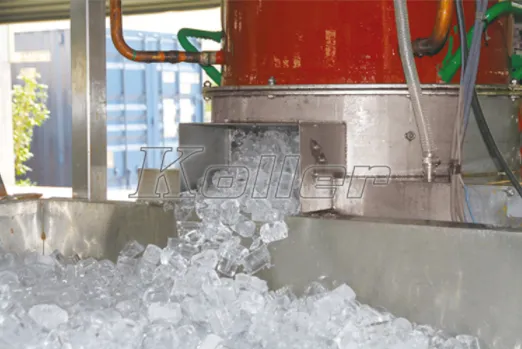

Koller TV Series Tube Ice Maker is a kind of ice maker that produces cylinder-shaped ice with a hole in the middle; It adopts flooded evaporator model, which improves efficiency and ice-making capacity. Meanwhile, the compact structure design can save installation space. The thickness of the ice and the size of the hollow piece can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low energy consumption and minimal maintenance.
KOLLER ICE TUBE MACHINE FEATURES:
SUS304 MADE!
Reasonable design for the frame and structure and water system with SUS304 ensure the ice cube sanitary for human consumption
ENERGY SAVING!
Greatly save energy, only 75~80KW*H are consumed to produce one-ton ice;
INTELLIGENT!

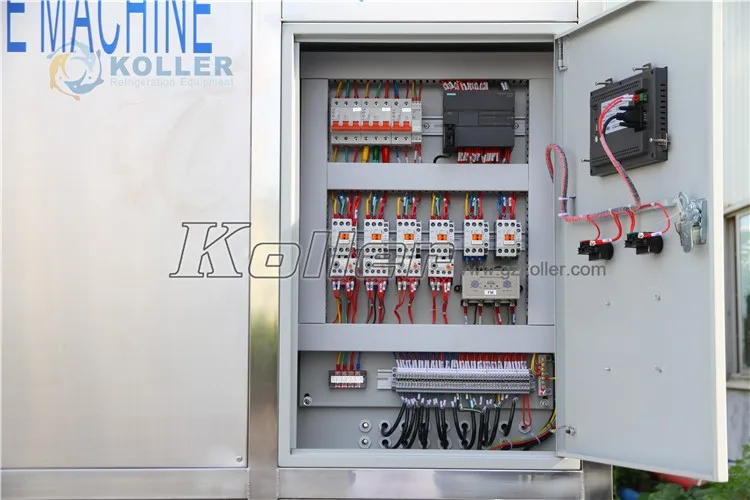

Equipped with Siemens PLC + Touch Screen Controlling System, which allows multiple functions such as automatic timer function for start and shut down; ice stopping production when the ice bins are full. All parameters can be easily set, all running history can be checked.
BEST PARTS!
Adopts the world's famous brand components, which will guarantee the best refrigeration effect and working condition.
THE MAIN BRANDS WE USE
GERMANY SIEMENS PLC
Highly automatic self-controlling system.

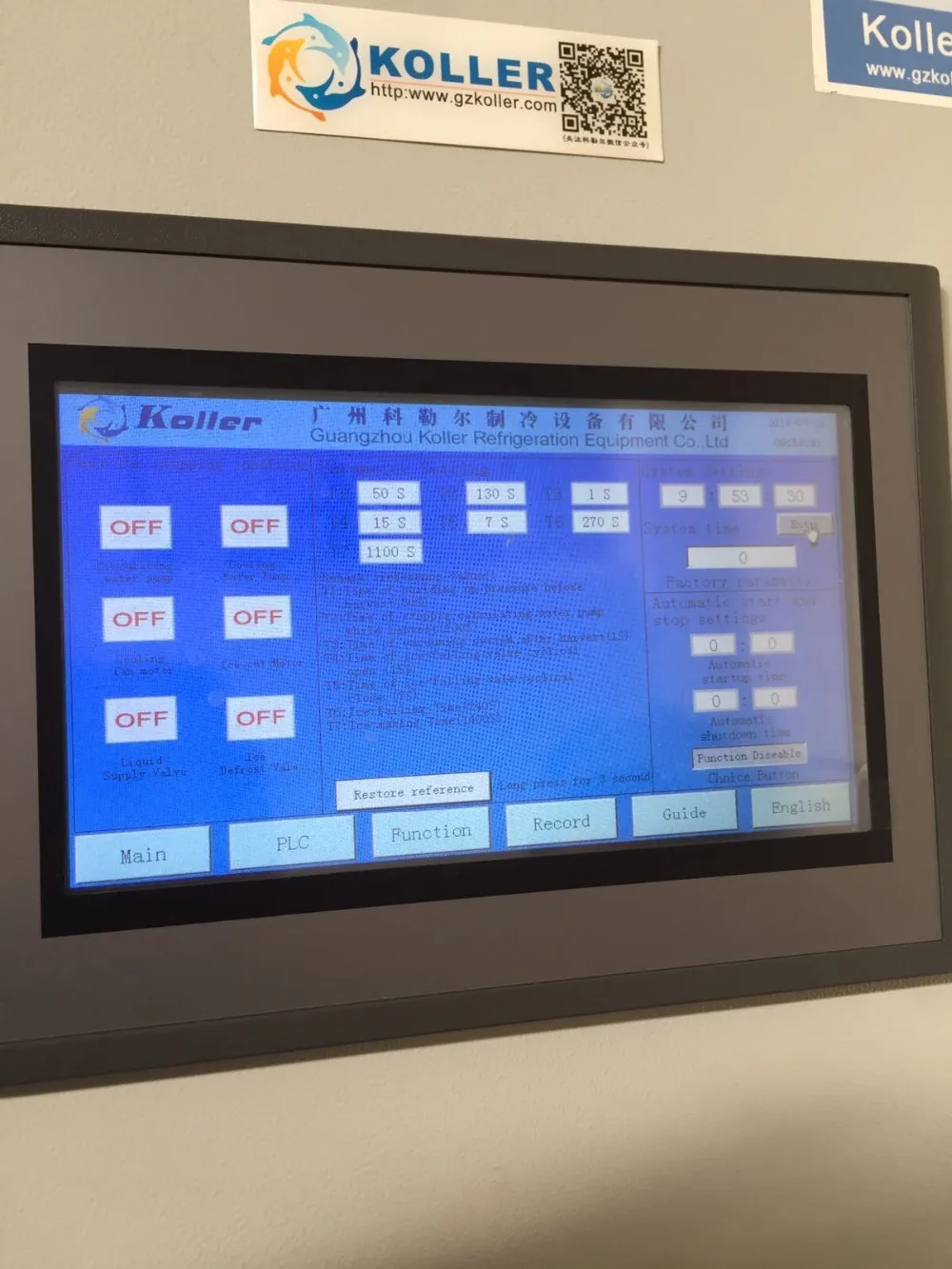

Touch Screen Design
Easy Understand, Parameter Set, History Checking, Timer function
GERMANY BRAND BITZER SEMI-HERMETIC PISTON TYPE COMPRESSOR
DANFOSS EXPANSION VALVES

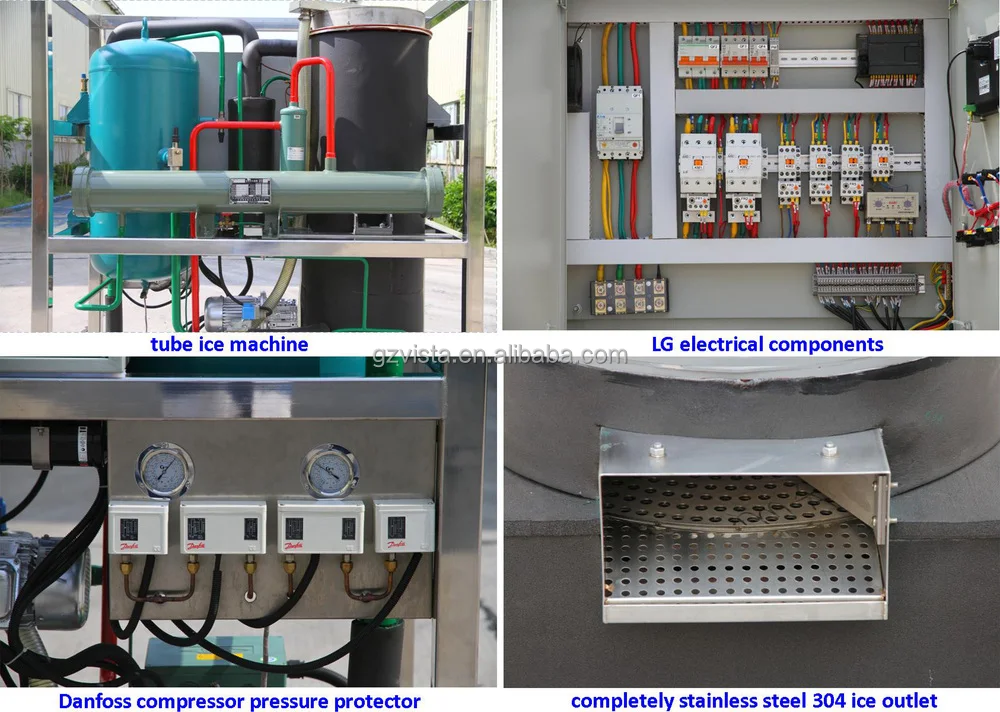

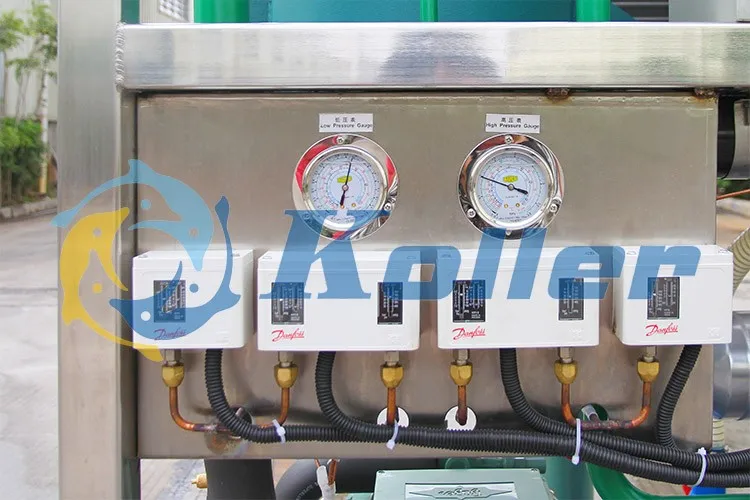

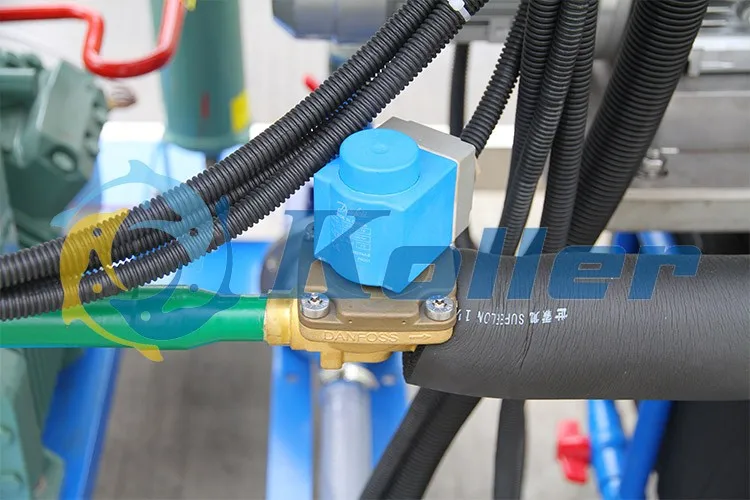

DANFOSS PRESSURE SWITCHES AND EXPANSION VALVES AND SOLENOID VALVE
TUBE ICE MACHINE INSTALLATION SUGGESTION

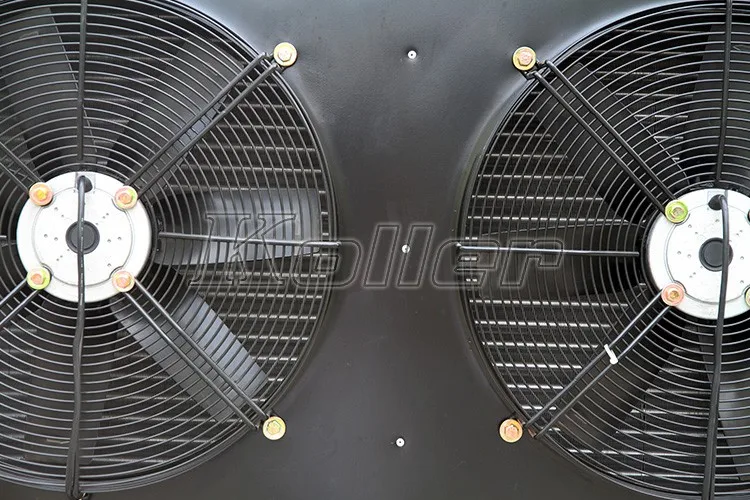

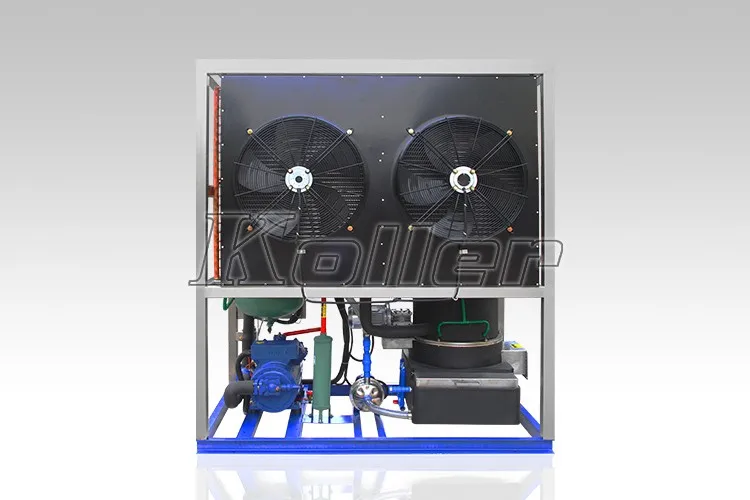

Air cooling type ice tube machine is all in one design, to avoid the heating effect, suggest you install it in a room with good ventilation. Only need you to connect the power and water.

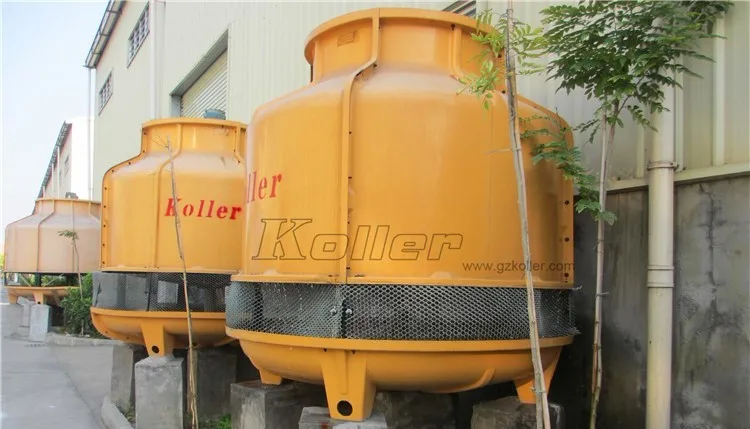

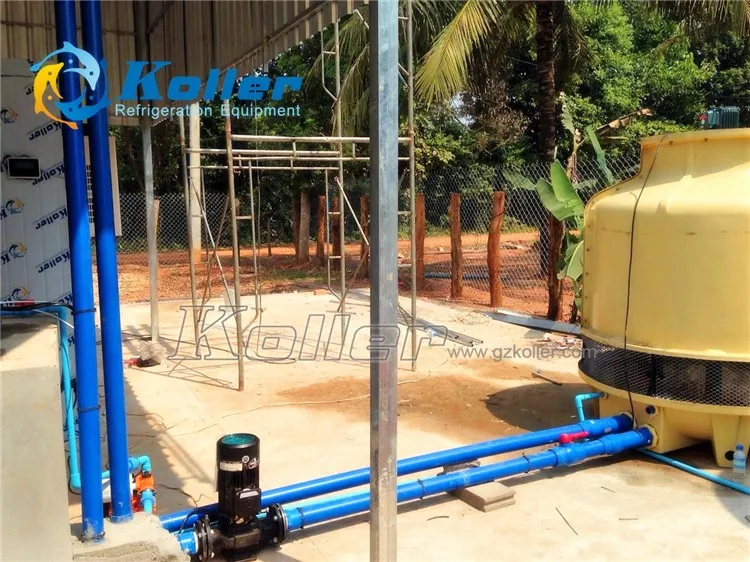

For the water cooling type ice block machine, there is a cooling tower along with the ice machine, the cooling tower should be installed outdoor.

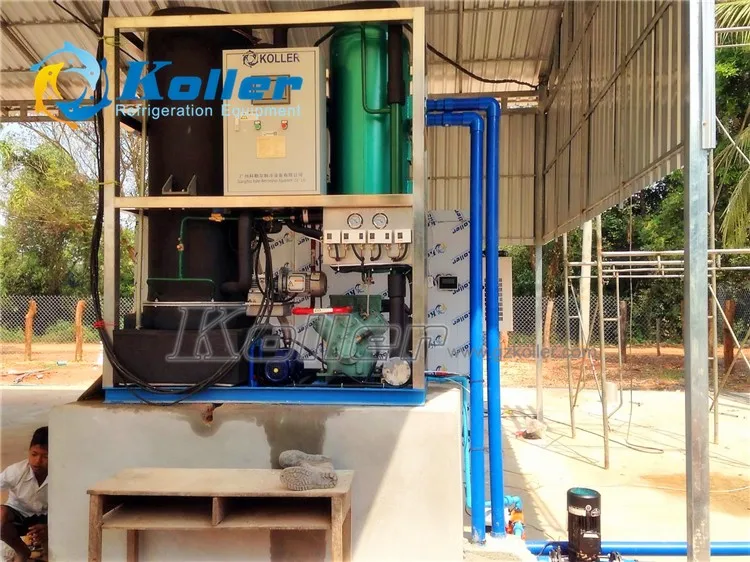

Water cooling type ice block machine with water cooling condenser design, ice machine is for indoor installation, The cooling tower should be installed outdoor and connected to the ice machine, the pump/pipe/valves will be provided by us.

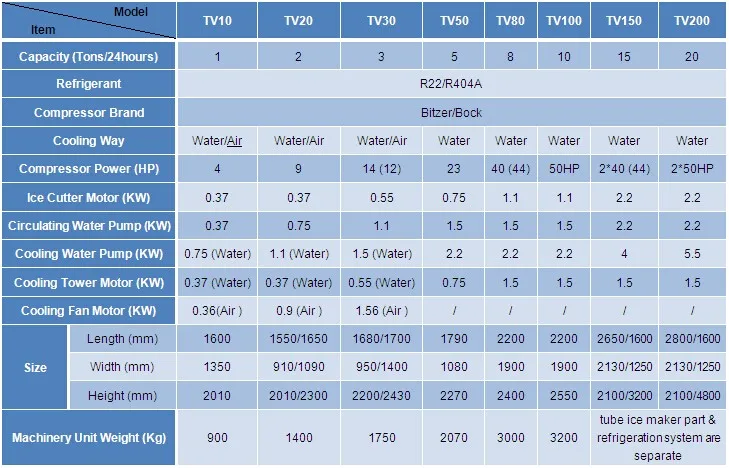

HOT SELL ICE TUBE MACHINE MODELS: TV10, TV20, TV30, TV50, TV100, TV200

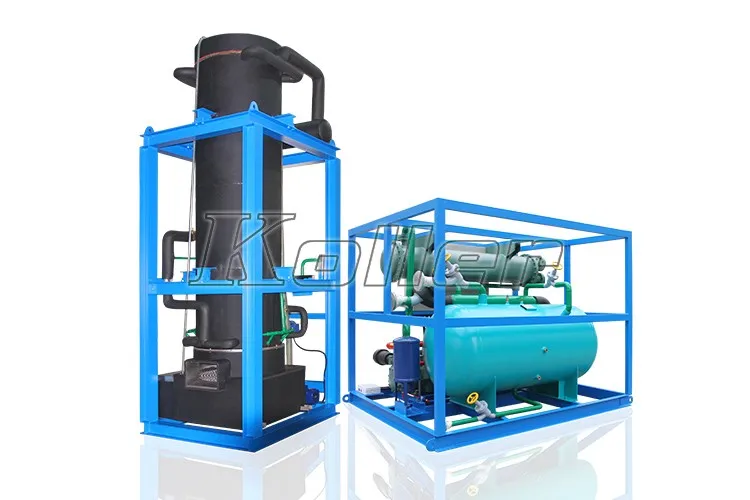

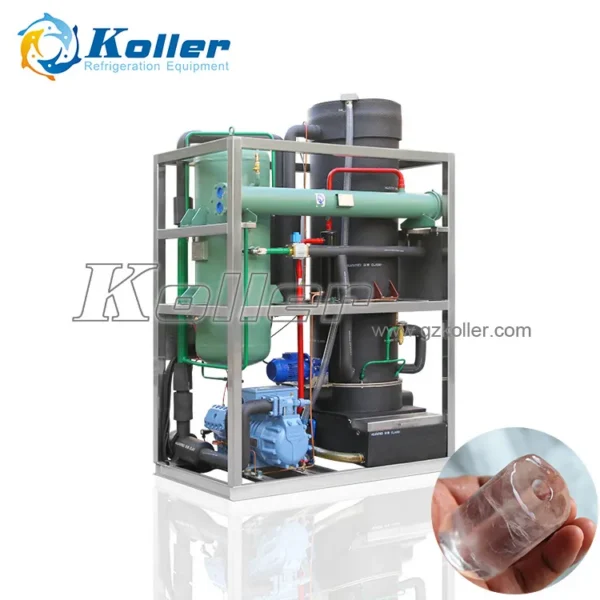

5 T/DAY TV50 ICE TUBE MACHINE

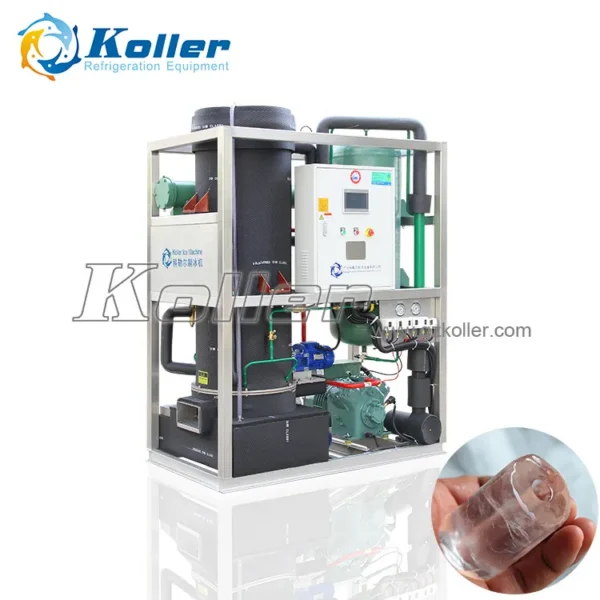

1 T/DAY TV10 ICE TUBE MACHINE

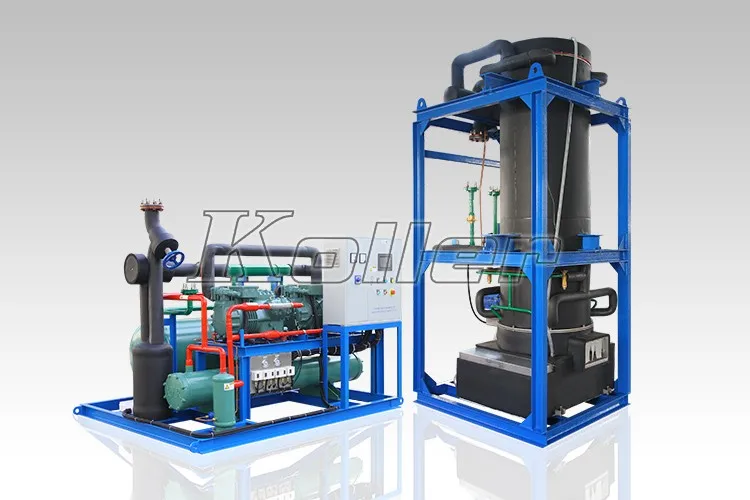

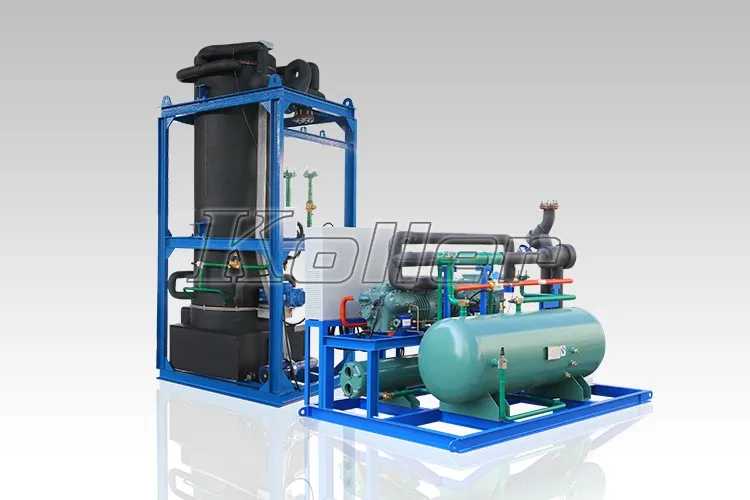

20 T/DAY TV200 ICE TUBE MACHINE
For ice machine over 20t/day, please contact our salesman.
* Ice making capacity would be changed depending on installation place, refrigerator’s freezing capability, or surrounding usage environment such as outside temperature.
* Please request a specification for each machine type.
* Specification will be changed without any notification.
What kind of ice machine do you want? Warmly welcome to contact us for more information!
FLAKE ICE MACHINE Slurry ICE MACHINE ICE CUBE MACHINE ICE BLOCK MACHINE
1. What should I prepare to buy the ice machine from you?
First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.
Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.
Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe…, Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All KOLLER ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, KOLLER will send the parts for free, even send the technician over if situation needed. When beyond the warranty, KOLLER will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be in service for you, as the most professional ice machine manufacturer with the biggest factory in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $18700 / set
- 5–9 set: US $17600 / set
- 10+ set: US $16720 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 Months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with ce, ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380V/420V, 50Hz, 3P. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
