Key specification for this ice machines: 380v/50hz/3p, 5 KW(6.71hp). Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machines
- Power: 5 KW(6.71hp)
- Power Supply: 380V/3P/50Hz or others
- Voltage: 380v/50hz/3p
- Ice Storage Capacity: Other
- Daily Capacity: 1 ton/day
- Material: aluminium
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380v/50hz/3p |
| Power | 5 KW(6.71hp) |

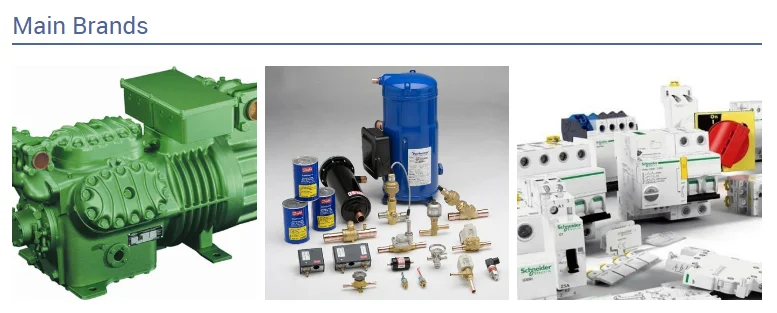

| Compressor Brand | Bitzer, Copeland |
| Key Selling Points | No. 1 selling in Domestic |
| Application | Ice factgory |
| Warranty | 3 Years |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2500 |
| Brand Name | ZXSHARE |
| Refrigeration Type | Direct cooling |
| Compressor | Bitzer |
| Material | aluminium |
| Refrigerant | R404A/R22 |
| Cooling Way | Air/water cooling |
| Expansion Valve | Denmark Brand Danfoss |
| Electrical Components | France brand Schneider |
| Control System | PLC &Touch screen |
| Power Supply | 380V/3P/50Hz or others |
| Daily Capacity | 1 ton/day |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

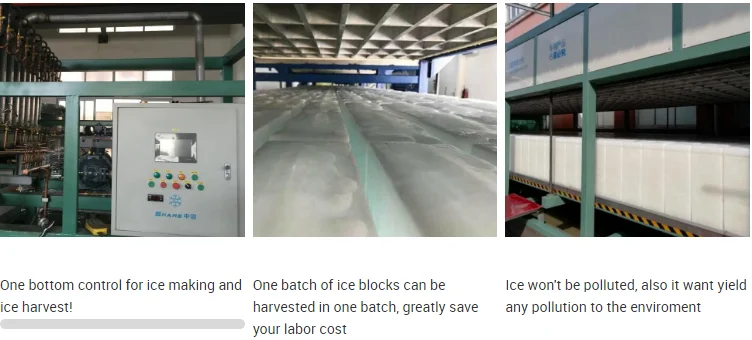

1. Add water into the ice moulds.
2. Turn on the ice block machine
3. Turn off the ice block machine, ice making time different from ice weight and thickness.
4. Wait minutes, ice blocks will be fully frozen with the remained coldness

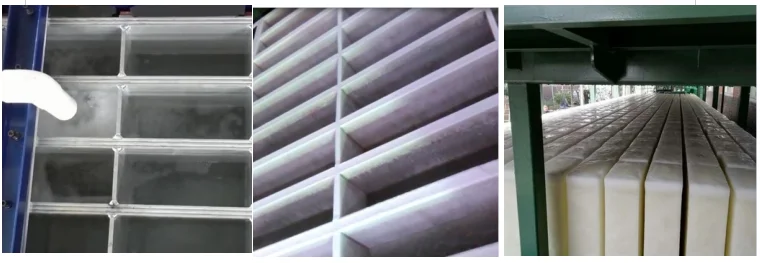

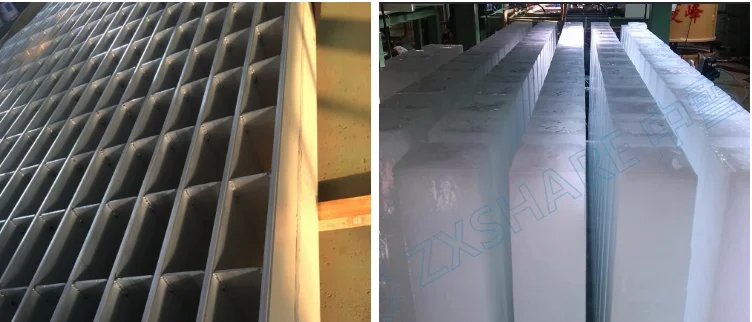

5. Press the ice harvest button, hot gas will into the aluminum ice moulds, ice block will be separated from the ice moulds, then release the ice platform, all ice blocks dropping down on the platform;

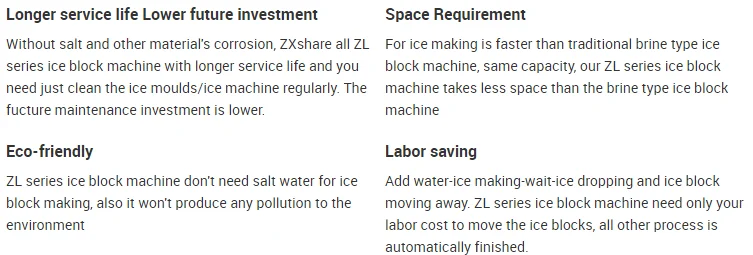

Faster ice Making /Lower power consumption Clean ice Block Making
Model list:

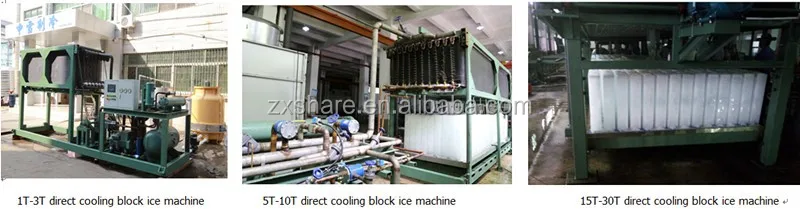

| Block Ice Machine | |||||||
| Model | Daily Output | Ice Weight | Total Power | Compressor | Cooling Type | Dimension | Weight |
| ZB1.0T-R4A | 1.0T/24h | 10/15/20/25Kg | 6.4kW | Copeland | Air cooling | 2050*1000*800mm | 800Kg |
| ZB3.0T-R4A | 3.0T/24h | 10/15/20/25Kg | 14.3kW | Bitzer | Water cooled | 2473*1557*720mm | 1400Kg |
| ZB5.0T-R2W | 5.0T/24h | 10/15/20/25Kg | 25.9kW | Bitzer | Water cooled | 4735*1580*1130mm | 2650Kg |
| ZB8.0T-R2W | 8.0T/24h | 10/15/20/25Kg | 41.5kW | Bitzer | Water cooled | 5160*1820*1400mm | 4000kg |
| ZB10.0T-R2W | 10.0T/24h | 20/25/50/100Kg | 48.2kW | Hanbell | Water cooled | 6280*2000*1600mm | 4650Kg |
| ZB15.0T-R2W | 15.0T/24h | 20/25/50/100Kg | 53.3kW | Hanbell | Water cooled | 9800*2000*1500mm | 5000Kg |
| ZB20.0T-R2W | 20.0T/24h | 20/25/50/100Kg | 69kW | Hanbell | Water cooled | 12600*1940*1500mm | 5500Kg |
| ZB25.0T-R2W | 25.0T/24h | 20/25/50/100Kg | 97.8kW | Hanbell | Water cooled | 13500*2800*1600mm | 6000Kg |
| ZB30.0T-R2W | 30.0T/24h | 20/25/50/100Kg | 123kW | Hanbell | Water cooled | 14600*3000*1600mm | 6500Kg |
| ZB40.0T-R2W | 40.0T/24h | 20/25/50/100Kg | 166kW | Hanbell | Water cooled | 19500*3800*1600mm | 7500Kg |
| ZB50.0T-R2W | 50.0T/24h | 20/25/50/100Kg | 182kW | Hanbell | Water cooled | 13300*6200*1560mm | 8000Kg |
Please send inquiry with the details below:
- The daily output you want, your voltage, ambient temperature and water temperature

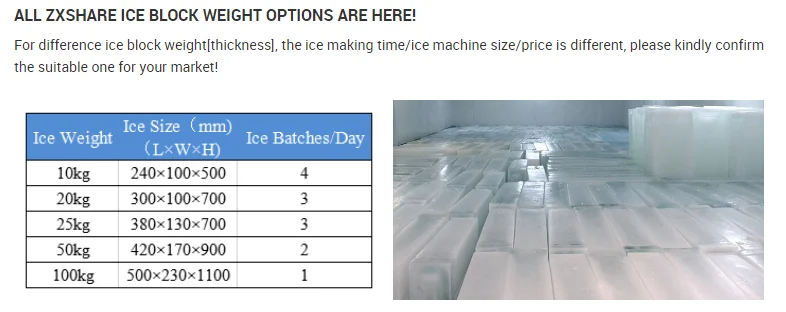

- For block ice machine, the ice weight per piece you want, 10/15/20/25/50/100kg
1, What should I prepare to buy the ice machine from you?
First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.
Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.
Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2, How to install the ice machine?
For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe…, Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3, What if I buy your ice machine, but I cannot find the solution for the problem?
All ZXSHARE ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, ZXSHARE will send the parts for free, even send the technician over if situation needed. When beyond the warranty, ZXSHARE will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $9500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380v/50hz/3p. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Zhongxue Refrigeration Equipment Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Zhongxue Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
