The ice machines listed here carries 380V,50HZ,3P/220V-240V,60HZ,3P, 200 W, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machines
- Model Number: KPS10
- Power: 200 W
- Voltage: 380V,50HZ,3P/220V-240V,60HZ,3P
- Ice Storage Capacity: no, can equip with ice bin
- Material: SUS304 Stailess Steel
- Refrigerant: R22 or R404a
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | no, can equip with ice bin |
| Voltage | 380V,50HZ,3P/220V-240V,60HZ,3P |
| Power | 200 W |
| Compressor Brand | Bitzer |
| Key Selling Points | Famous Brand Low Voltage Components |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Motor, compressor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 392 |
| Brand Name | Koller |
| Model Number | KPS10 |
| Dimension(L*W*H) | 1660mm*1340mm*1040mm(65.35in*52.76in*40.94in) |
| Control | Siemens PLC Program Controller |
| Compressor | Danfoss |
| Refrigeration Components | Danfoss/Castel |
| Electrical Components | LG(LS) |
| Material | SUS304 Stailess Steel |

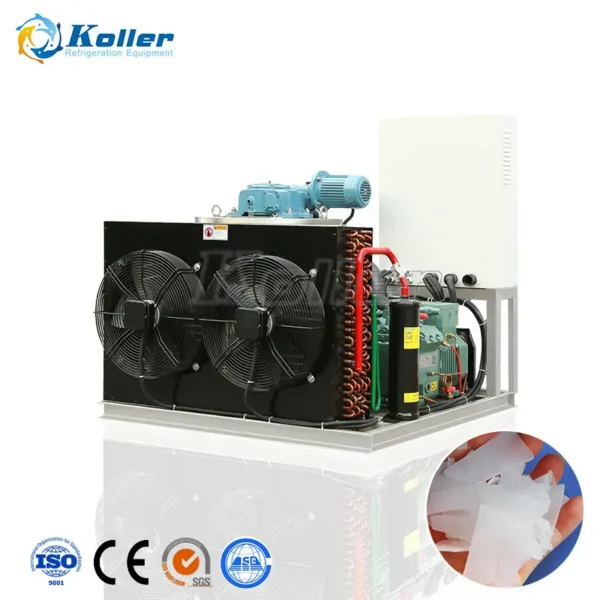

| Cooling Way | Air Cooling System |
| Evaporator Type | Drum Type |
| Refrigerant | R22 or R404a |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
No | Name | Technical Data | ||
1 | Capacity | 3000Kg/24h | ||
2 | Refrigerant | R22/R404a or Other as your required | ||
3 | Cooling ways | Air cooling | ||
4 | Supply voltage | 380V,50Hz,3P/220V,60Hz,3P or other | ||
5 | Compressor | Brand name | Refcomp[Italy]/ Bitzer[Germany] | |
6 | Make up Water | Make up water pipe | Ø20 mm | |
Drain pipe | Ø20 mm | |||
7 | Measurement | Flake ice machine | 1663*1420*1410MM | |
8 | Evaporating temp | -15℃ | ||
9 | Condensed temp | 40℃ | ||
10 | Evaporator | Material | Carbon steel chrome Or SUS304 | |
11 | Power | Circulating pump | 0.15 KW | |

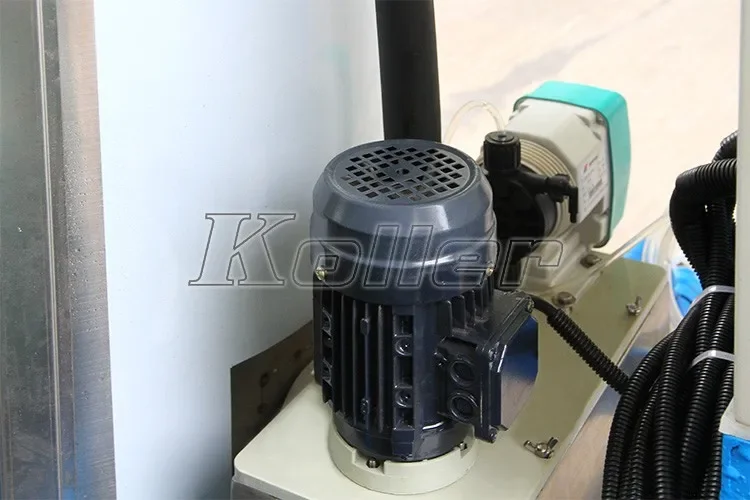

Reducer motor | 0.37KW | |||
Air cooling condenser | 0.37KW | |||

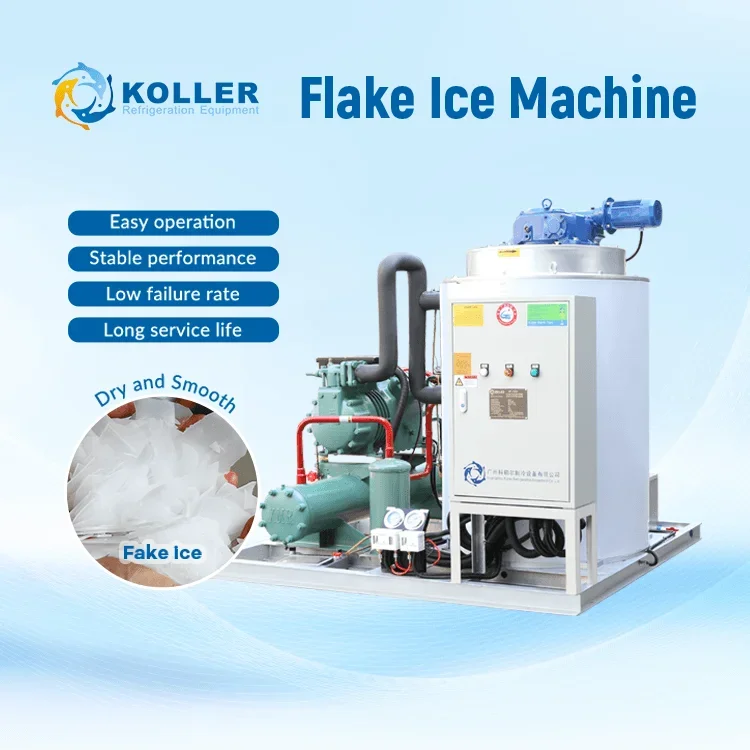

1. Advantages of Koller Flake Ice Machine
2) Evaporator drum: use stainless steel 304 or carbon steel chrome for the evaporator drum. The scratch-style system of inside machine ensures constant running at the lowest power consumption, exquisite welding, and processing technology ensures high-efficient heat transfer and energy saving.

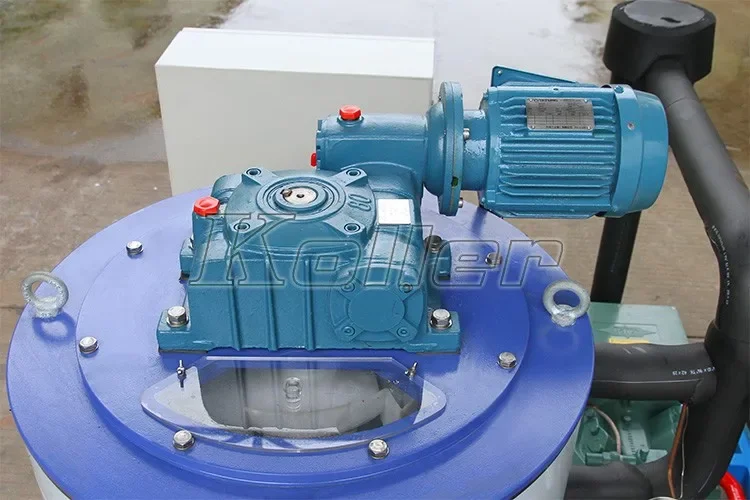

3) Ice skates: Spiral hob with small resistance and low consumption, ice making evenly without noise.
4) Refrigeration unit: main components all from the leading refrigeration technology countries: the United States, Germany, Japan, etc.

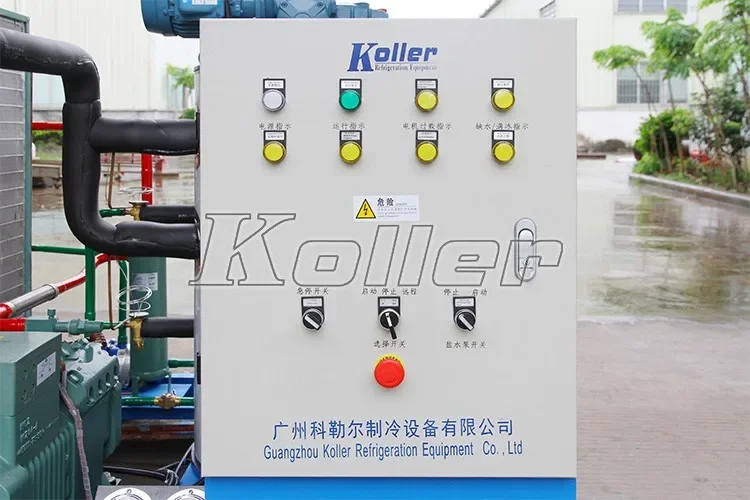

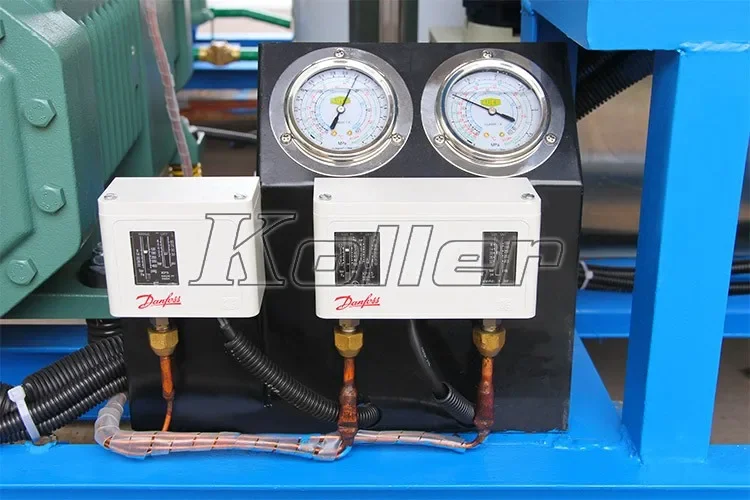

5) Microcomputer intelligent control: the machine is using PLC control system with world famous brand components, which control the whole ice making process, meanwhile it can protect the machine when there are water shortage, ice full, high/ low-pressure alarm, and motor reversal in order to guarantee the machine run stable with fewer faults.
2. Advantages of Flake Ice

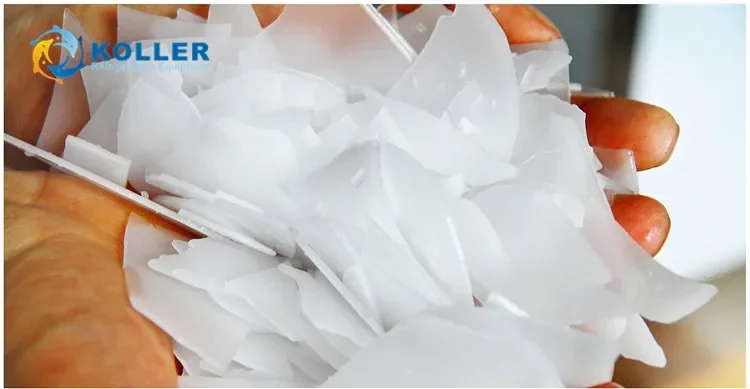

Flake ice has a large surface area [thickness 1.8mm ~2.2 mm], a target object can be cooled down quickly. Particularly, it can be used for solving a target object in water and then rapidly freezing it.
Because of a flake shape, the ice would fill the gap and block the surrounding heat when directly covering the target object. For this reason, the ice effectively maintains its freezing temperature.
Since a product is instantaneously frozen at -25℃, the freshness of a target object can be preserved in low temperature and also superior to preserve delicate fishes such as saury and sweet fish in cold temperature.
MAIN BRANDS ON KOLLER FLAKE ICE MACHINE

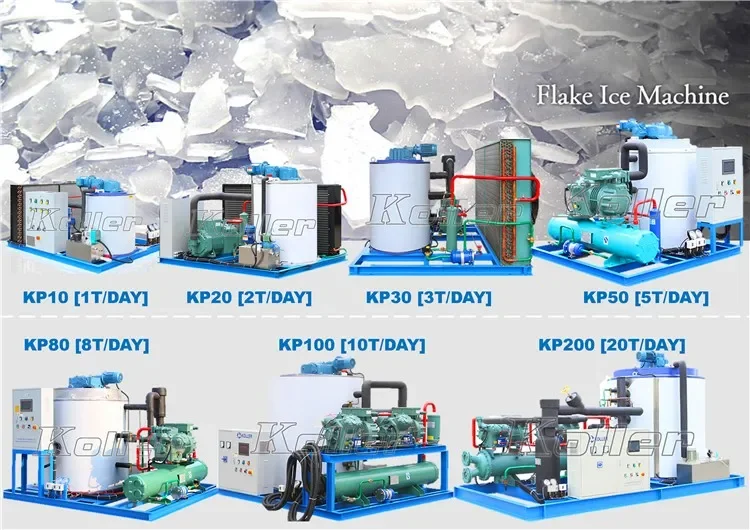

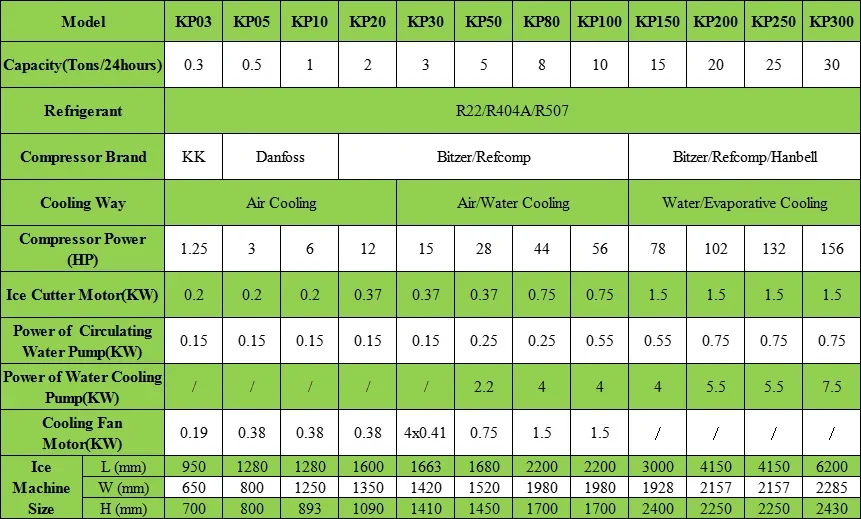

MORE PRODUCTION CAPACITY OPTIONS, from 300kg/day to 30t/day.
* Ice making capacity would be changed depending on installation place, refrigerator’s freezing capability, or surrounding usage environment such as outside temperature.
* Please request a specification for each machine type.
* Specification will be changed without any notification.
More flake ice machine related/Margin Product

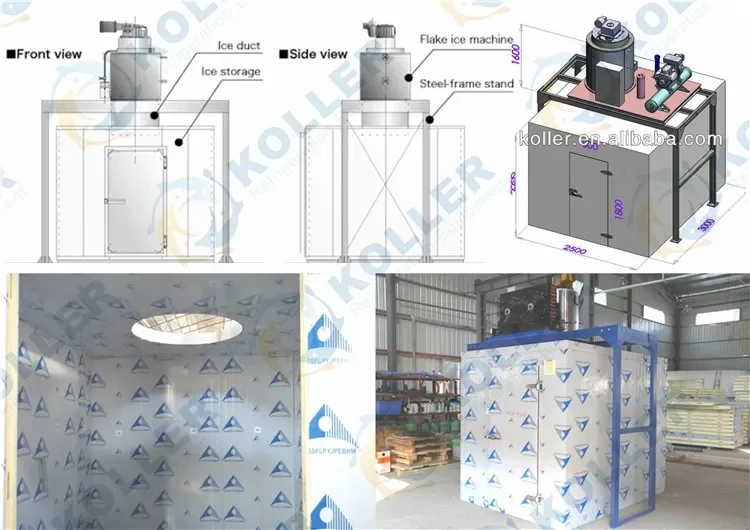

1. PU panels made ice storage bin, we can equip the ice bin with refrigeration unit and steel frame stand, so we can install the ice bin on the top, flake ice can be stored inside of the ice bin for a long time. For Capacity ≥ 3 tons/day, we suggest customer choose this design.

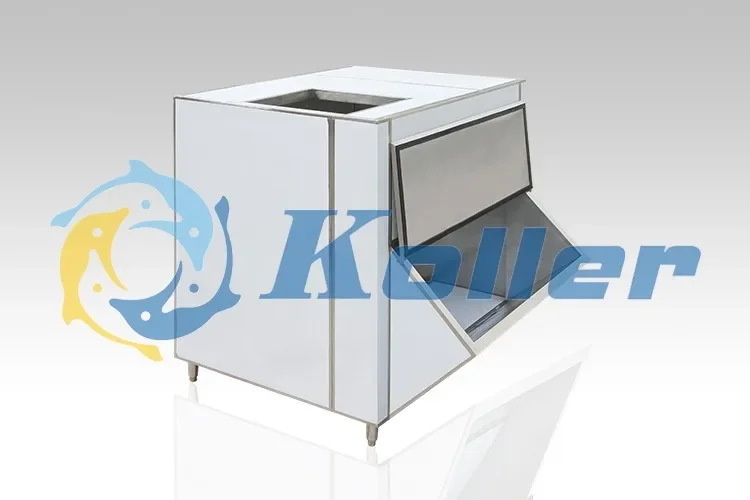

2. Standard small SUS ice bin for flake ice storage for flake ice machine capacity ≤ 3 tons/day, we suggest you this.
1. Established in 2004, Guangzhou Koller Refrigeration Equipment Co., Ltd is an integrated manufacturer, specialized in the research, design, manufacture and sale of refrigeration equipment.

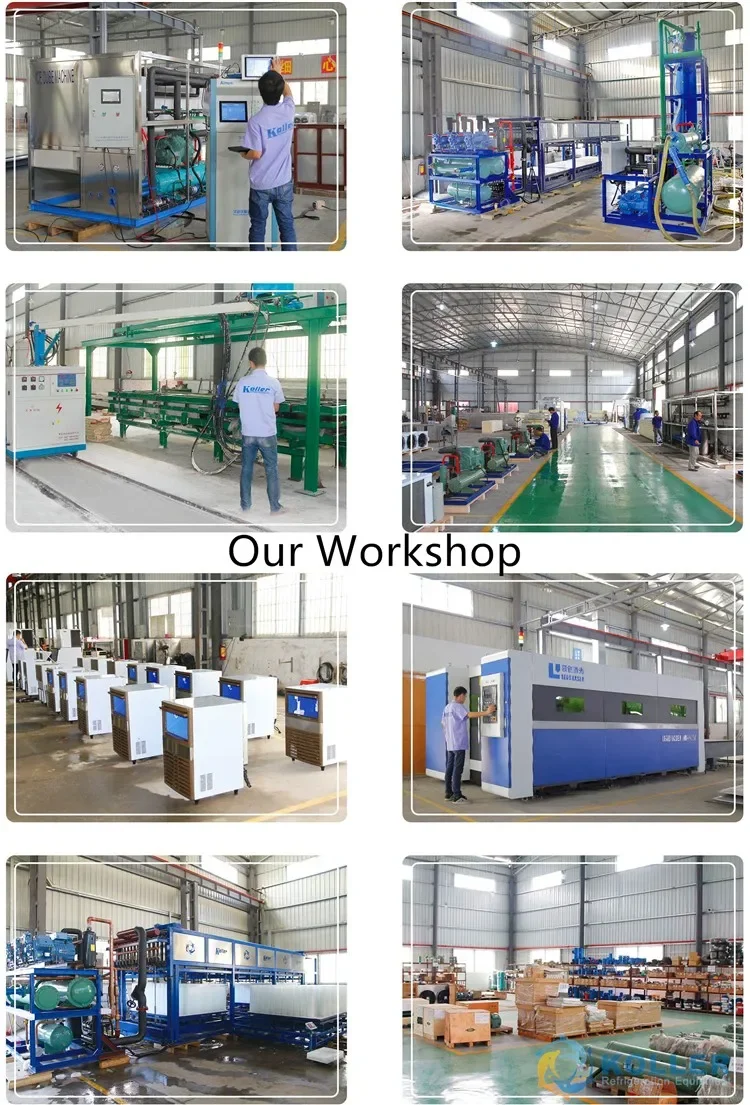

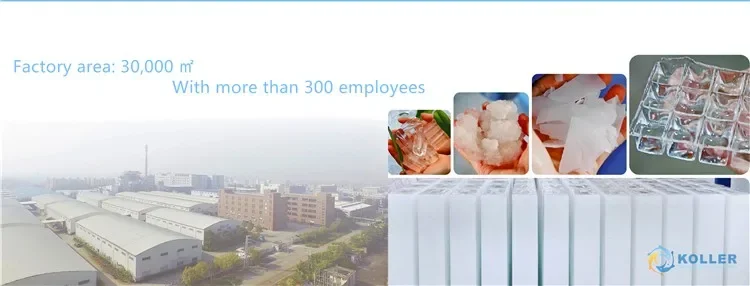

2. Koller has more than 30,000 square meters for the factory production space, more than 300 employees, including senior technical R & D team and professional sales team.

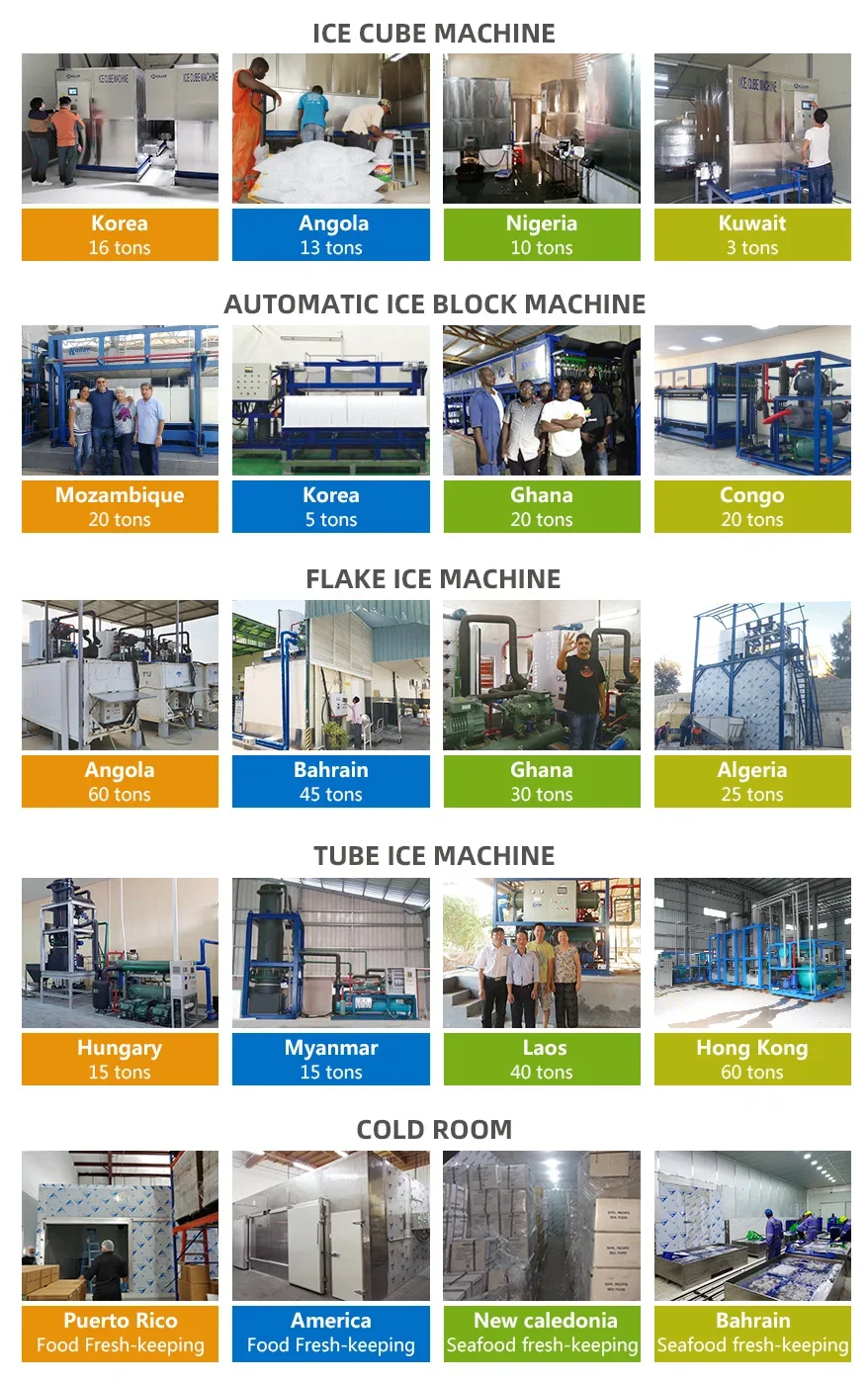

3. Koller brand products have popularly sold in Europe, Australia, Southeast Asia, Middle East, Africa, South America and South Pacific Islands. Koller has become a famous refrigeration enterprise in China, and a famous brand name with international recognition and reputation.
Our certification:
1. What should I prepare to buy the ice machine from you?
First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.
Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.
Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe…, Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All KOLLER ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, KOLLER will send the parts for free, even send the technician over if situation needed. When beyond the warranty, KOLLER will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be in service for you, as the most professional ice machine manufacturer with the biggest factory in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.

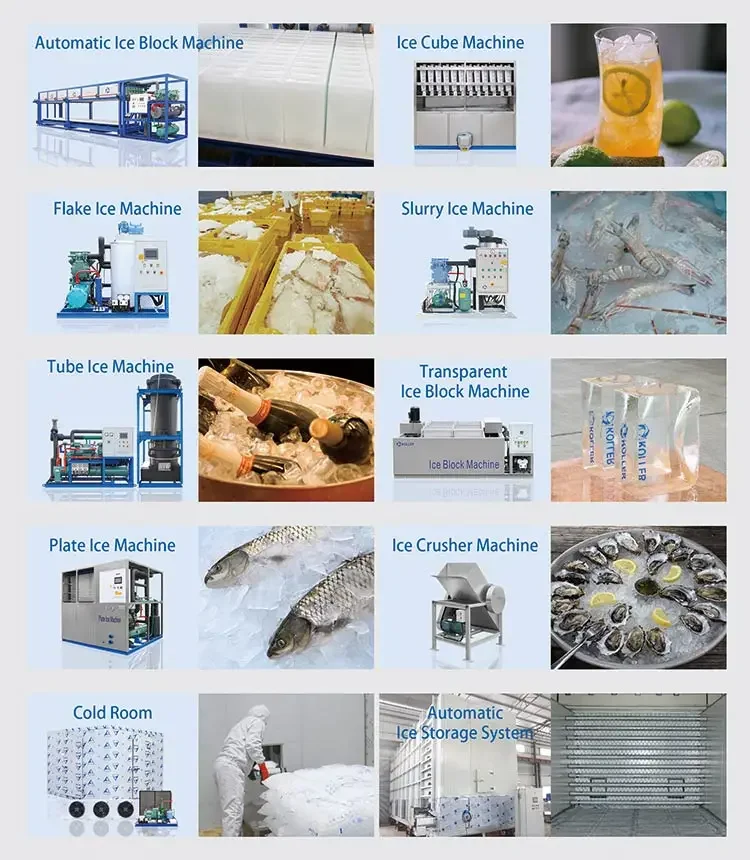

Koller main products include: Direct cooling ice block machine, large edible ice cube machine, commercial ice maker, tube ice machine, plate ice machine, fresh water flake ice machine, sea water flake ice machine, automatic conveying system, cold room, ice crusher machine, low temperature water chiller, automatic packing system, and other series of ice making equipments.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $4800 / set
- 3–4 set: US $4600 / set
- 5–9 set: US $4380 / set
- 10+ set: US $4080 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380V,50HZ,3P/220V-240V,60HZ,3P. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Koller Refrigeration Equipment Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Koller Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
