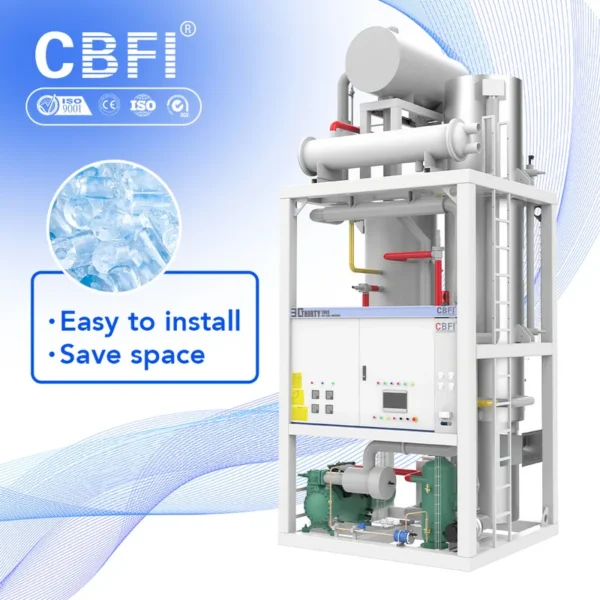

Ice Machines, PLC, 380V, depends, TUBE ICE, 22mm, 30mm to 50mm

Ice machines — 380V/50Hz/3Phase, power depends. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ice Machines

• Power: depends
• Voltage: 380V/50Hz/3Phase
• Ice Storage Capacity: 1000 kg(2204.62lb)
• TV Series Daily Capacity: 1000kgs to 20000kgs
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

PRODUCT OVERVIEW

FEATURES AT A GLANCE

Why Choose Us?

Superior R&D team

1. latest technology on the refrigeration system which reduce the electricity consumption

2. special design on the ice defrosting
3. CBFI's unique tube ice machine evaporator process

4. special design for the ice cutter.

Mature pre-sales and after-sales service

1. It can make different size tube ice. 2. Localized after-sales service in some countries. 3. Provide Installation or After-sales Service Global Wide.

Easy Operation

Fully automatic, easy installation, easy operation, easy maintenance

PRODUCT SPECIFICATIONS

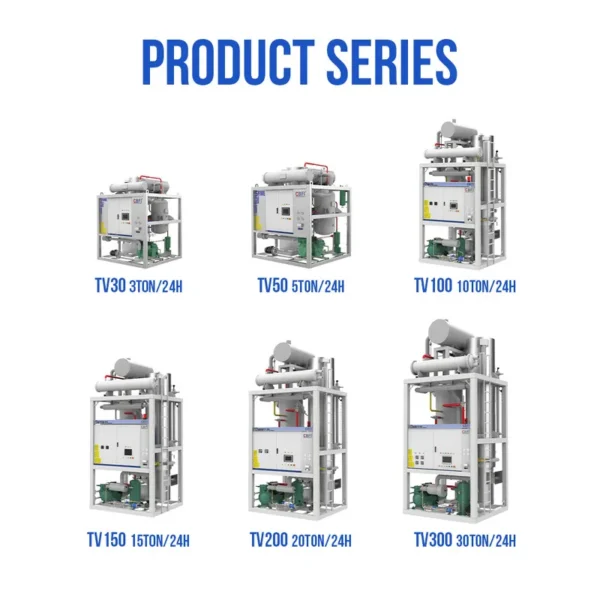

TUBE ICE MACHINE PARAMETERS

Model

Daily output (T/ 24 h)

Compressor Power

Fan Power for Cooling Tower

Cooling Pump Power

Unit Size (L*W*H mm) (Integrated  Type)

Unit N.W. (kg)

TV 10

1

4.1 kw

0.25 kw

1.1 kw

1100*900*1780

900

TV 20

2

7.44 kw

0.25 kw

1.5 kw

1250*1000*1950

1200

TV 30

3

10 kw

0.55 kw

1.5 kw

1300*1100*2200

1500

TV 50

5

19.9 kw

0.55 kw

2.2 kw

1600*1400*2250

1800

Model

Daily output (T/24 h)

Compressor Power

Fan Power for Cooling Tower

Cooling Pump Power

Unit size (L*W*H mm) （Split type）

Unit N.W. (kg)

Main Host

Brine Tank

TV 100

10

27.9 kw

1.5 kw

4 kw

1900*1600*1850

1200*1200*3390

3500

TV 100+

10

39.8 kw

1.5 kw

4 kw

2400*1700*2000

1200*1200*3390

3700

TV 150

15

46.4 kw

1.5 kw

5 kw

2700*2000*2200

1500*1200*4250

4250

TV 200

20

55.7 kw

2.2 kw

7.5 kw

2800*2200*2500

1500*1200*4700

6500

TV 300

30

83.6 kw

2.2 kw

7.5 kw

3100*2200*2500

1800*1500*5700

7200

TV 400

40

111.4 kw

2.2 kw

11 kw

3900*2250*2500

2000*1500*6800

8300

TV 500

50

139.3 kw

3.75 kw

15 kw

4500*2250*2500

2200*1800*7200

9500

1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.2.Power supply: voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ). 3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5.(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. )

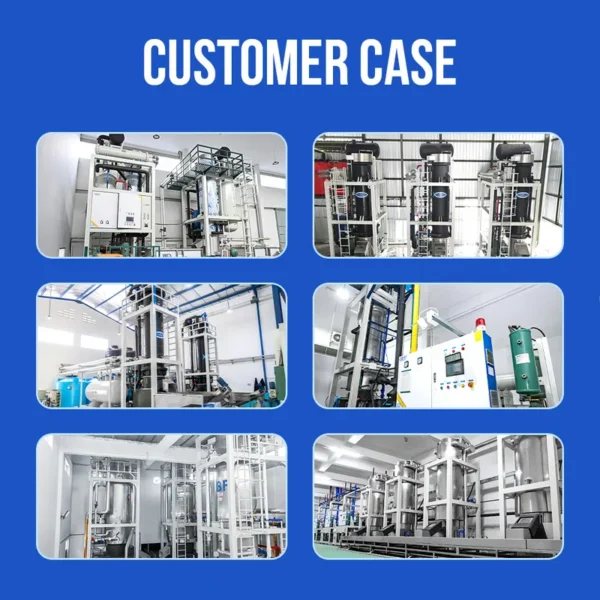

SUCCESSFUL PROJECT

RELATED PRODUCTS

FAQ

1. Whether can adjust the tube ice size? Tube ice Diameter:22mm, 28mm.35mm Tube ice lenght: 24-45mm

Tube ice inner size: 3-5mm

2. Do you have engineer in our country to install the machine ?

We could introduce the local engineer to you install the machines.

3. What shall we do if there is any machine's malfunction？

You could see any malfunction reason from the touch screen and we could supply you the solution accordingly.

4. Could you send your engineer from China to install the machines?

Yes, we could send you enigneer from China to install your machine, you will be responsible for the accommodation and the installation cost.

5. Whats the deliver time of your machine?
1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer)

6. Whats the payment method you accept?
Pay via Alibaba, T/T, LC, In Cash, Western Union, Money Gram. 30% deposit, balance should by paid before shipping.

7. How long the warranty for machine I buy?
12 months since the deliver date.

8. how to install the machine ?
a. manual book and video will be provided to guide you how to install the machine, and also our service online
b. technician can be sent to customer's site too, while the round ticket, visa, accommodation is at customer cost, Installation fee 100 USD/day/person. Local labors are necessary to support our technician's work

PACKING & DELIVERY

Ice maker machine 1. Standard wooden case. 2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine come into use, customer only need prepare power for the machine. 4. All required components for install the machine will be provide.

COMPANY PROFILE

Guangzhou IceSource Refrigeration Equipment Co., LTD is founded in January of 2004,which is established on the management and manufacture basic of Guangzhou Vista M&E Equipment Co., Limited.

Our factory was located in Panyu District of Guangzhou, Guangdong Province, it is near two famous port of South China Huangpu Port and Nansha Port, and not far from Baiyun airport. It is convenient for load and transport goods and for customers come to visit our factory.

Our company is specialize in research, design, produce and sell large production ice cube machine, ice block machine, ice plate machine, ice tube machine and shaved ice machine, and its accessory equipment, for example cold room, crane, ice crushing machine and so on. Machine's output design can start from single small ice machine for produce 1ton ice per day to large scale completely ice making system for produce 50tons ice per day. All components from choosing raw material to processing and finished products, all pass strict inspection, strict quality control, ensure completely ice system with excellent quality. The products are widely applied to different fields, such as food industry, large chain supermarket, retail, aquatic product, chemical industry, water conservancy, power plant, health care, large public project, mine cooling, chemical industry, etc.

Independent research and design is the source of technology to update, our company has owned two patented technologies: flat-plate heat exchange and circulating heat gas for ice dropping. These two patents have greatly improved the stability and safety of our ice making machine and ensure machine prominently energy saving, its energy saving rate is more than 30%.It start new generation of energy saving product. Icesource products have passed ISO9001, ISO14001 and CE certificate. We have been keep tracking service condition of our products, have record for more than 400customers in more than 30countries from Africa, Middle East, Southeast Asia, Australia and South America. It bring us rich experience and and valuable data to improve our products for different environment condition.

Icesource take "painstakingly created high quality products and wholehearted service" as company tenet, keep developing and perfecting our sales system and after-sale service system, Combined with own advantages, continuous learning foreign mature sales experience and cater to domestic and international market trends and demands. Company adhere to the principle of equal emphasis on social and economic benefits. We will try our best offer customer timely and comprehensive service and support.

Icesource adhere people oriented, technology first corporate ideas, view customer's practical needs, improving people life quality and environment for human being existing as a duty. Gathering strong technology, professional talent, and advanced facilities, continuously improve making ice technology, to be leader of ice machine industry.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $2000 / set
  • 10+ set: US $1900 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ice machines?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ice machines be supplied for my local voltage?

The standard configuration is 380V/50Hz/3Phase. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Icesource Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Icesource Co., Ltd. range on HVACR Nexus.
