Impeller, 40mm, 220V, Aluminum, Plastic

Key specification for this impeller: 10V 12V 24V 220v, air flow (DC 30-2000) (EC 30-5000). Everything below is reproduced from the factory data sheet. Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Impeller

• Power: (DC 10-500) (EC 10-500)
• Voltage: 10V 12V 24V 220v
• Air Flow: (DC 30-2000) (EC 30-5000)
• Blade Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Impeller Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy

Technical Specifications

Product Details

Products Description

Model	Size (mm)					Voltage	Rated	Speed	Pressure	Maximun	Noise
										Frequency		Current			Air Flow
		A	B	C	V	A	r.p.m	Pa	m³/h	dB
LB40530AC	600	540	530	220/50	0.16	2000	19	140	36
LB40610AC	680	620	610	220/50	0.16	1950	19	150	35
LB40700AC	770	710	700	220/50	0.16	1750	18	155	34
LB40800AC	870	810	800	220/50	0.14	2300	18	205	36
LB40854AC	927	864	854	220/50	0.14	2400	18	209	37
LB40920AC	993	930	920	220/50	0.18	2300	18	222	37
LB401055AC	1128	1065	1055	220/50	0.22	2100	18	255	38
PB40350AC	413	358	348	120/60	0.23	2300	20	140	34
PB40350AC	413	358	348	220/50	0.16	2300	20	140	34
PB-40090AC	158	108	98	120/60		3200	25	40	35
									230/50		2700	20	36	35
PB-40150AC	220	170	160	120/60			3000	24	62	36
									230/50	2500	19	57	36
PB-40190AC	258	208	198	120/60			2900	24	77	38
									230/50	2400	19	68	36
PB-40250AC	315	260	250	120/60			3000	24	98	38
									230/50	2500	19	90	37
PB-40290AC	365	310	300	120/60			2800	23	113	39
									230/50	2400	19	106	38
PB-40350AC	418	358	348	120/60			2900	24	152	39
									230/50	2500	19	132	37
PB-40420AC	490	430	420	120/60			2700	22	170	38
									230/50	2500	19	163	37
LB40530AC	600	540	530	220/50	0.16	2000	19	140	36
LB40610AC	680	620	610	220/50	0.16	1950	19	150	35
LB40700AC	770	710	700	220/50	0.16	1750	18	155	34
LB40800AC	870	810	800	220/50	0.14	2300	18	205	36
LB40854AC	927	864	854	220/50	0.14	2400	18	209	37
LB40920AC	993	930	920	220/50	0.18	2300	18	222	37
LB401055AC	1128	1065	1055	220/50	0.22	2100	18	255	38
PA30300AC	365	310	300	230/50	0.12	12	2500	7.3	52
PA30350AC	417	362	352	230/50	0.11	11.2	2600	7.5	58
PA30420AC	485	430	420	230/50	0.08	11.5	2500	7.2	70

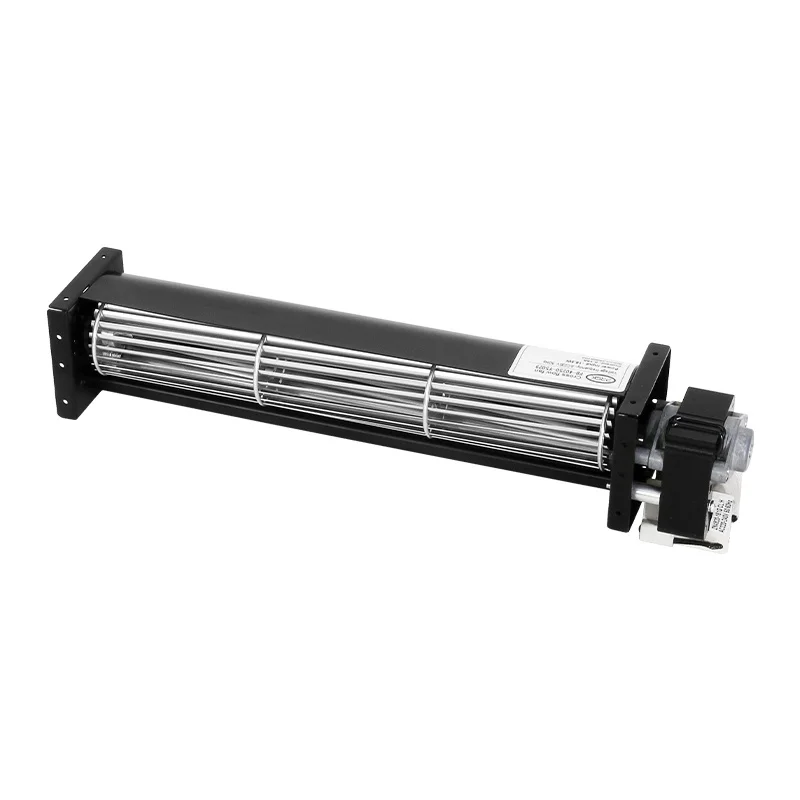

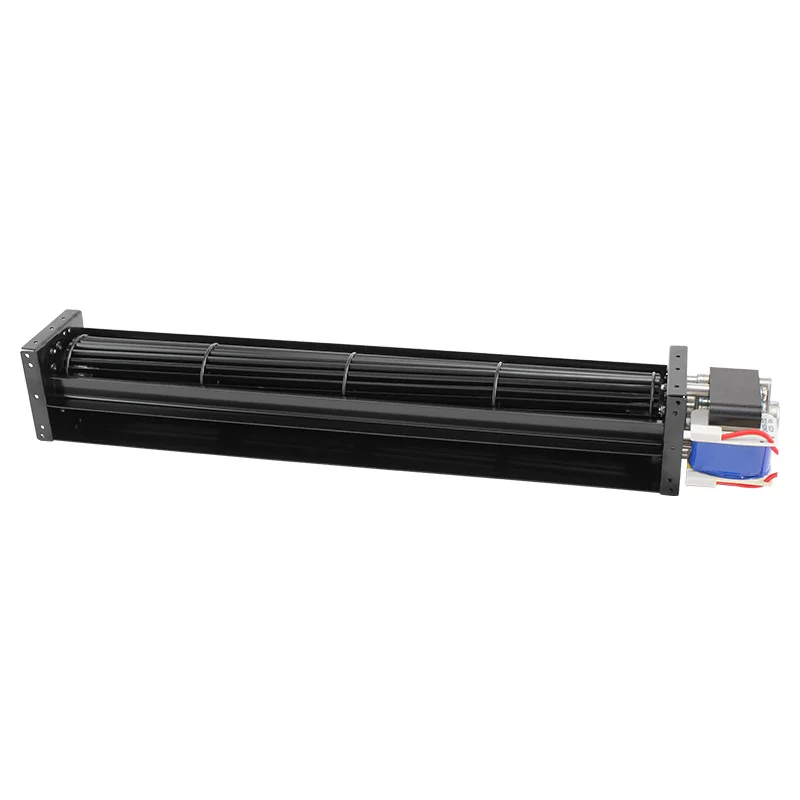

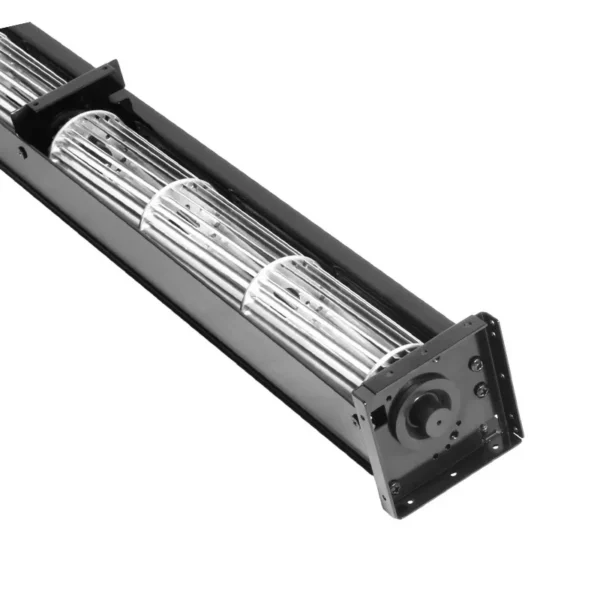

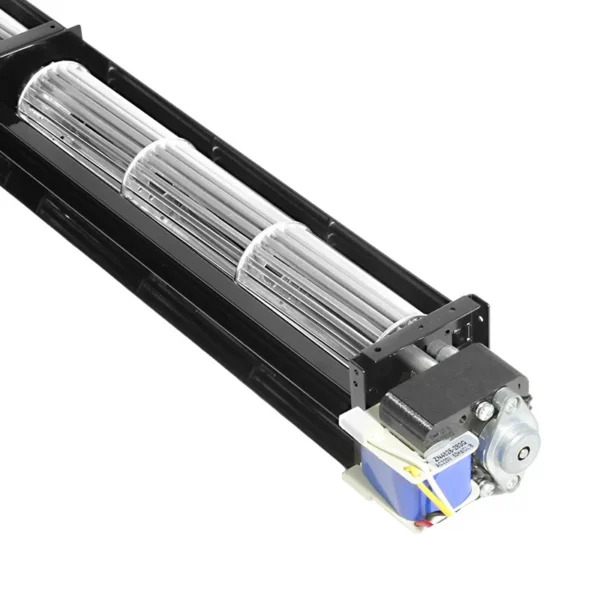

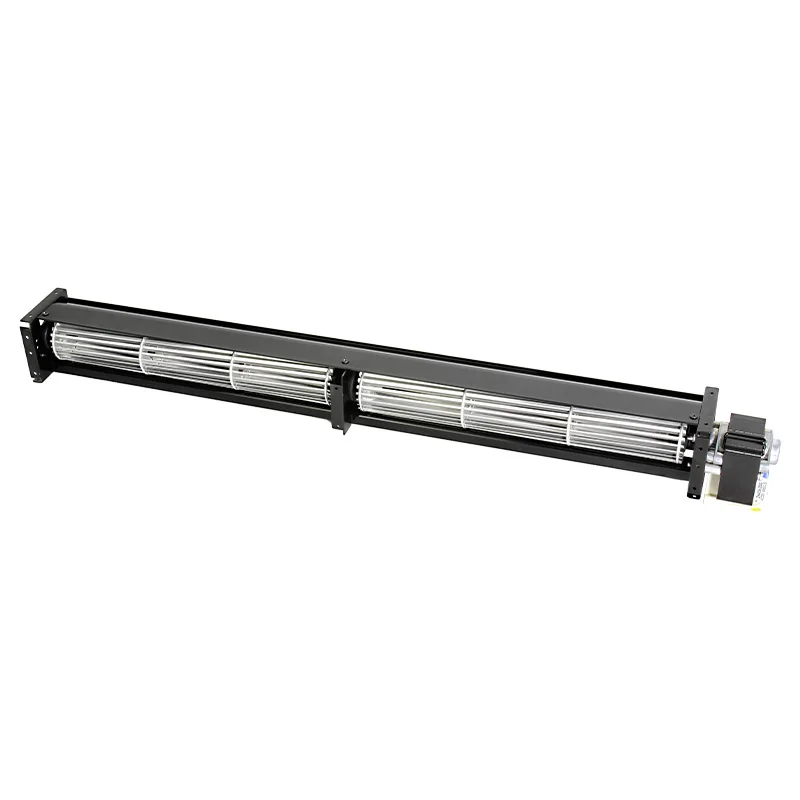

Cross flow fan
Special flat structure design, the air direction is more concentrated in a columnar shape, the wind direction can be changed, high air volume, low static pressure, low noise, especially suitable for special narrow scenes

Specification	EC	DC
Dimension	30-150	30-150
Voltage	115/230	24/48/85/115/310
Air flow	30-5000	30-2000
Static pressure	5-500	5-300
Power	10-500	10-500
Rotation speed	400-2900	400-2900
Control	PWM/0-10/Modbus	PWM/0-10/Modbus

Voltage Output	Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance	10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance	50,000 Hours(L10)
Leakage Current	≤3.5mA (Max. )
Direction of Air Flow	Straight forward from air outlet
Motor	External rotor EC motor
Technical features	Motor current limitation
		Soft starting Protection
		Under/Over voltage detection
		Thermal overload protection for electronics/motor
		Line undervoltage detection
		Locked-rotor Protection
		Reverse Polarity Protection
Operating Temperature	-25ºC (Min. )	60ºC (Max. )
		Heat sink of IC	115ºC (Max. )
		Other electronic parts	85ºC (Max. )
		Ball bering	80ºC (Max. )
		Lead Wire	120ºC (Max. )
Storage Temperature	-40ºC to 75ºC
Operating Humidity	5% to 90% RH
Storage Humidity	5% to 95% RH
Electronics housing material	Die-cast aluminum
Operation Mode	S1
Motor bearing	Ball bearing
Valid For Approval/Standard	CE,RoHS,ErP2015

1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.

2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.

3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.

5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

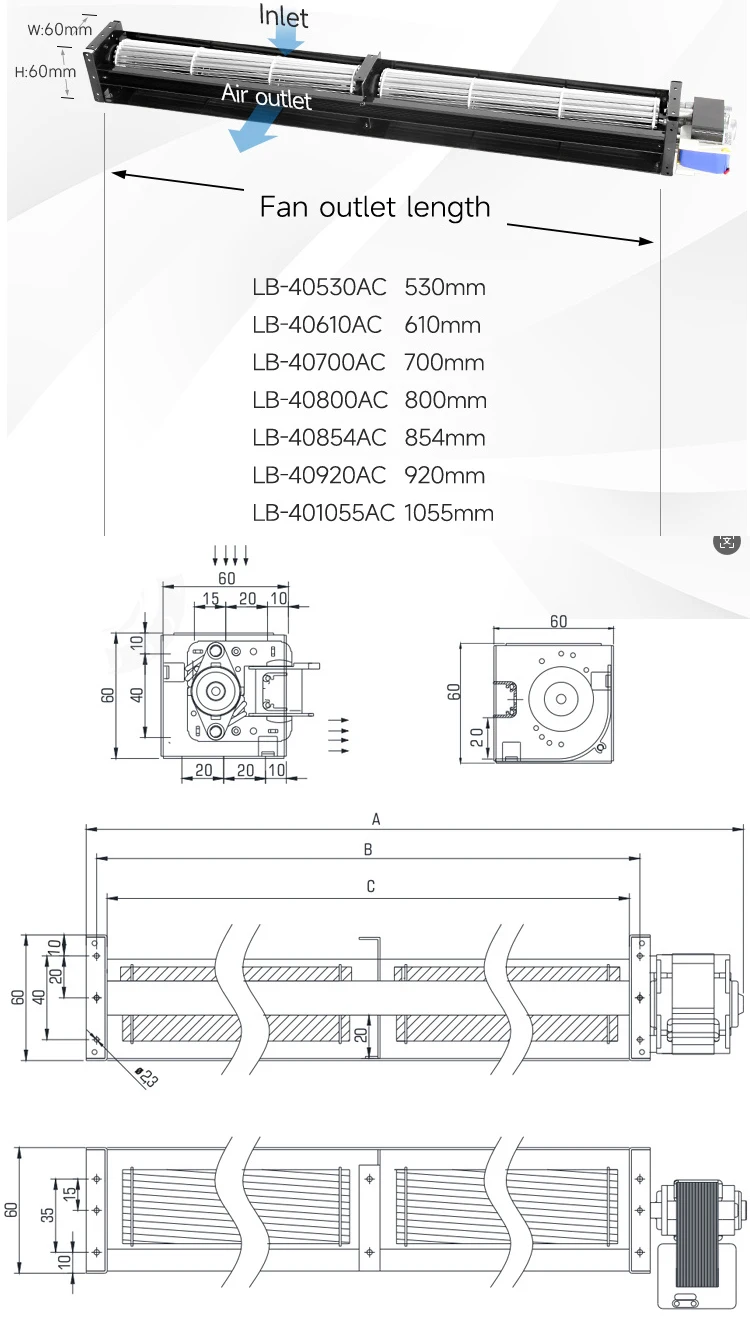

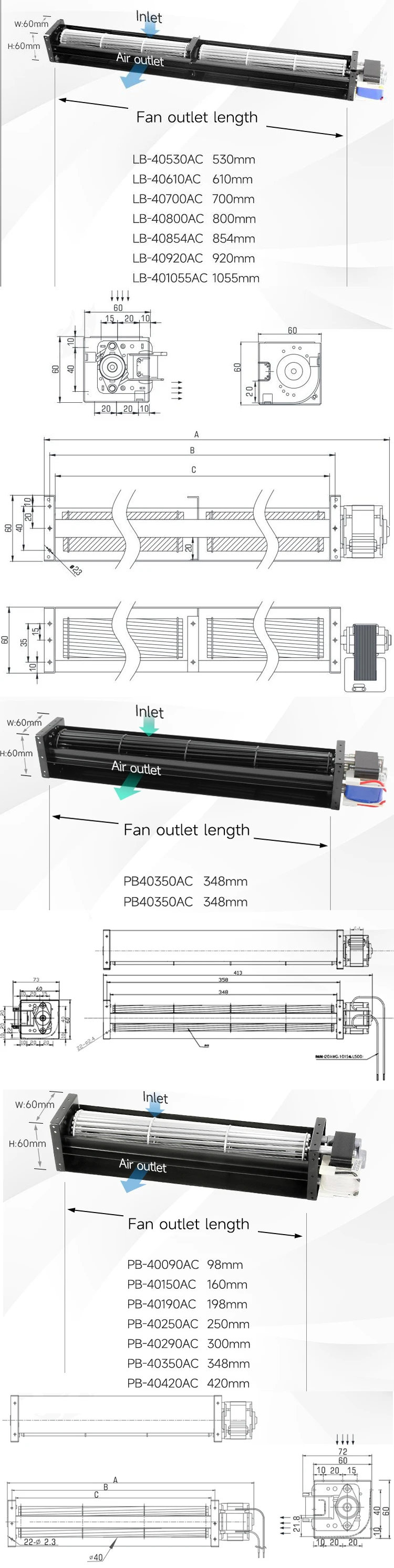

Product Drawing / Aerodynamic Performance Charts / Connection Diagram

Contact us for detailed specifications

Applications

HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.

Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.

Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.

Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.

Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.

Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.

Product packaging

Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.

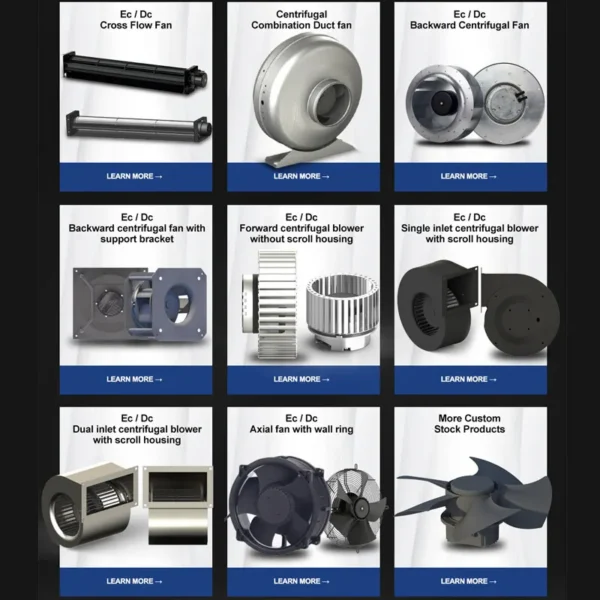

Related Products

Company Profile

Fanova (Suzhou) Motor Technology Co., LTD is a specialized research, design, and production enterprise focusing on AC fans, DC motors, centrifugal fans, axial fans, and cross-flow fans. Established in 2003, the company has evolved into a prominent player in the motor and fan industry, providing customers with high-quality products and outstanding services. It has established a strong influence in the market and earned a reputation for its commitment to innovation, reliability, and customer satisfaction. As a professional EC fan manufacturer, we possess advanced production equipment and a skilled technical team dedicated to providing comprehensive solutions to our customers. Our products are widely used in various industries, including industrial, commercial, and residential sectors, covering applications such as purification equipment, HVAC equipment, ventilation equipment, transportation facilities, medical facilities, household appliances, and machinery. We aim to provide customers with efficient and energy-saving solutions for airflow power needs. The company boasts a professional R&D team, dedicated to driving continuous innovation and technological breakthroughs in product development. Our R&D efforts focus on exploring new plastic materials, enhancing motor and fan designs, improving manufacturing processes to stay at the forefront of industry trends. Our products have passed multiple international certifications, including CE, UL, ROHS, providing customers with reliable assurance and meeting the diverse needs of different application areas.

FAQ

Q1:What kind of payments do you support? A1: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment Q2.Will you provide samples? A2: Yes, samples can be delivered within 10days on request. Q3:How can I place the order? A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure and usually quote you within 24 hours after we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods. Q4:About transportation A4: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5:After-sales service A5: We will provide professional after-sales service, patiently answer customers' various problems to ensure the normal operation of products .

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $22.6 / piece
  • 50–99 piece: US $16.95 / piece
  • 100+ piece: US $11.07 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this impeller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this impeller carry?

It is supplied with EAC, TUV, GOST, ISO9001, ROHS, CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the impeller be supplied for my local voltage?

The standard configuration is 10V 12V 24V 220v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
